Store / Accessories
Coil winding, Spools etc

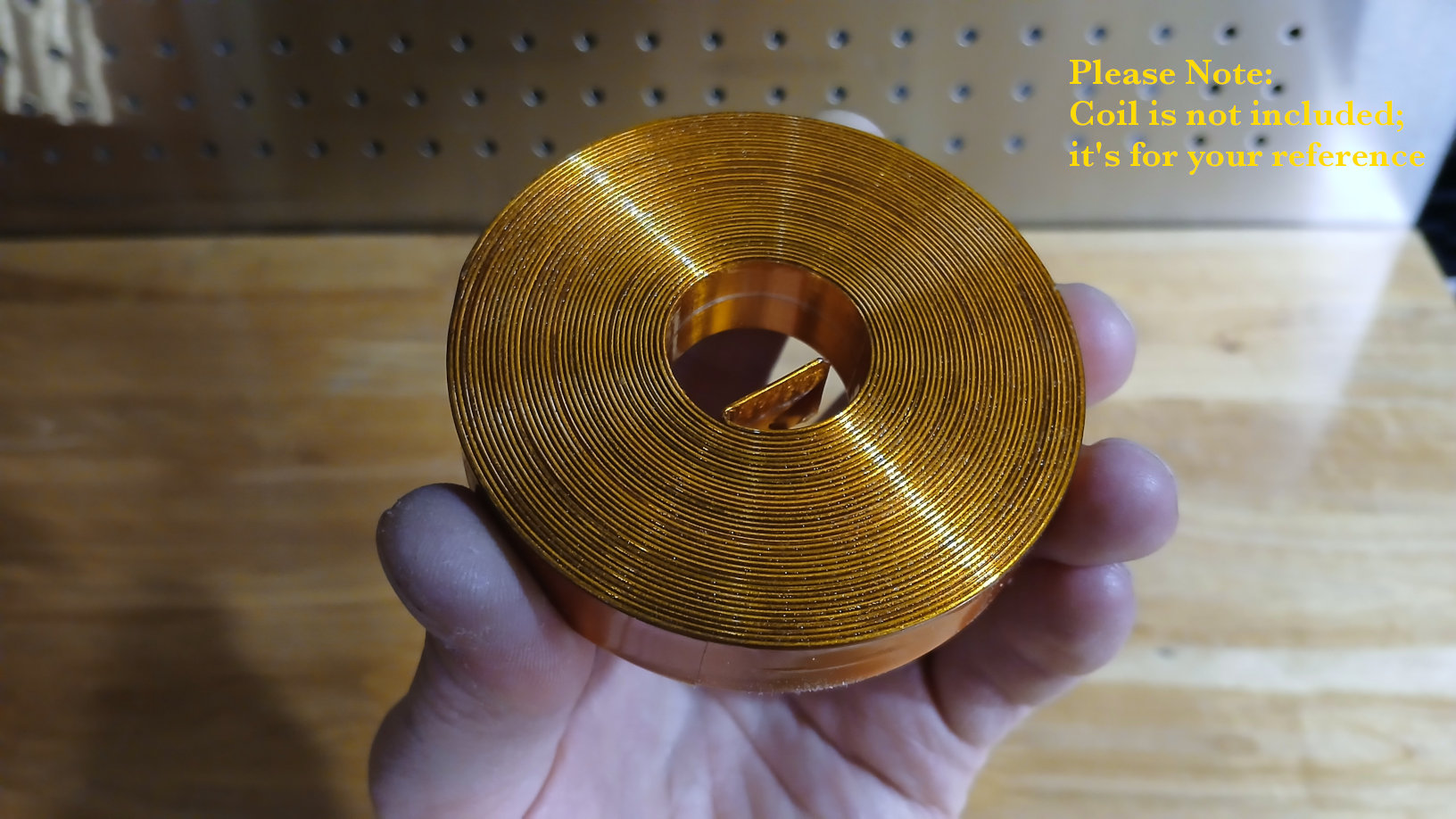

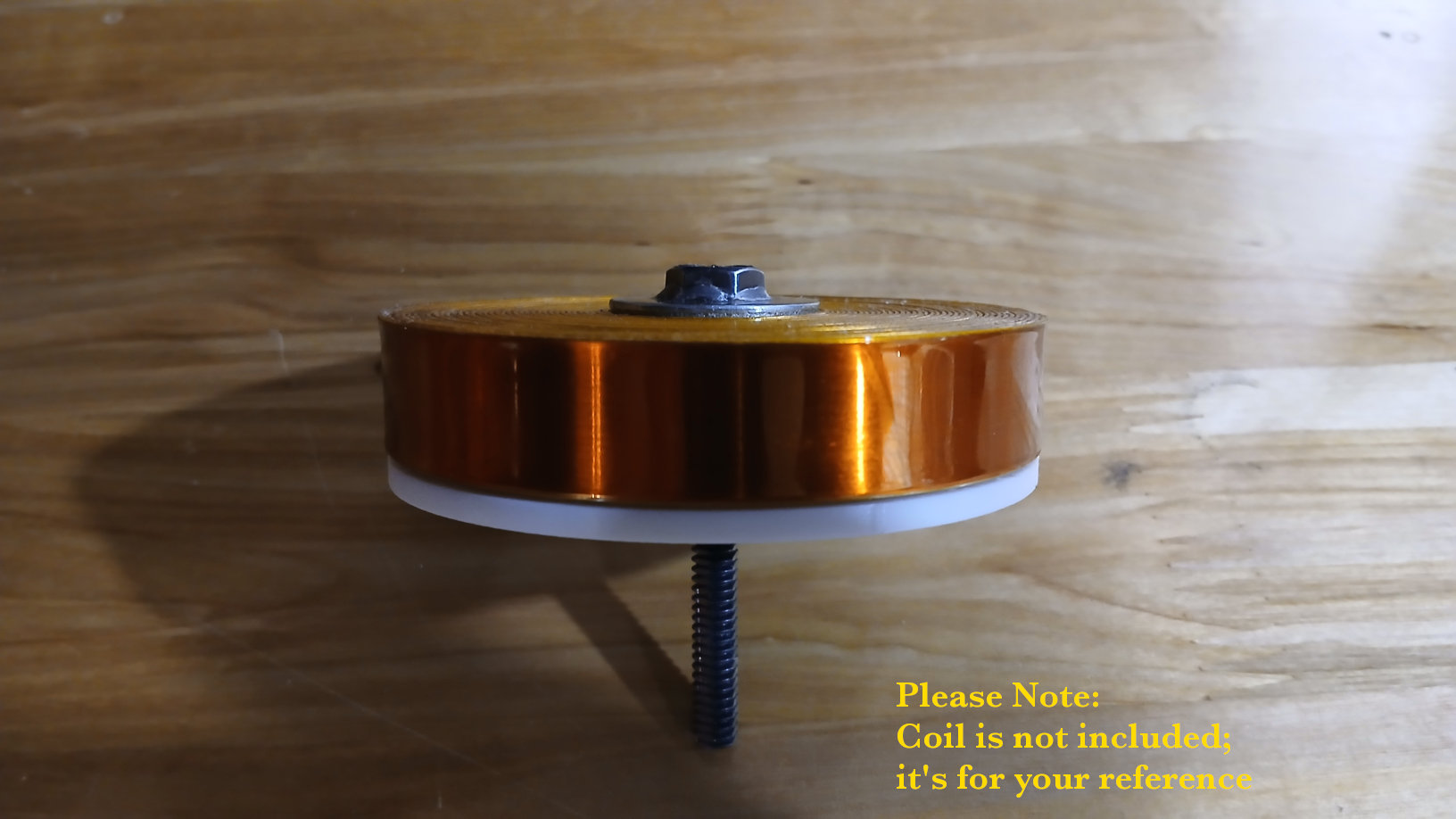

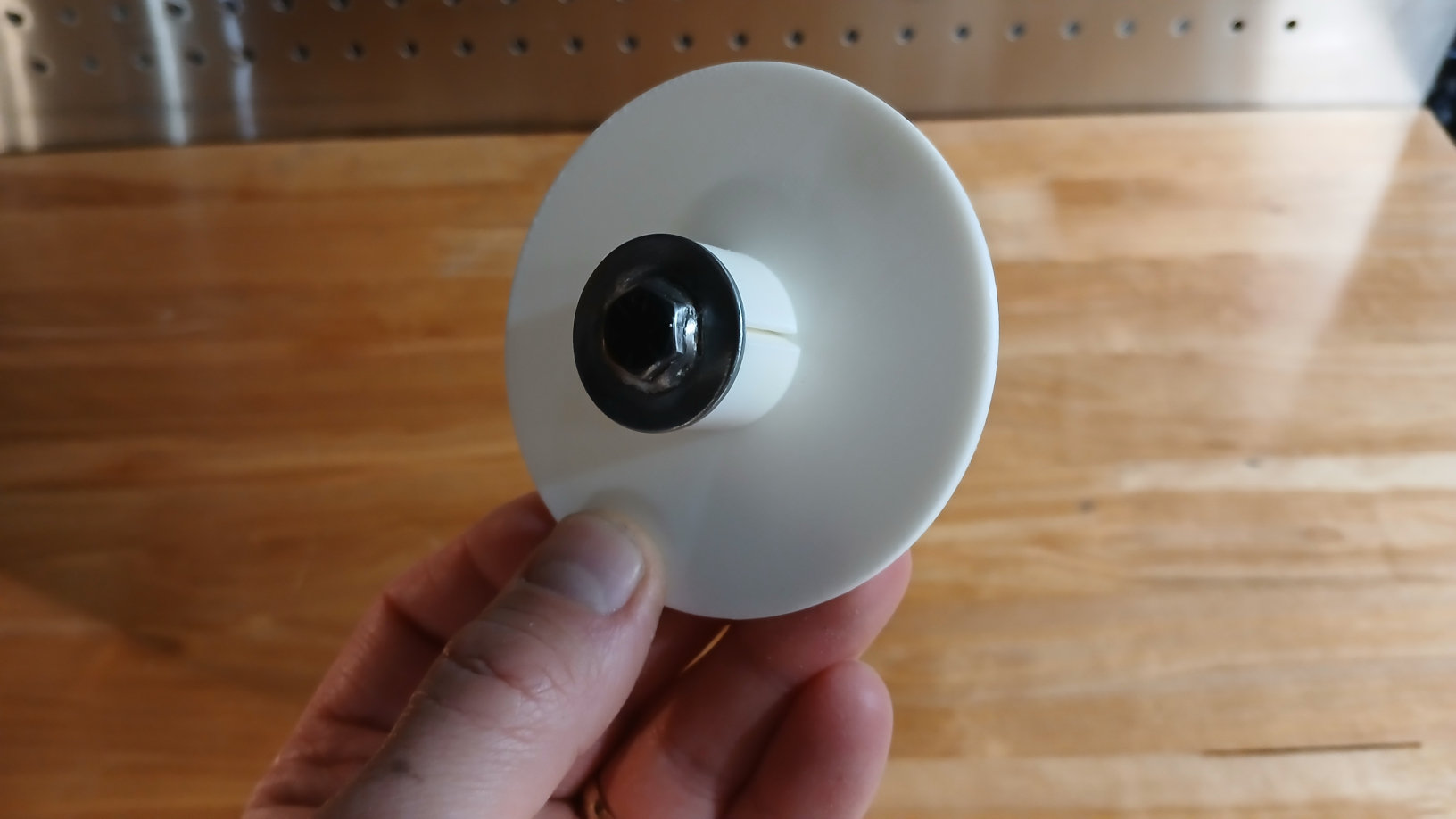

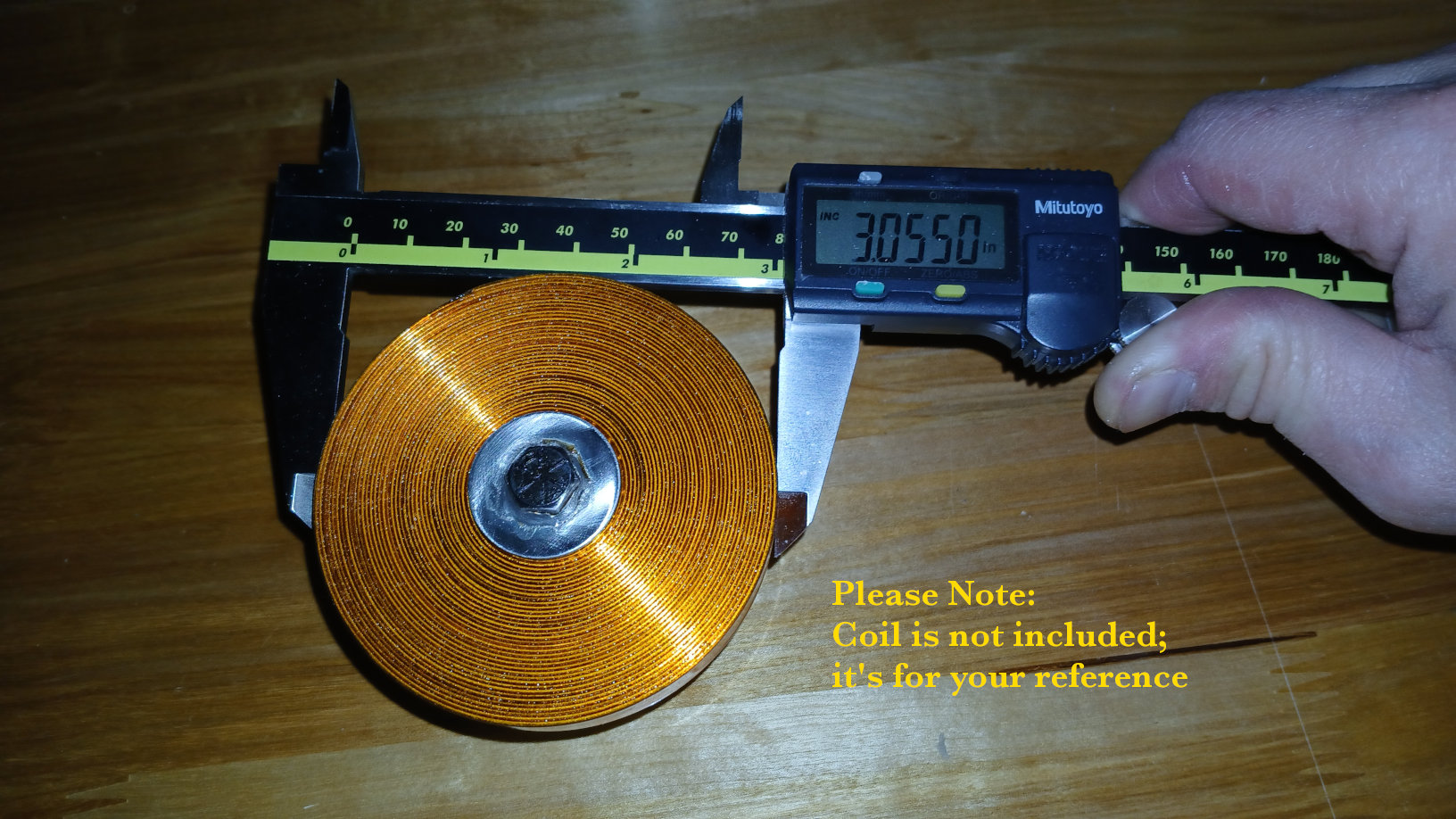

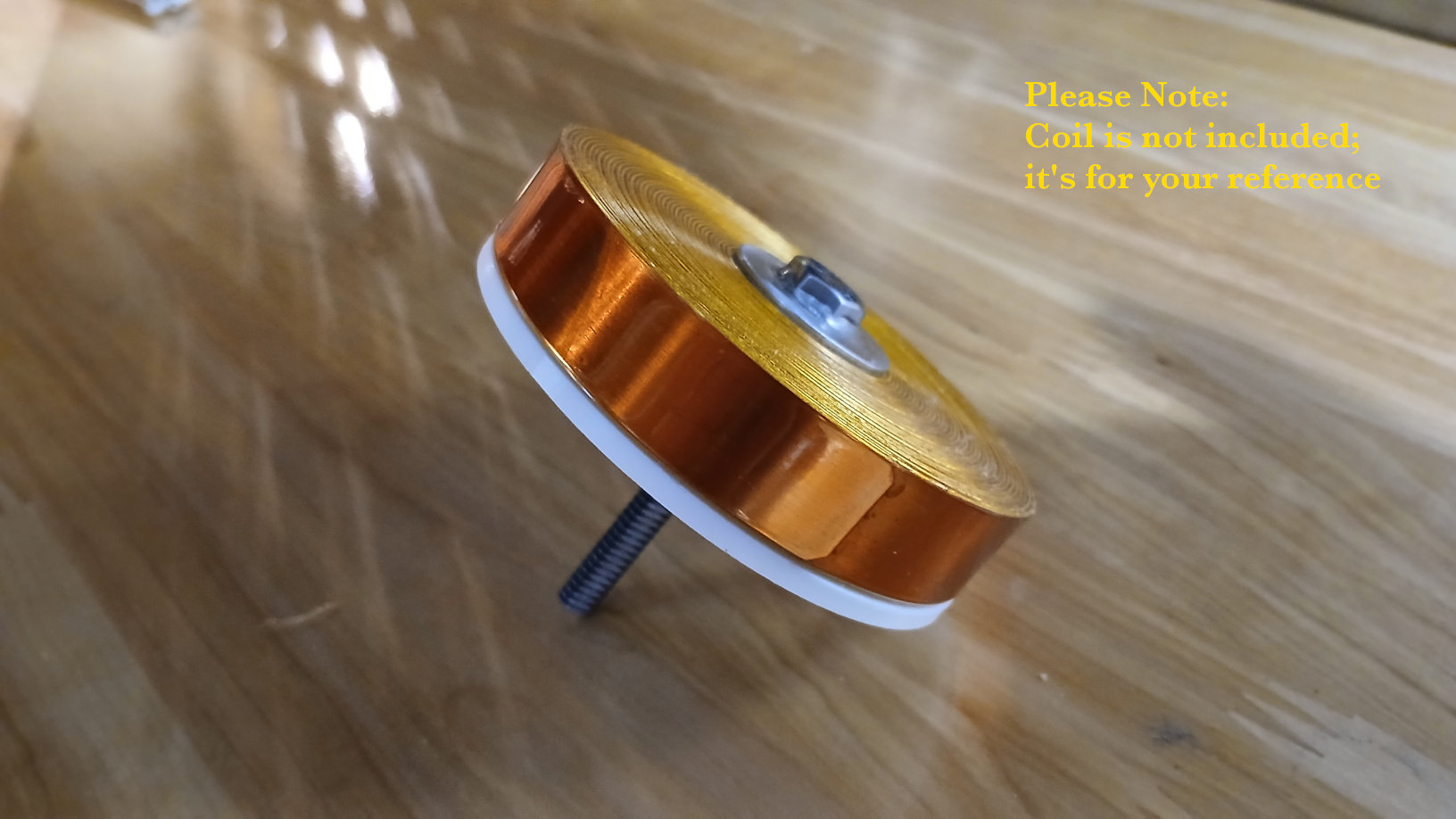

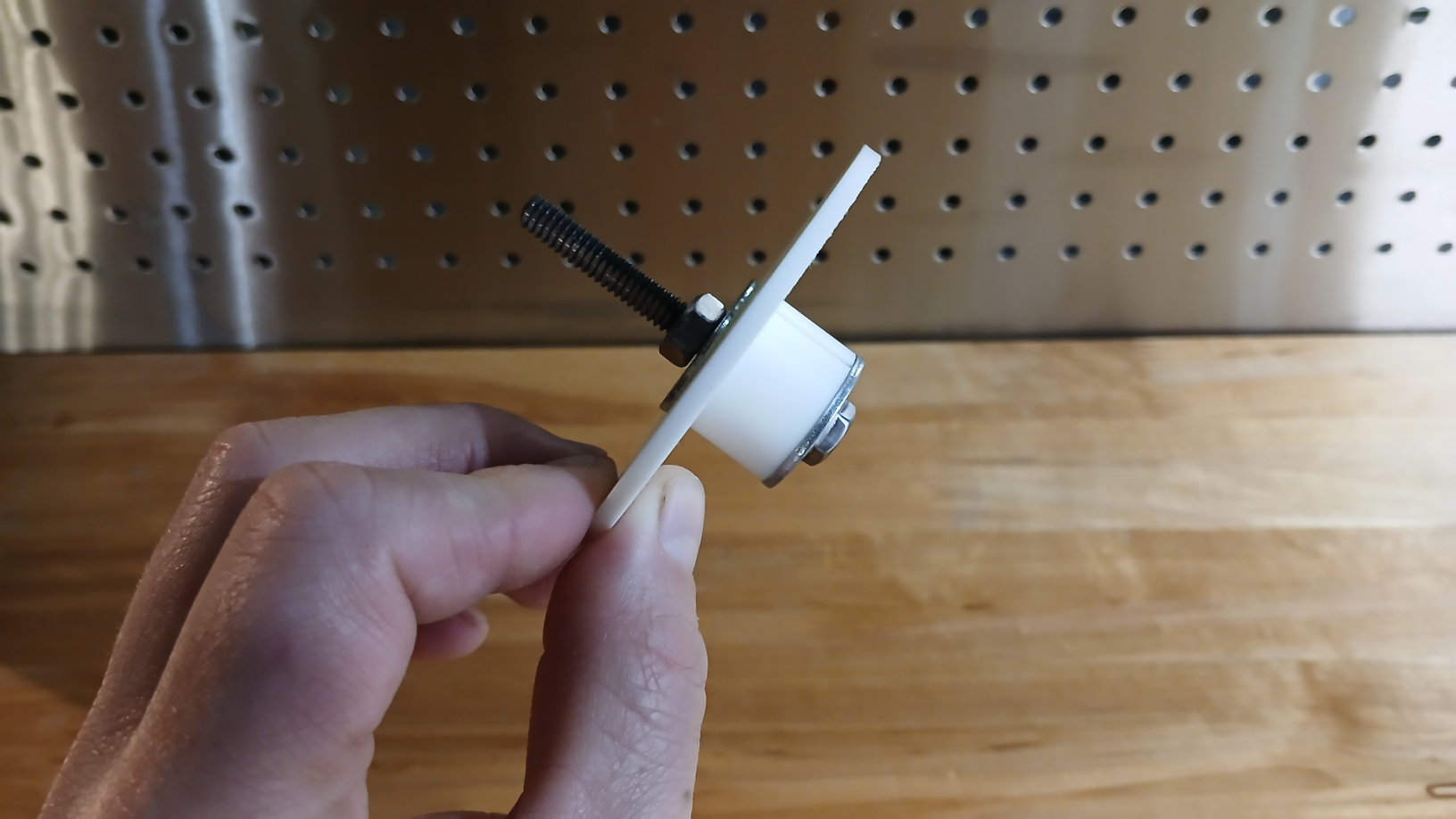

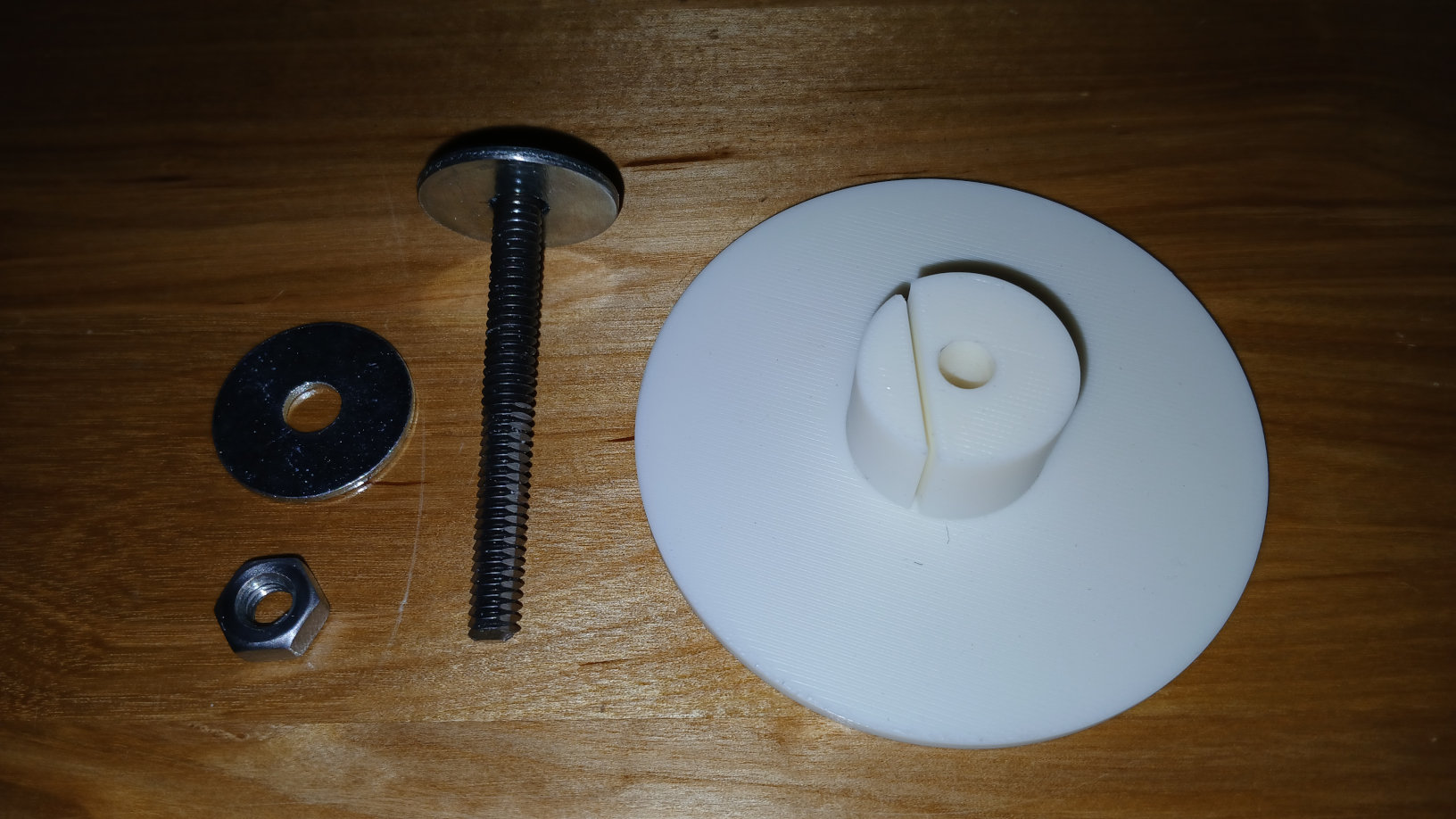

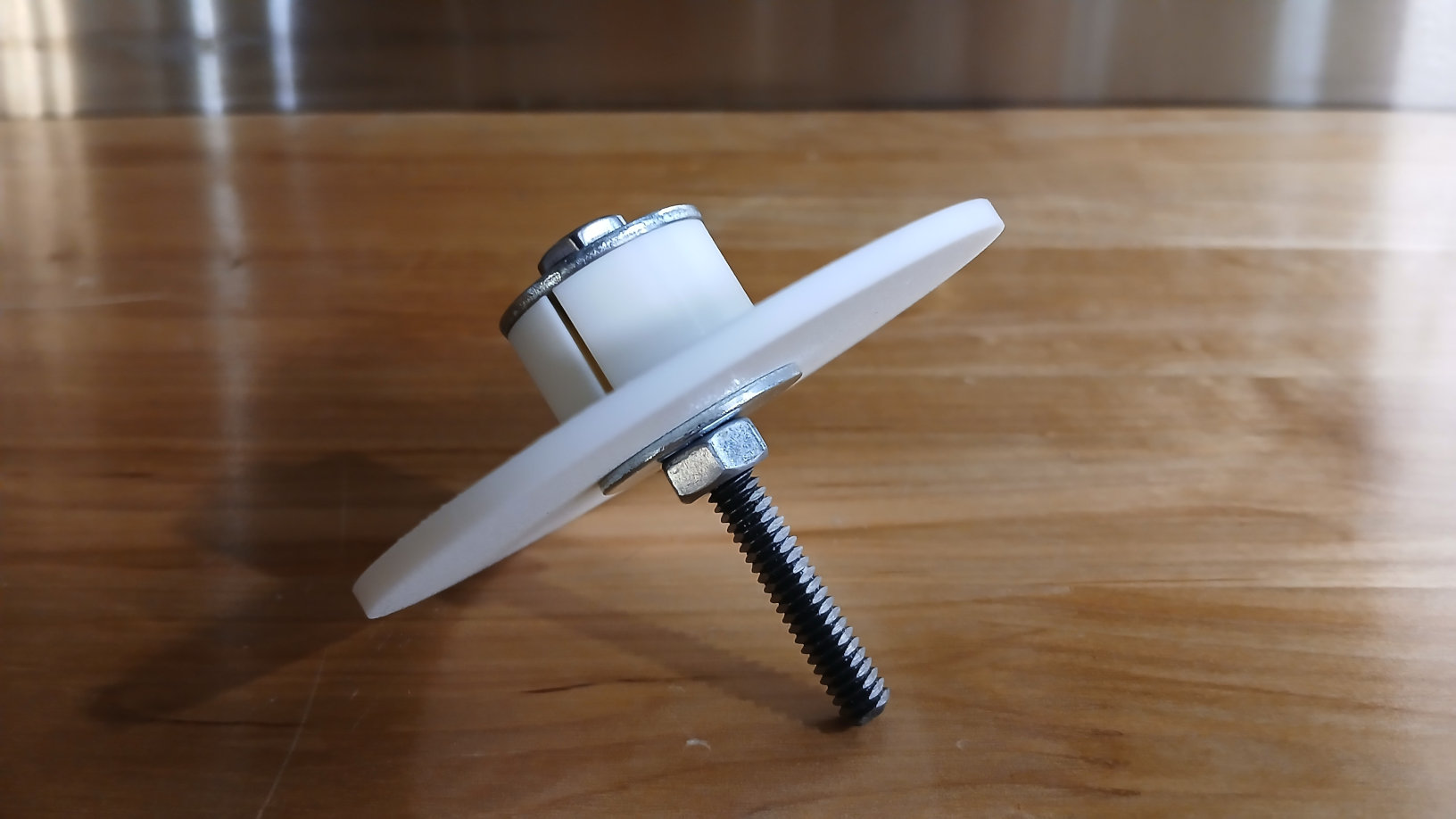

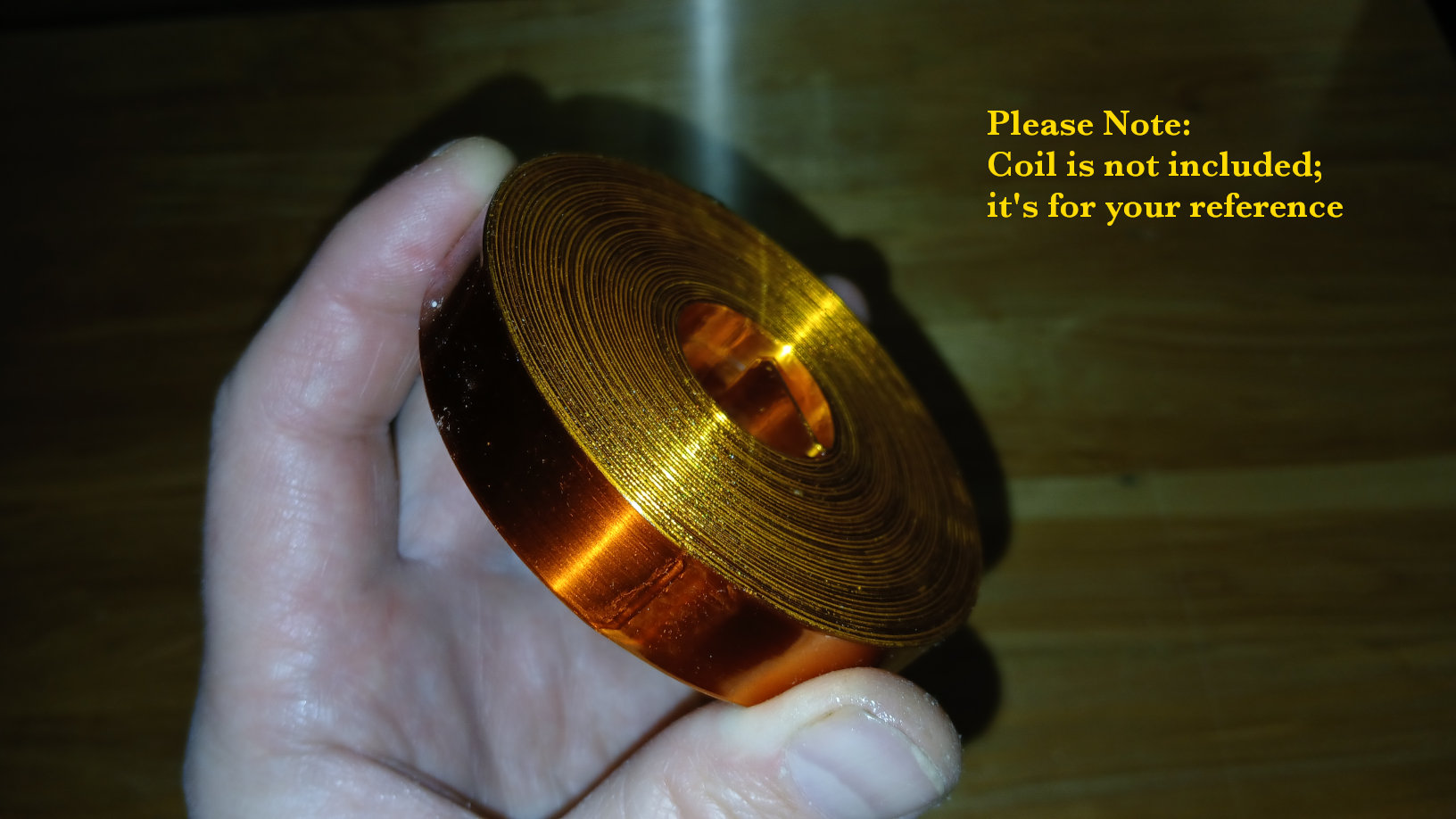

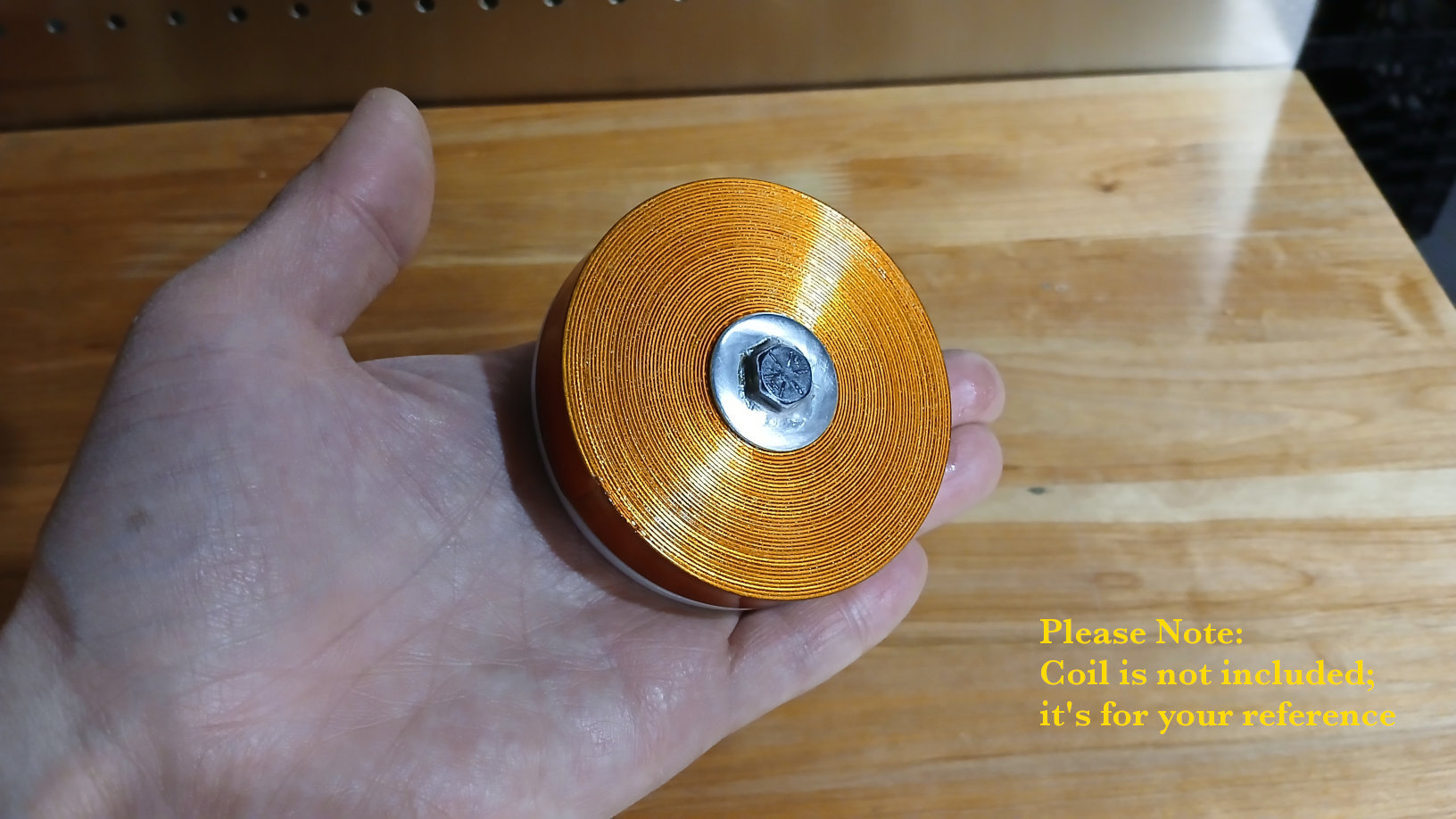

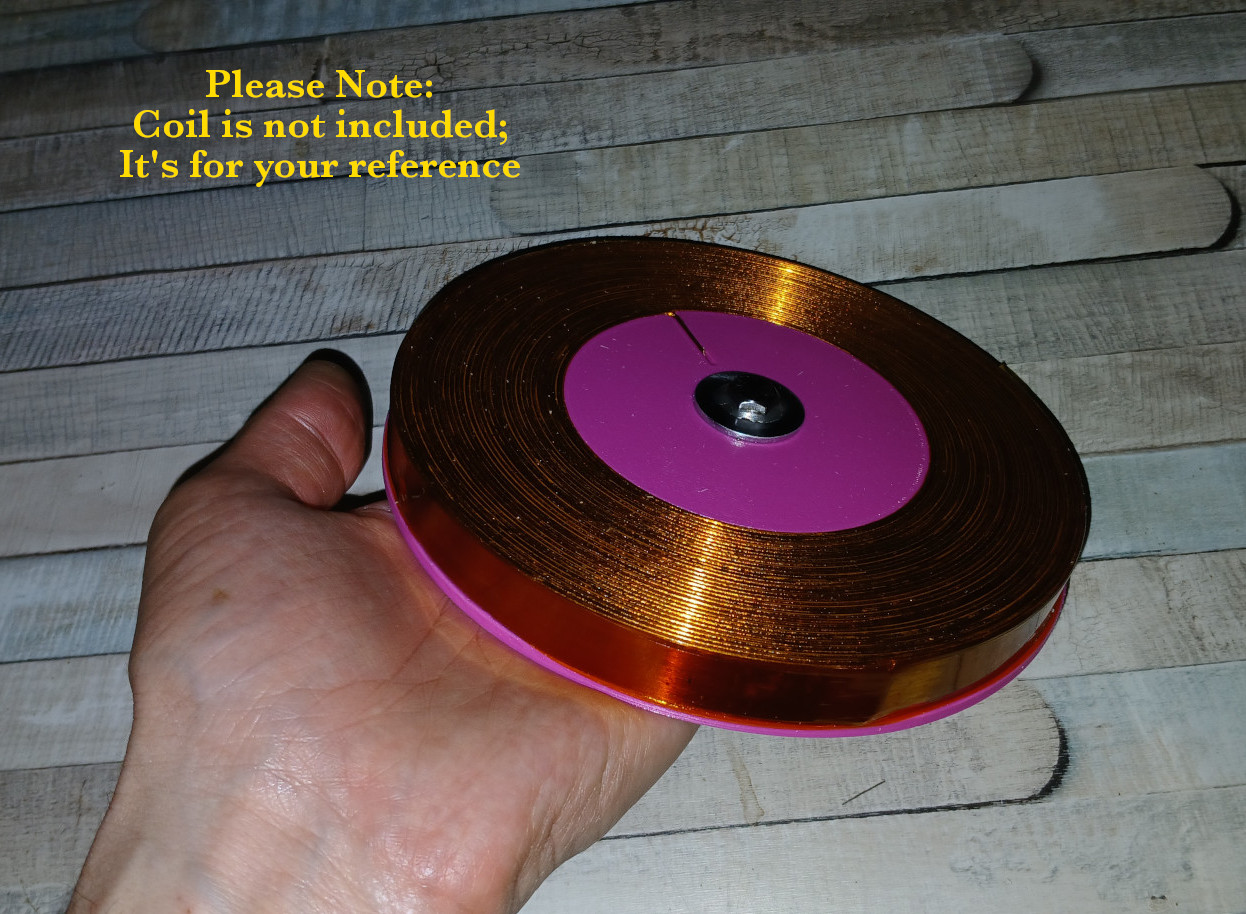

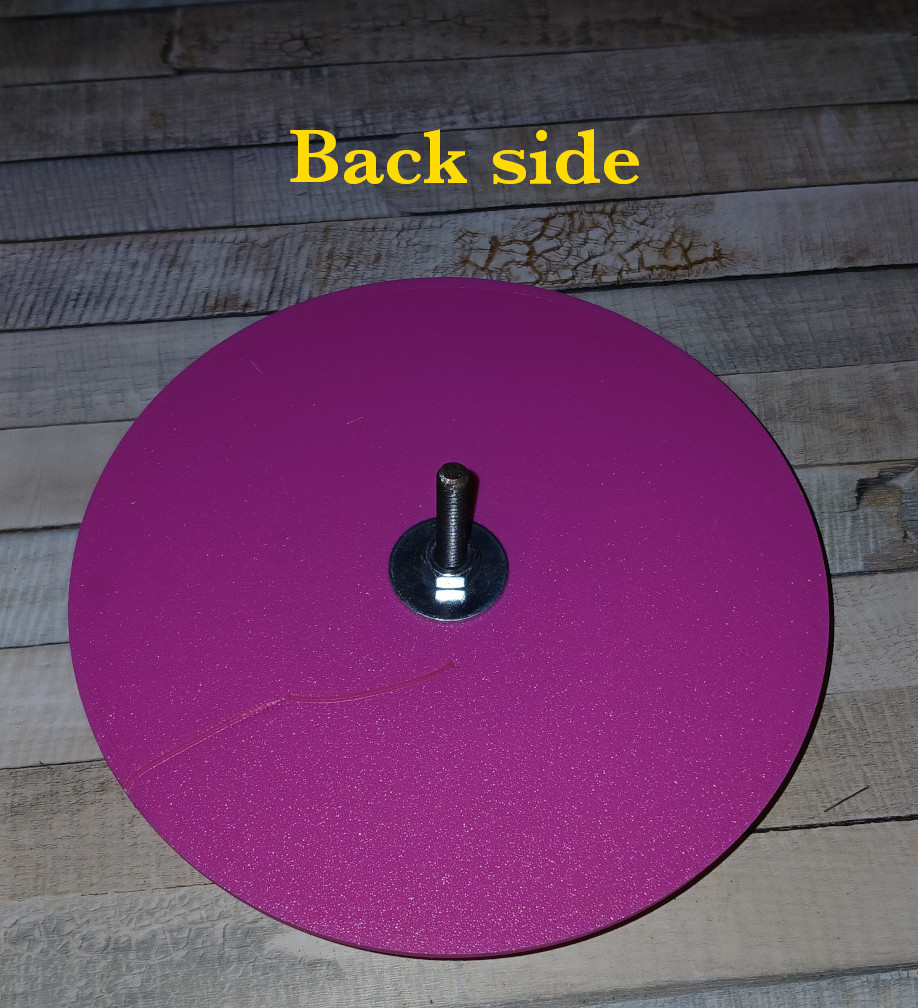

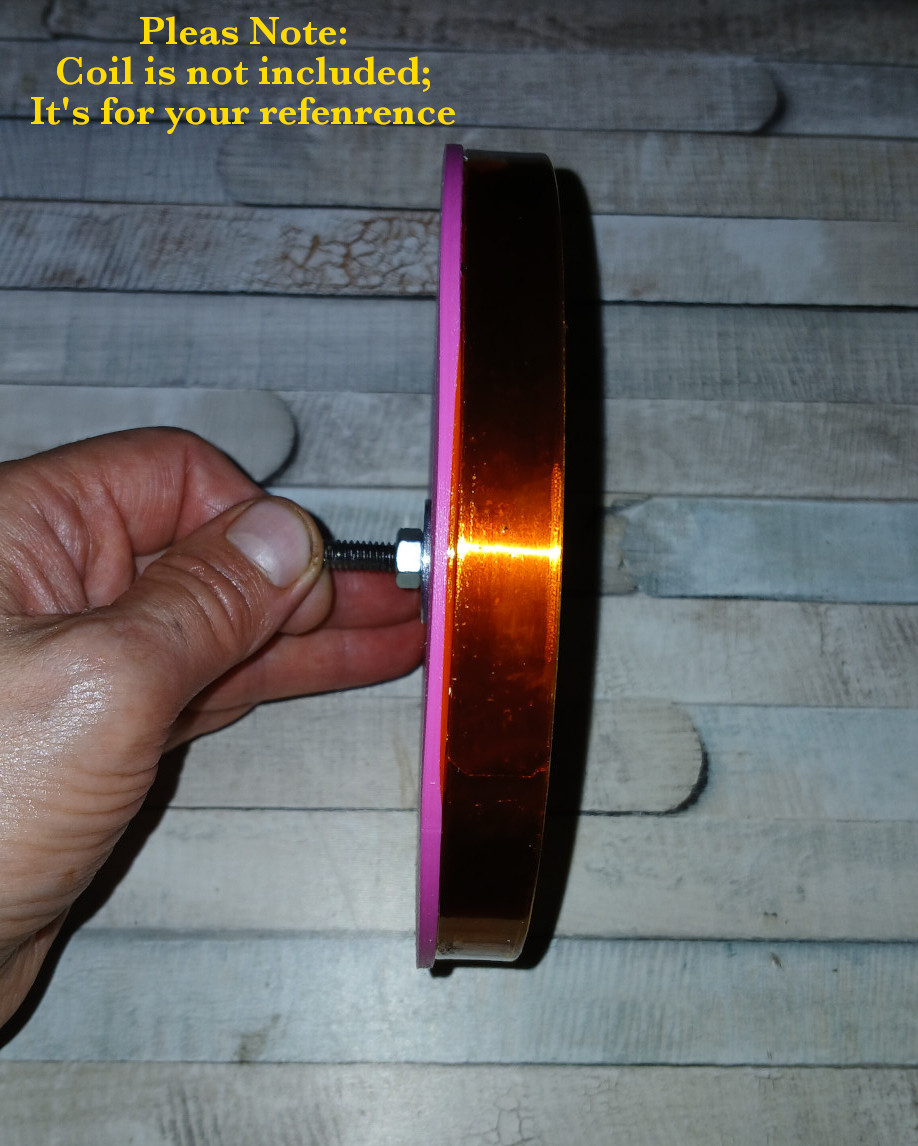

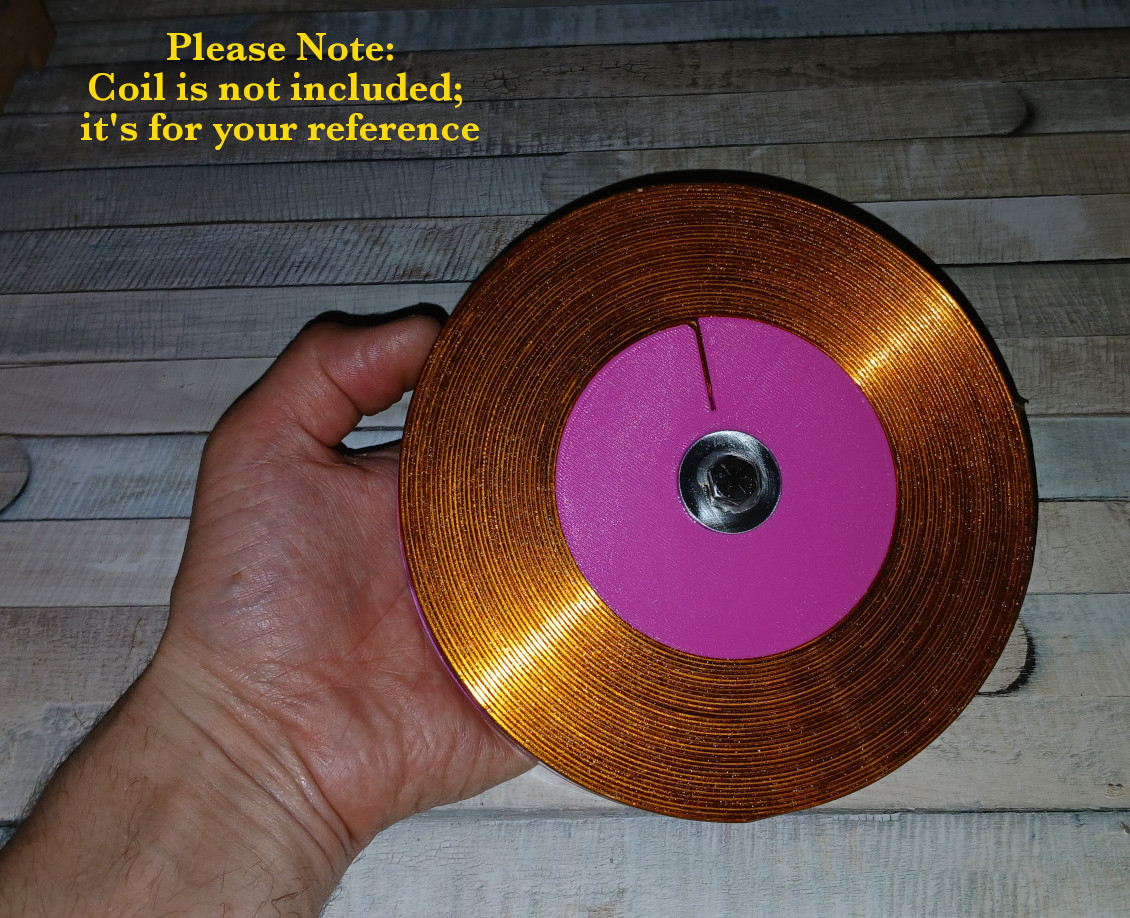

3″ Plastic Coil Winding Spool

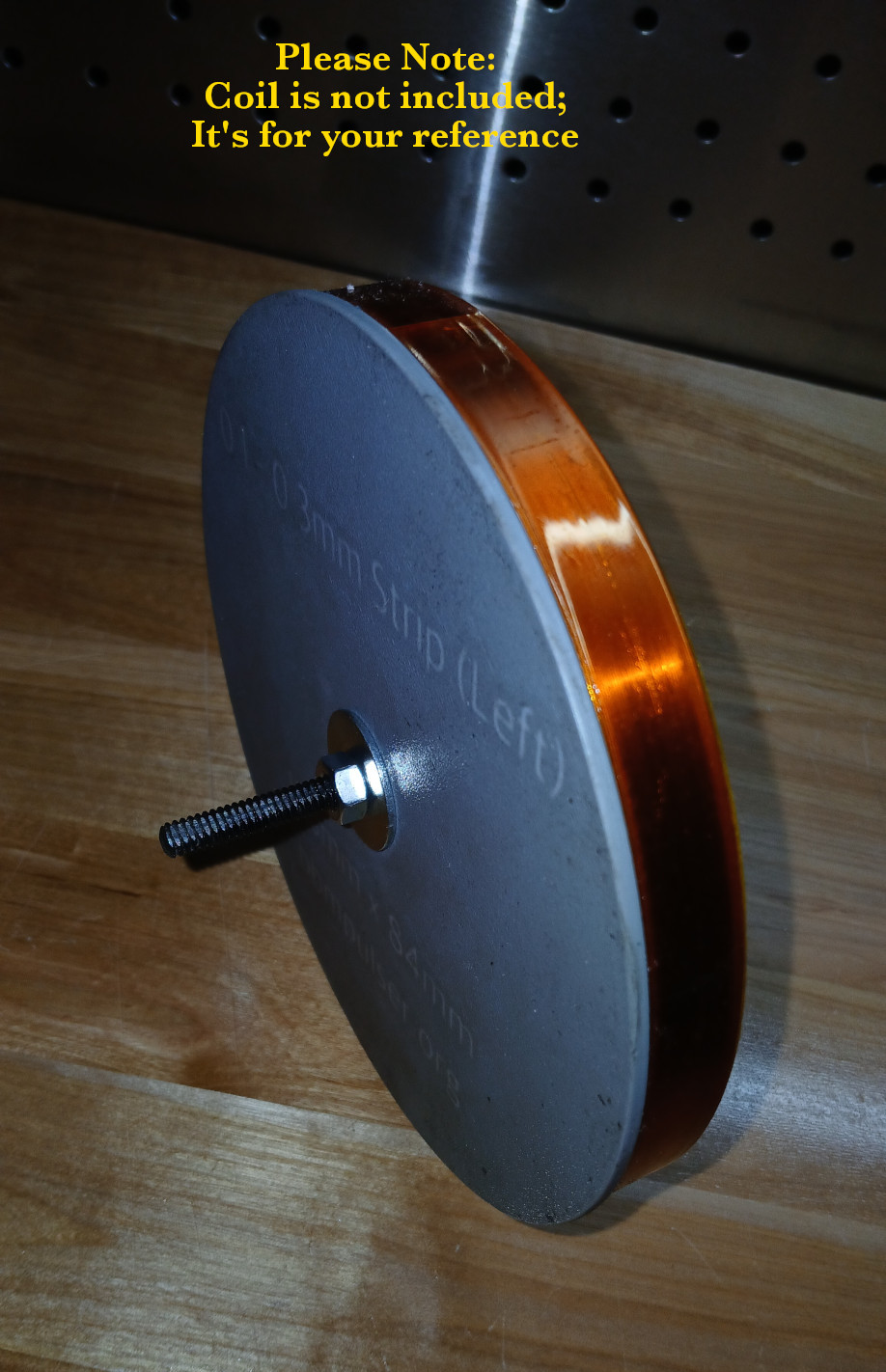

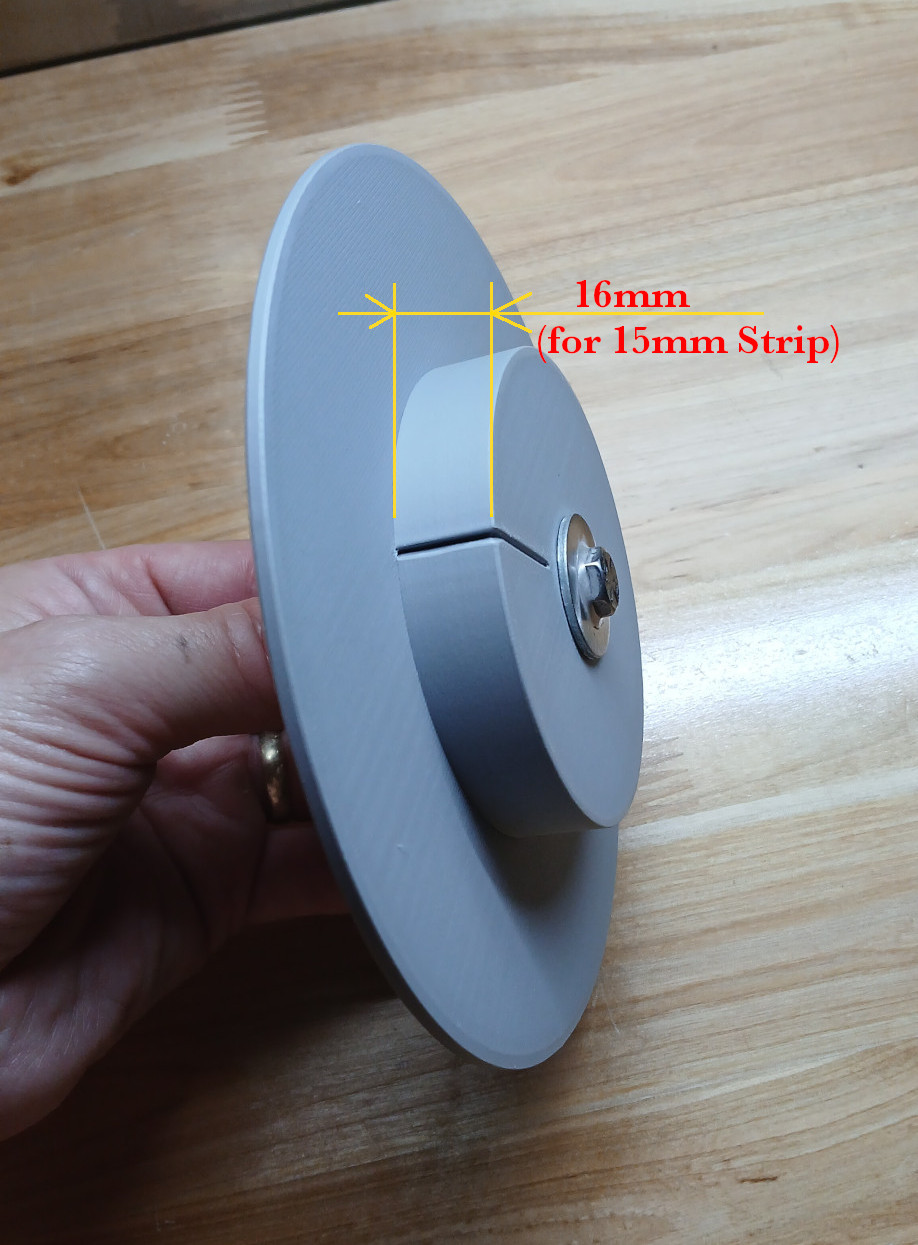

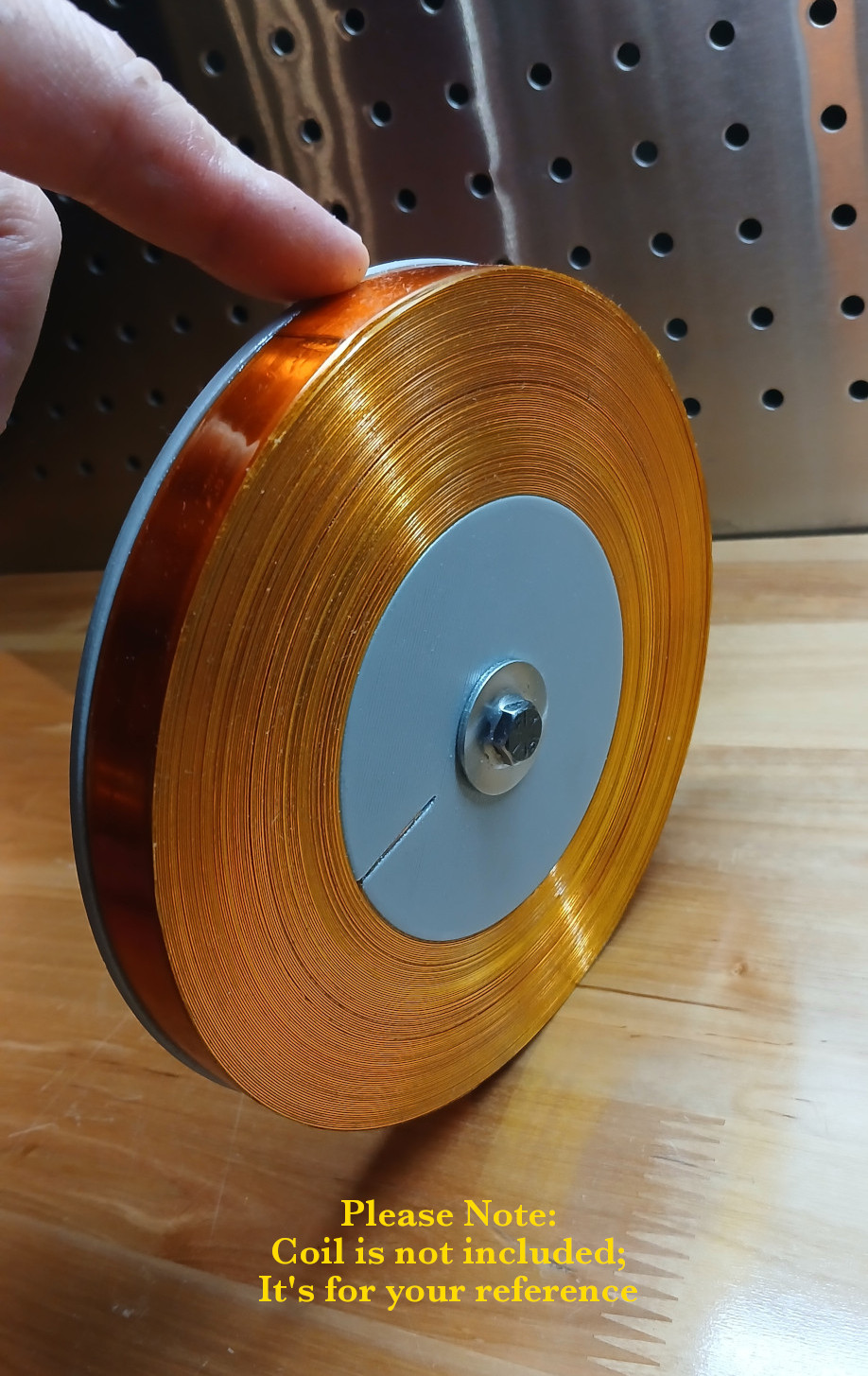

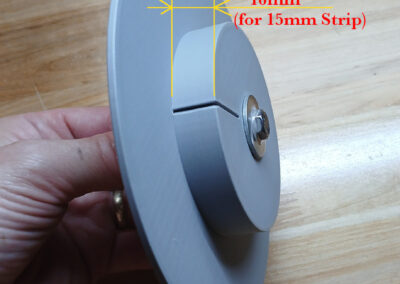

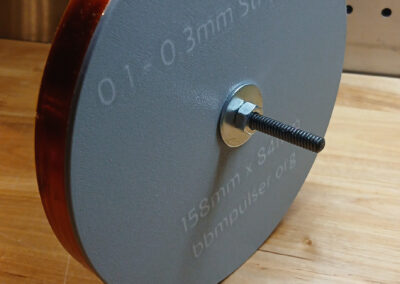

Coil Spool winder. Designed to help you wind 3″OD Classsic Coil with 1″ ID (Air core). Configured to be use for 0.5mm or 0.6mm thick x 15mm wide Copper strip wire. If you use 0.6mm copper strip, you will need at least 6 meters long strip. Your Coil will end up to be 1″ ID (25mm) and 3.05″ (77.5mm) OD, weight ~ 1Lb(~ 450 Gram)
Material: 3D Printed ASA Plastic
OD 3.065″(77.8mm), ID 0.986″ (25mm)
Total spool thickness 18.6mm, Center OD 15.6mm
Center hole for the bolt is 6.3mm
Bolt: 1/4″-20 x 2 1/4 Full Thread Hex Cap Screws Grade 8 Black Oxide
Price $19.00 USD including free shipping in USA
Contact me support@bbmpulser.org to place your order
Capacitor Discharge Resistor
3D Printed box assembly view
Watch YouTube Video HERE and demo video HERE

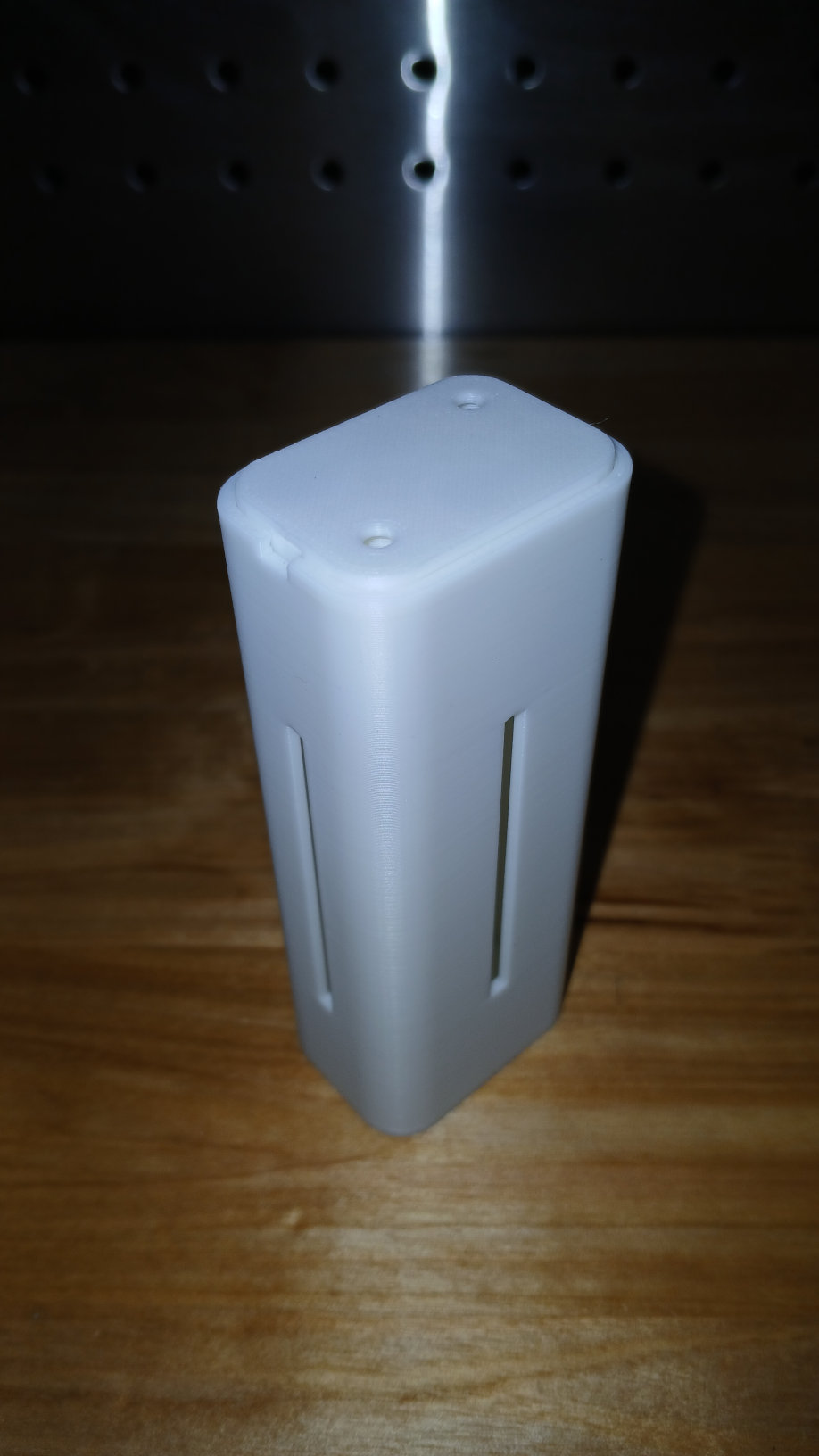

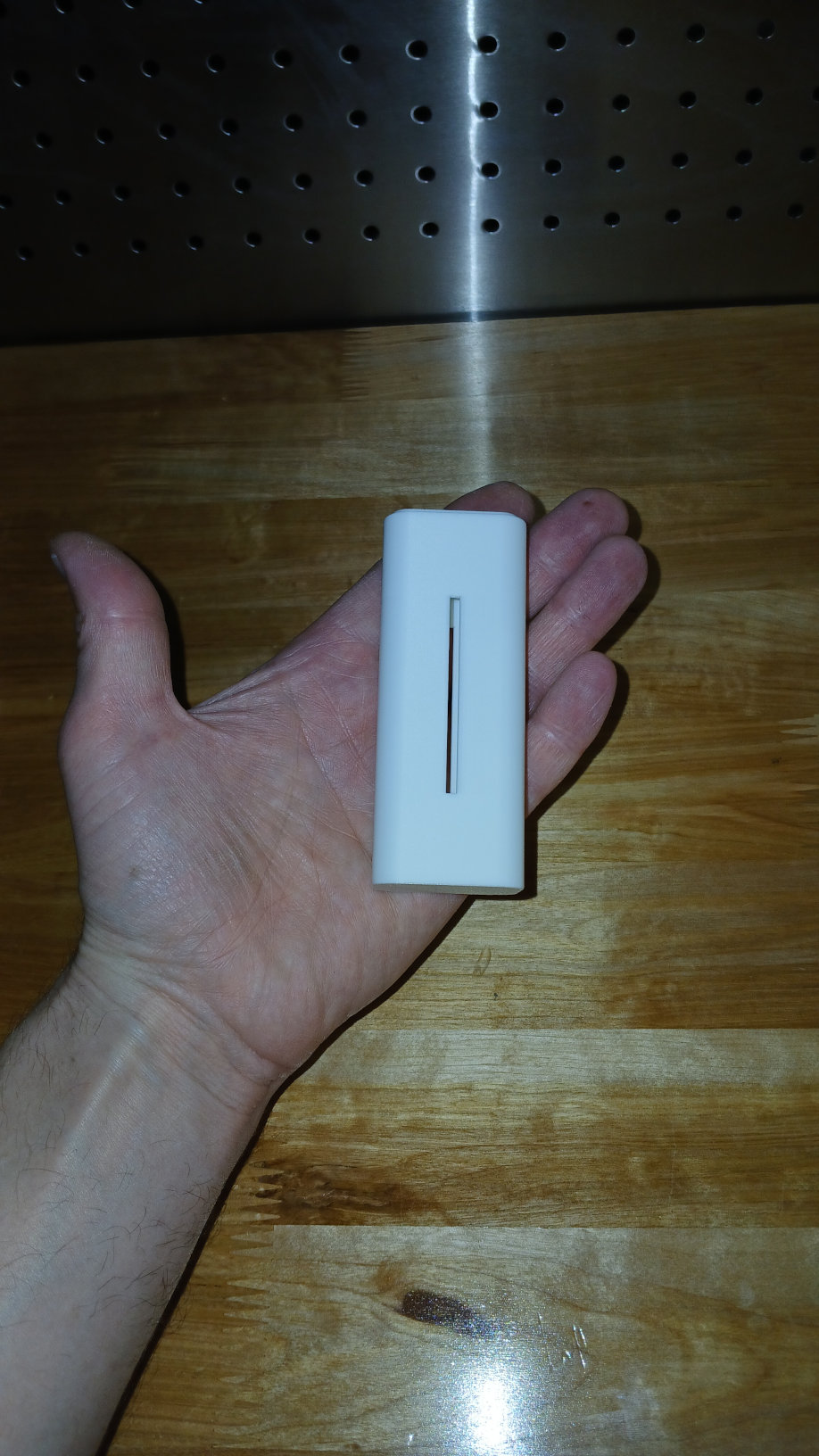

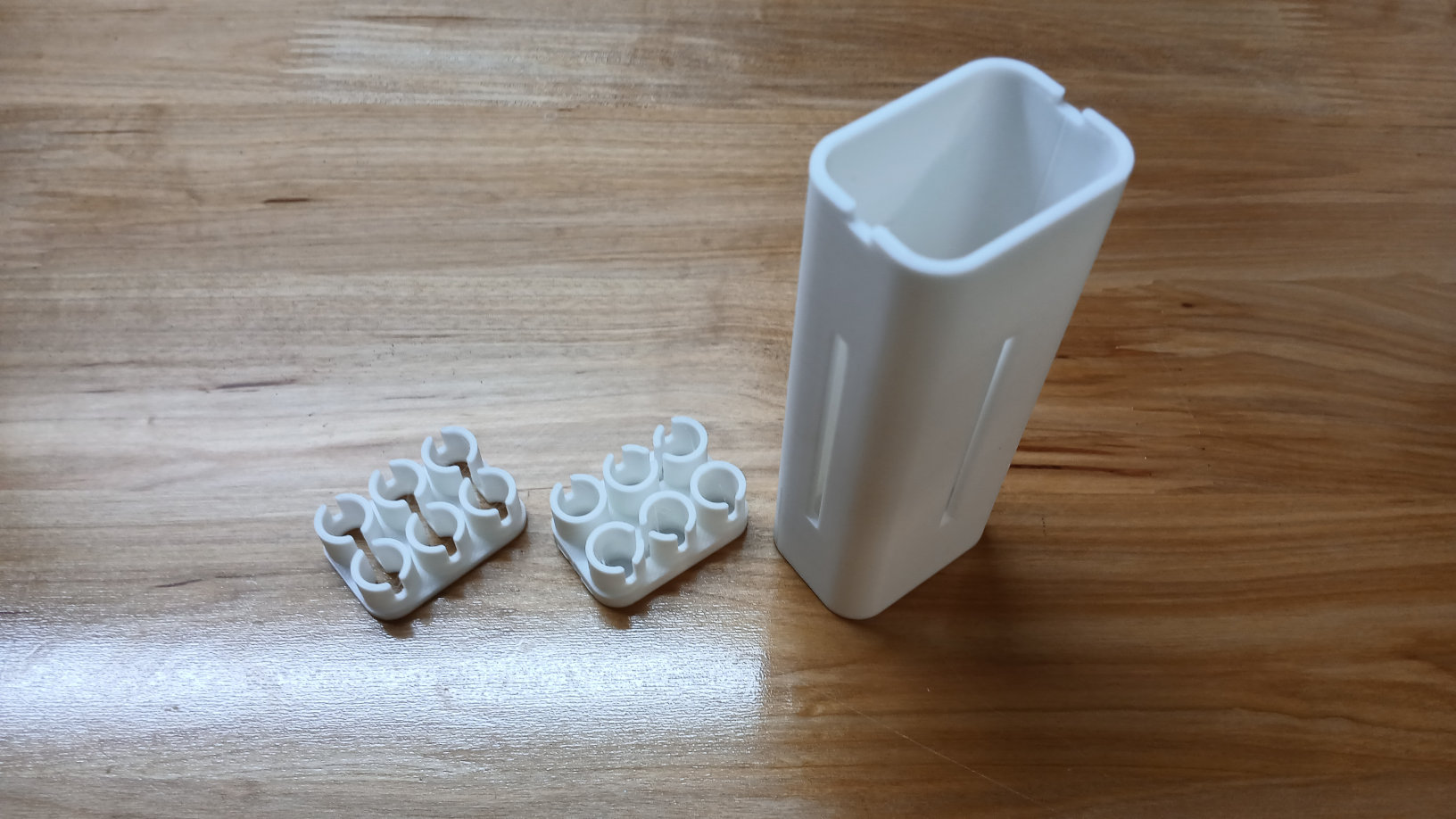

3pcs Capacitor Discharge Resistor Box (housing)
Price $6.00, Shipping in USA $6. Contact me support@bbmpulser.org to order
Or Download STL files for 3D Print here (Free)
Credit for design go to Bob P. Thank you Bob, we really appreciate your contribution to Open Source community!

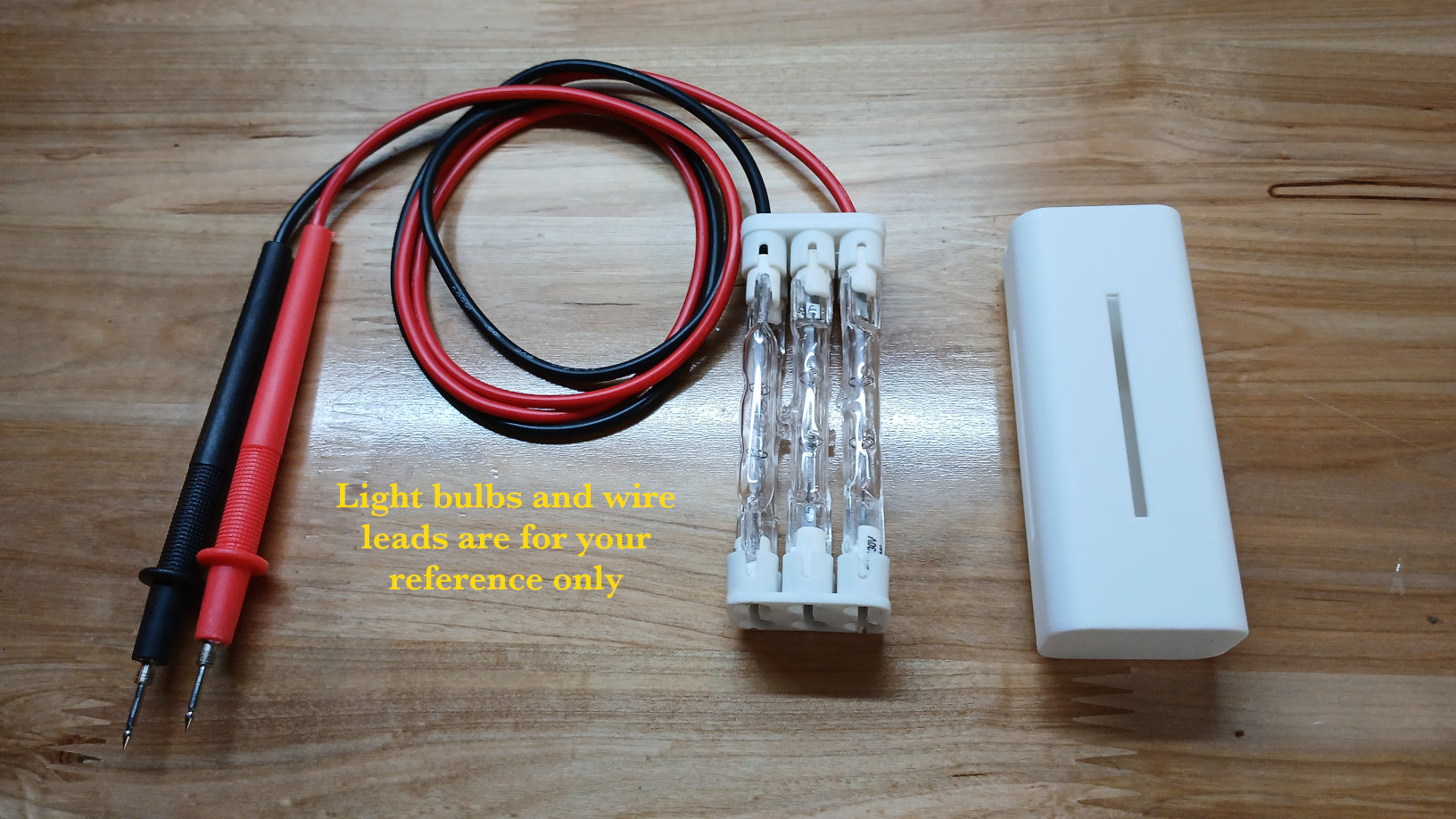

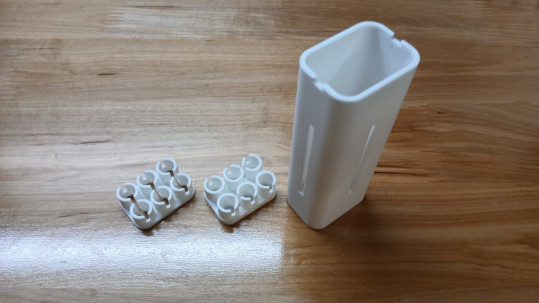

Capacitor Discharge Resistor Box 3pcs
Material: 3D Printed Plastic – PLA (Polylactic Acid)
Size: 1.05″x1.45″x3.75″ (27x37x95mm)
Print with any filament incl. PLA
This Box is designed for 6x 78mm 220-240V 75W-150Watt J TYPE T3 Halogen Bulbs (tubes)
I recommend purchasing at least 8pcs (10pcs is optimal) and measure their resistance. Select 6 with about the same resistance and use them in this set up. This light are cheap and some may be bad out of the box. You can find this lights on Aliexpress.com for under $20 /10pcs incl. shipping
Here is the link to one of the seller, 8pcs for $11.30 with free shipping. Make sure to select 100W bulbs!
eBay also has them, but they are all 120VAC, make sure you get 220VAC bulbs
Bulbs may have “nipples” in the middle of the tubes from the manufacturing process. I don’t think they all do from images I’ve seen, but when they do, you need to make sure to clock them as shown on the Picture for clearance to keep them from touching.
Also you will need “Universal Digital Multimeter Multi Meter Test Lead Probe Wire Pen Cable 1 set”
You can find them on eBay.com or aliexpress.com
You will need acid to solder them in parallel. Their end contacts are made from stainless steel and it’s hard to solder them with flux. I use Phosphoric acid 85% concentration, works great.

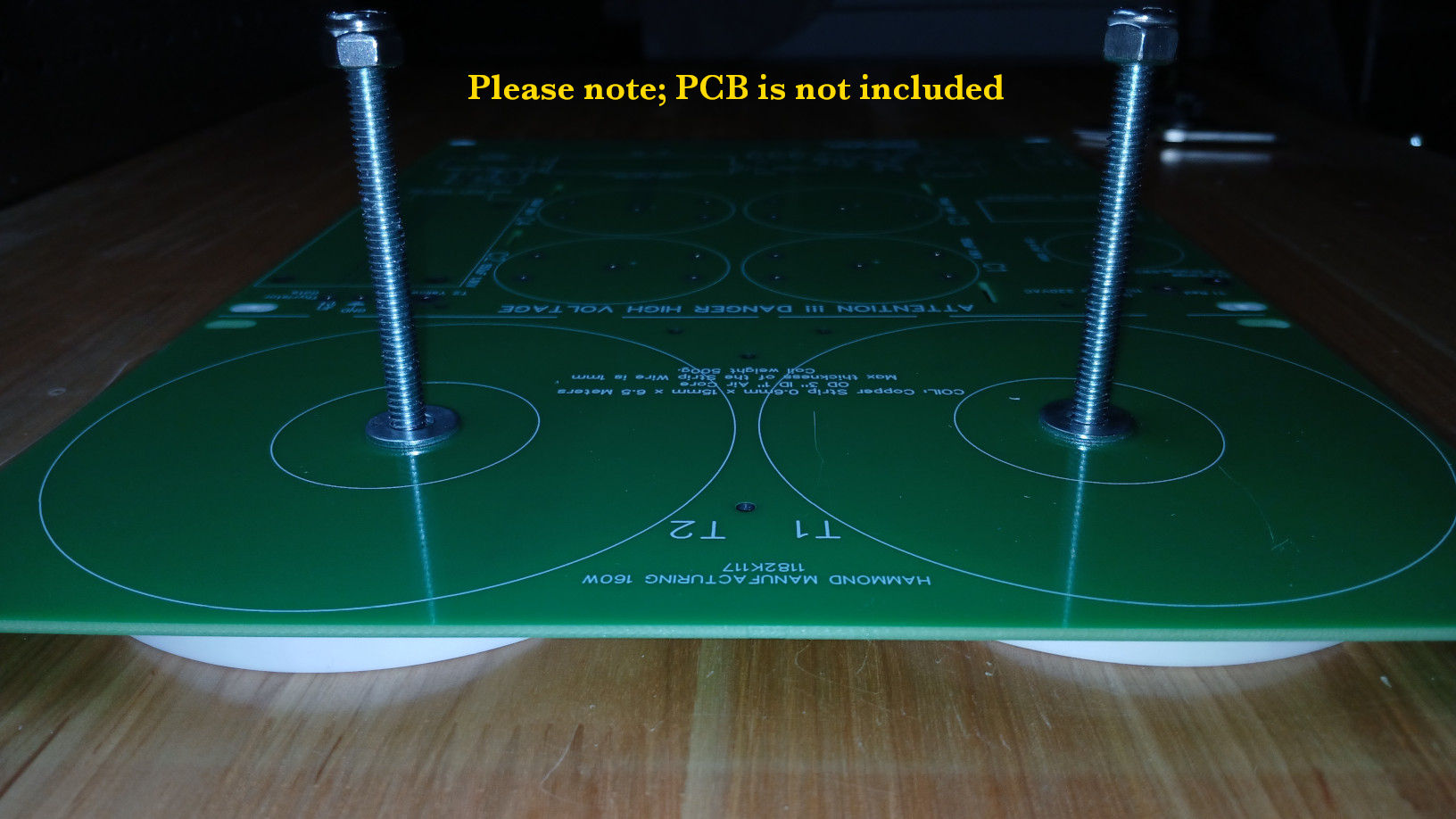

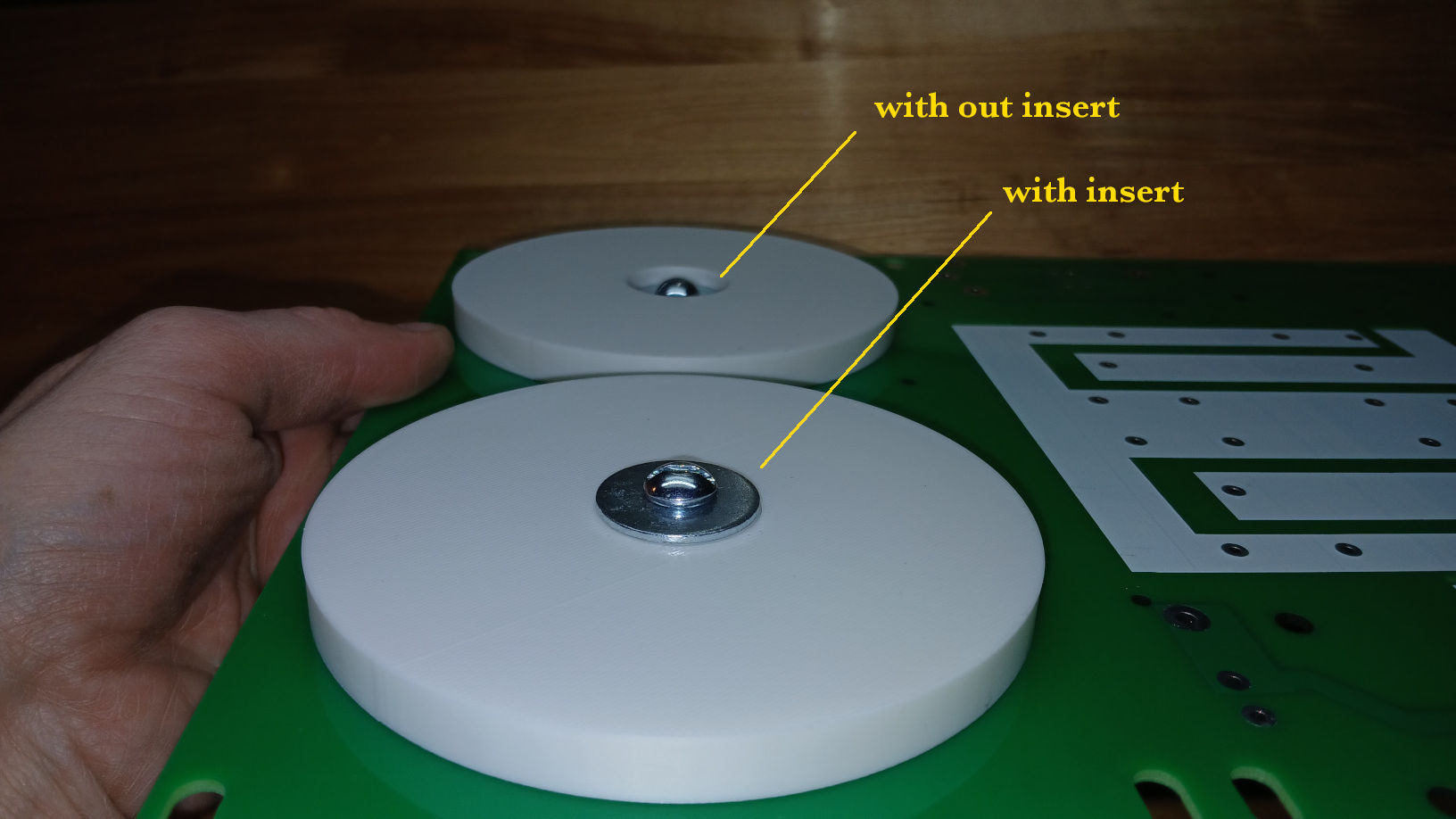

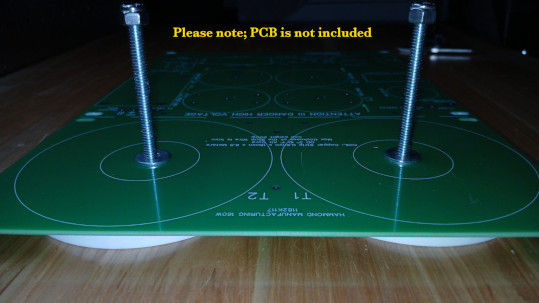

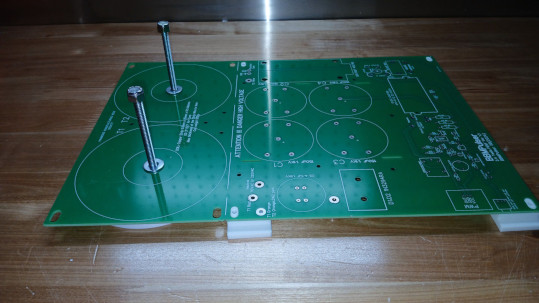

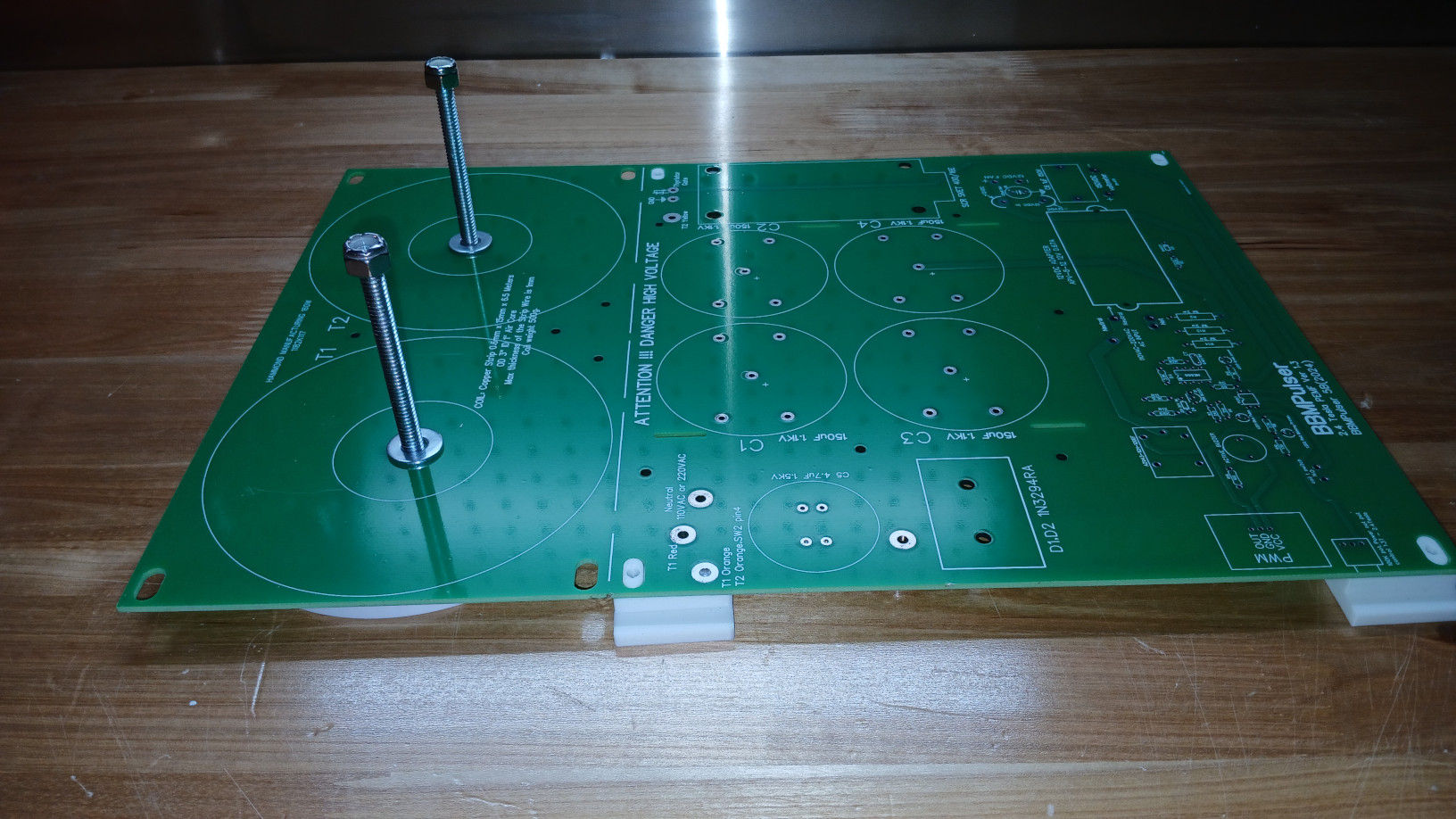

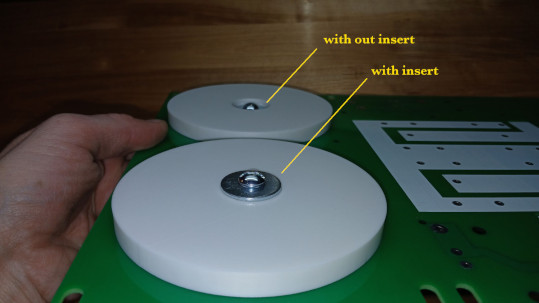

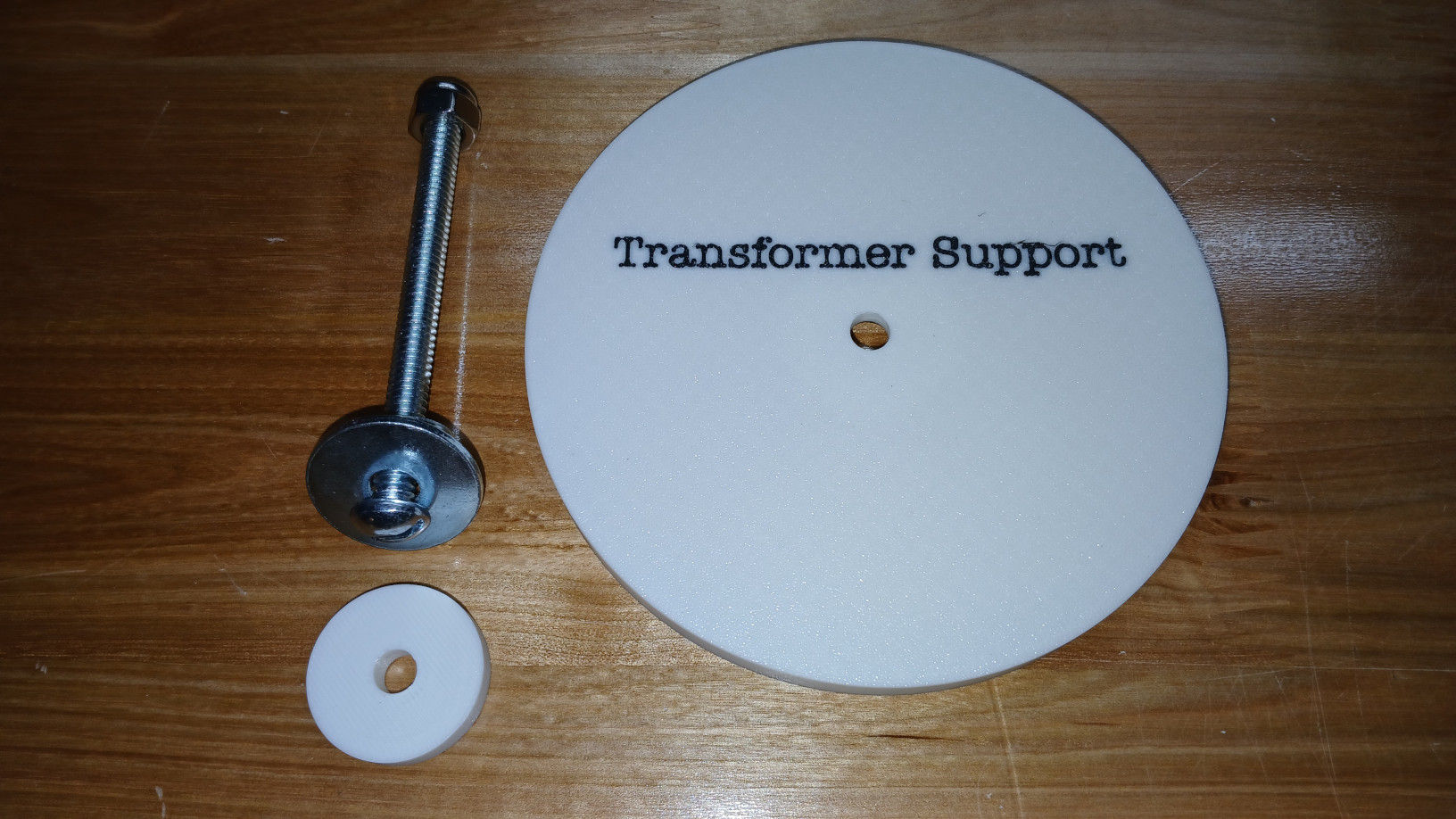

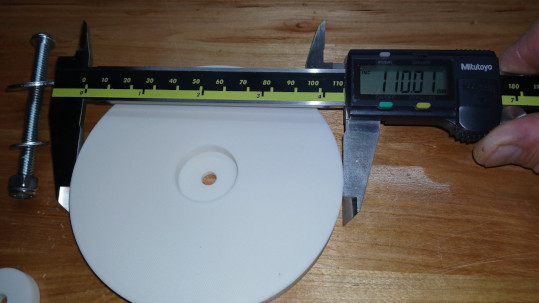

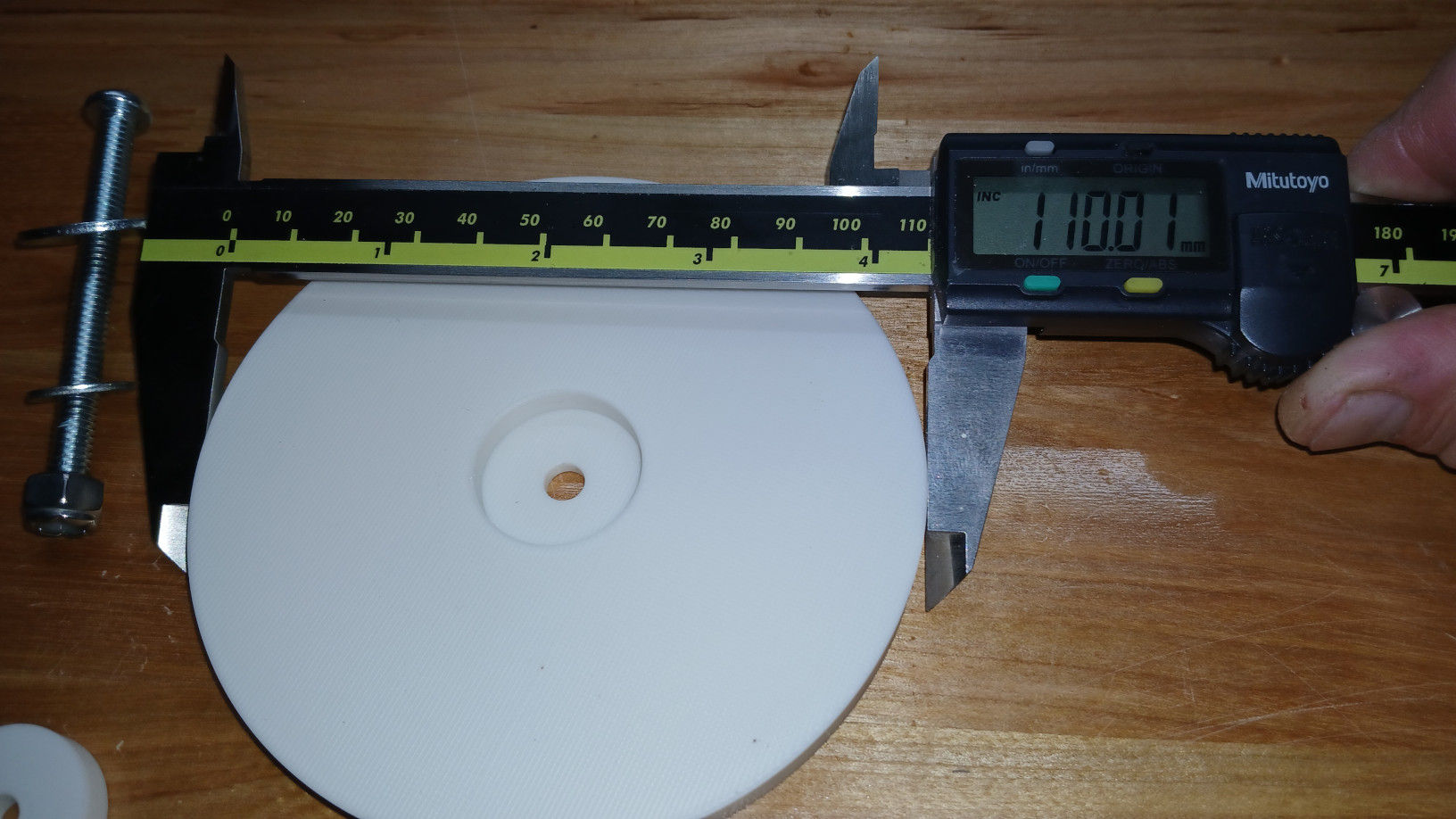

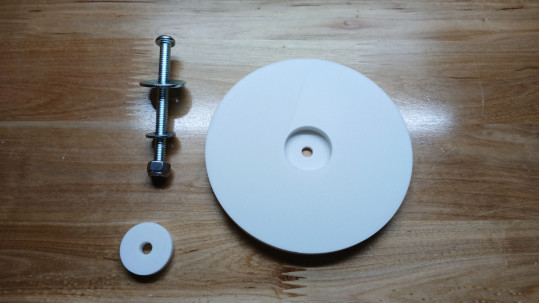

Transformer support for BBMPulser 5B PCB
BBMPulser 5B PCB Ver 1.3 2024, support for Hammond Manufacturing 1182K117 Transformer. You will need 2 pcs
Material: Plastic PLA (3D printed)

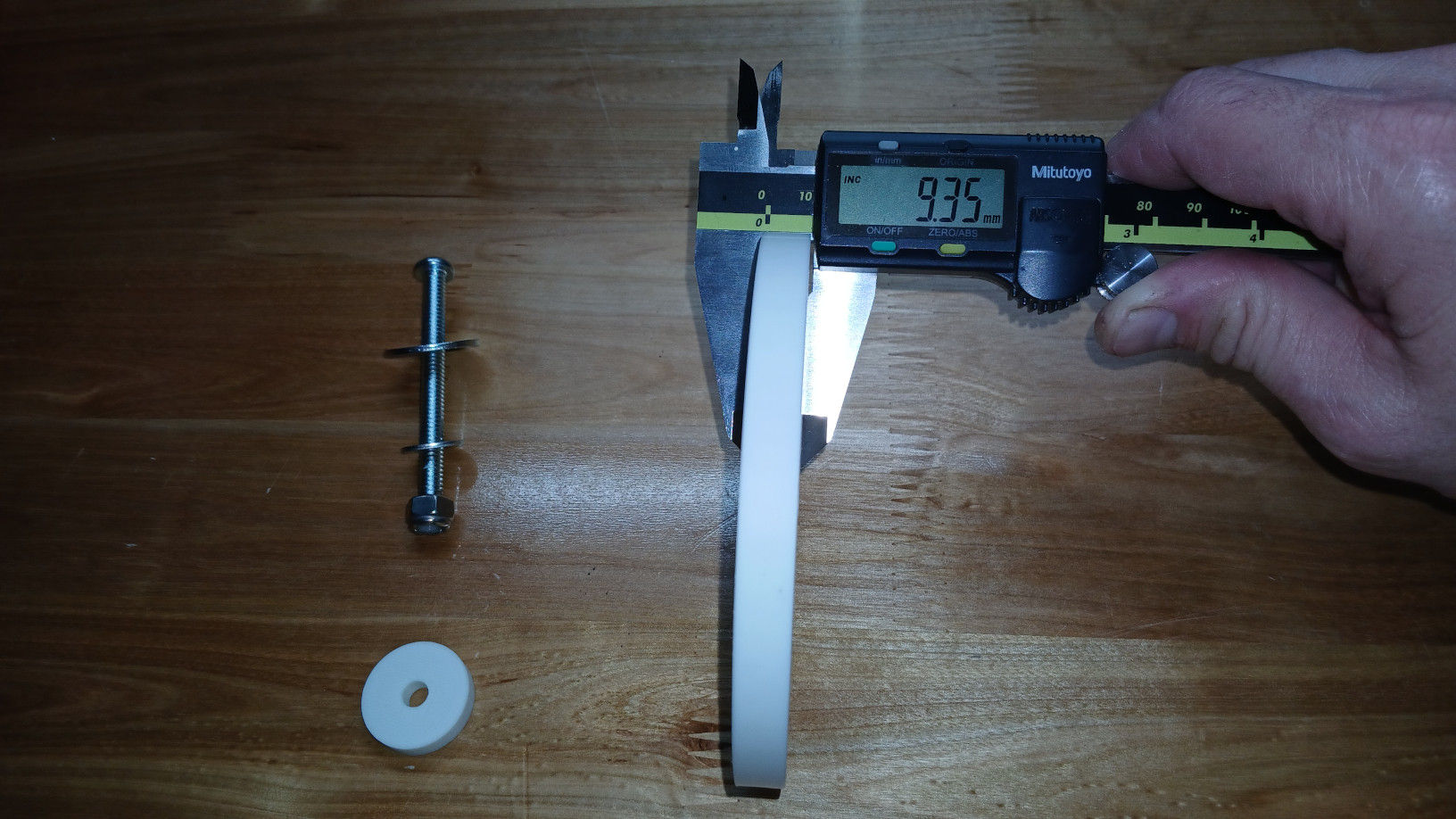

Main Support Plate size: OD 110mm, ID1. 25.6mm, ID2. 6.2mm, thickness 9.3mm
Bolt 1/4″-20 x 2 7/8″
Price $3.50 for 1, shipping in USA $6.00 for 1 or 2pcs contact me support@bbmpulser.org to place order

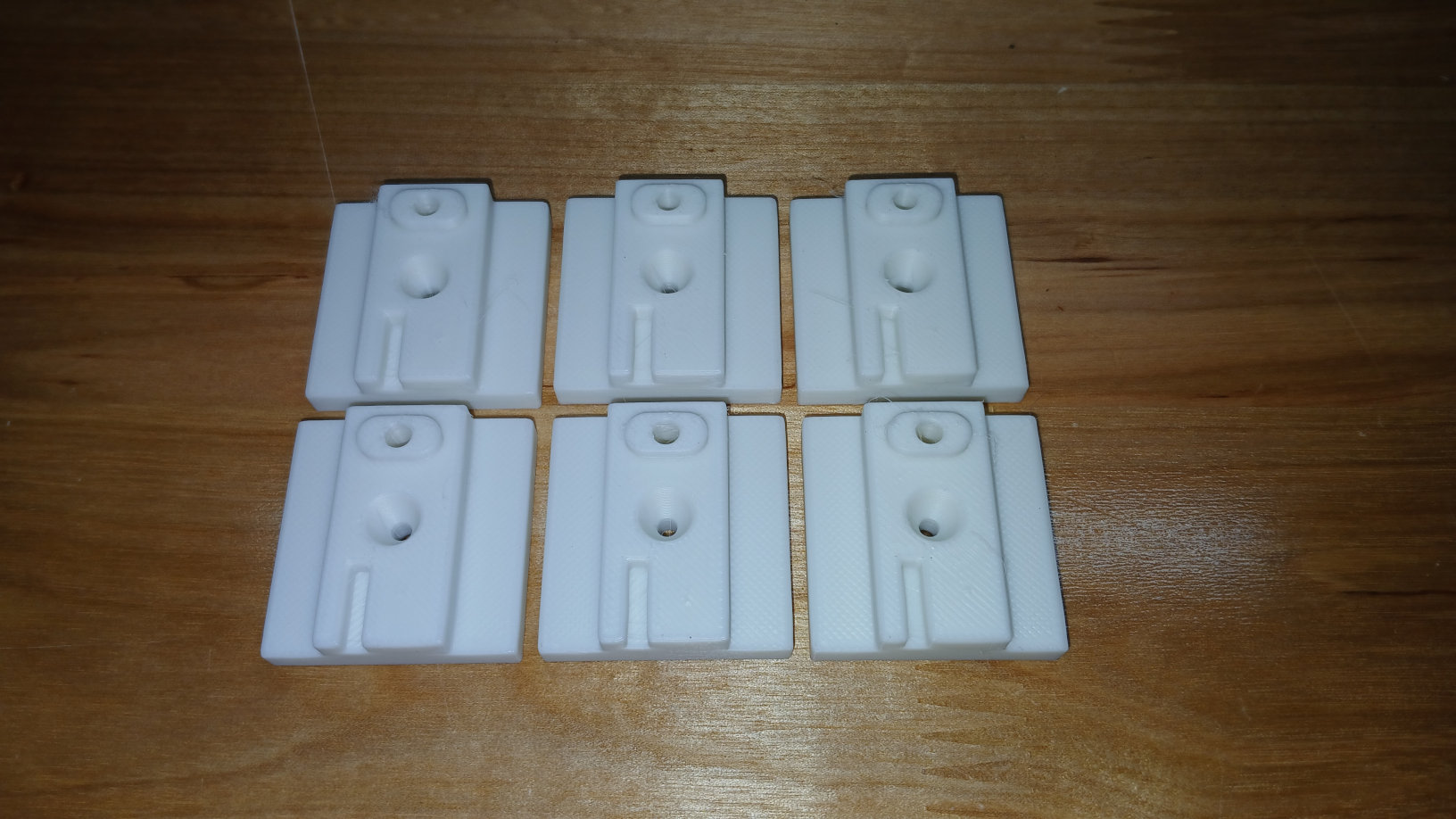

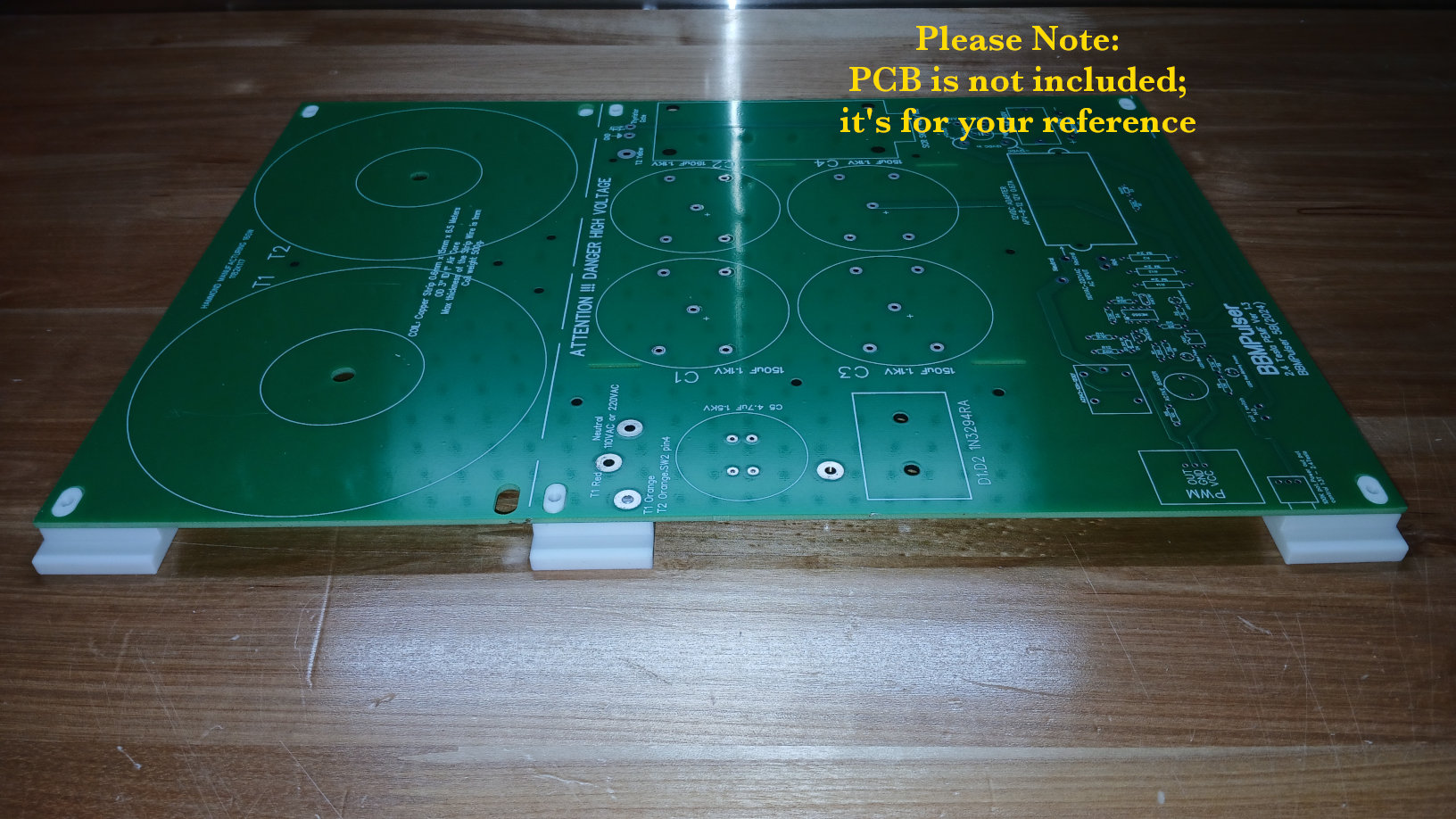

BBMPulser 5B 2024 Ver 1.3 PCB Riser Supports
Riser Supports for BBMPulser 5B Ver 1.3 PCB

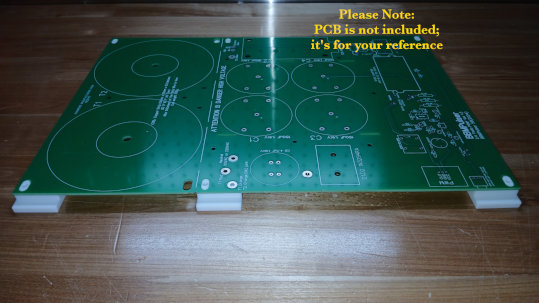

You will need 4-6x of this supports to rise & install your PCB into the case or on the back board.
Material: PLA Plastic 3D Printed 100% infill
Size: 30.4mm x 30mm x 11.2mm. This support will raise your board 9.2mm
Price $1.50 each, shipping in USA $6.00 contact me support@bbmpulser.org to place your order

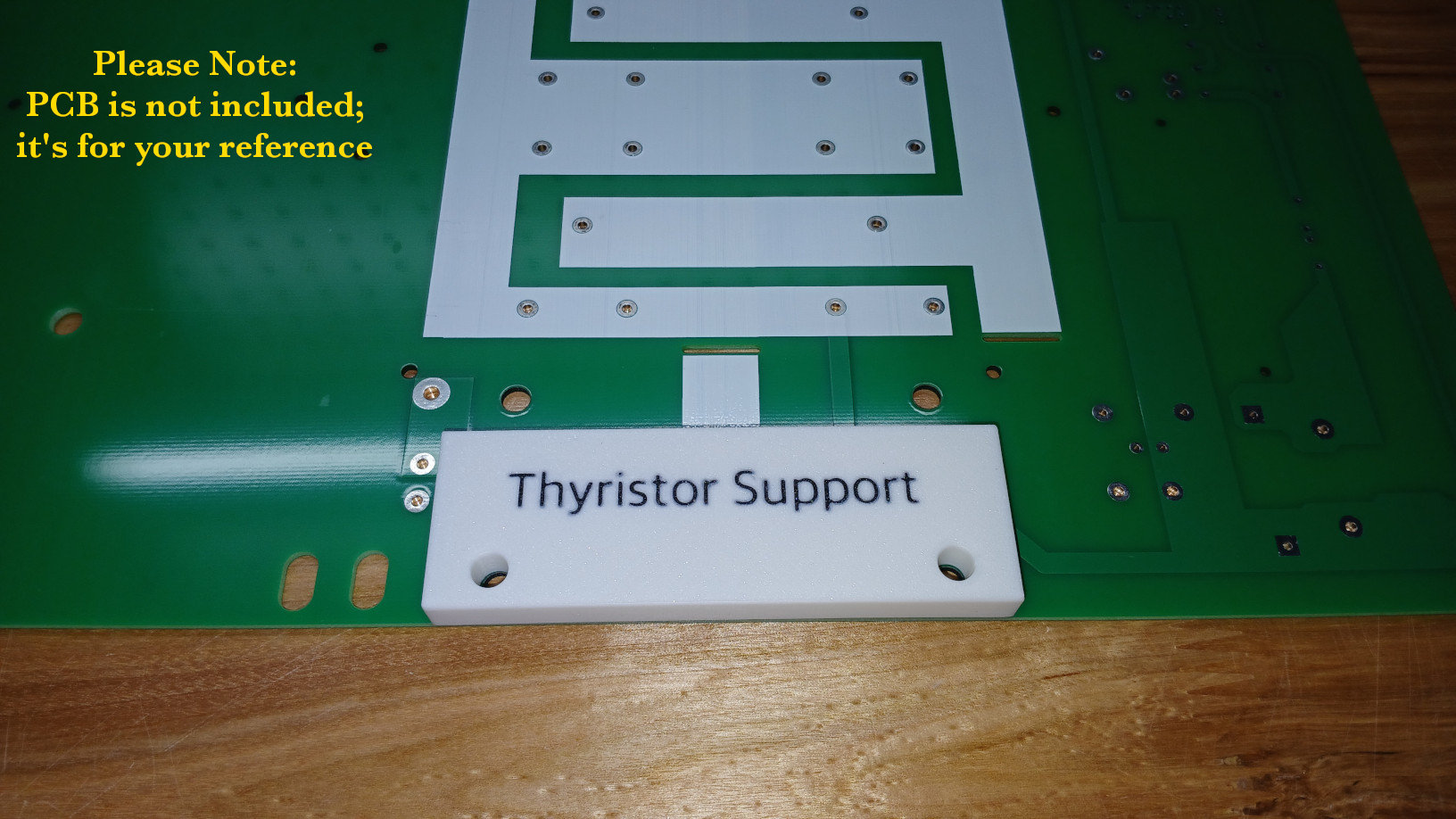

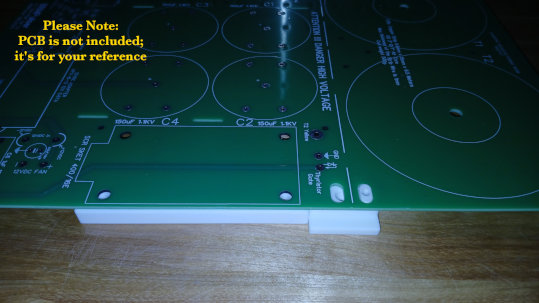

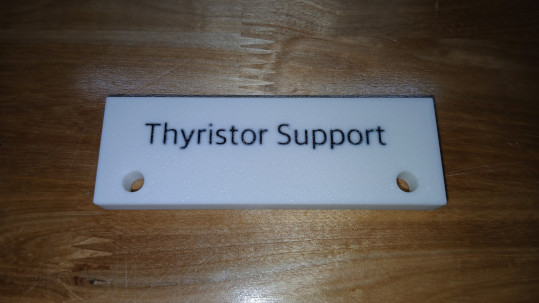

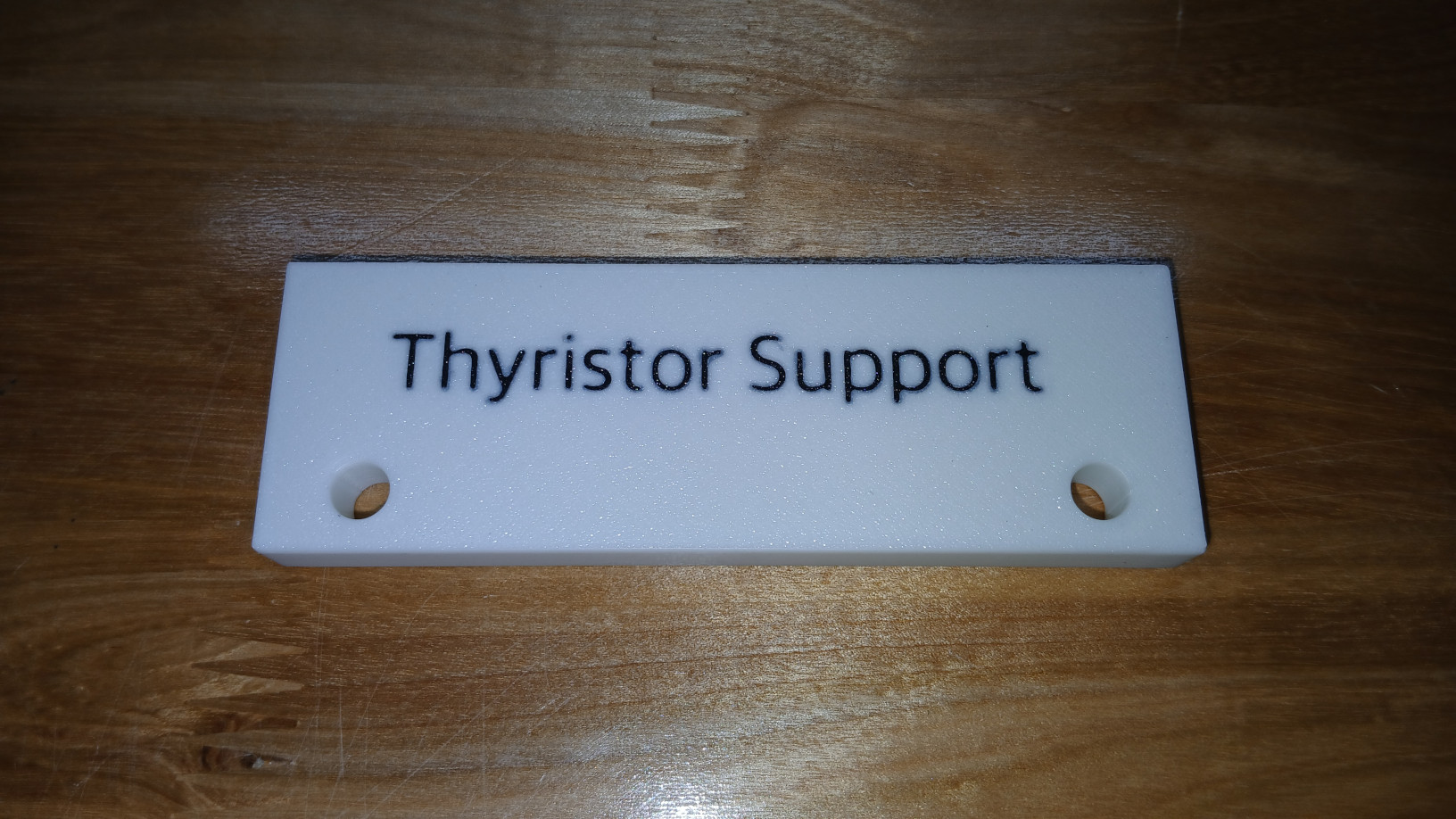

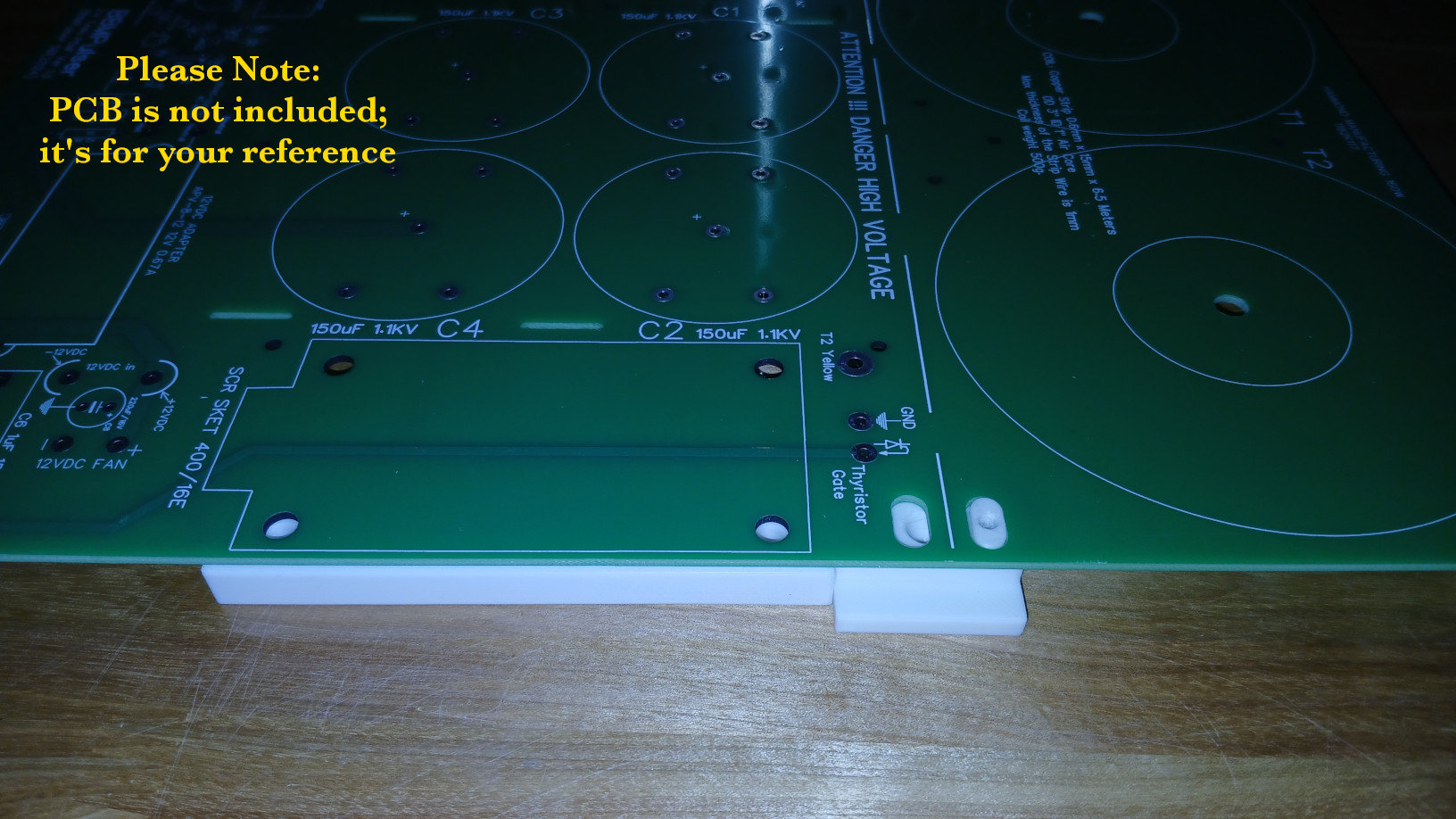

BBMPulser 5B Ver 1.3 2024 PCB – Thyristor Riser Support
3D printed from PLA plastic Thyristor riser support bracker. Used to give additional support to the Thyristor.
Size: 101.5mm x 33.8mm x 9.2mm. Price $6.00, shipping $6.60 in USA Email me support@bbmpulser.org to place your order

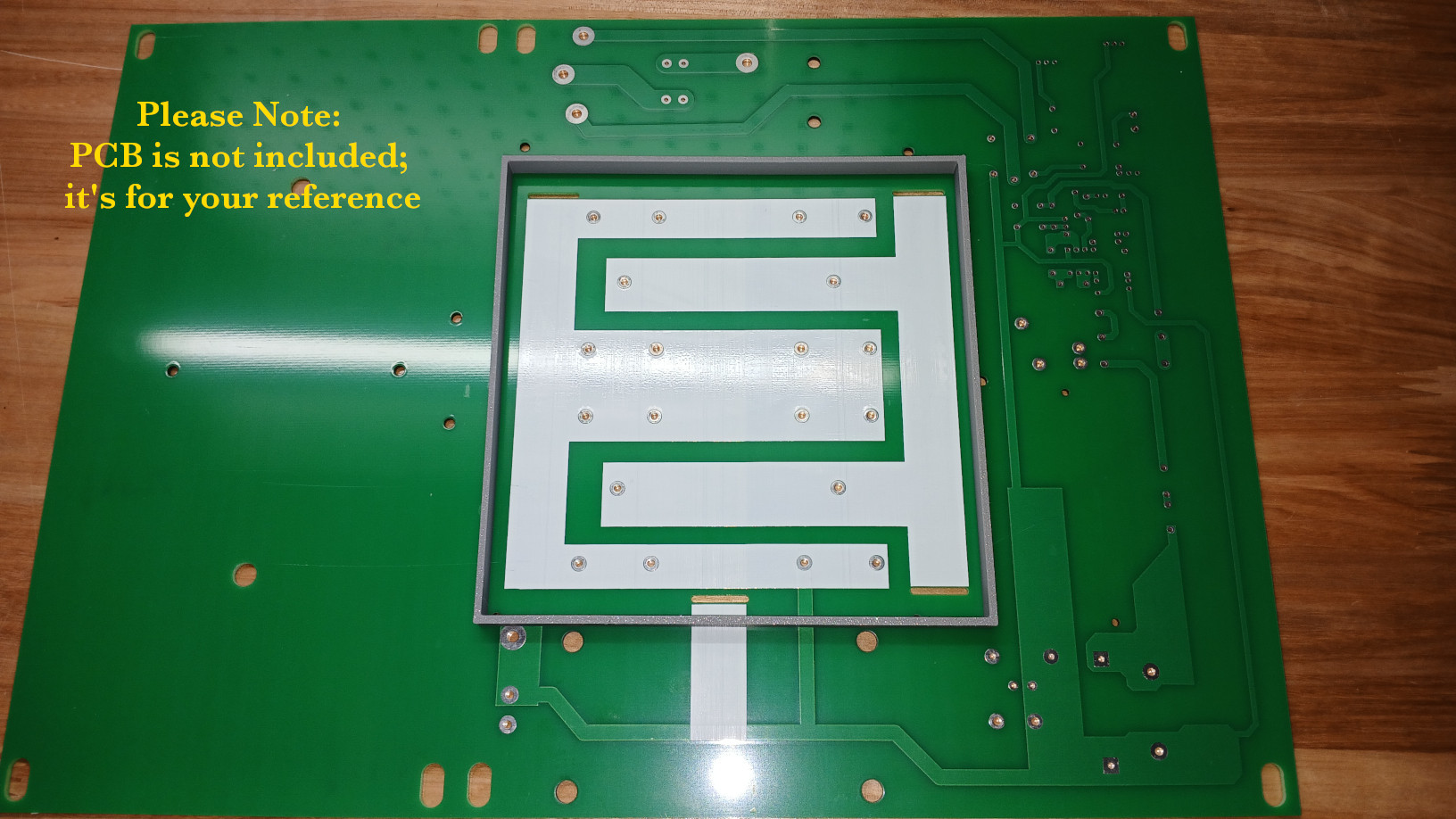

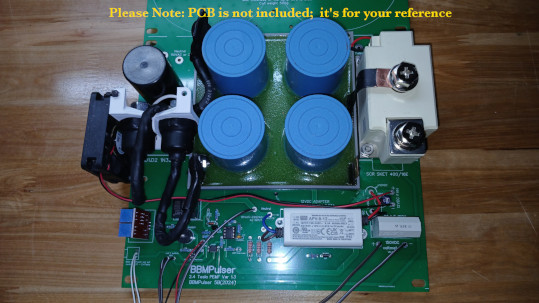

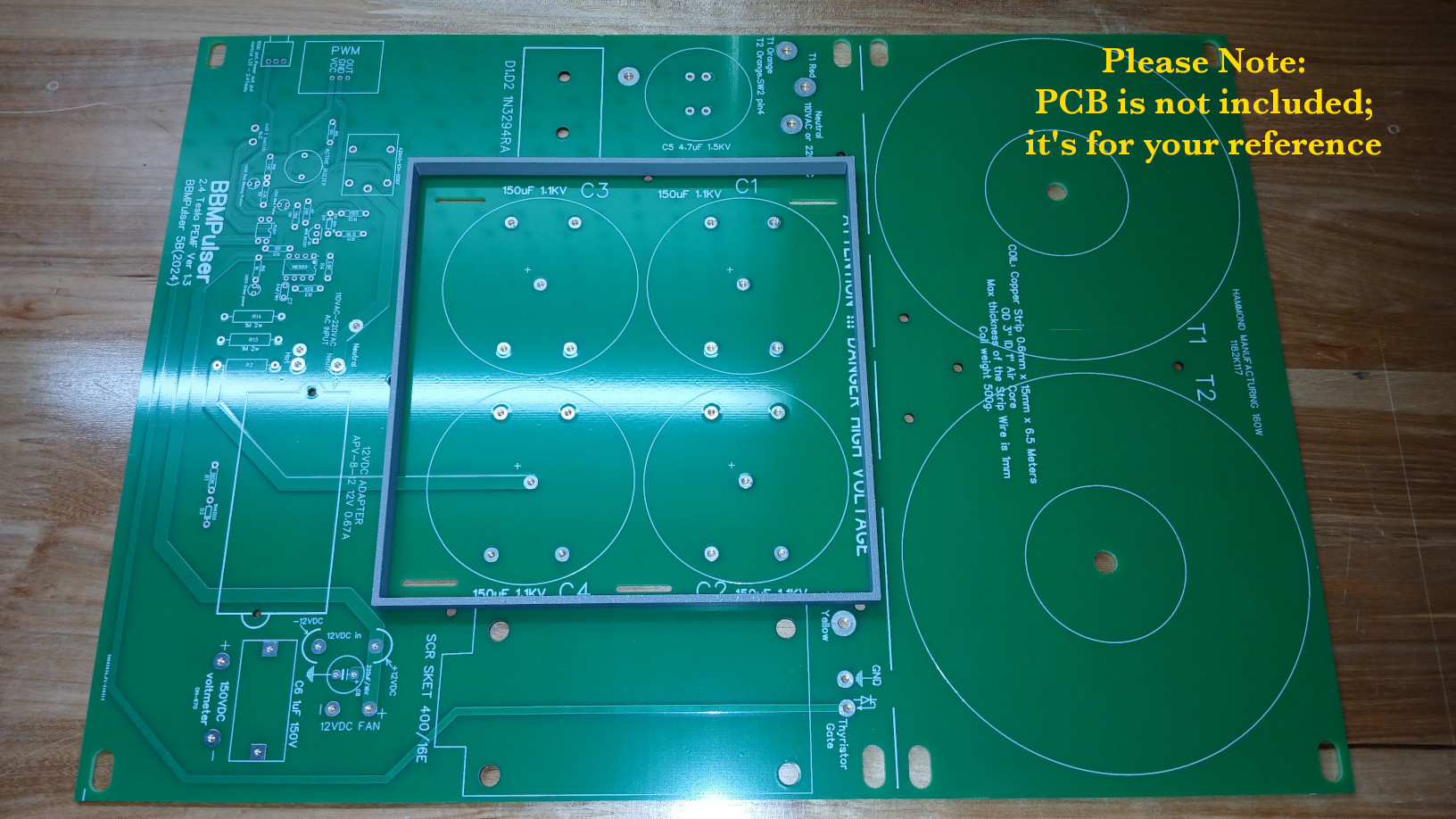

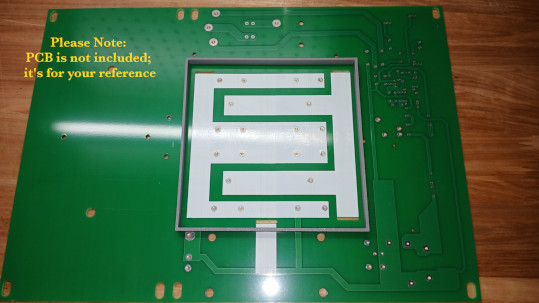

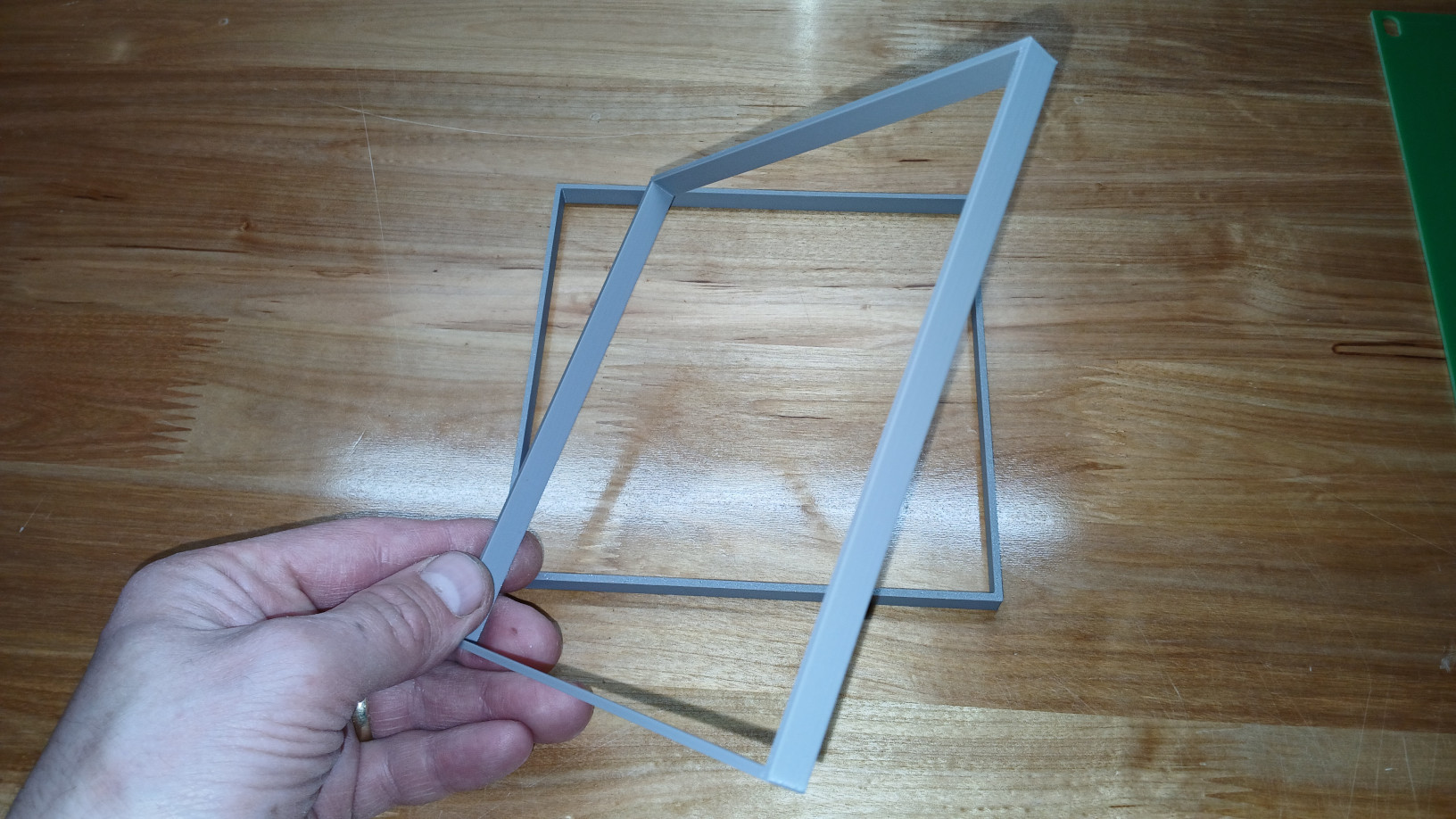

Bezel around Capacitors

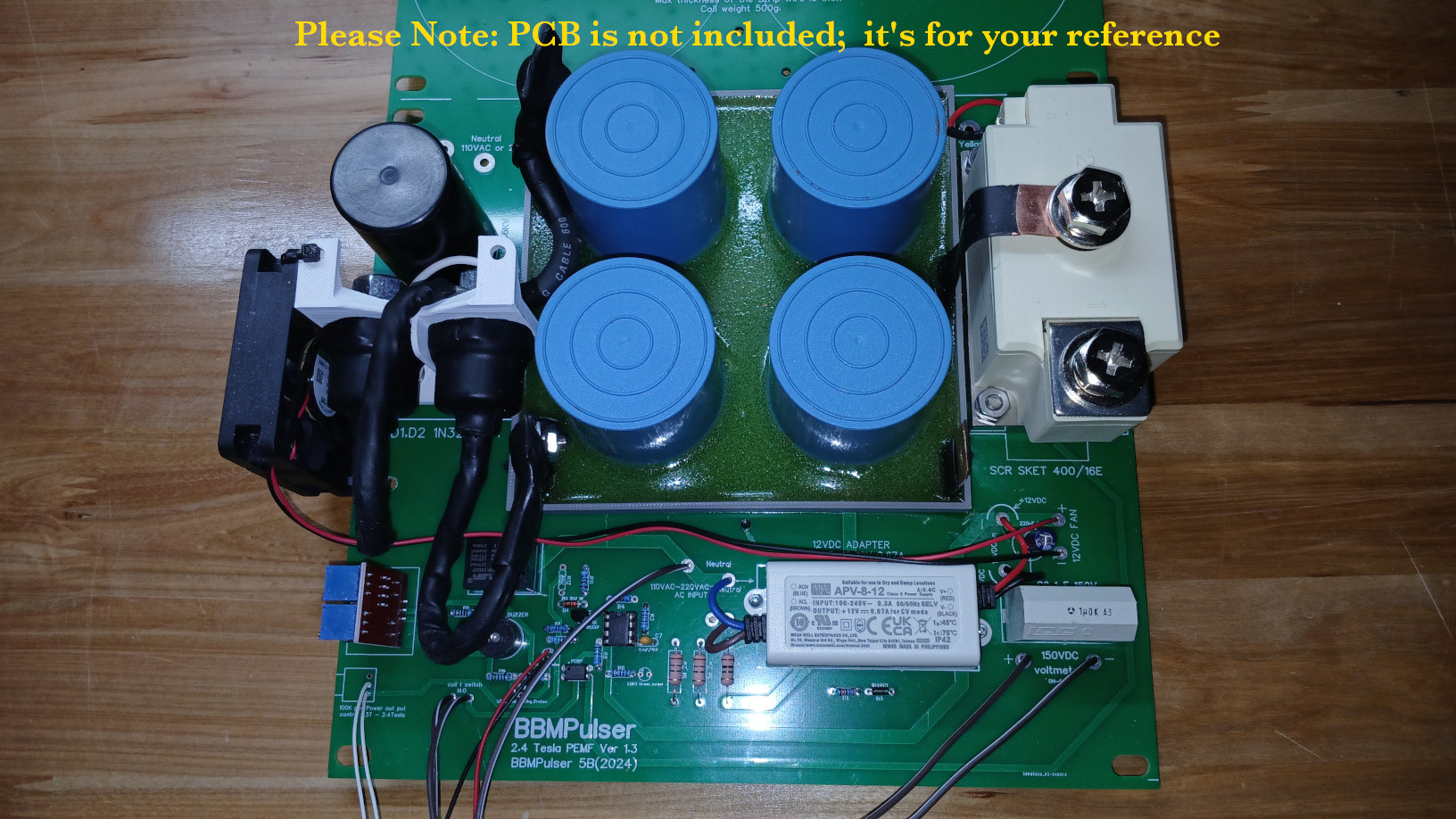

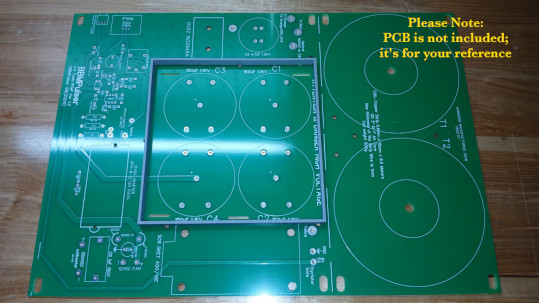

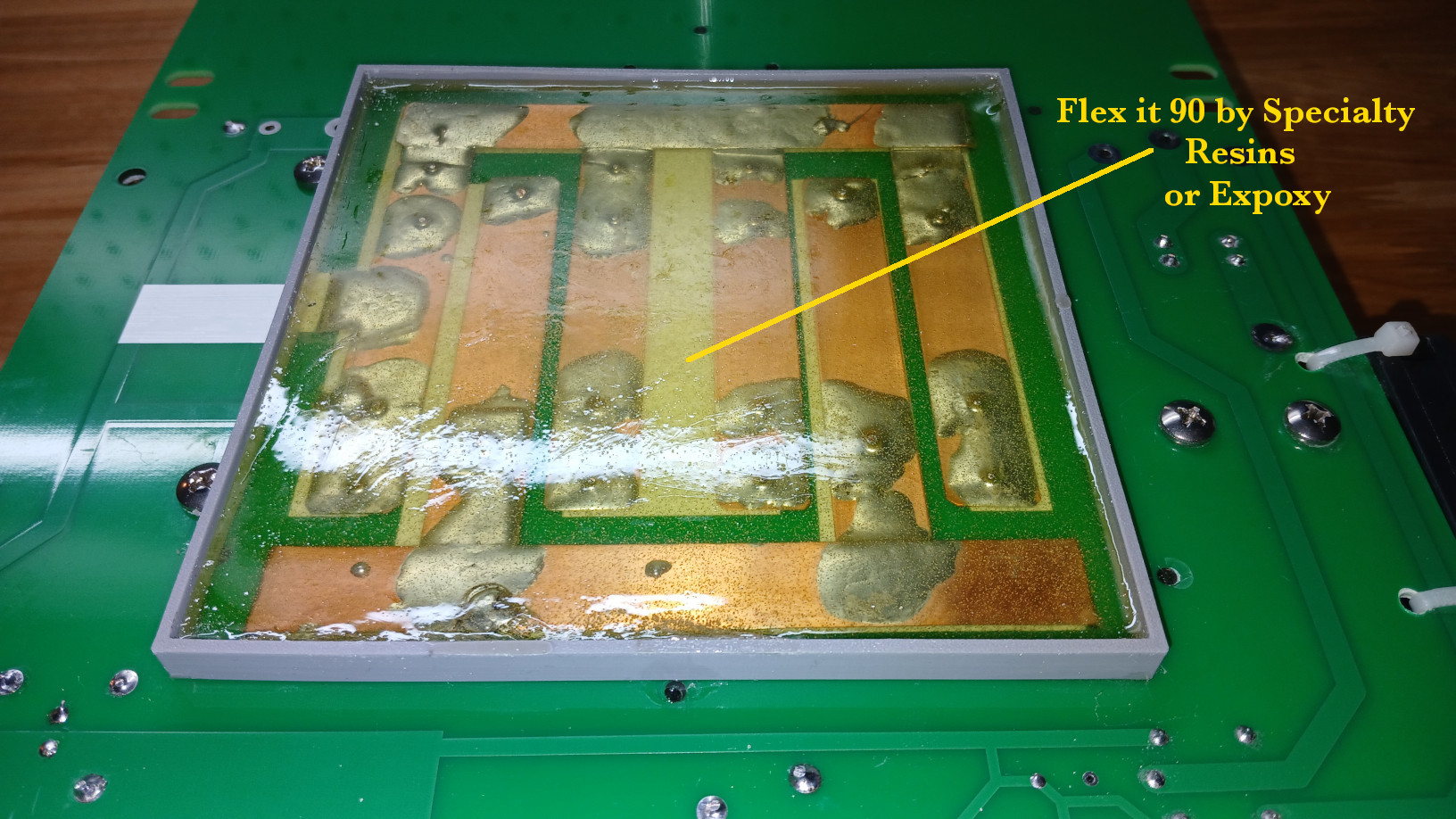

Bezel frame used around Capacitor Bank on BBMPulser 5B ver 1.3 PCB. This frame will help you seal capacitor bank with Epoxy or Flex it 90 (my personal preference) for safety reasons (back side) and to secure capacitors on the PCB (top side).
Material: PLA Plastic 3D printed. You will need 2pcs (front and back)
Size: 140mm x 140mm x 8.2mm
Price $4.00 for 2x. Shipping $6.00 Email me support@bbmpulser.org to place your order
