Downloads
My YouTube Channel www.youtube.com/@AndreyD
PCBs (Printed Circuit Boards)
BBMPulser 5B Low Voltage PCB Gerber files. Download Gerber files here
To order PCBs please go to https://jlcpcb.com/
Product Details here
I have this PCB in stock here in USA price $12 each + $6 Shipping.
Small profit I make from the sales is going towards improvement & new designs
thank you for supporting BBMPulser Open Source Project
How to place your order info is on the bottom of the page

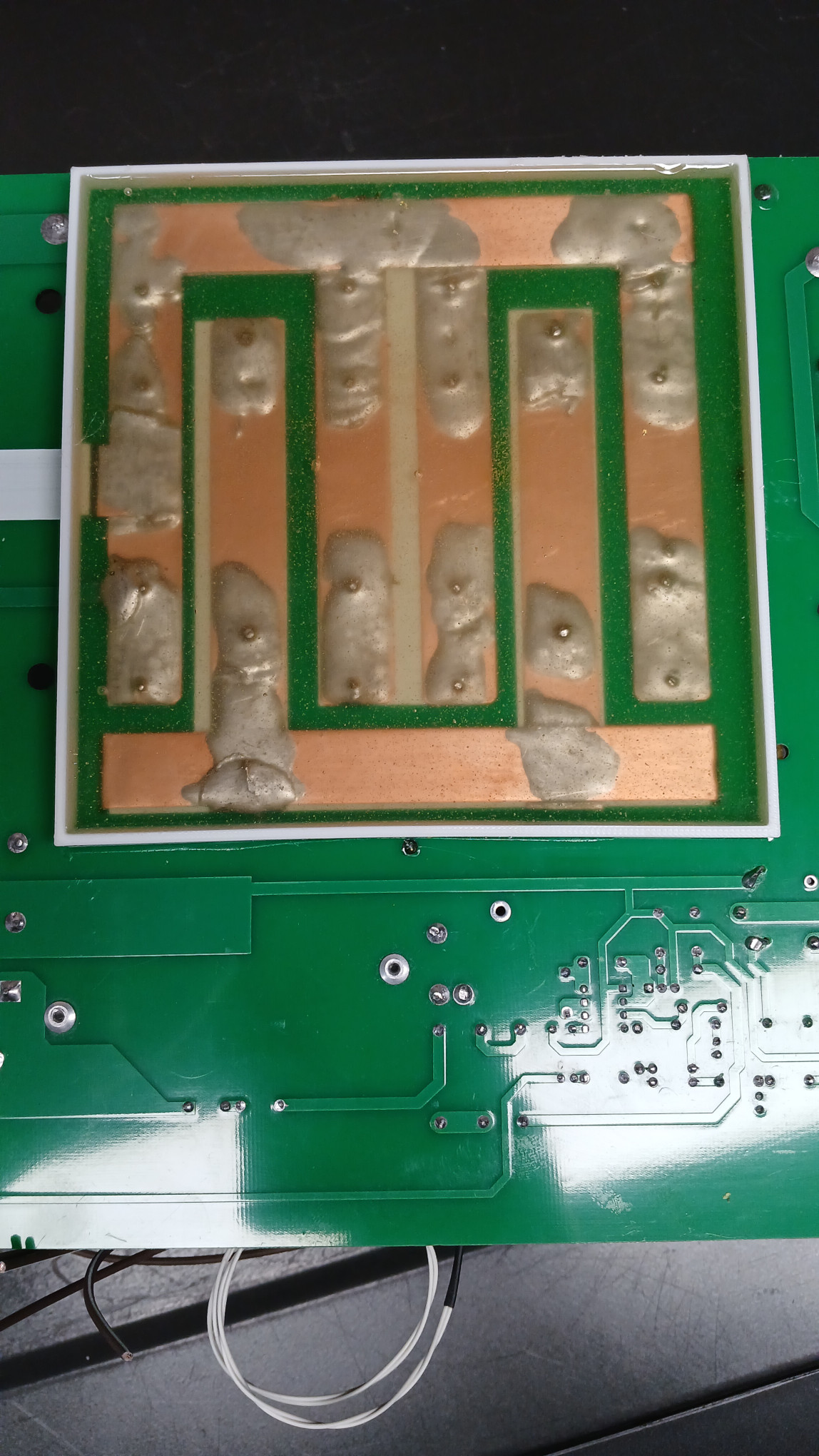

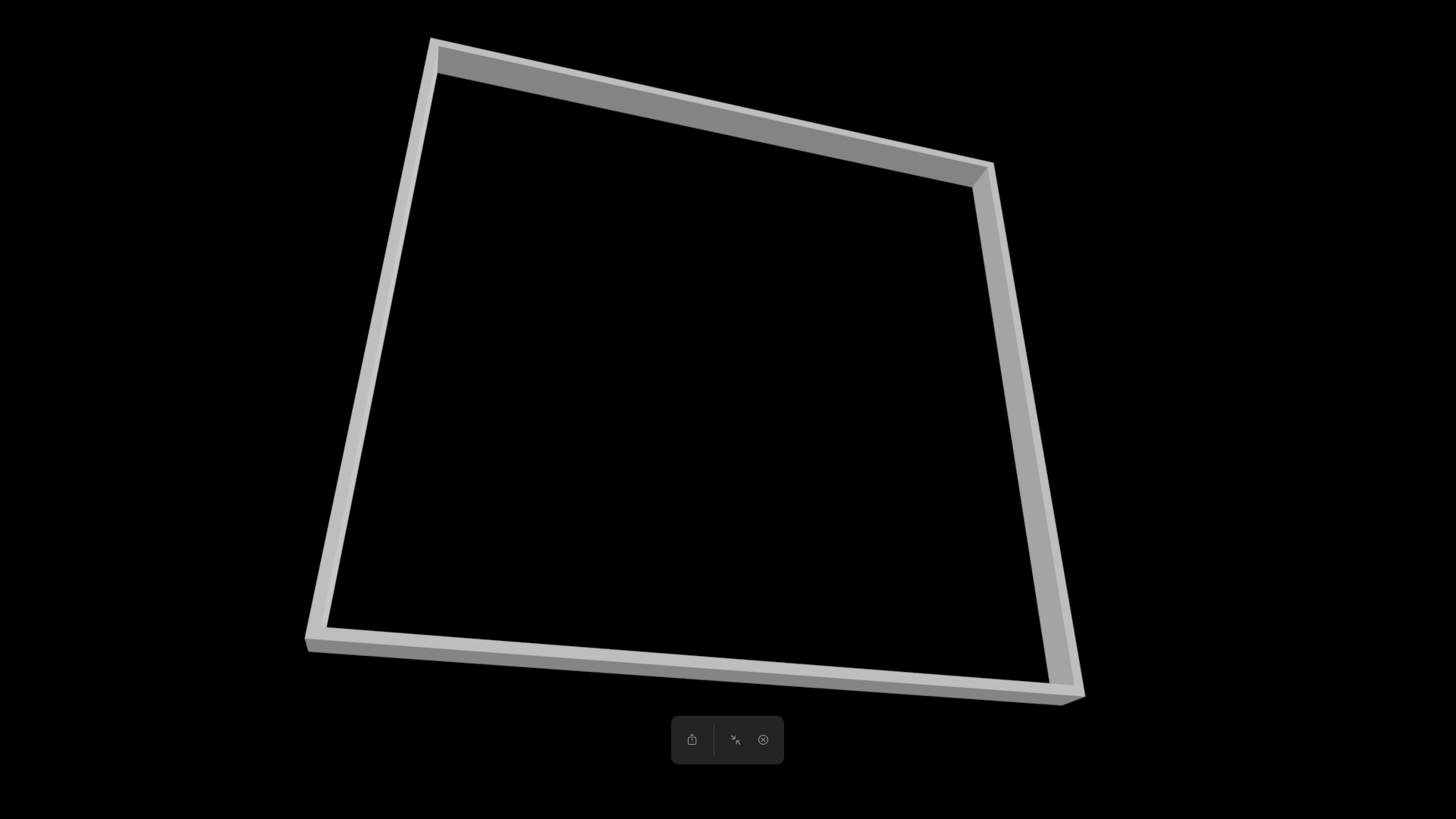

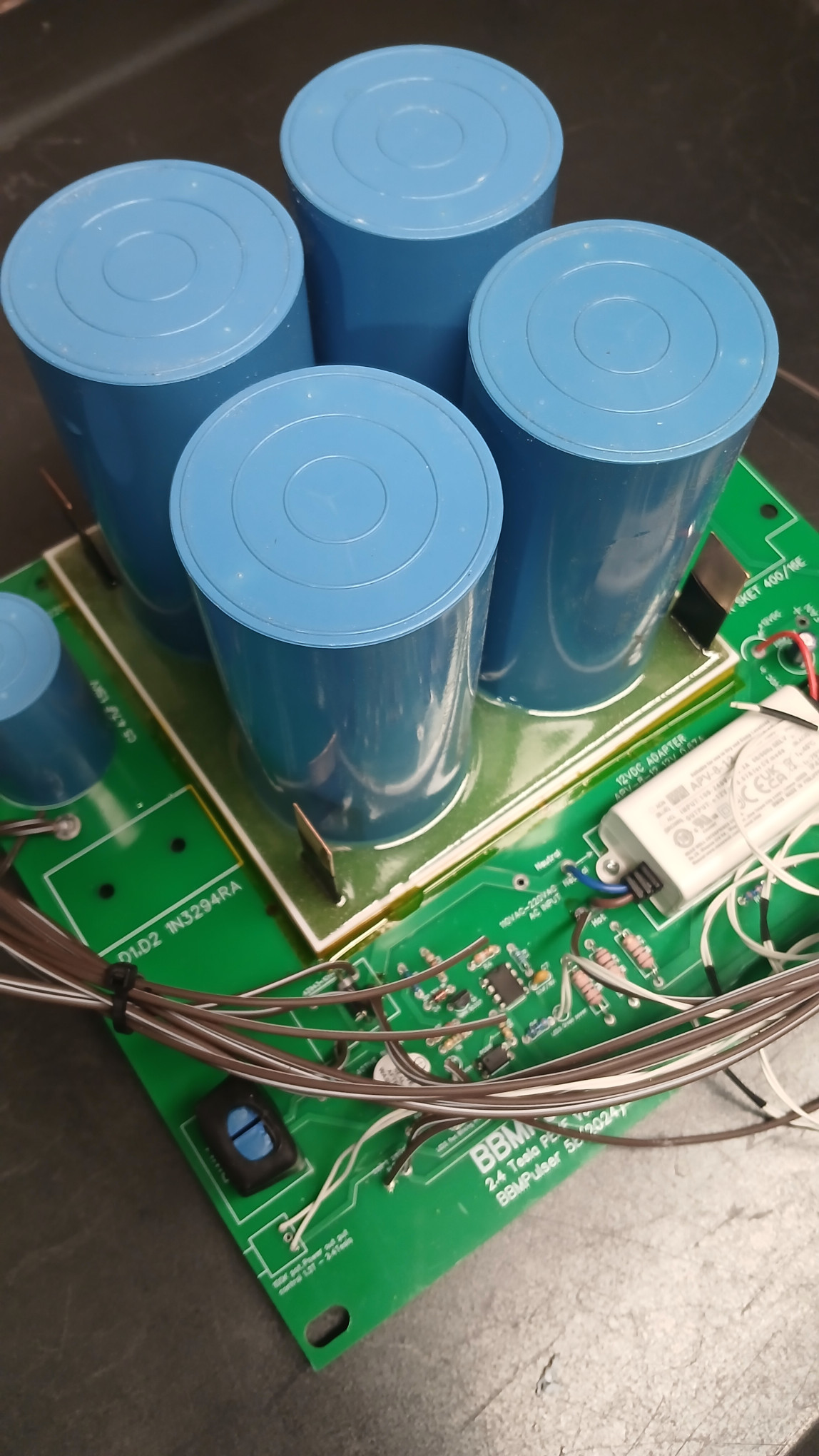

Latest 2024 2.4 Tesla BBMPulser 5B Full PCB
I have this PCB in stock here in USA price $45.00 each + $20.00 Shipping. Also you will need 46″ (117cm long x 15mm wide 0.6mm thick) Copper strip to connect Capacitor Bank, price – $39.00
Small profit I make from the sales is going towards improvement & new designs
thank you for supporting BBMPulser Open Source Project
How to place your order info is on the bottom of the page

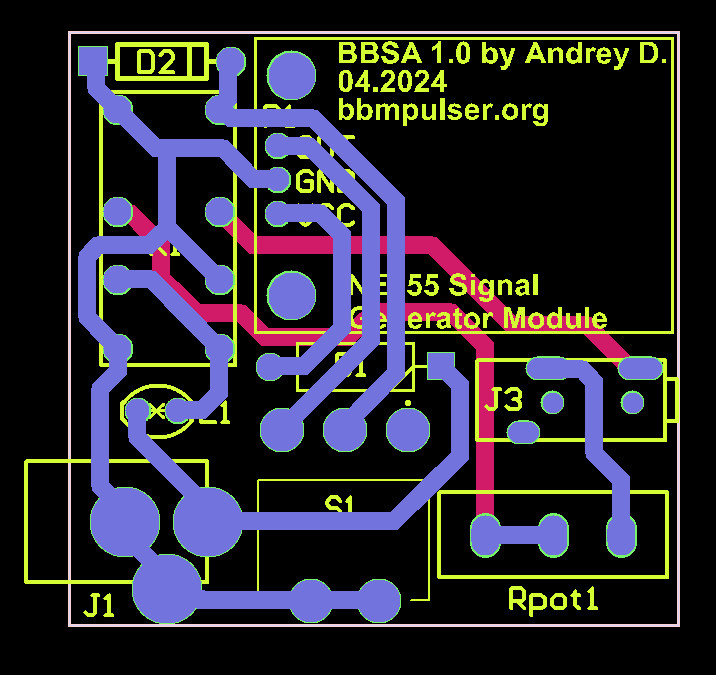

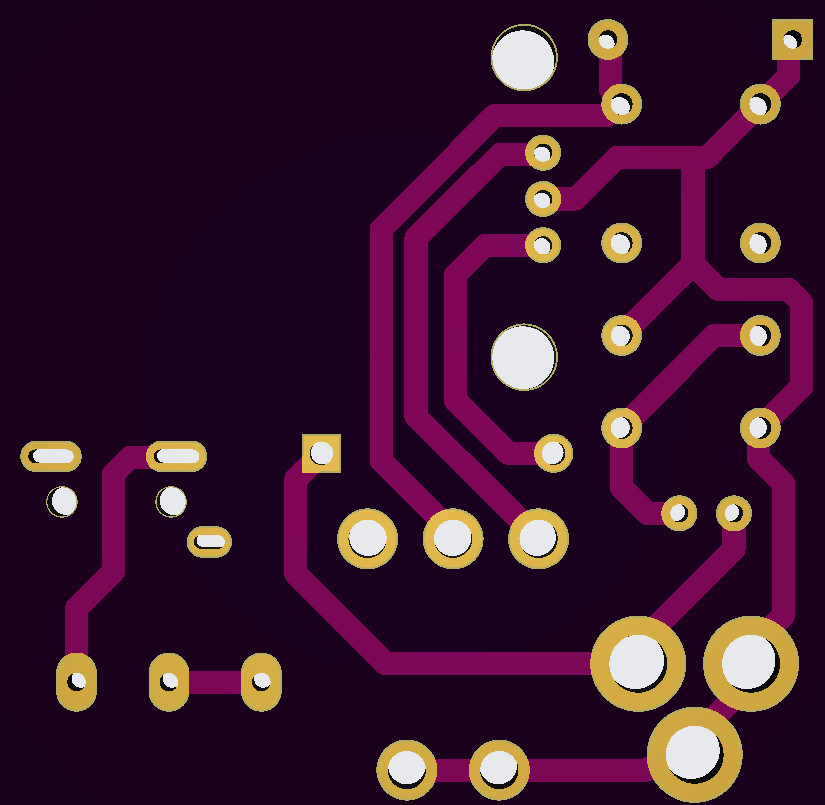

Simple “Silver Aid” (Blood Electrification and Ionic Colloidal Silver). Download Gerber files
More info available on “Silver Aid” page here
To order PCBs please go to https://jlcpcb.com/
Product Details here
3.5″ Classic Coil Cover
I have this Cover in stock here in USA price – $15 + $6.60 Shipping in USA
Small profit I make from the sales is going towards improvement & new designs
thank you for supporting BBMPulser Open Source Project
How to place your order info is on the bottom of the page
3D Classic Coil Shell (3 pcs)
3D Classic Coil Shell, 2 configurations 2 or 3 pieces, couple versions. Latest design and older designs of 3″ Classic Coil used for BBMPulser 3B, 4B, 4.5B, 5B, 5.5B and 6B models. Fits 3″ (78mm) wide x 15mm thick Coil.
Files are free and Open Source.
To print it, you will need to use (high temp) filament for shells like ASA or ABS, handle can be printed from any kind of filament like PLA, PETG, ABS, ASA etc
Use 60% infill for all files
Use support
If you have any questions, email me support@bbmpulser.org
Your donations are appreciated as I don’t make any $$ from this designs
my PayPal email is paypal@bbmpulser.org
thank you for supporting Open Source Project!

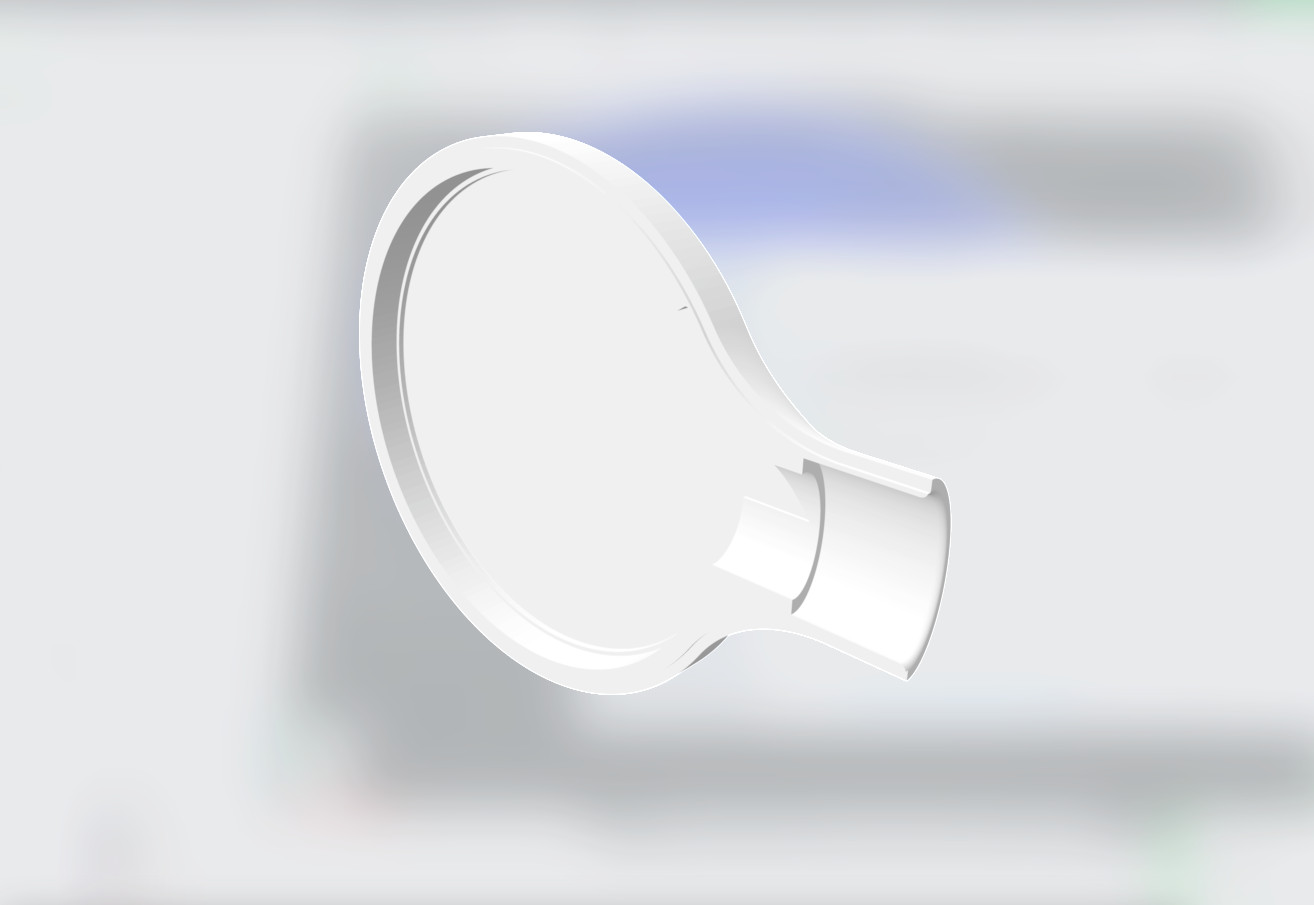

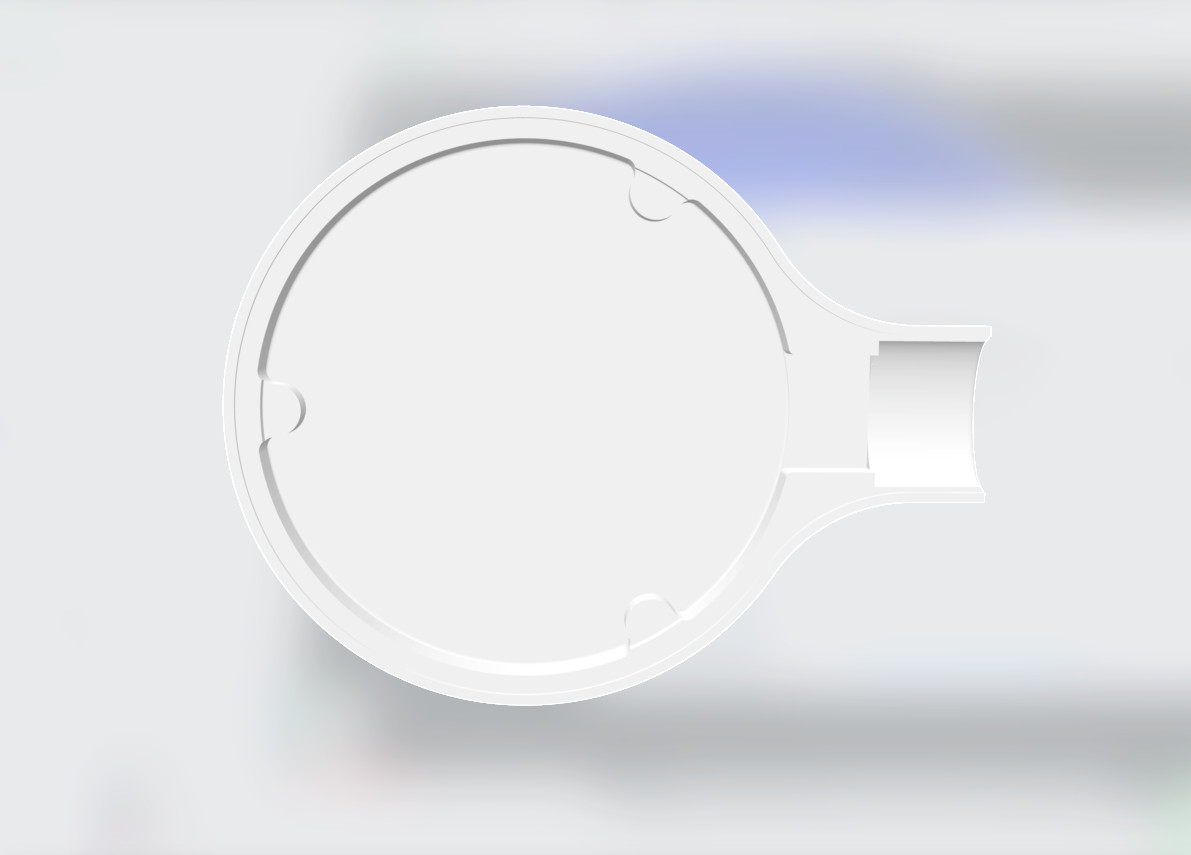

7 inch 3 part Coil Shell
7″ (3 part) Coil Shell ver 1.0.4 FREE FILES
STL files 7 inch 3 Part Coil Shell v1.0.4.zip
3MF files 7 inch 3 Part Coil Shell v1.0.4.zip
If you use Bamboo Studio Slicer, then you should use 3MF version of the files. North and South sides will have markings, if your printer can’t print multi-color, simply delete text from the shells or use STL files instead.

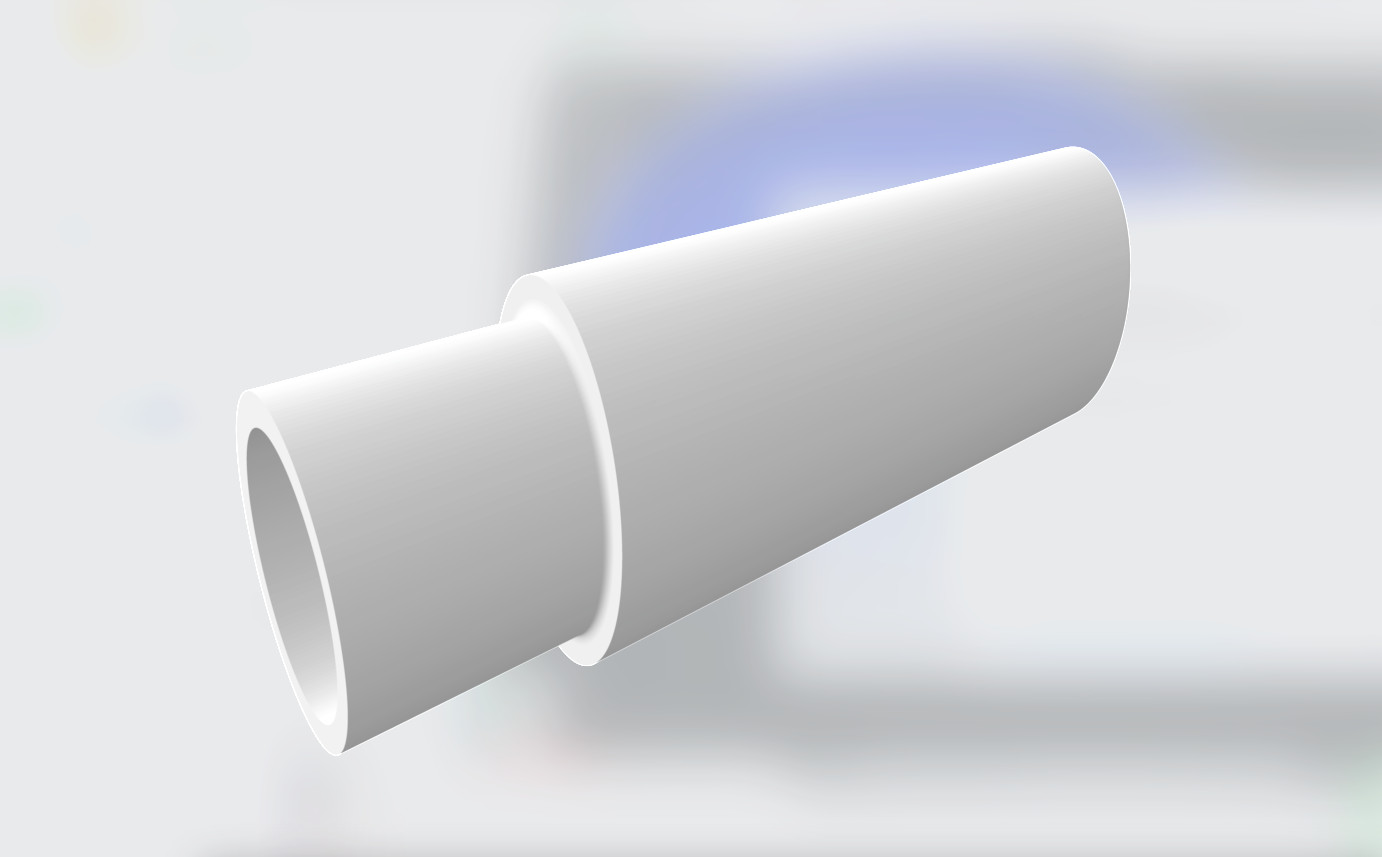

The only thing with STL files is that handle doesn’t have a hole for the wires to come in. The hole needs to be 0.7″ (17.8mm). If you know how to make a hole, please help me out with this. I would like to offer STL file of handle with the hole. You can reach me ideas@bbmpulser.org
Use support when printing
Print using high temp filament, I recomend using ASA or ABS or HT-PLA-GF or other high temperature plastic
You may need to use enclosed 3D Printer
Let me know if you have any questions
support@bbmpulser.org

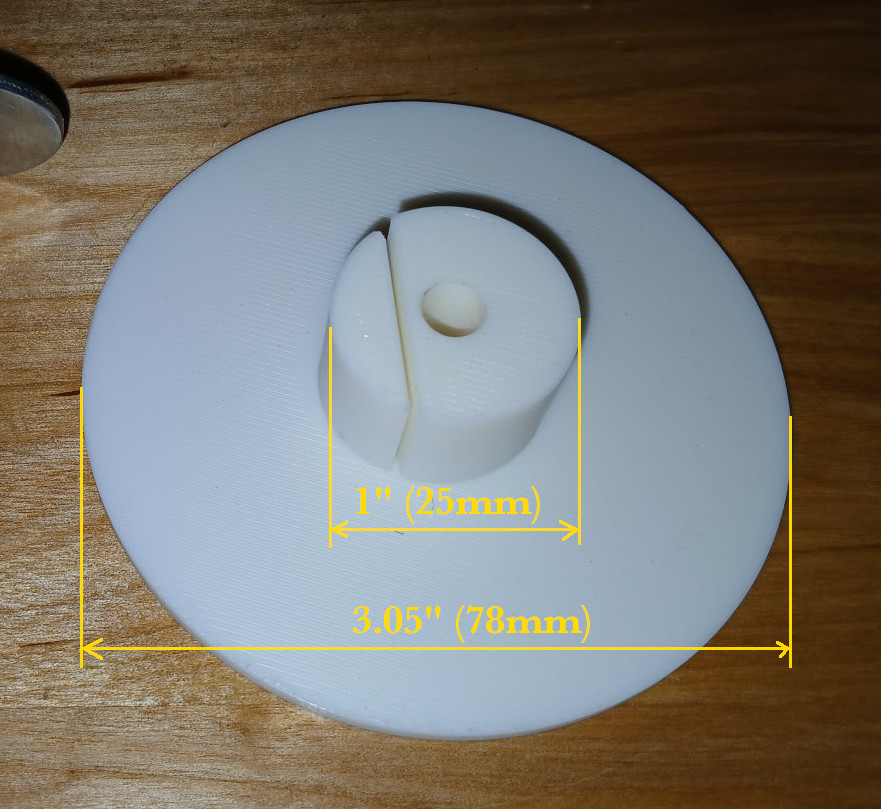

3.05″ (78mm) Plastic Coil Winding Spool
Coil Spool winder. Designed to help you wind 3.05″ (78mm) O.D. Coil with 1″ (25mm) I.D. (Air core). Configured to be use for 0.5mm or 0.6mm thick x 15mm wide Copper Strip wire. If you use 0.6mm copper strip, you will need at least 7 meters long copper strip. Your Coil will end up to be 1″ I.D. (25mm) and 3.05″ (78mm) OD, weight ~ 0.5kG or 1Lb
Filament – PLA
OD 3.05″ (78mm), ID 1″ (25mm)
Total spool thickness 18.3mm, Designed for 15mm x 0.5mm or 0.6mm Copper Strips
Center hole for the bolt is 6.3mm.
Please note: STL file does not have (negative offset in the center), 3MF file does have it, if you can use 3MF file
Infill 100%, no support
Recomended Bolt: 1/4″-20 x 2 1/4 full thread Hex Cap Screws Grade 8 Black Oxide
If you have any questions, reach out to me support@bbmpulser.org
If you don’t have 3D printer, you can purchase it already made, more info HERE

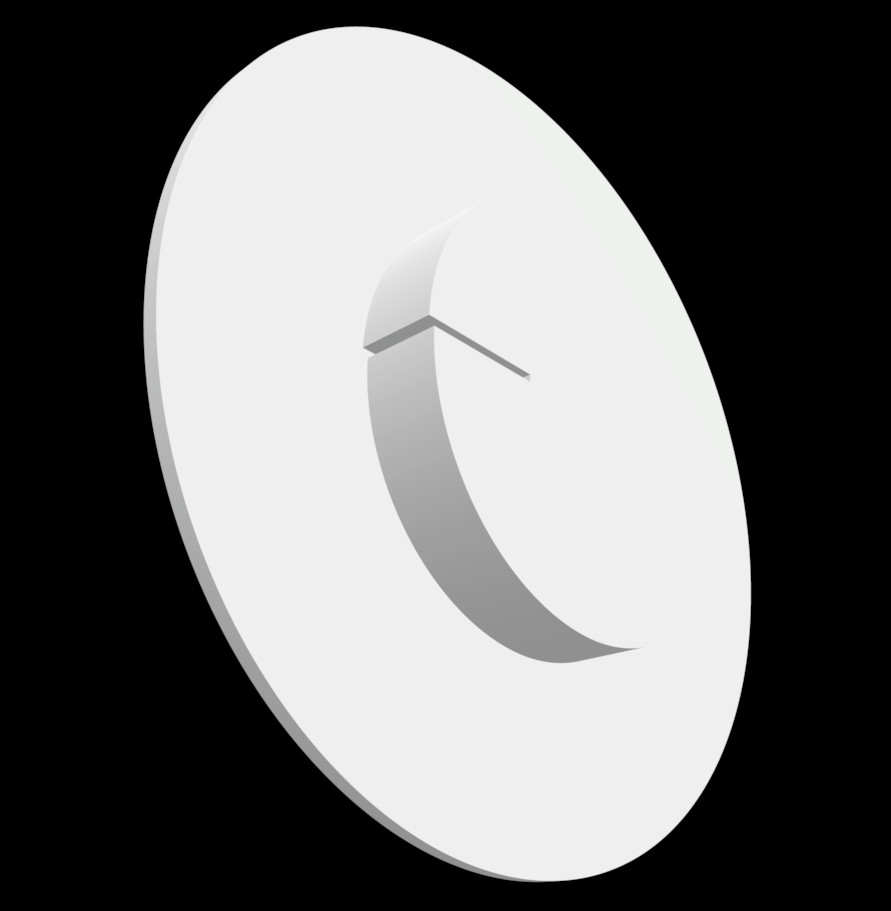

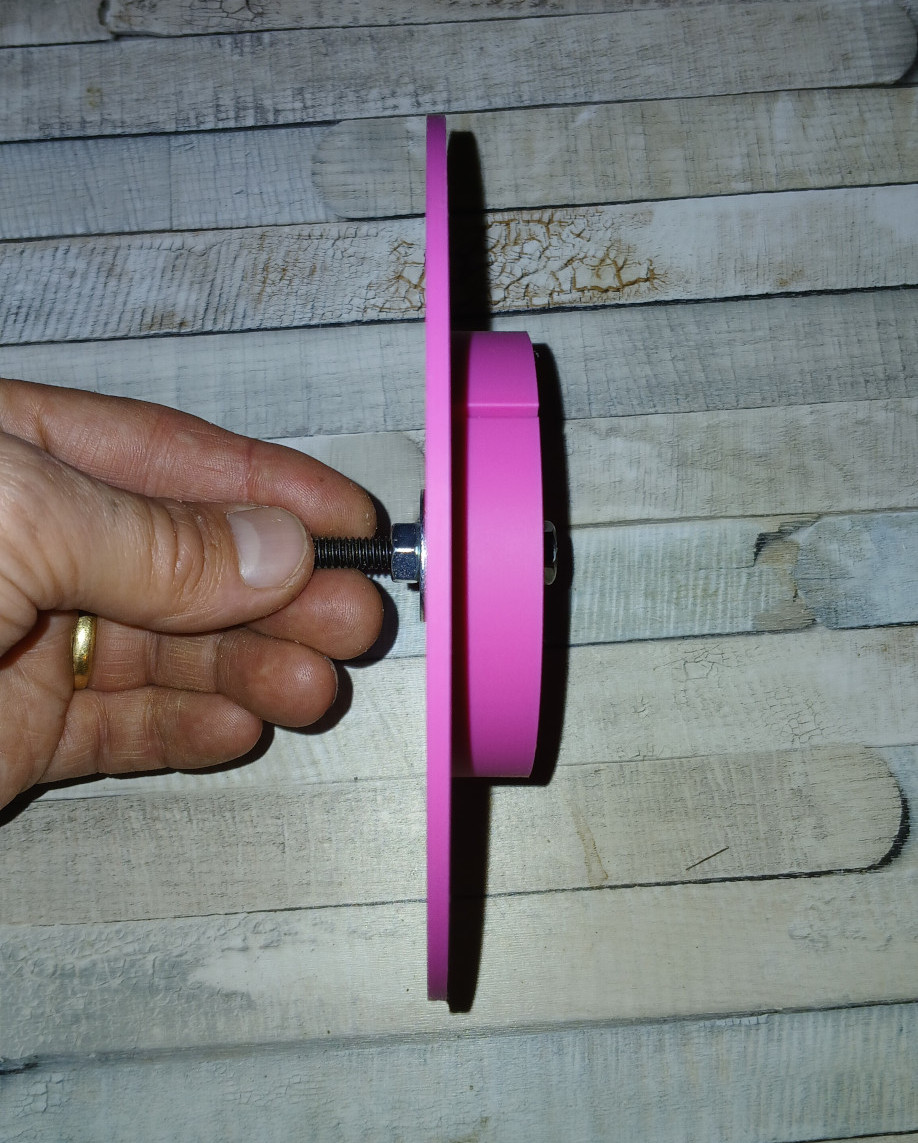

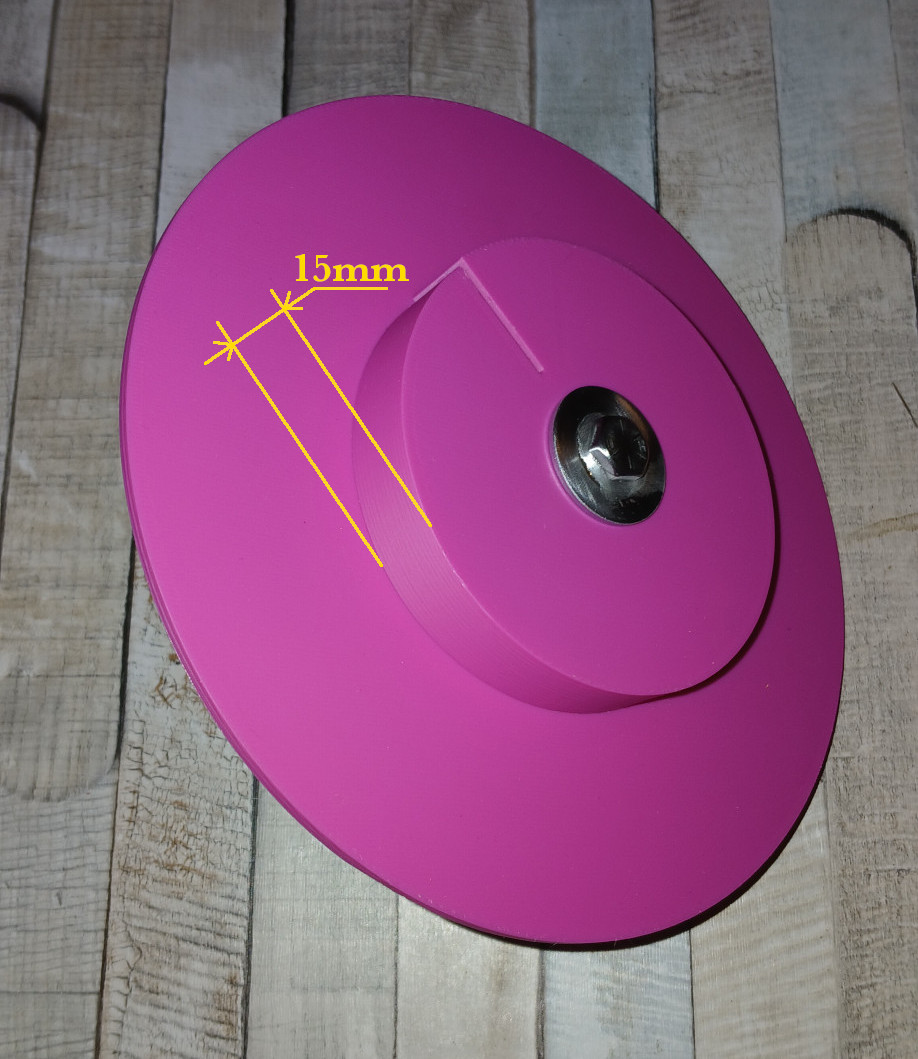

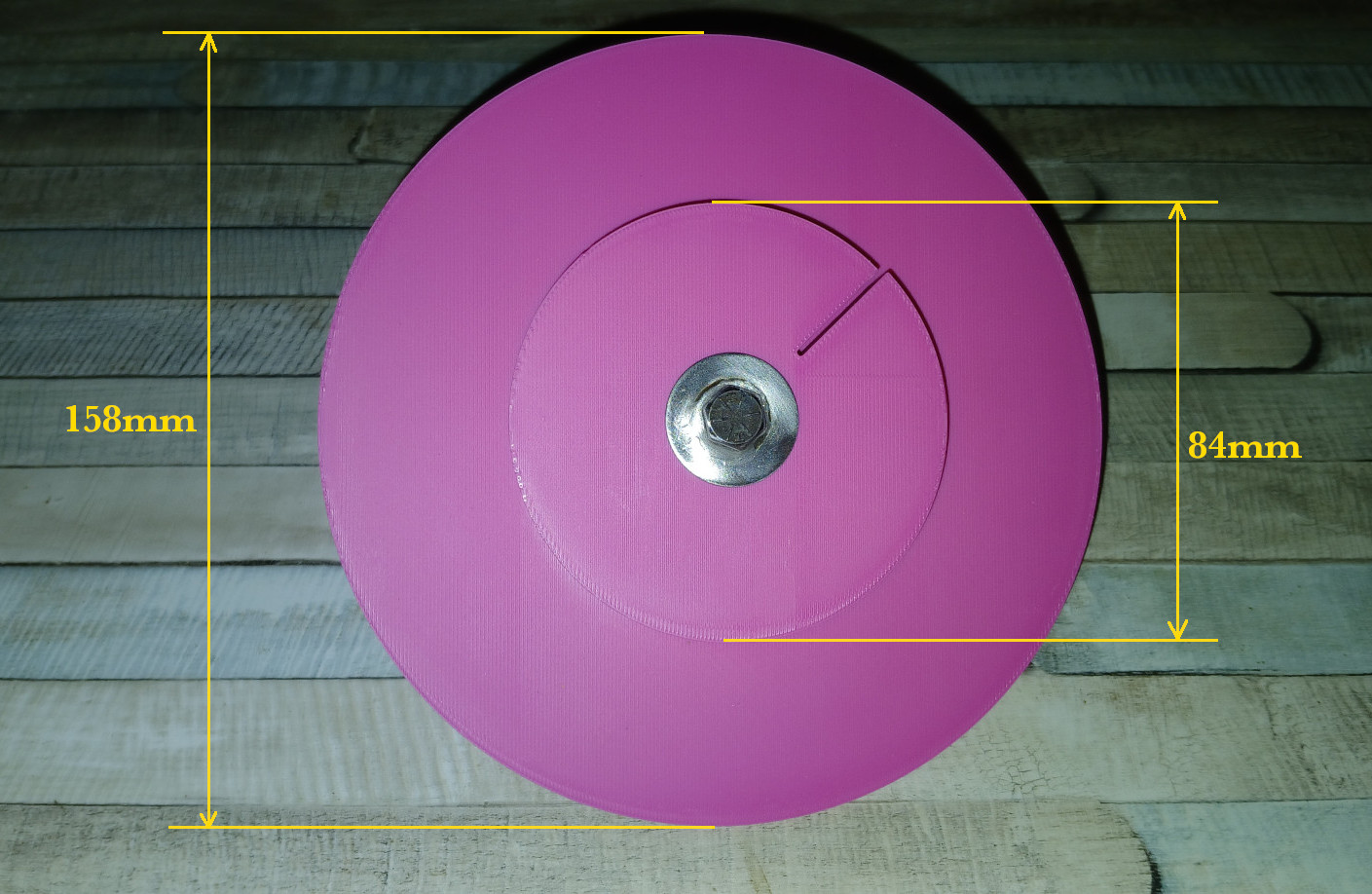

6.2″ (158mm) Plastic Coil Winding Spool
Coil Spool winder. Designed to help you wind 6.2″ (158mm) O.D. Coil with 3.3″ (84mm) I.D. (Air core). Configured to be use for 1mm or 0.8mm thick x 15mm wide Copper Strip wire. If you use 1mm copper strip, you will need at least 12 meters long copper strip, of you use 0.8mm, you will need minimum of 17.5 meters long copper strip. Your Coil will end up to be 3.3″ I.D. (84mm) and 6.2″ (158mm) OD, weight ~ 1.4kG or 3Lb
Filament – Any, PLA is fine
OD 6.2″ (158mm), ID 3.3″ (84mm)
Total spool thickness 18.3mm, Designed for 15mm x 1mm Copper Strip
Center hole for the bolt is 6.3mm. STL file does not have a center hole, 3MF file does have a hole.
Infill 50%
No support
recomended Bolt: 1/4″-20 x 2 1/4 full thread Hex Cap Screws Grade 8 Black Oxide
Price – Free
If you have any questions, reach out to me support@bbmpulser.org
If you don’t have 3D printer, you can purchase it already made, more info HERE
Main Board Diodes Bracket V2.0
I have this Main Board Bracket in stock here in USA price $14 + $7.80 Shipping in USA, Contact me for Combined shipping
Small profit I make from the sales is going towards improvement & new designs
thank you for supporting BBMPulser Open Source Project
How to place your order info is on the bottom of the page
Diodes Bracket with fan support
I have this Main Board Bracket with 60mm fan support in stock here in USA price $14 + $7.80 Shipping in USA, Contact me for Combined shipping
Small profit I make from the sales is going towards improvement & new designs
thank you for supporting BBMPulser Open Source Project
How to place your order info is on the bottom of the page
STANDOFF – MAIN BOARD V3.0 (BBMPulser 5B and others)
I have this Main Board Supports in stock here in USA price $1.50 each + $6.00 (1-8 pcs) shipping in USA, contact me for combined shipping
Small profit I make from the sales is going towards improvement & new designs
thank you for supporting BBMPulser Open Source Project
How to place your order info is on the bottom of the page
Older version Thyristor Support Plate
I have this Thyristor Support Plate in stock here in USA price $0.00 + $6.00 shipping in USA
How to place your order info is on the bottom of the page

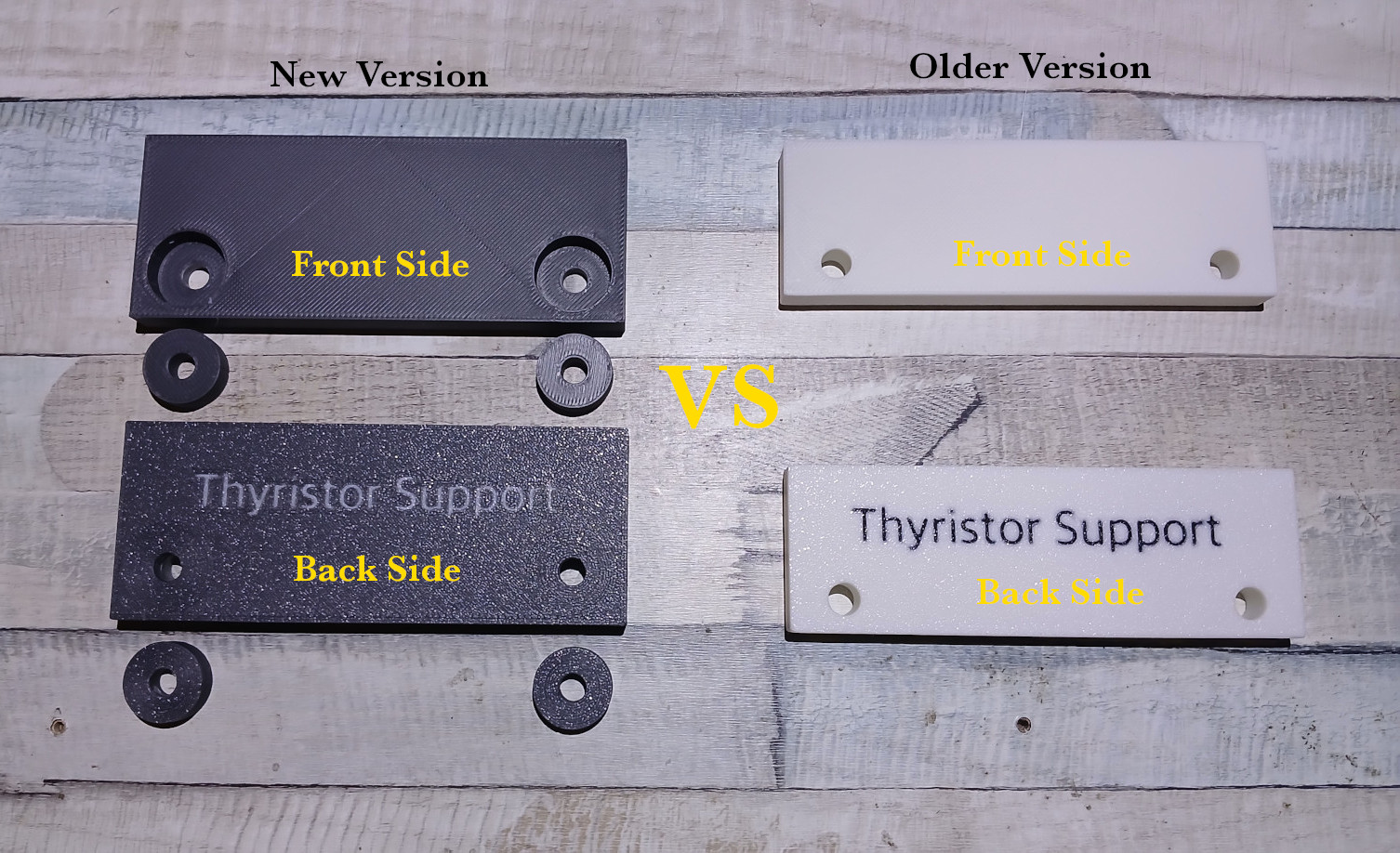

Newer Version Thyeistor Support Plate

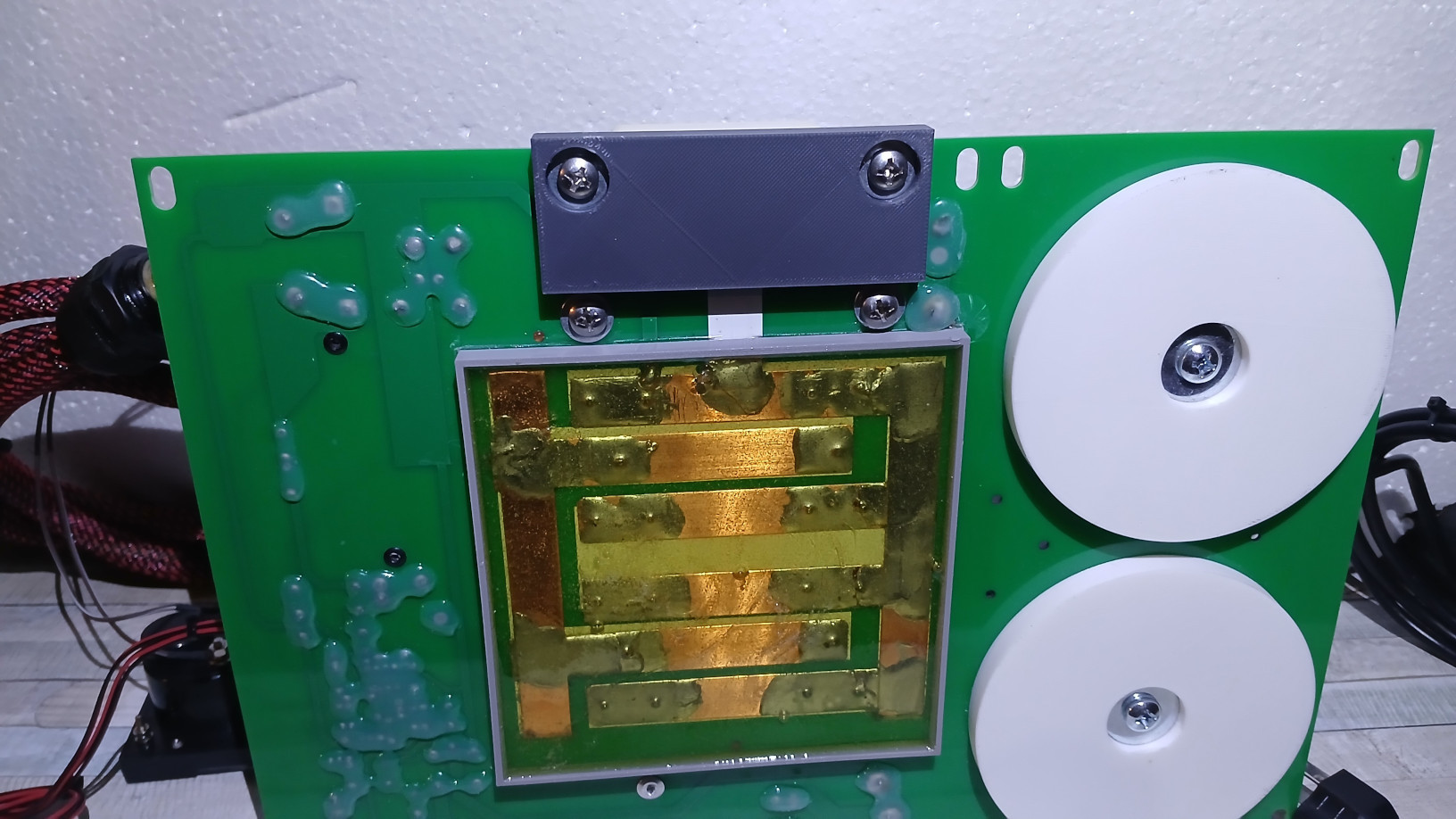

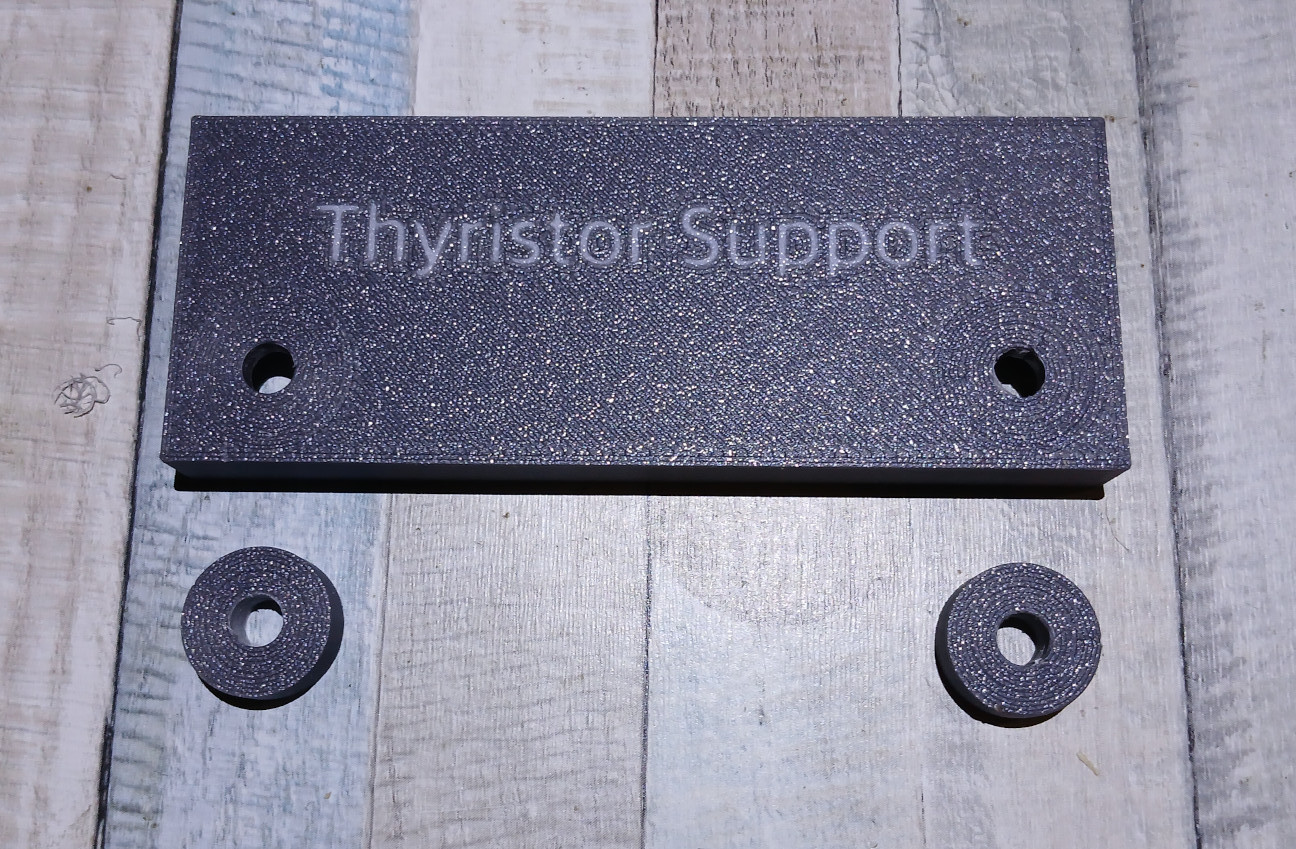

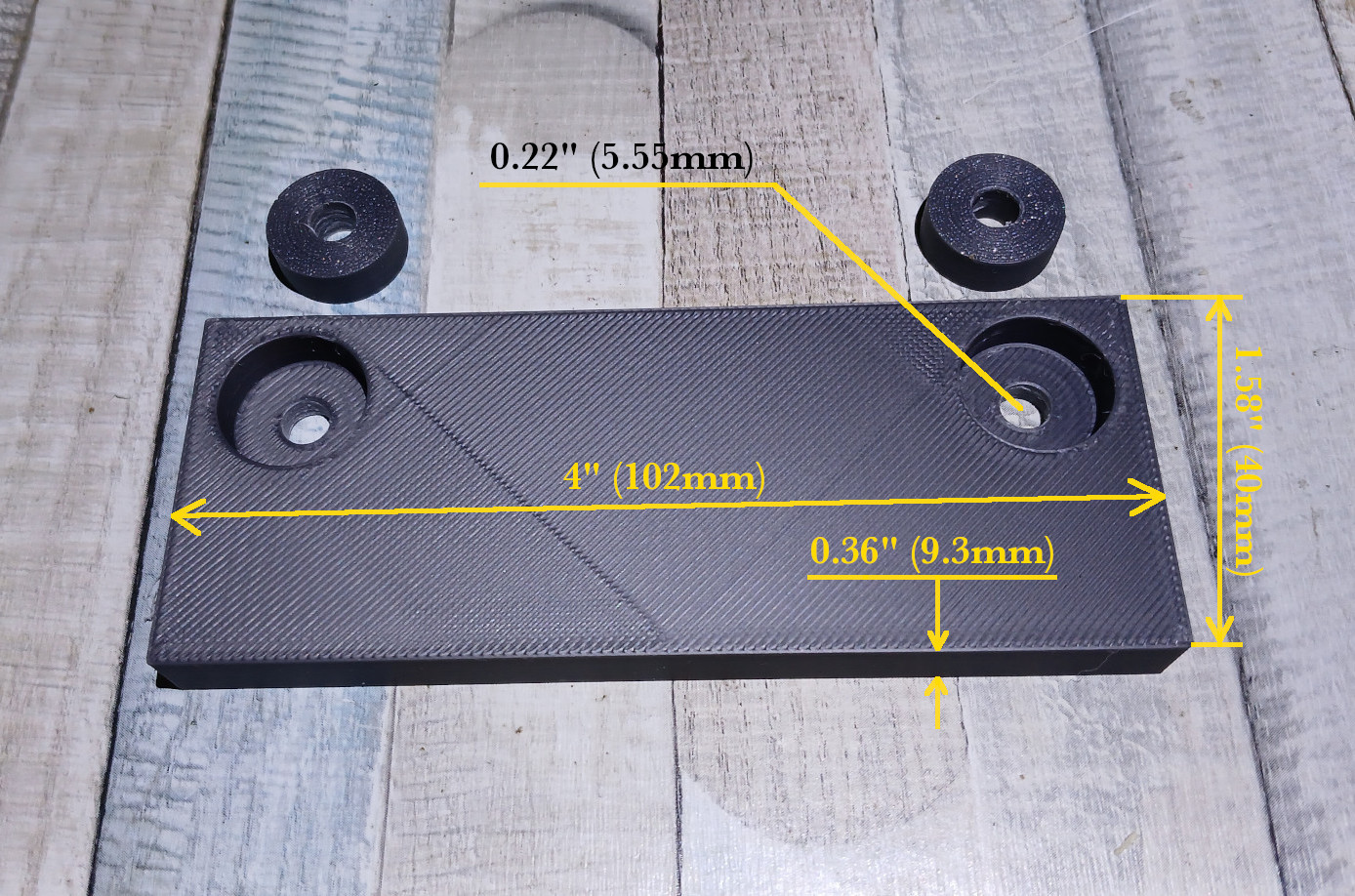

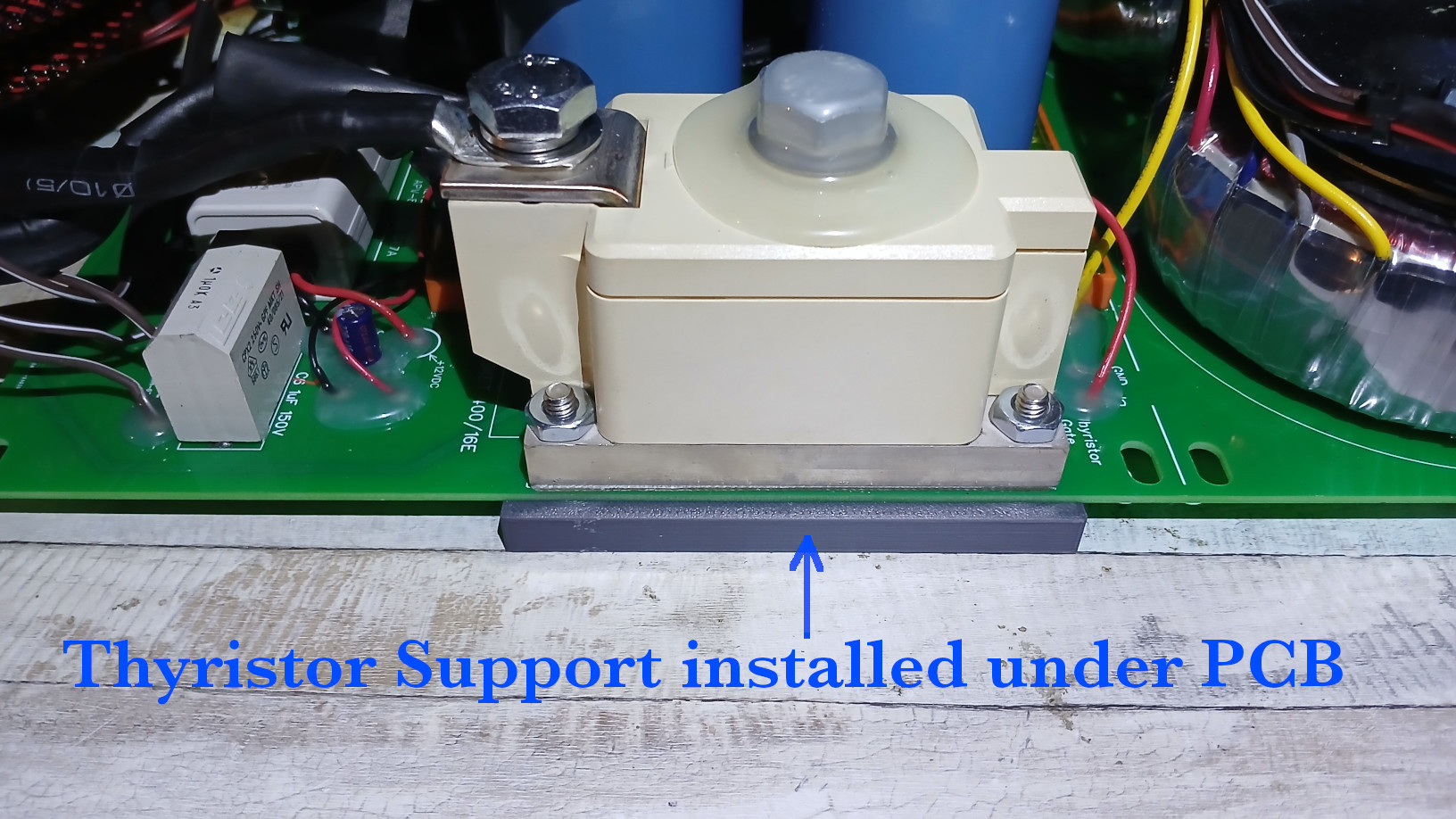

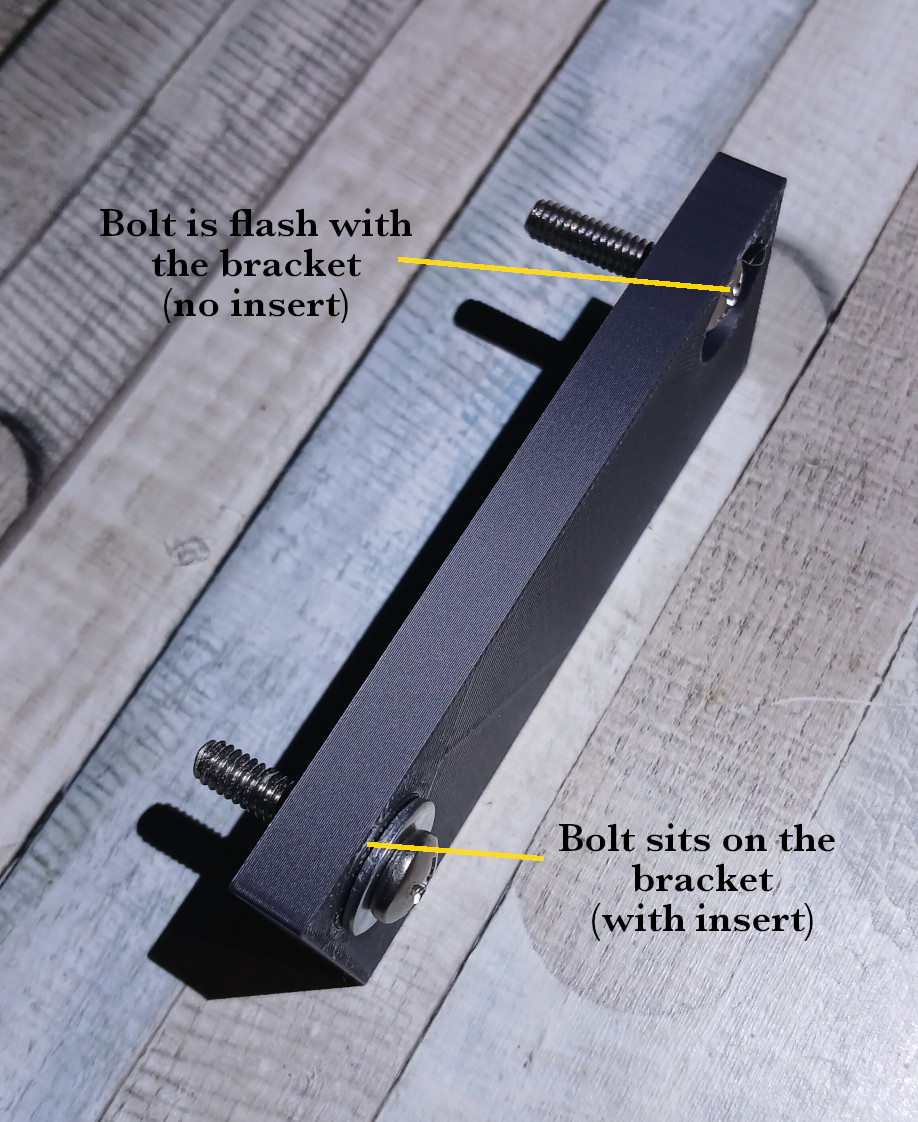

Newer version 3D Printed Support for SKET 400/16E Thyristor
Used under the board to support heavy thyristor. Inserts are used when you mounting your PCB to the case.
Used on BBMPulser 5B ver 1.3 PCB
You can print with any filament, PLA is fine
50% infill, no support
Sorry, no STL only 3MF file is available
BBMPulser-5B-Thyristor-Support-V3.3mf.zip
Transformer Bracket
I have this Transformer Bracket in stock here in USA price $6.50 + $6.00 shipping in USA, contact me for combined shipping
Small profit I make from the sales is going towards improvement & new designs
thank you for supporting BBMPulser Open Source Project
How to place your order info is on the bottom of the page
BBMPulser 4B, 4.5B and 5B Case Supports
You will need to 3D print 7 out of 9 STL files
2 out of 9 marked as [view only] dont need to be printed
Print Details:
MATERIAL: Most of the parts can be printed with PLA /(+), the bases for the tranformenes should be printed using ABS or ASA or other high temp Plastic. For this 2 bases use 100% infill with support when printing
LAYER HEIGHT: 0.2mm
INFILL: 100%
SUPPORTS: NONE
Note: INTERNAL M4 NUT HOLE PRINT SUPPORTS MUST
BE DRILLED OUT AFTER PRINT – TOP AND BOTTOM MOUNTS)
(See illustration)
This mounting brackets optimized for 2.4 Tesla BBMPulser 5B (2024) full PCB (available for $45+ shipping, more info here) you will need to cut off section of the PCB dedicated for transformers. This section will not be used with this Case
GameMax Spark Mini Computer Case available from Amazon.com for $75
Using this mounting supports, you can utilize GameMax Case existing supports to mount BBMPulser 5B (2024) PCB (kit)
GAMESPARK – CENTER PUNCH TEMPLATE – T
GAMESPARK – CENTER PUNCH TEMPLATE
BOARD MOUNTS-HARDWARE
GAMESPARK – BOARD MOUNTS – INSIDE-T
GAMESPARK – BOARD MOUNTS – OUTSIDE – T
Transformers inside the Case
Transformer Supports side view
Transformer Supports
PCB Support
GM SPARK – MAIN BOARD MNT-T – RES
M4 – CAPTURED NUTS
![GM SPARK - [VIEW ONLY] - MAIN BOARD MNT-B - RES](https://bbmpulser.org/wp-content/uploads/2025/02/GM-SPARK-VIEW-ONLY-MAIN-BOARD-MNT-B-RES.jpg)
GM SPARK – [VIEW ONLY] – MAIN BOARD MNT-B – RES
GM SPARK – MAIN BOARD MOUNT-B_STANDOFF-F and R
GM SPARK – MAIN BOARD MNT-T-CUP
Capacitor Discharge Resistor
Capacitor Discharge Rewsistor Box 3pcs
Max discharge Voltage 1.5kV. Max discharge Capacity 1,000uF

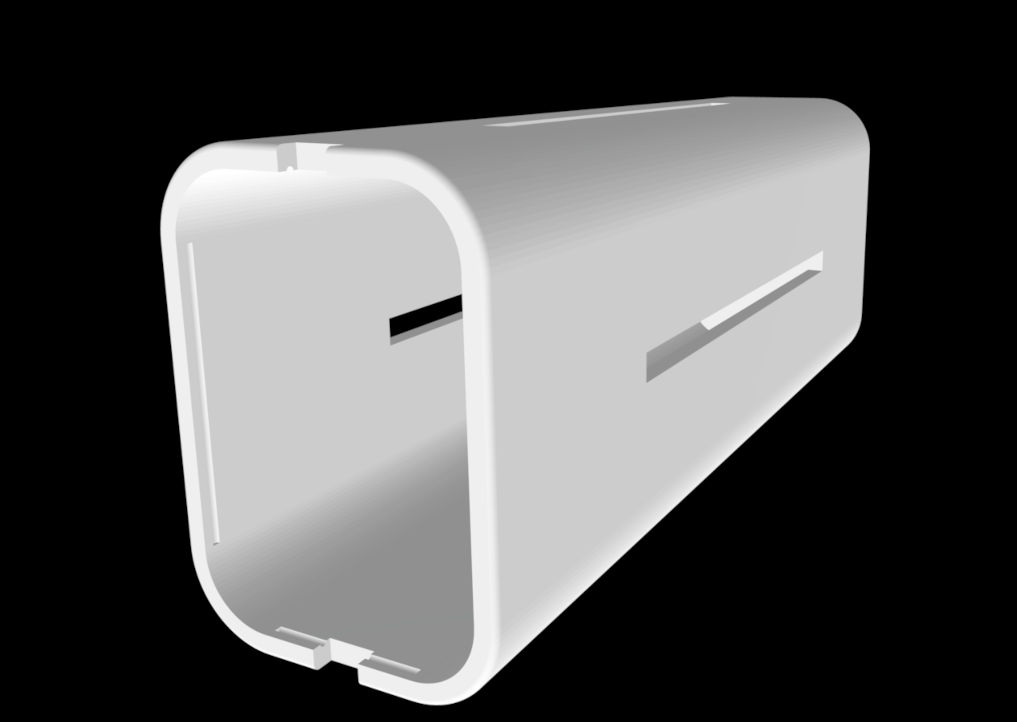

1. CAPACITOR DISCHARGER – BOX

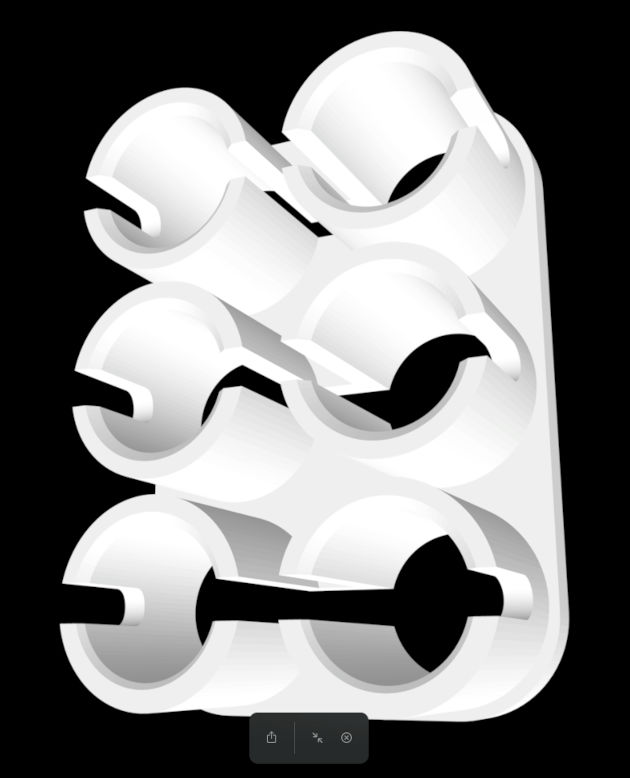

2. CAPACITOR DISCHARGER – HOLDER – BOTTOM

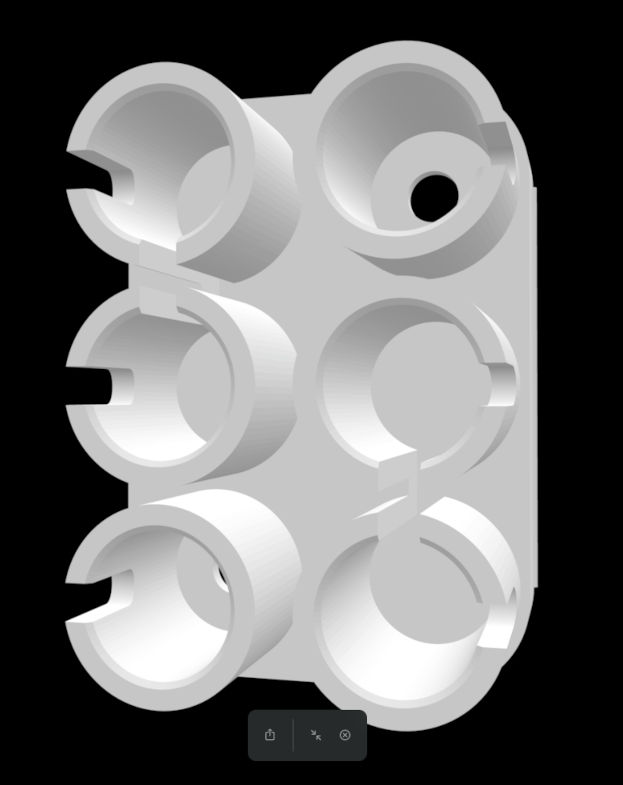

3. CAPACITOR DISCHARGER – HOLDER – TOP
Also CAPACITOR DISCHARGER – TUBE ASSY – FOR VIEW ONLY-S
Print with any filament incl. PLA
This Box is designed for 6x 78mm 220-240V 100W-150Watt J TYPE T3 Halogen Bulbs
I recommend Purchasing at least 8pcs (10pcs is optimal) and measure their resistance.
Select 6 with about the same resistance.
This light are cheap and some may be bad out of the box.
You can find this lights on Aliexpress.com for under $20 /10pcs incl. shipping
Here is the link to one of the seller, 8pcs for $11.30 with free shipping. Make sure to select 100W bulbs!
eBay also has them, but they are all 120VAC, make sure you get 220VAC bulbs

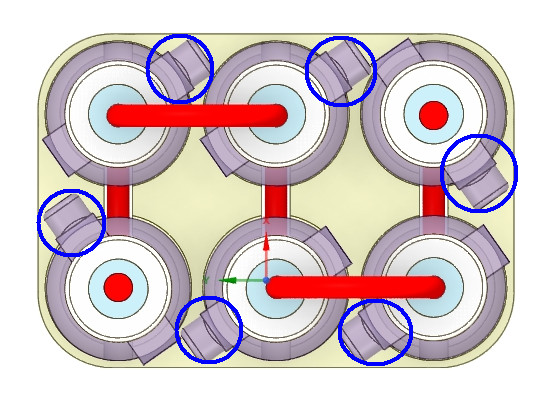

Bulbs may have “nipples” in the middle of the tubes from the manufacturing process. I don’t think they all do from images I’ve seen, but when they do, you need to make sure to clock them as shown on the Picture for clearance to keep them from touching.

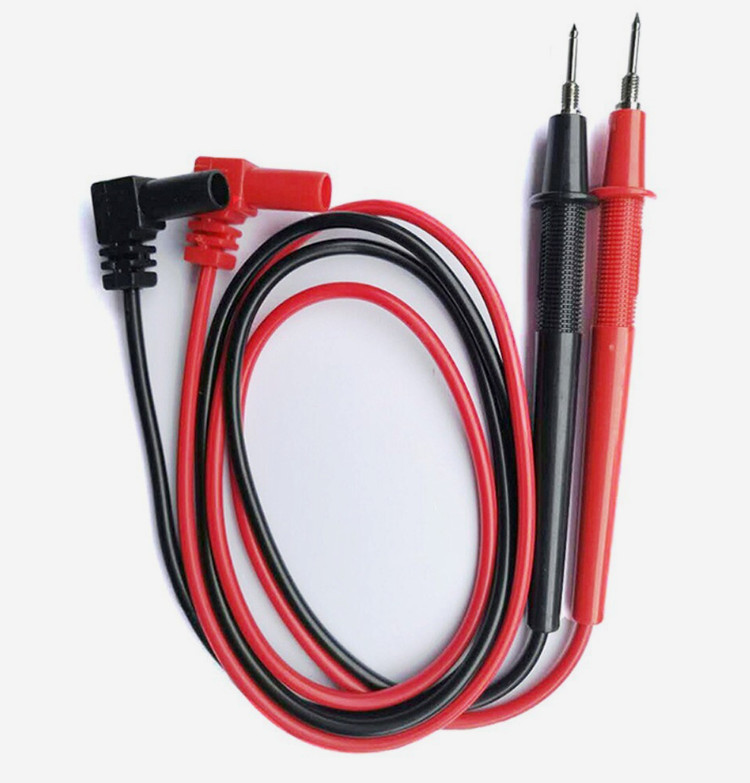

Also you will need “Universal Digital Multimeter Multi Meter Test Lead Probe Wire Pen Cable 1 set”
You can find them on eBay.com or aliexpress.com
You will need acid to solder them in parallel. Their end contacts are made from stainless steel and it’s hard to solder them with flux. I use Phosphoric acid 85% concentration, works great
Credit for design go to Bob P. Thank you Bob, we really appreciate your contribution to Open Source community!
You can buy from me directly any part listed above, this will help me with future design costs. I spent hundreds of $$ on this designs. All 3D Prints listed above are free to download and OPEN SOURCE. If you are designer and have some free time to help with designs please contact me support@bbmpulser.org
To place your order please contact me support@bbmpulser.org specify what you need, quantity, your city and Country, I will reply to your email with the quote and payment instructions
Thank you for your support!
