Discontinued Models, Kits & Parts

Electronic Circuits

Magnetic Pulsers (PEMFs)

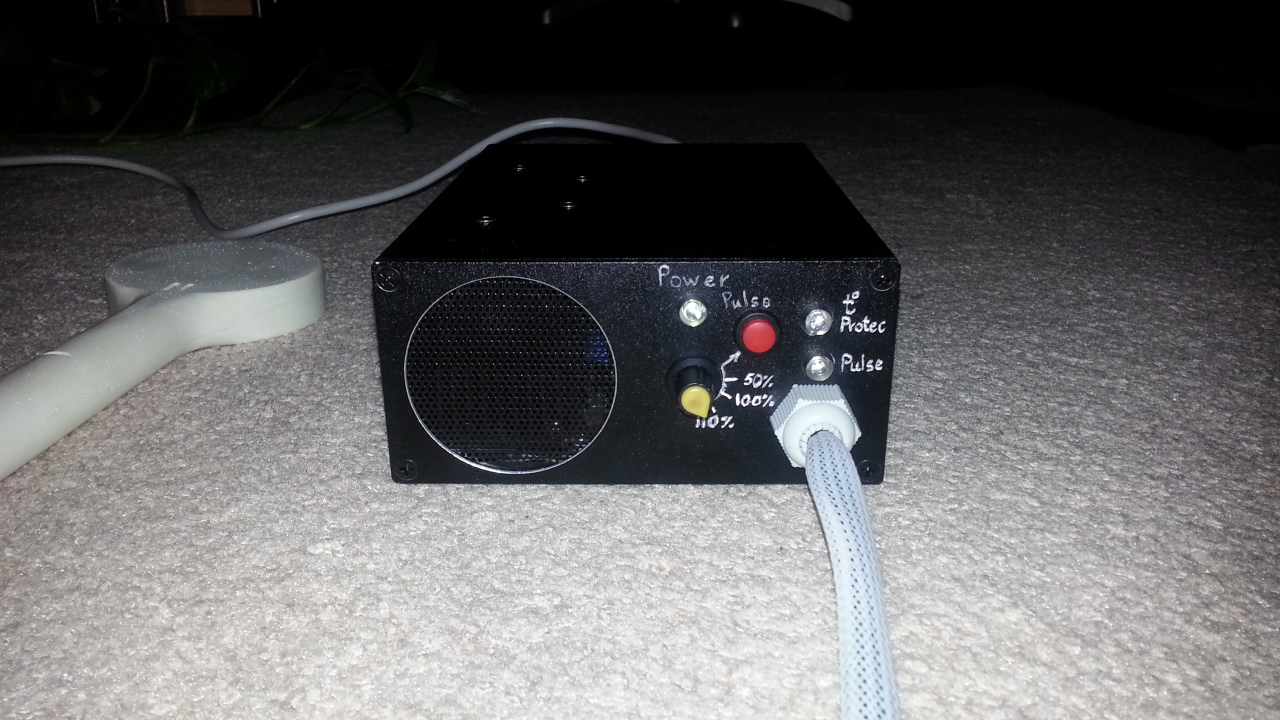

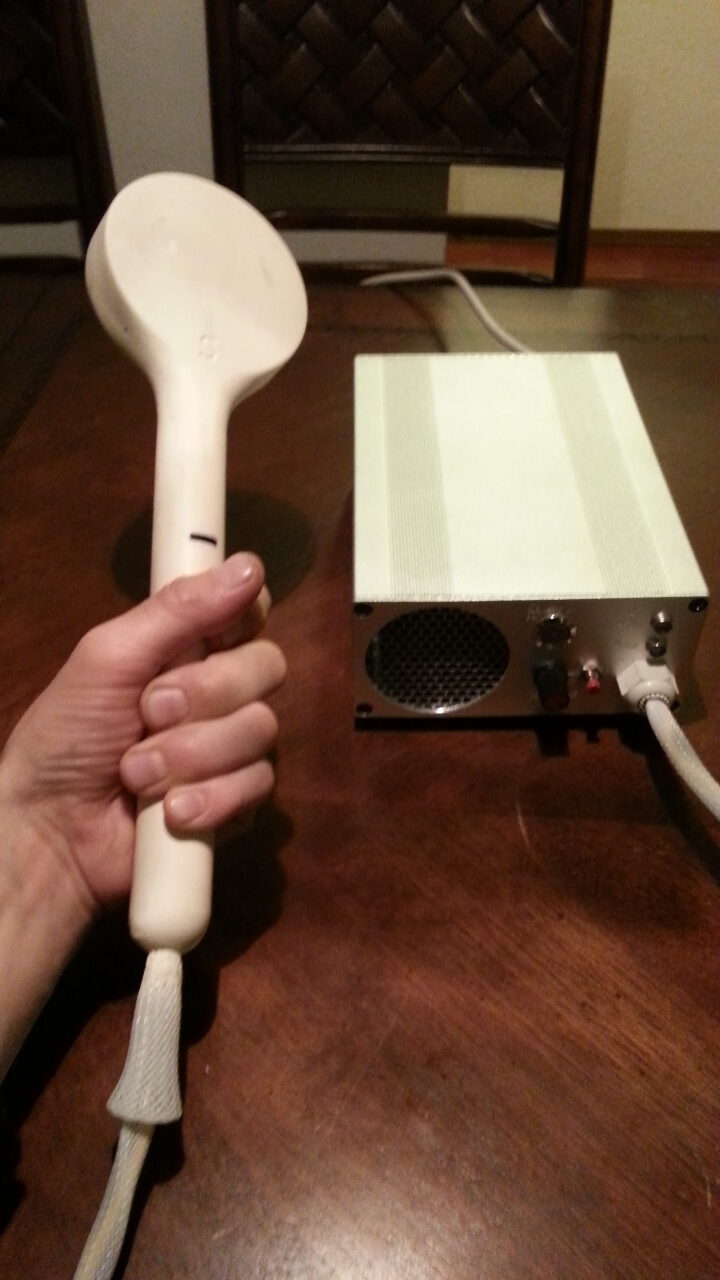

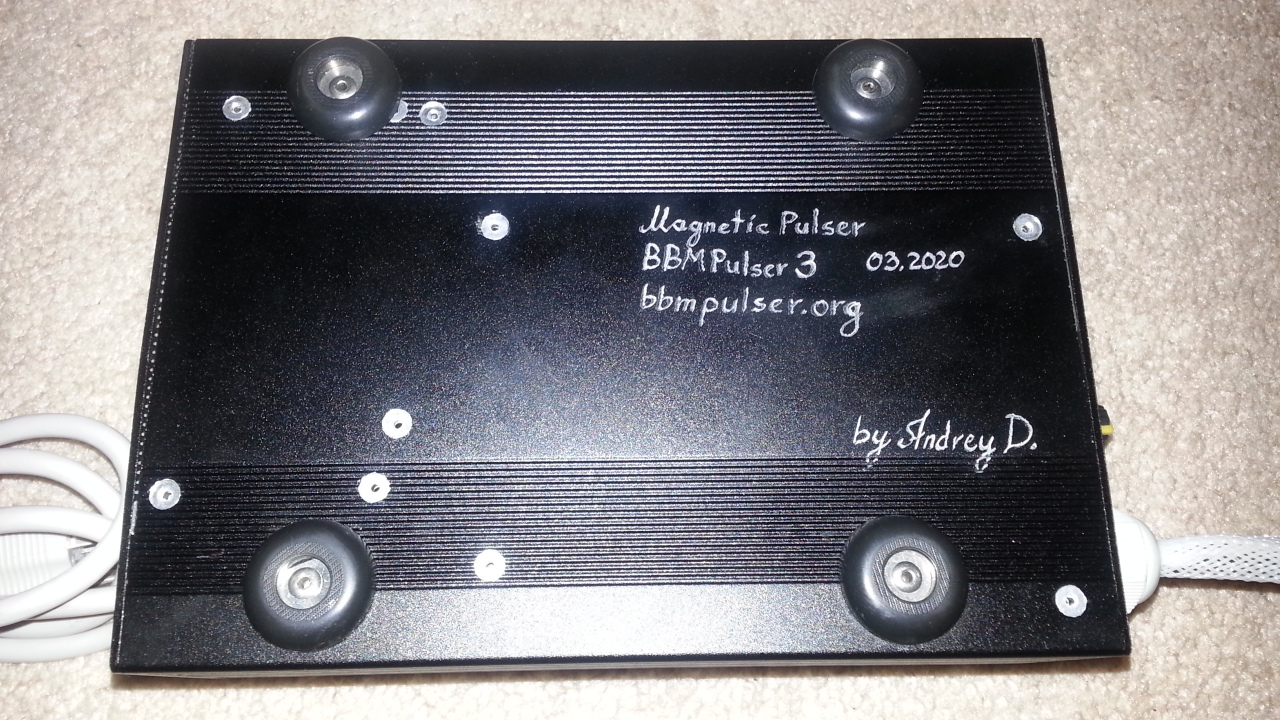

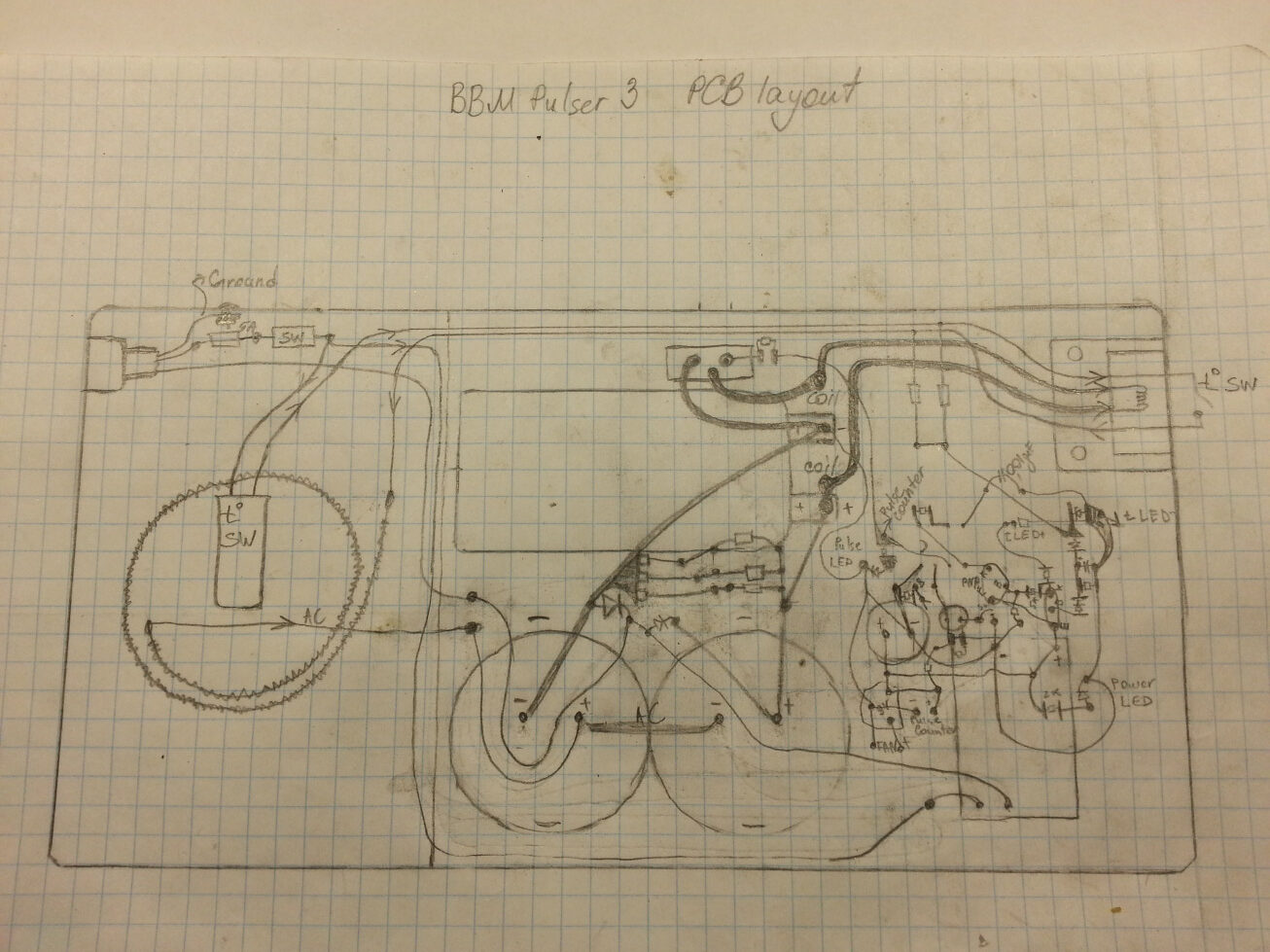

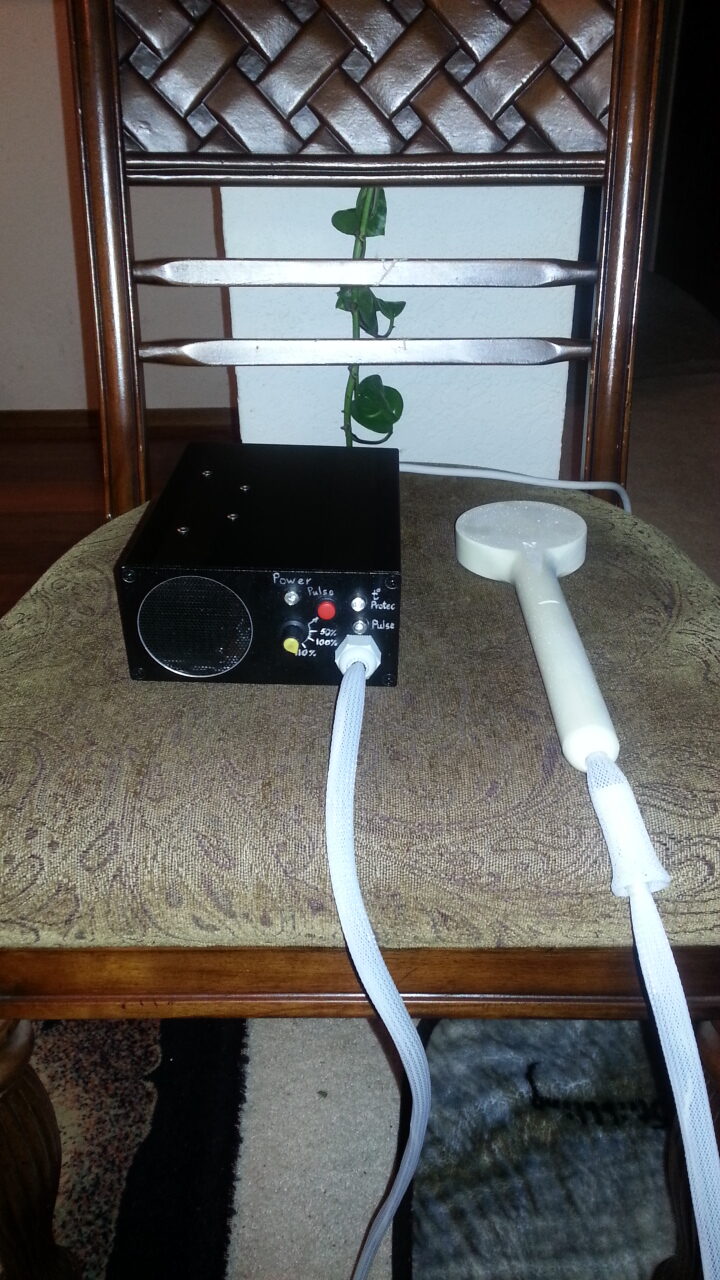

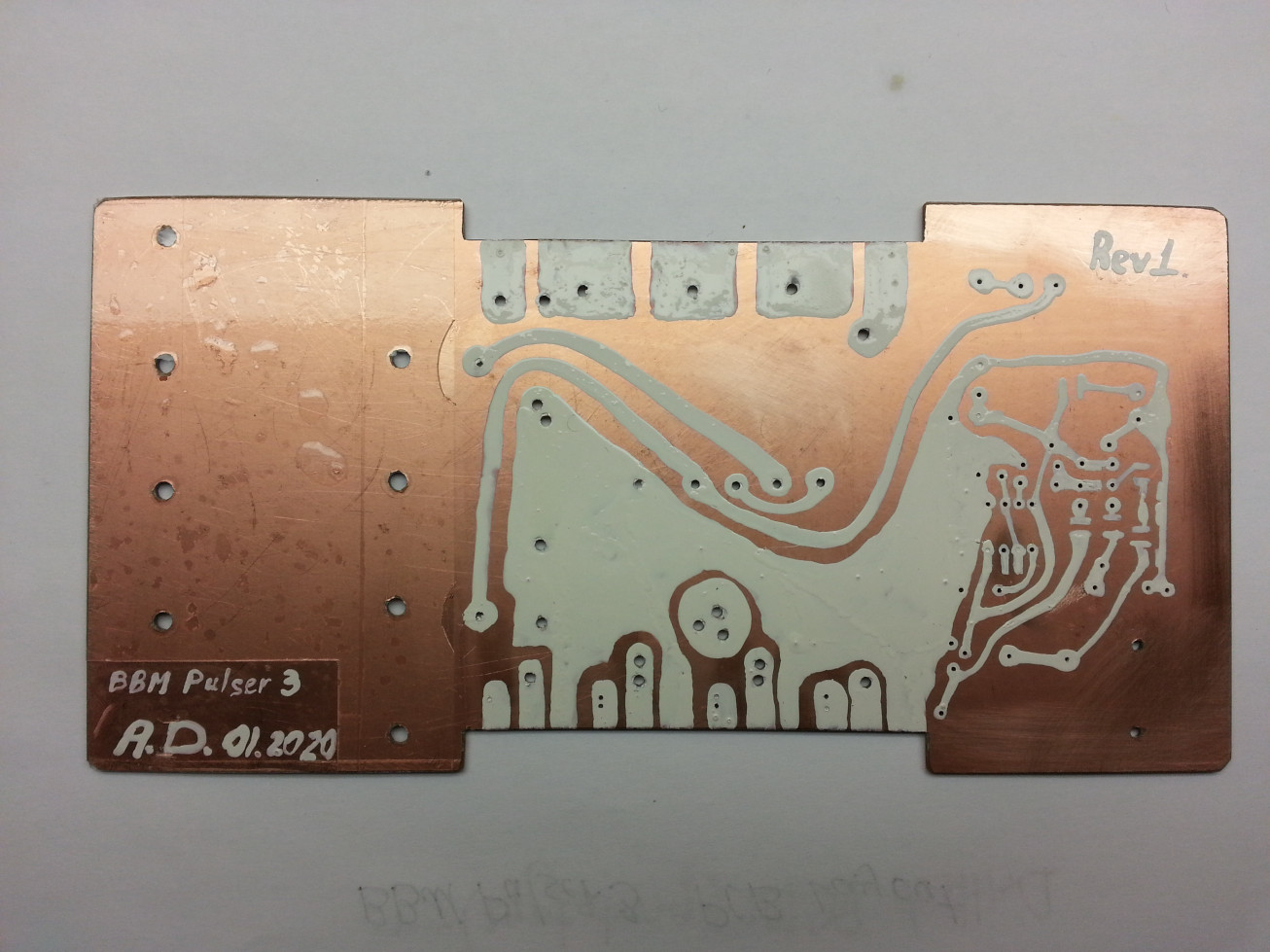

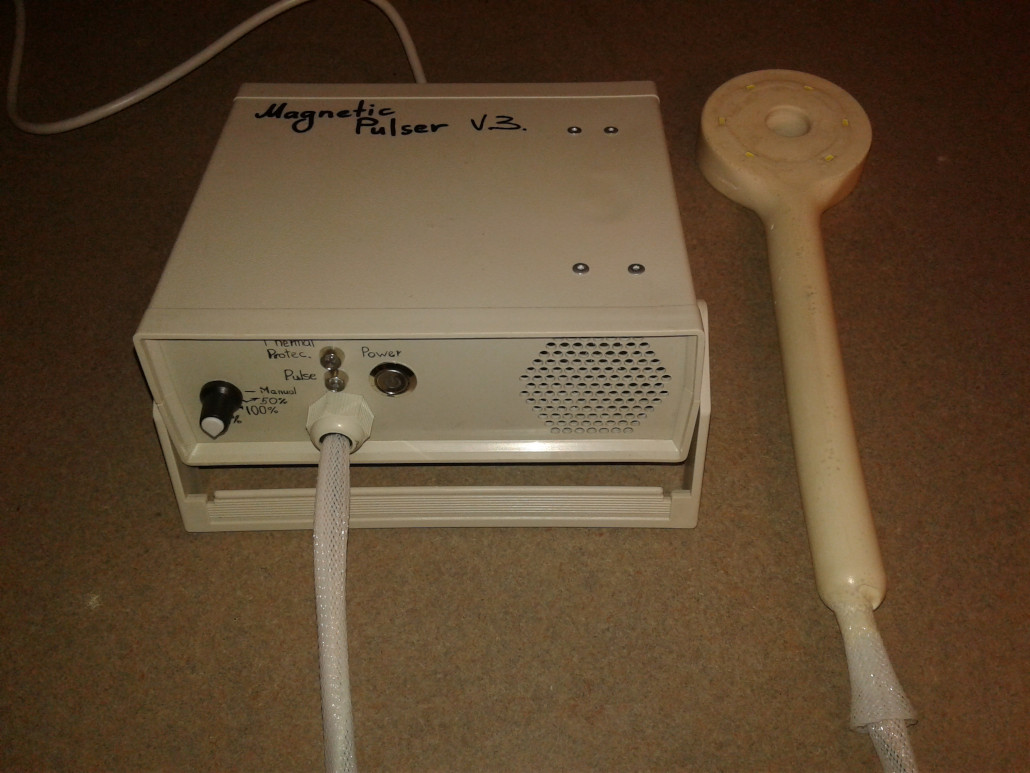

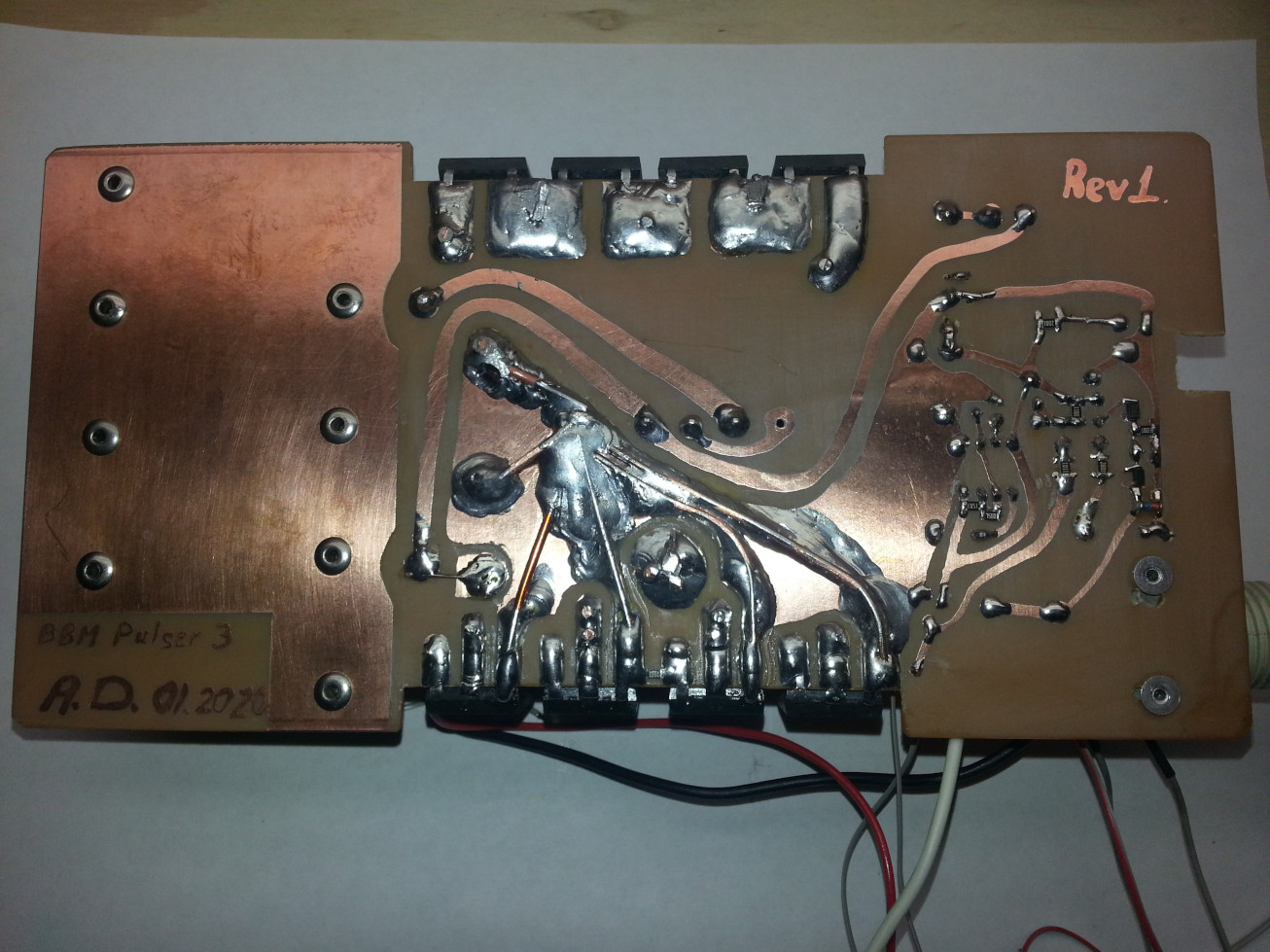

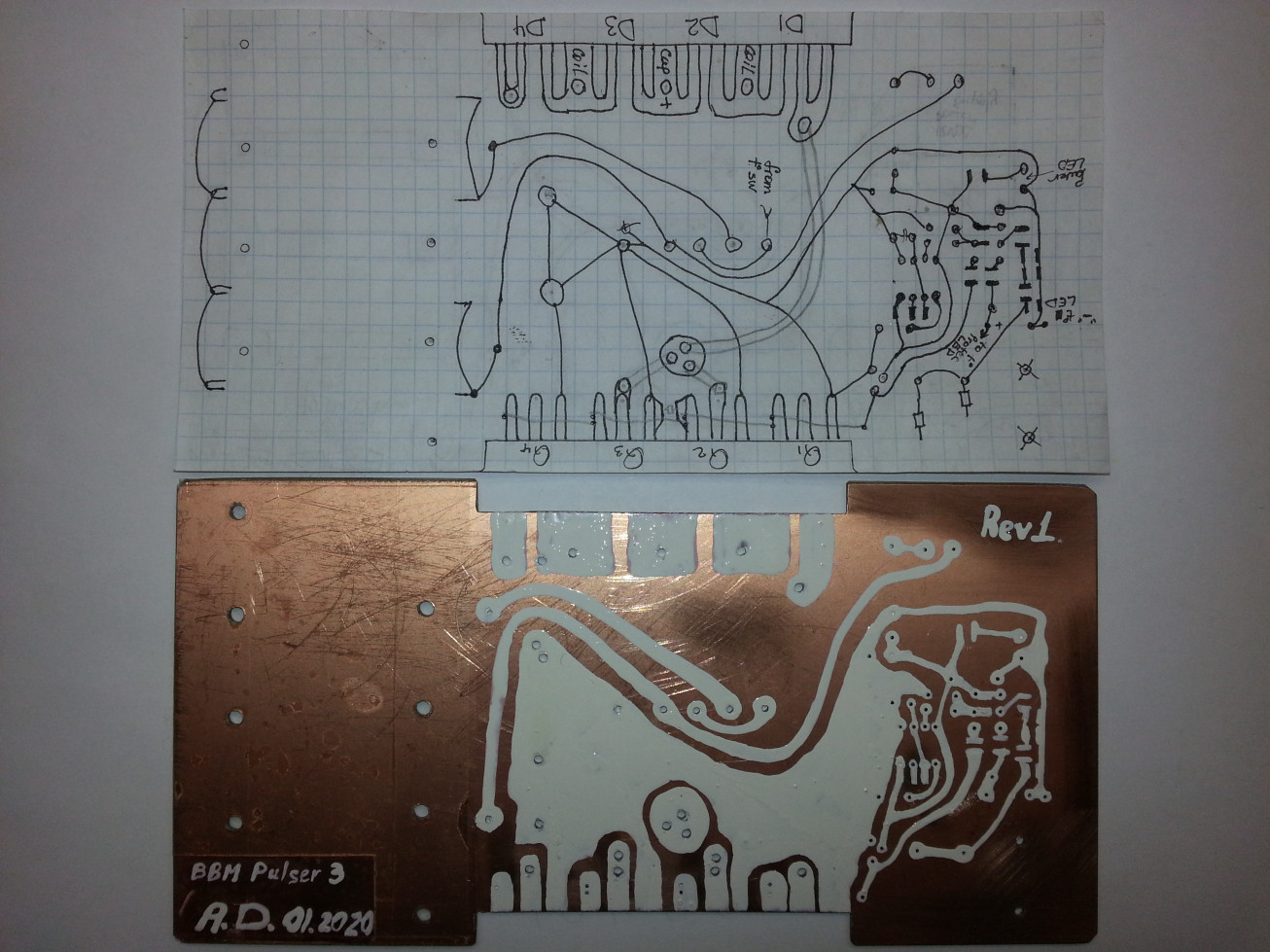

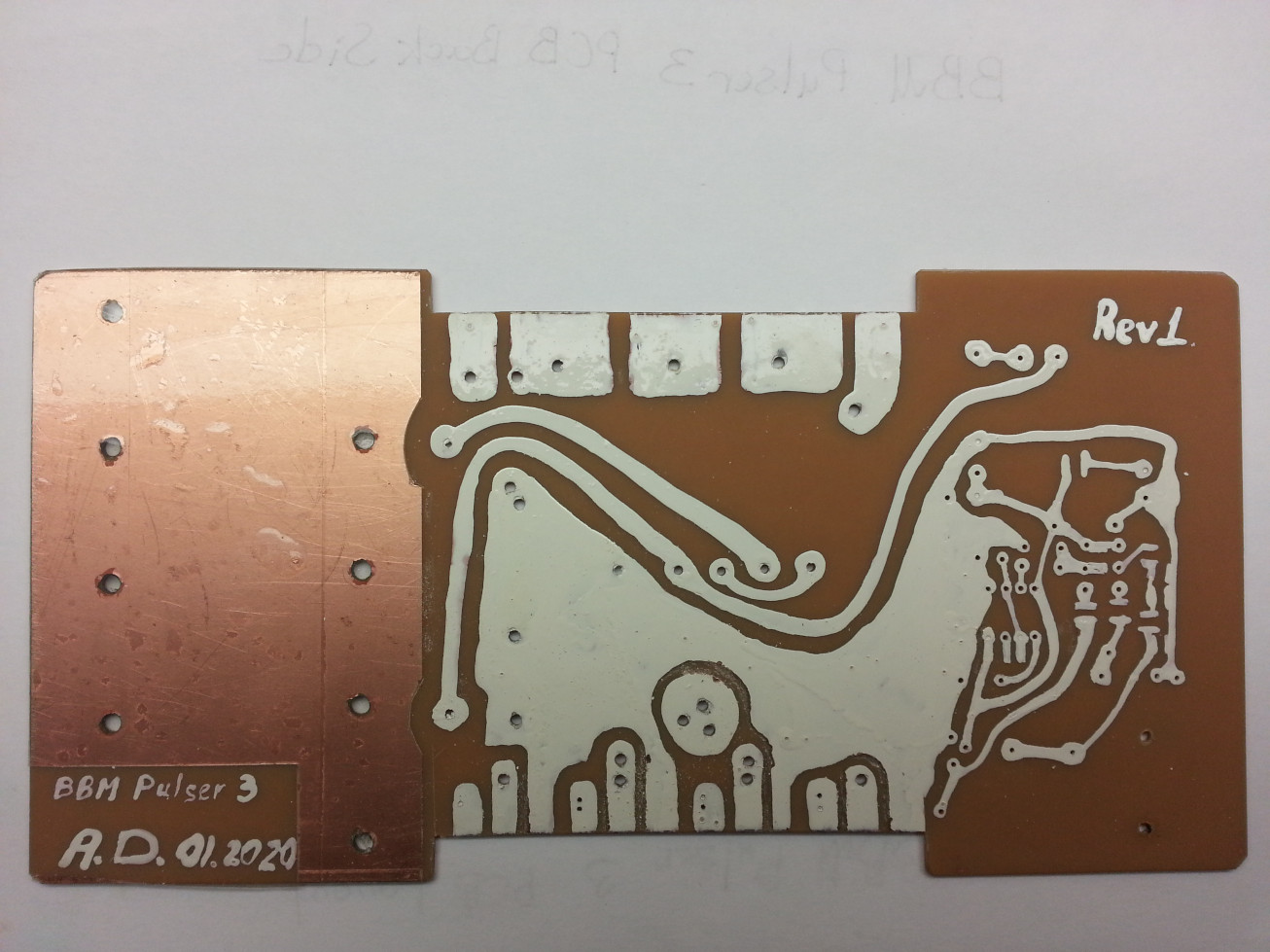

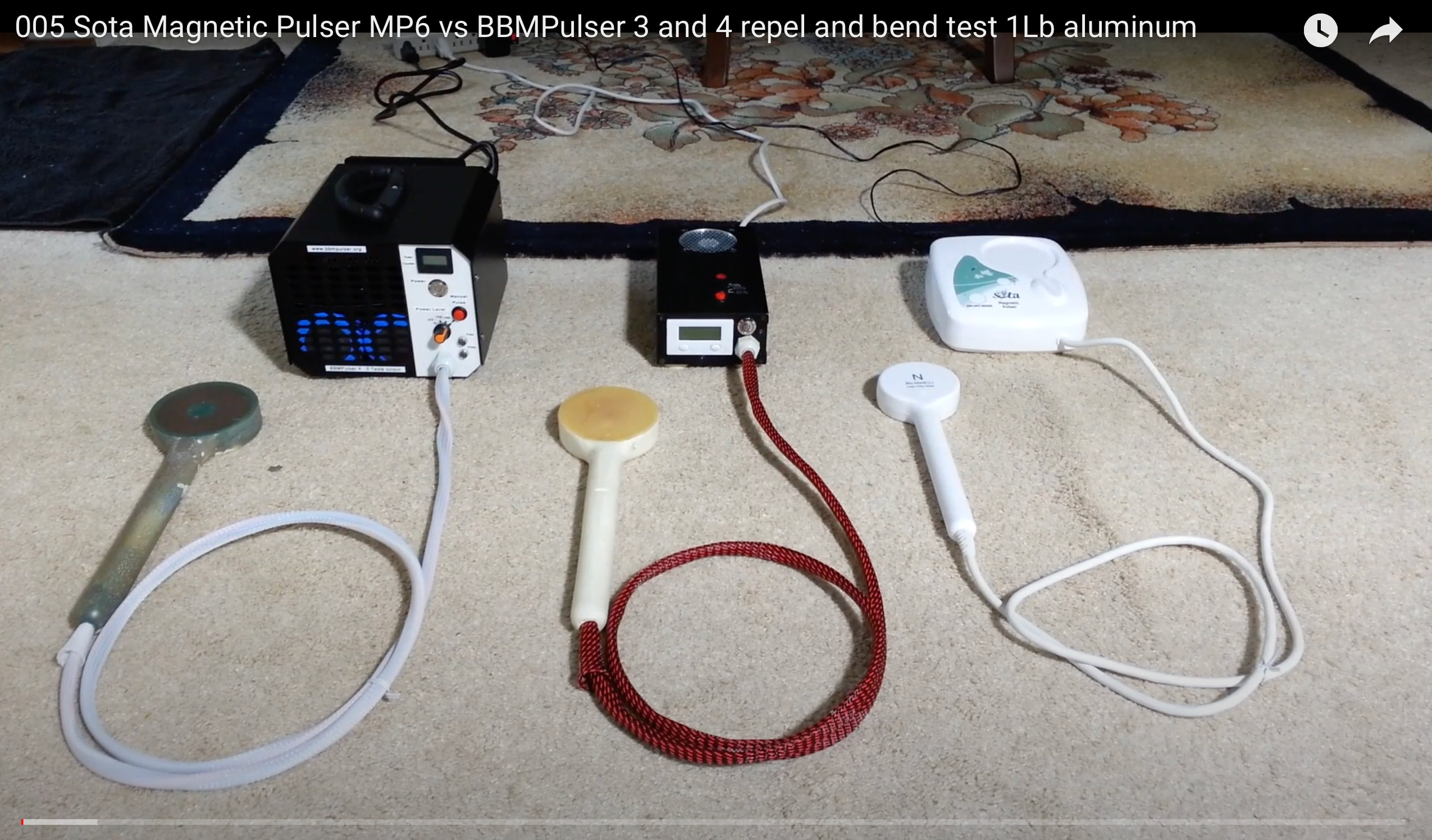

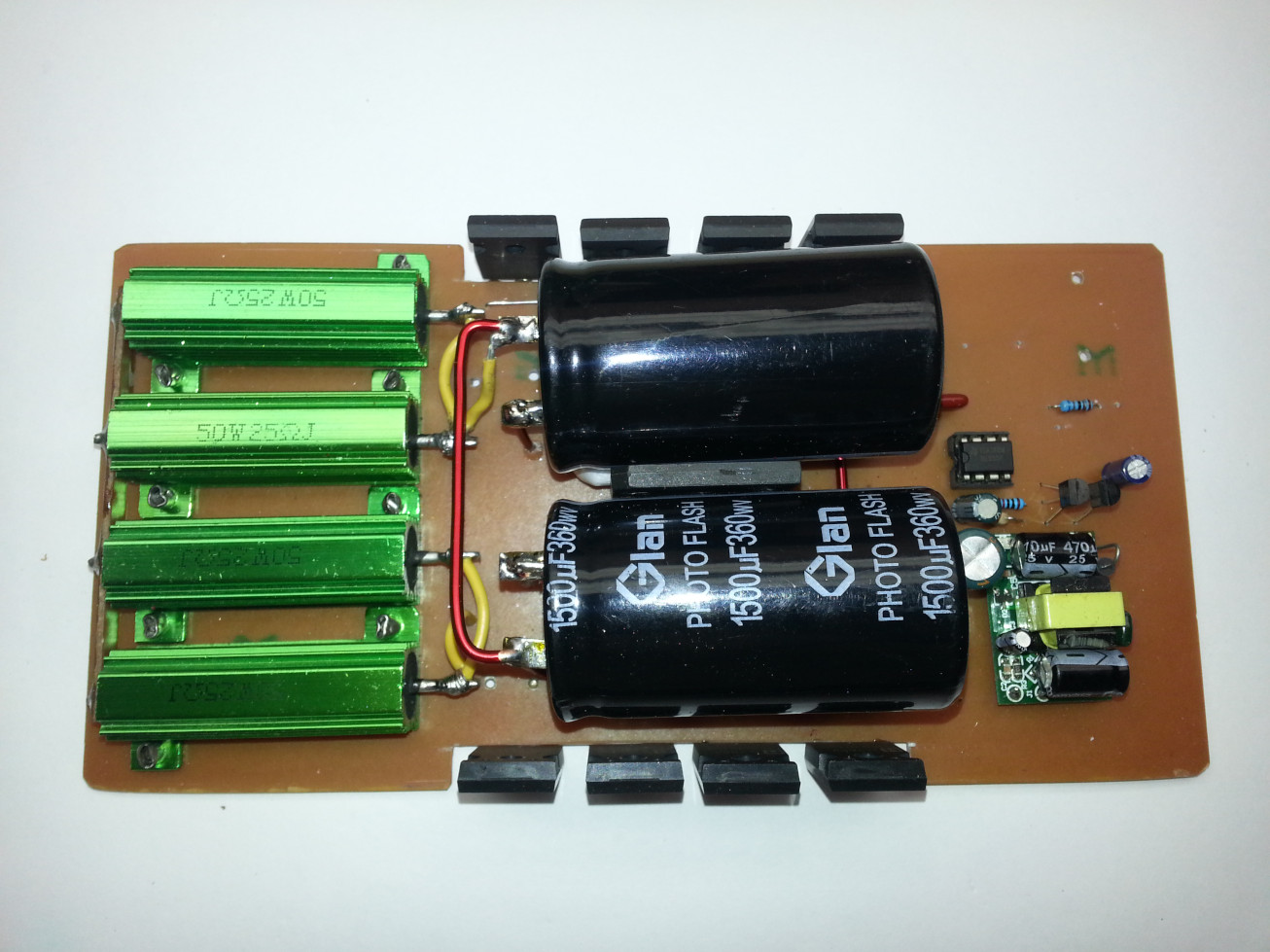

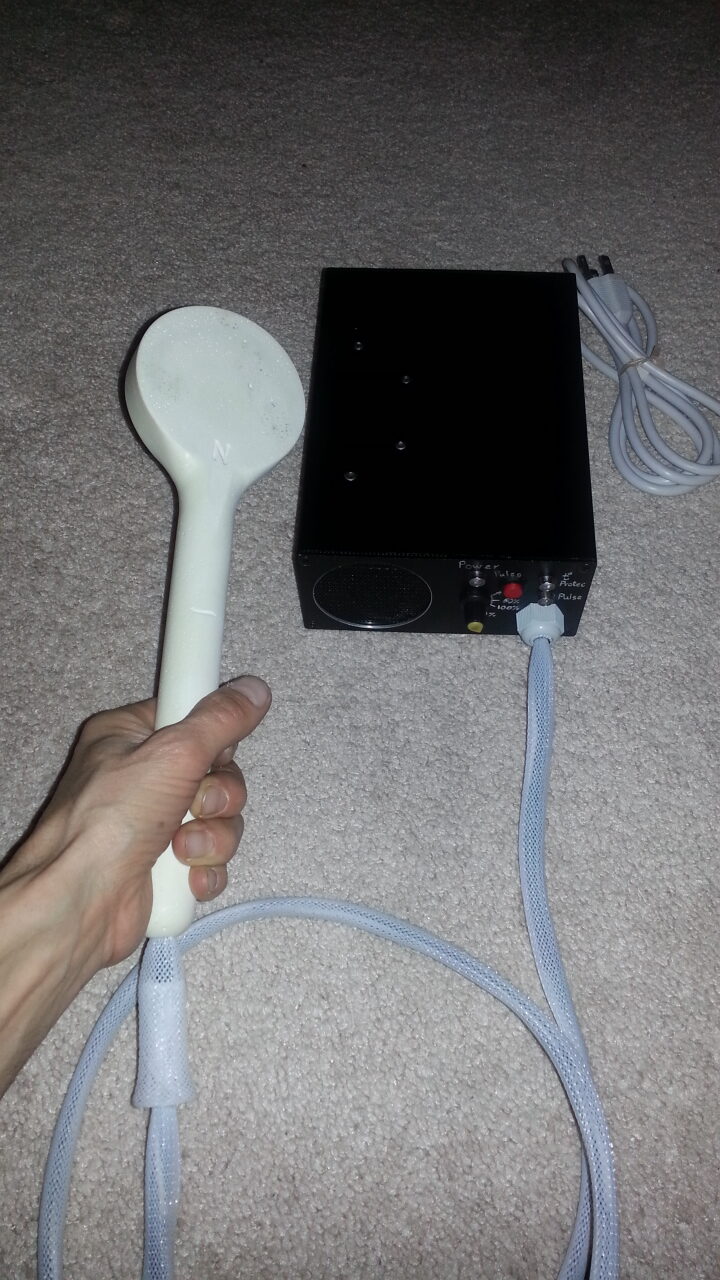

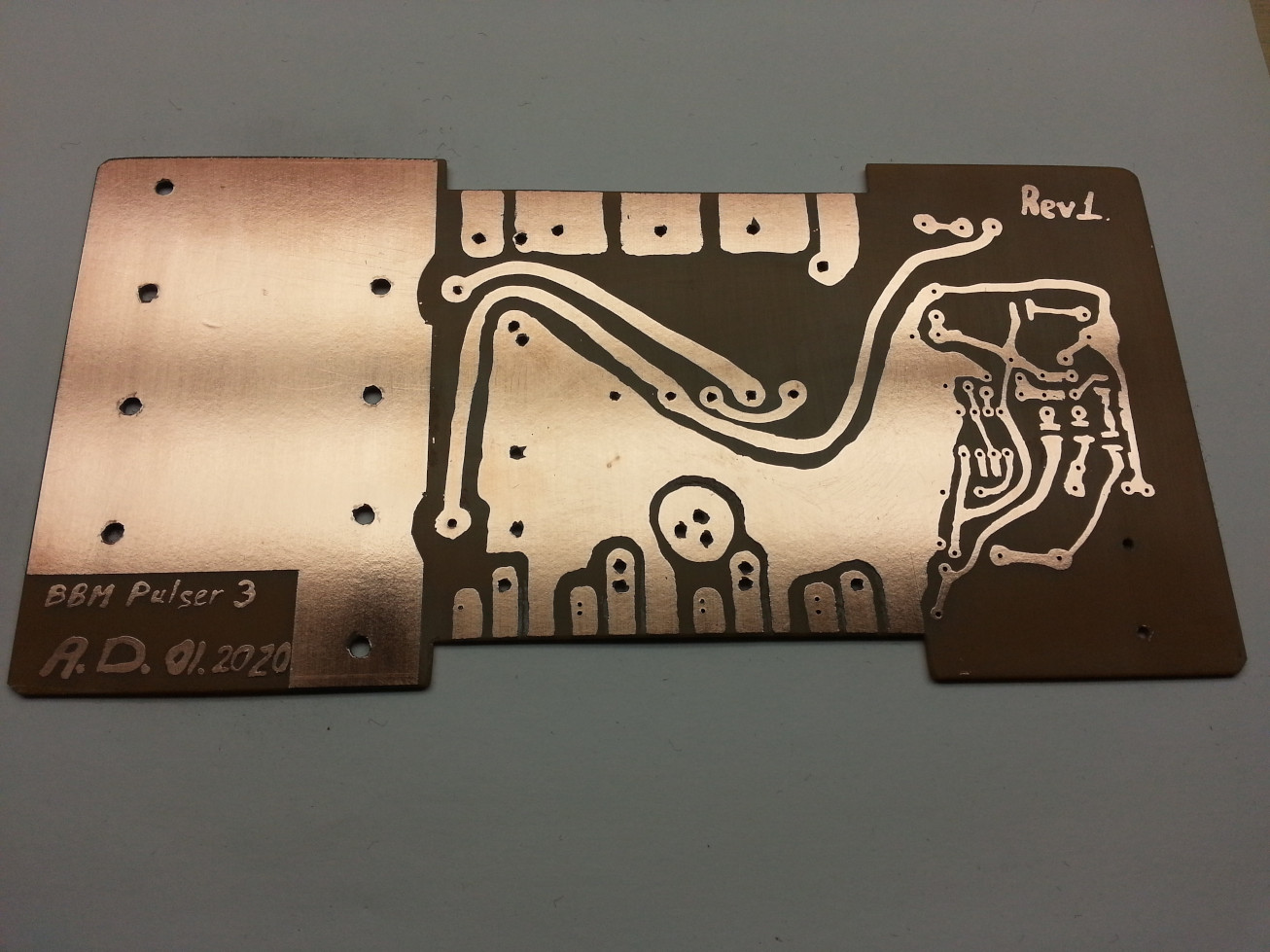

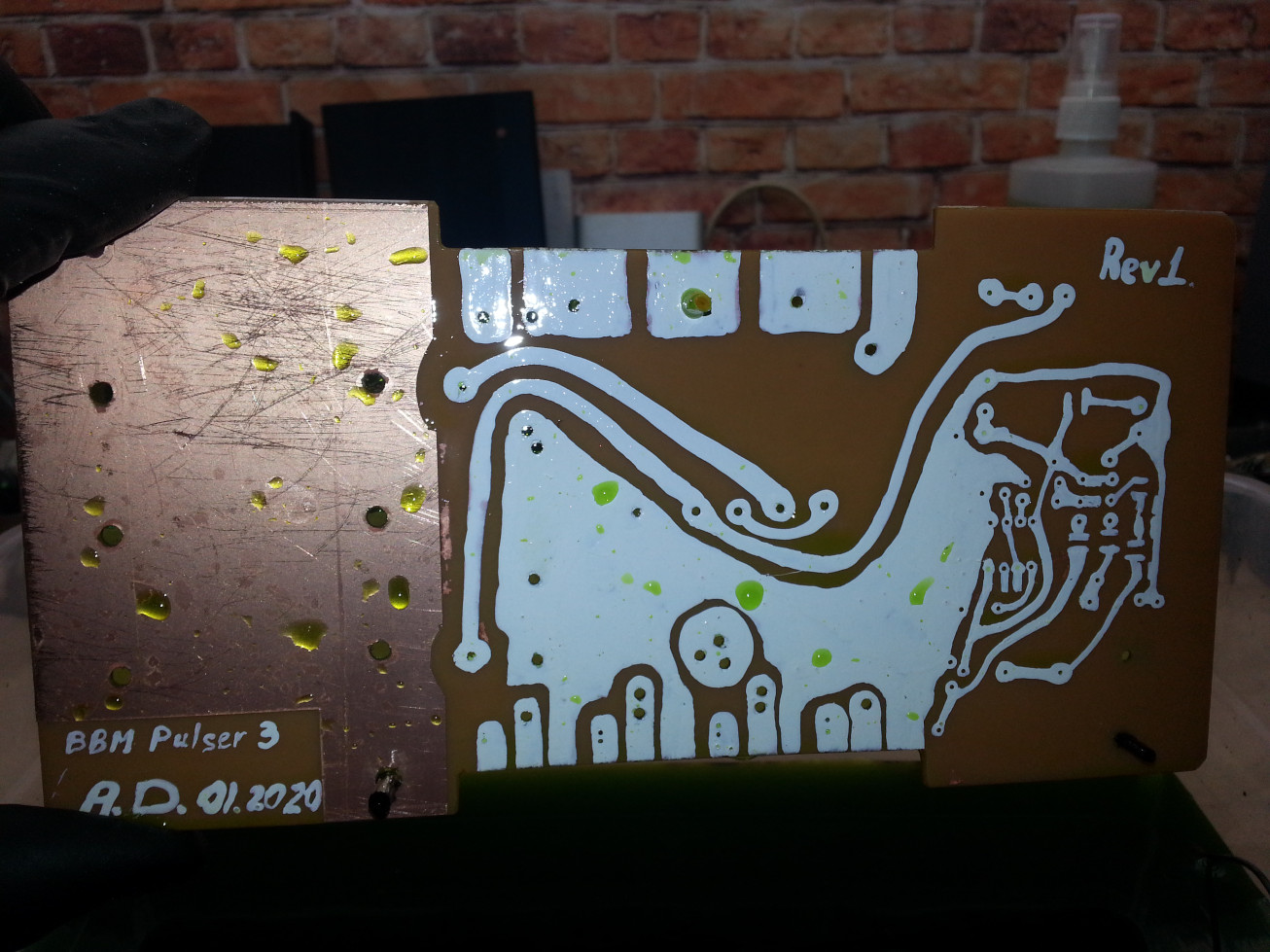

BBMPulser 3B model 01/2020-04/2020

Only 5 Units were built

 Currently this model has been discontinued

Unit futures:

Power output 1 Tesla (10,000Gauss)

Build in Power adjustment, & Pulse counter.

Unit operating voltage – 120VAC, 100 Watts

Unit can work in manual or automatic mode.

Build in Coil and Unit Thermal Protection

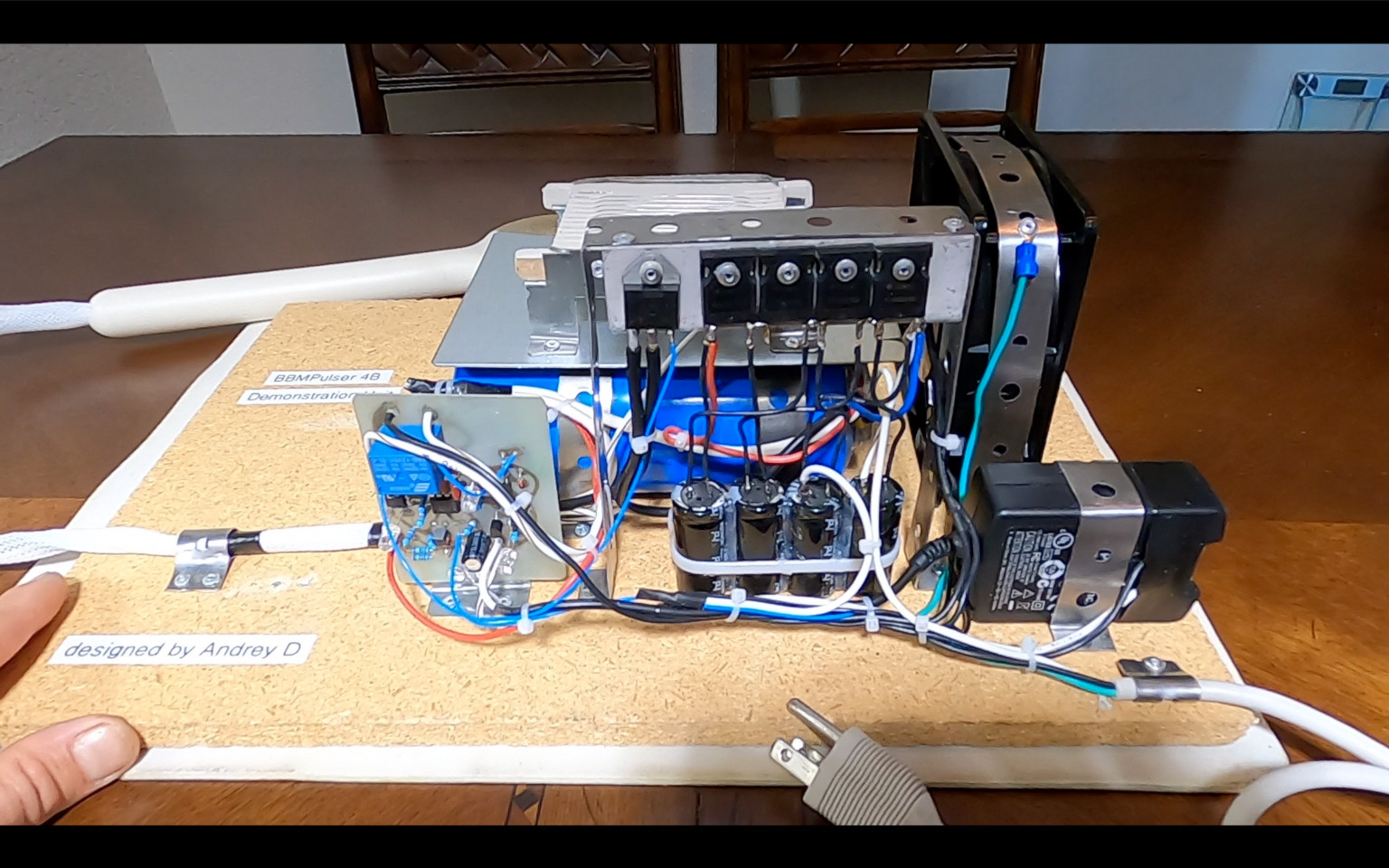

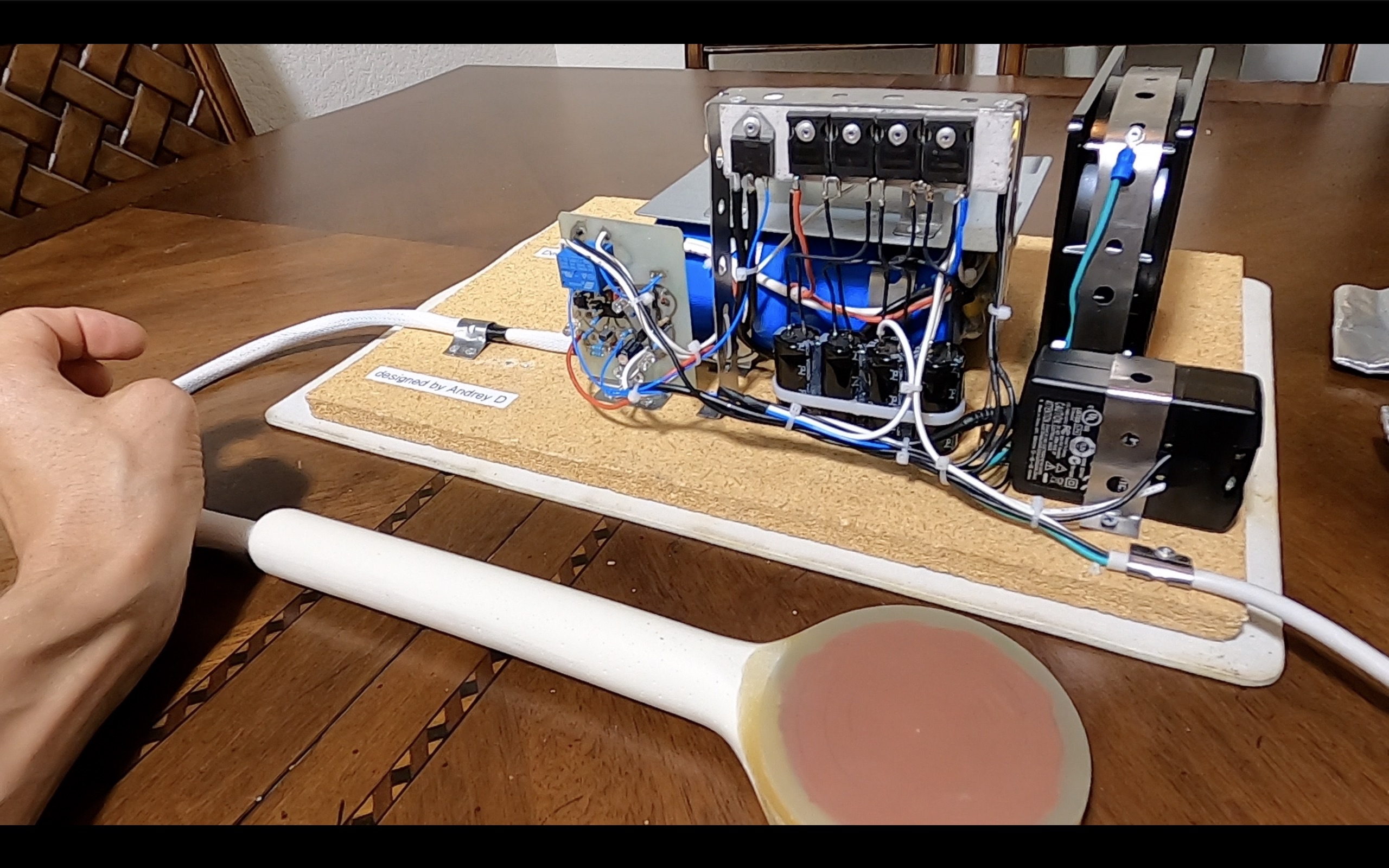

08/2020 my first 1.4 Tesla BBMPulser 4B (Basic) Kit. Free Circuit  download here

Basic Configuration, simple to use, it only has one Power button !

Kit spects:

Working Voltage 120Vac, 300Watts
Capacitor 1,100uf, charging to 550V
Power Output 1.4 Tesla (14,000 Gauss) Pulse lenght ~3 milliseconds

Session time 10 min
Build in Coil thermal switch
Unit always operates in Automatic mode. It Pulsates ones every 4 seconds.

Copper Coil wire 14AWG (1.7mm), total weight of the raw Coil ~1lb

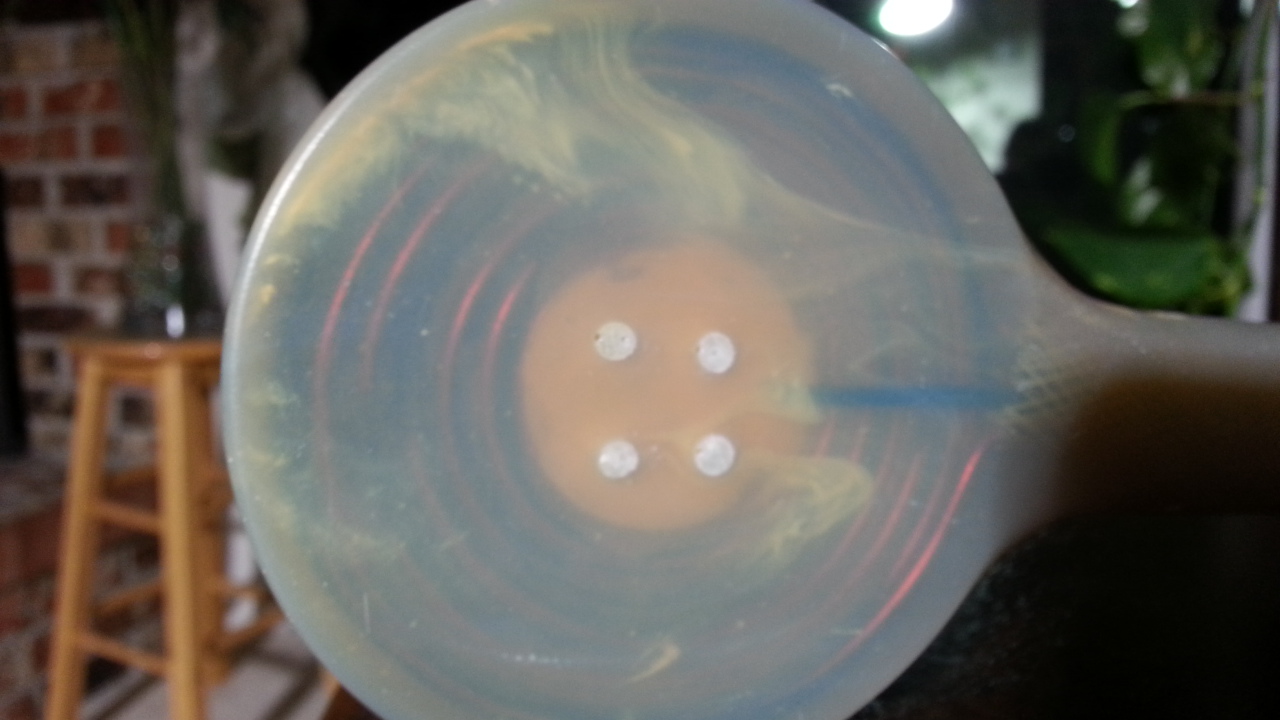

Build in South pole LED Indicator into the Coils head

Automatic Magnetic Pulser BBMPulser 4B (Basic) model. Free Circuit is available for this model download here

One of the simpliest model to use, it only has one Power button !

02/2020-02/2021

Unit Spects:

Working Voltage 120Vac, 300Watts

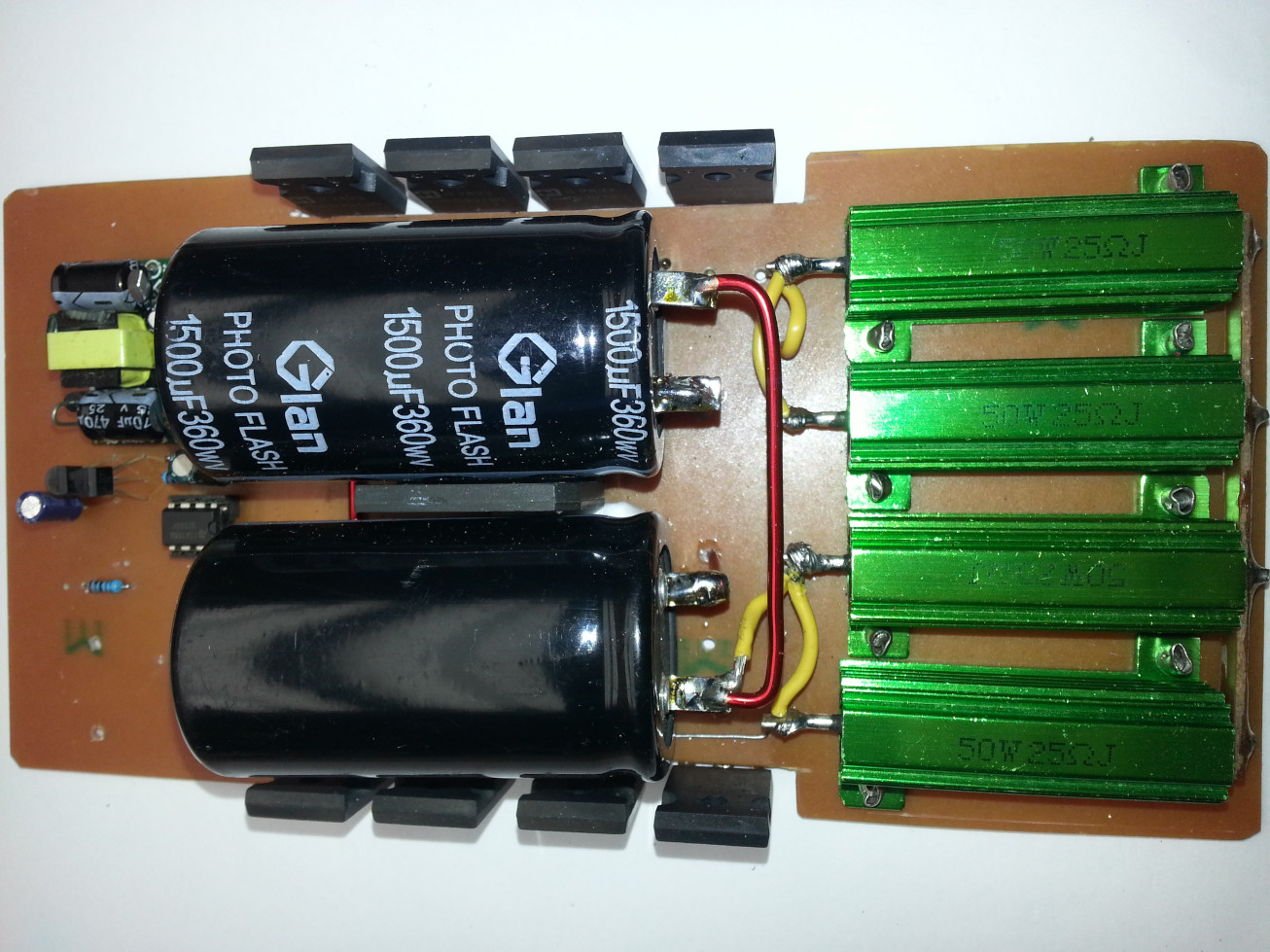

Capacitor Bank for model B is 1,100uf, charging to 550V
Power Output 1.4 Tesla (14,000 Gauss) Pulse lenght ~3 milliseconds
Build in 2 thermal switches, one in the Coil and the second one is inside the unit.
Unit always operates in Automatic mode. It Pulsates ones every 4 seconds.

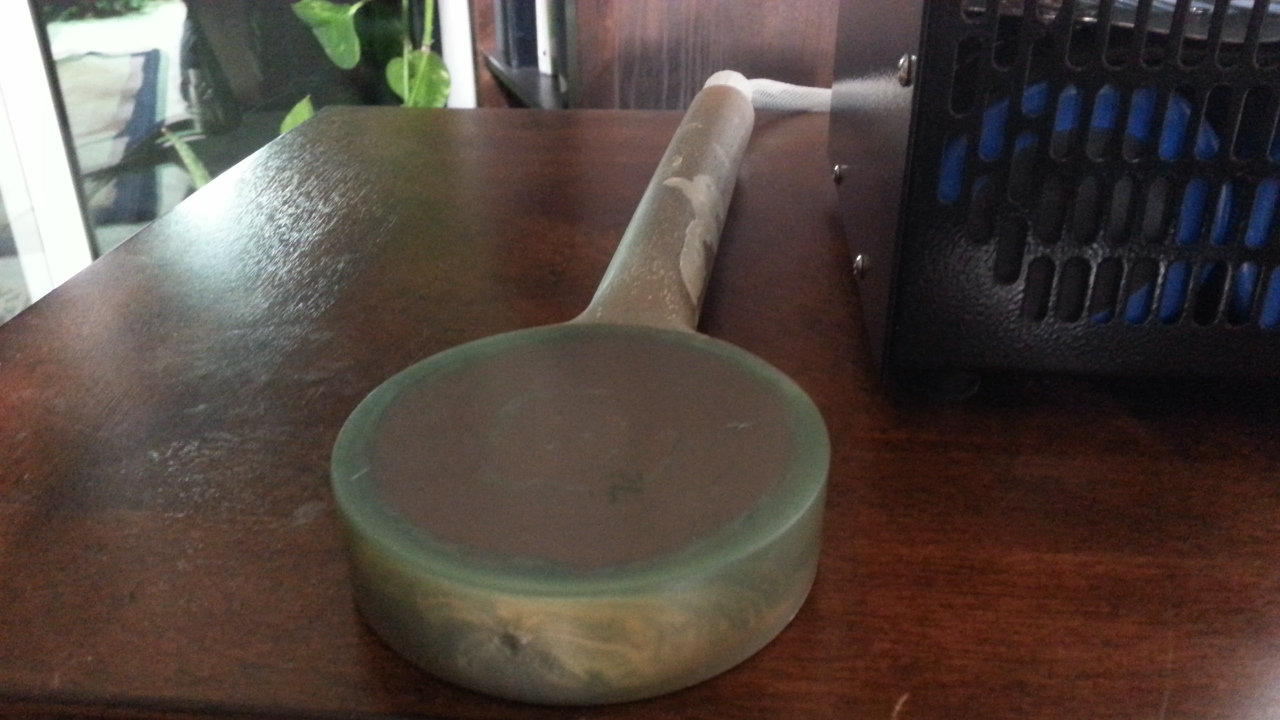

Coil paddle made of 2 different plastics. The head is made of slightly rubbery polyurithane resin and the handle is made of hard plastic polyurithane resin.
Coil made using Copper 14AWG (1.7mm) magnet wire, total weight of the raw coil is 400 Gram
Build in South pole LED Indicator into the Coils head

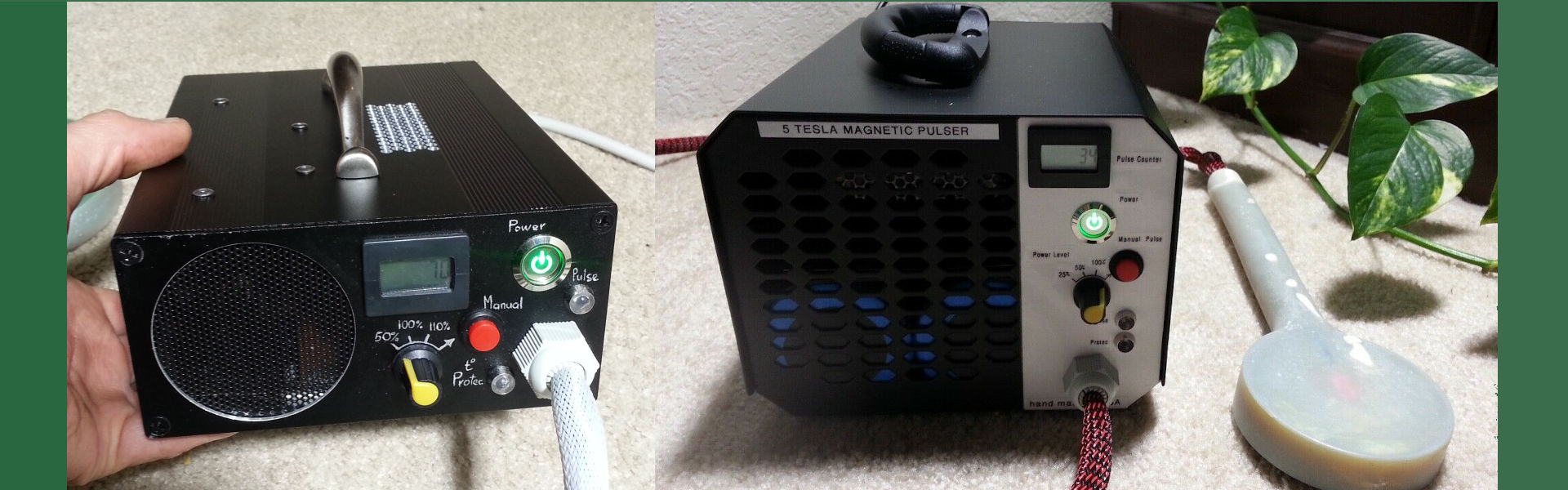

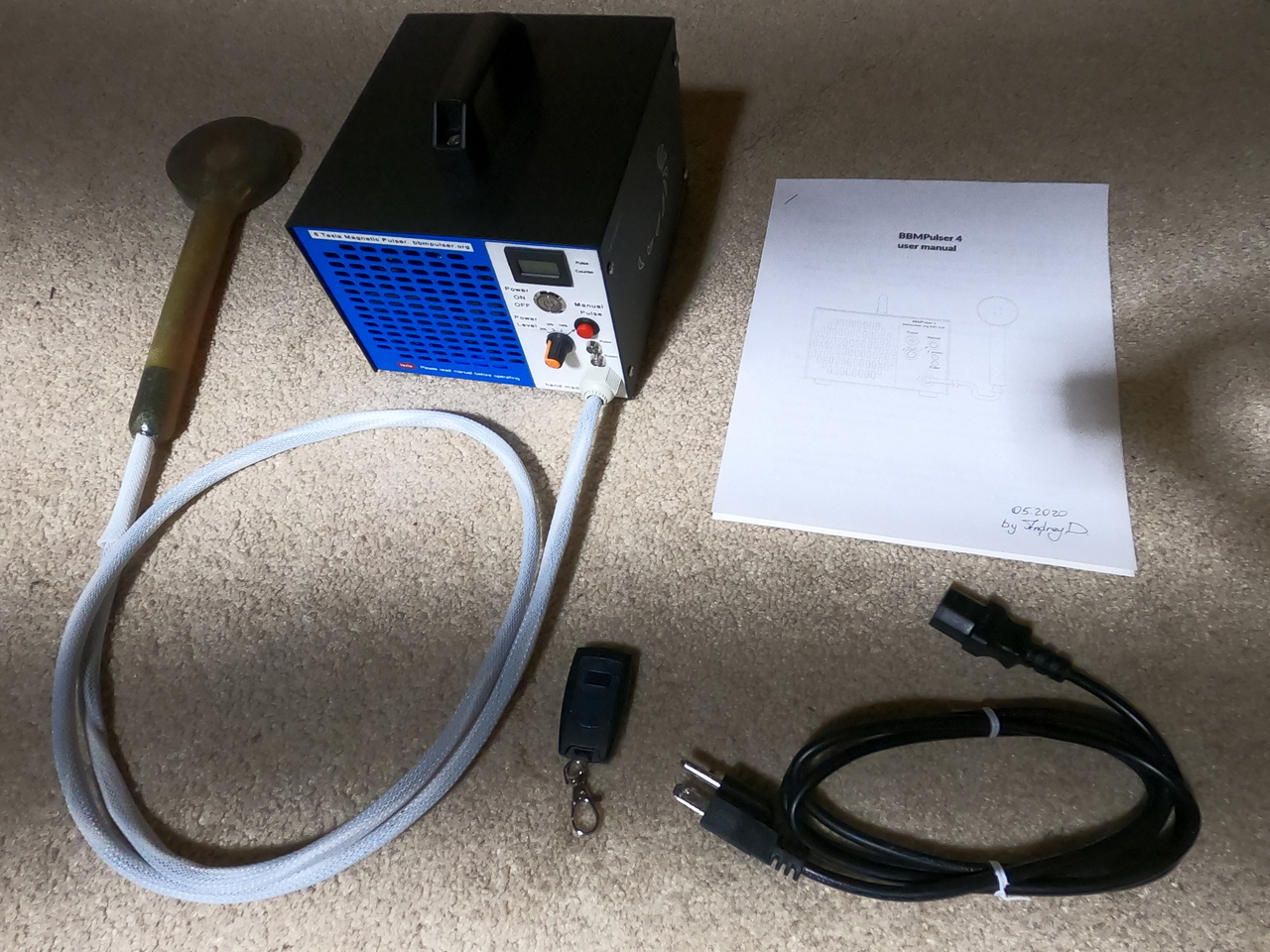

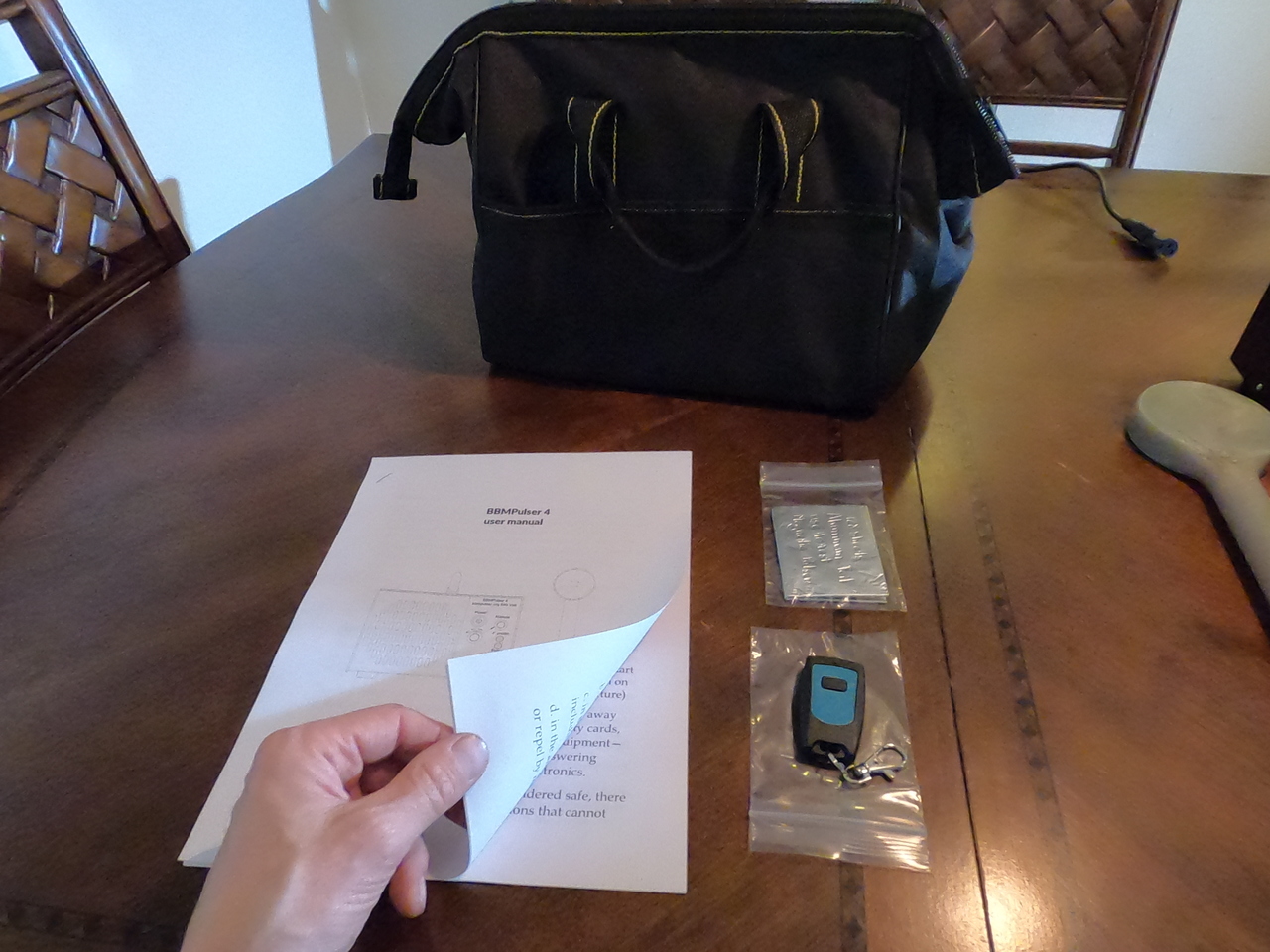

User manual download here

2 Years Warranty

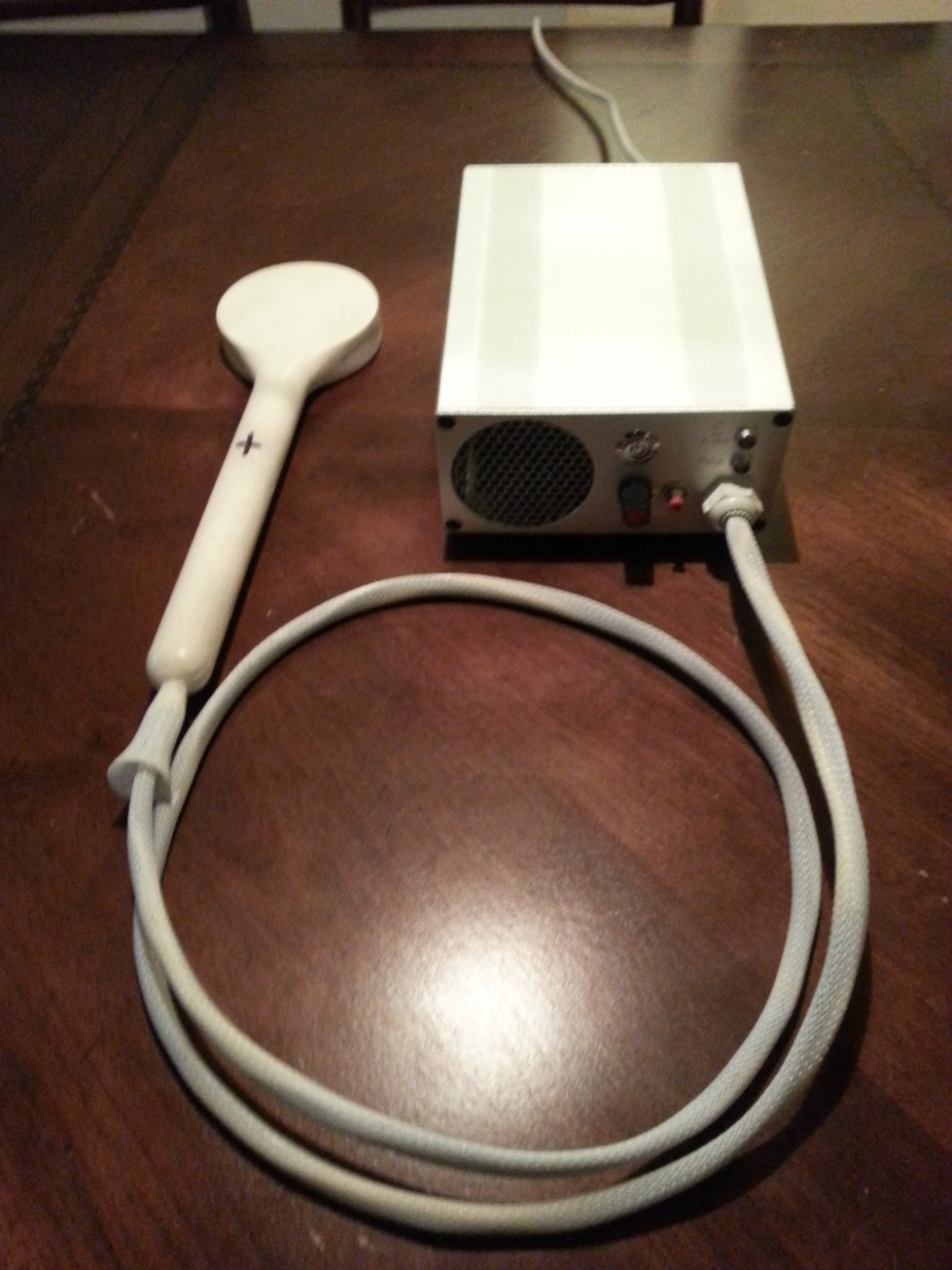

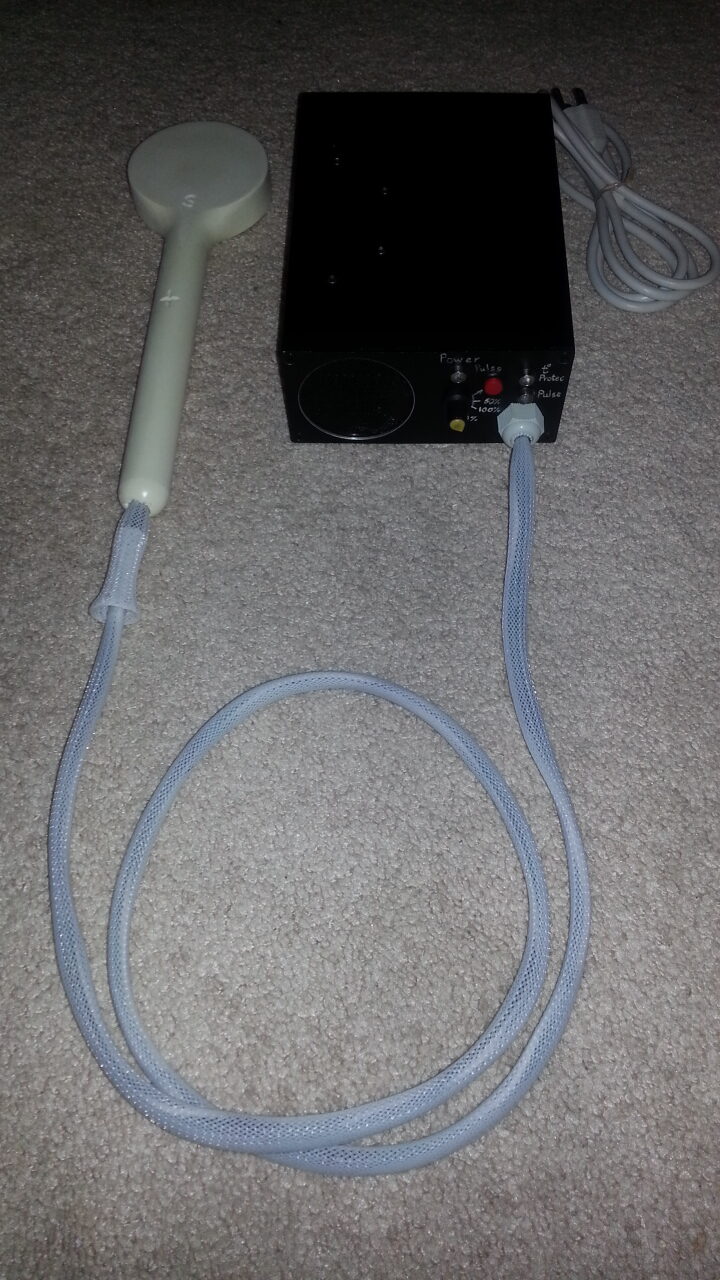

Gallery Below

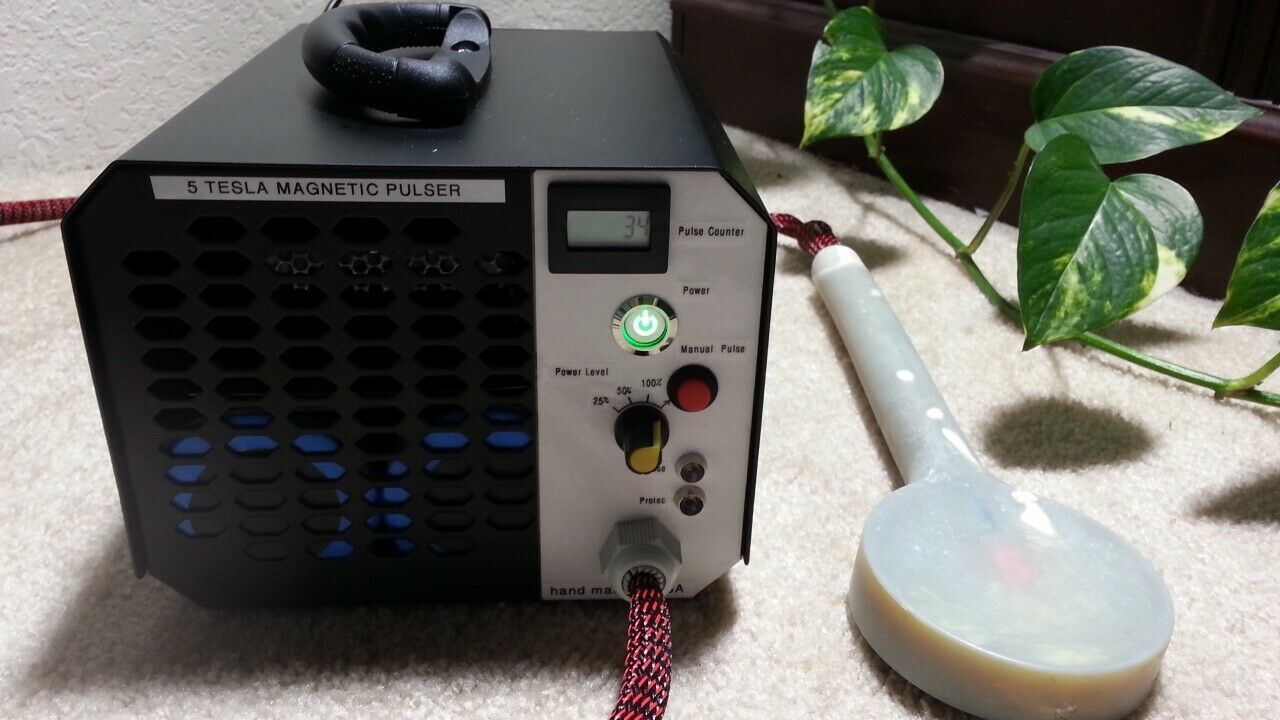

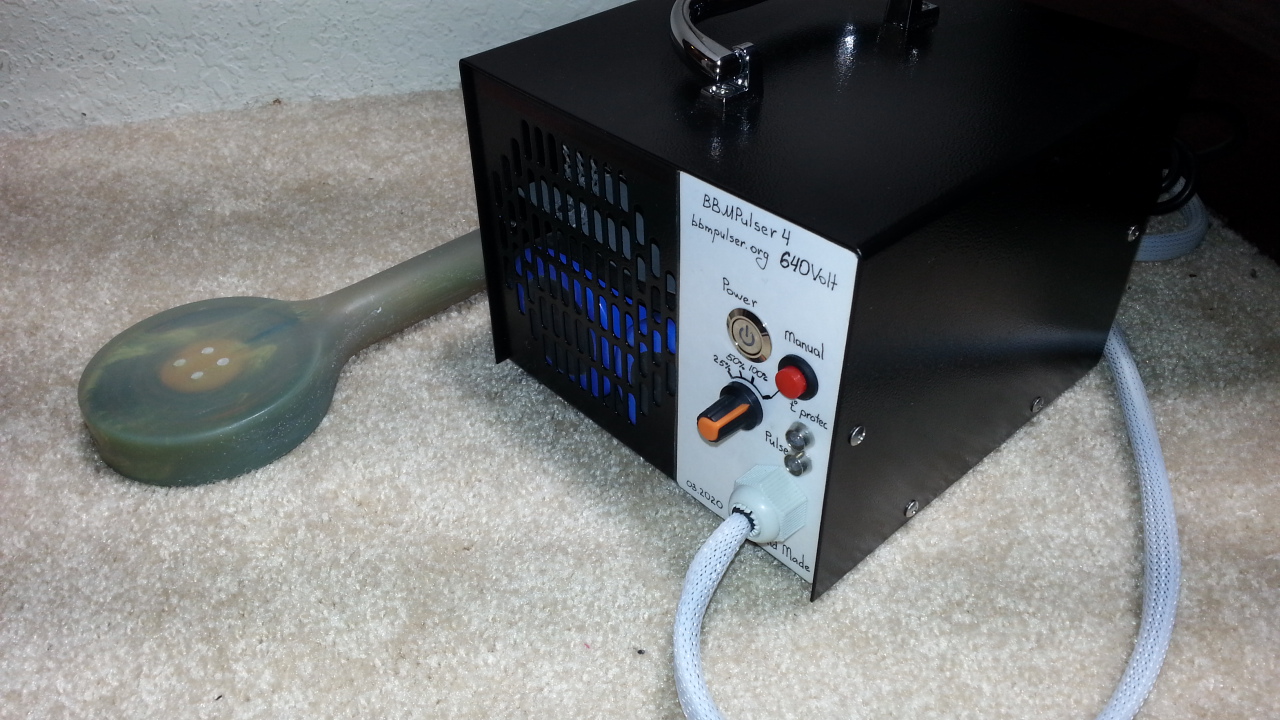

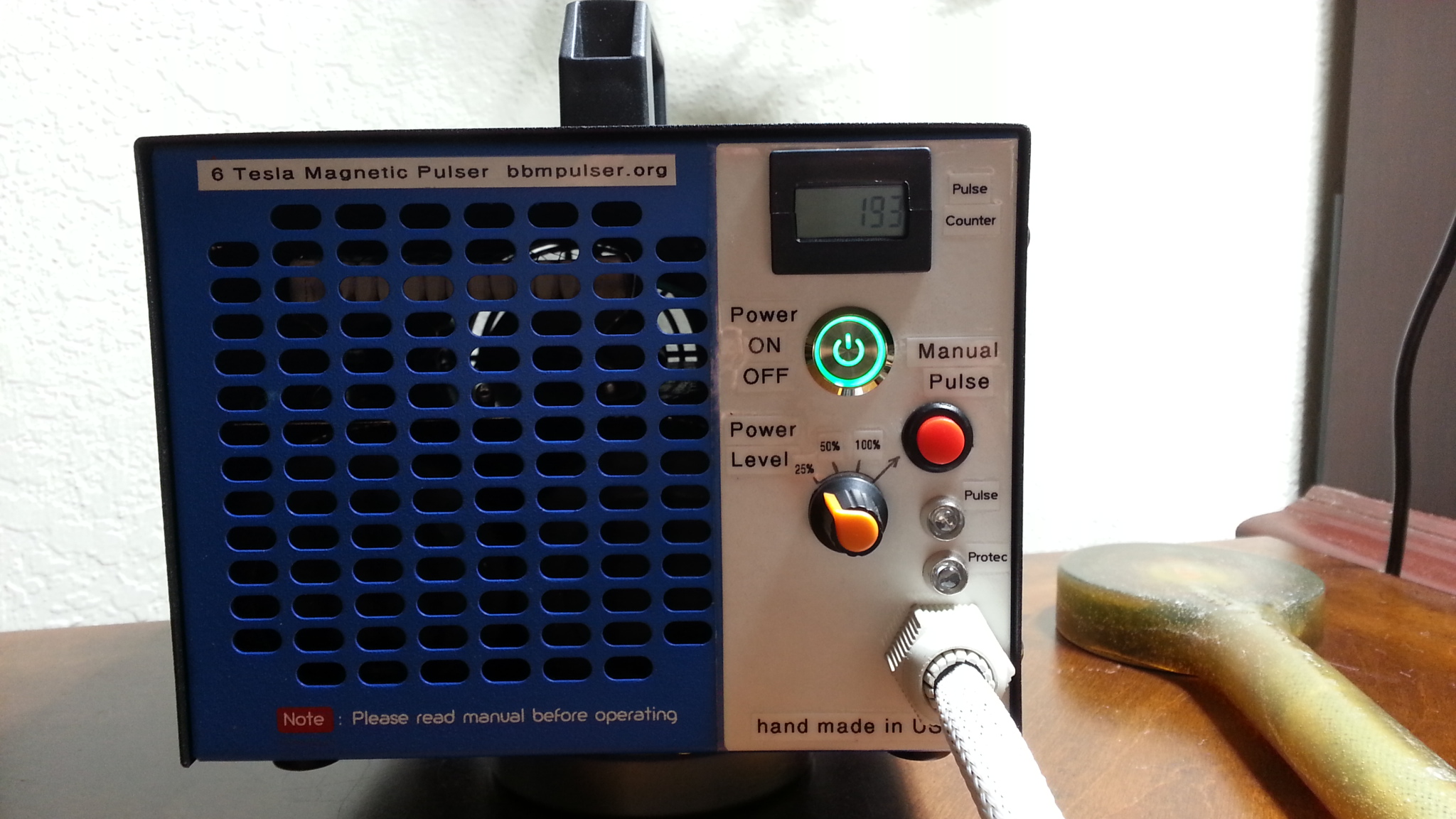

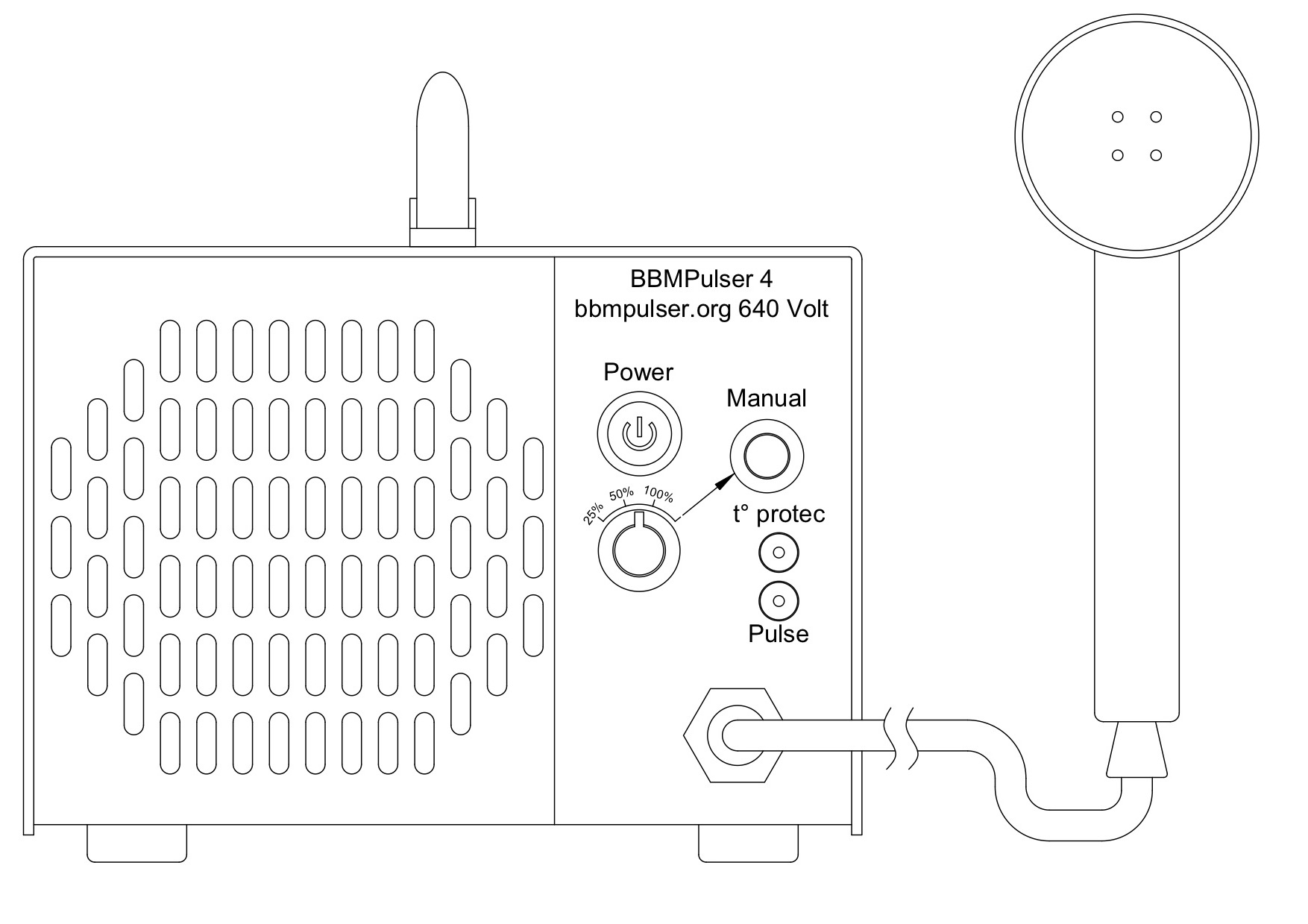

BBMPulser 4S (Standart)

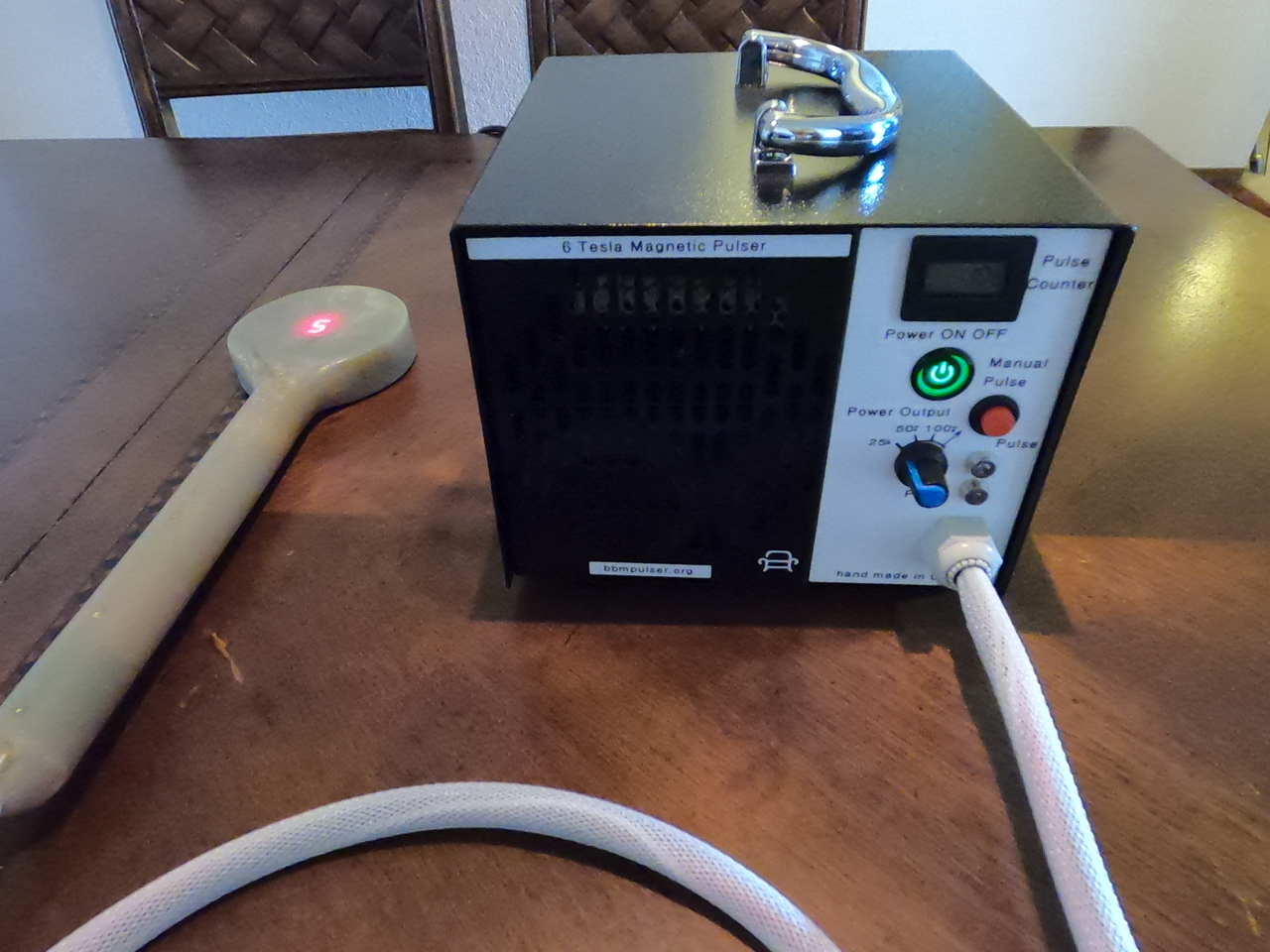

BBMpulser 4S (Standart model) Power Output 1.9 Tesla (19,000 Gauss)

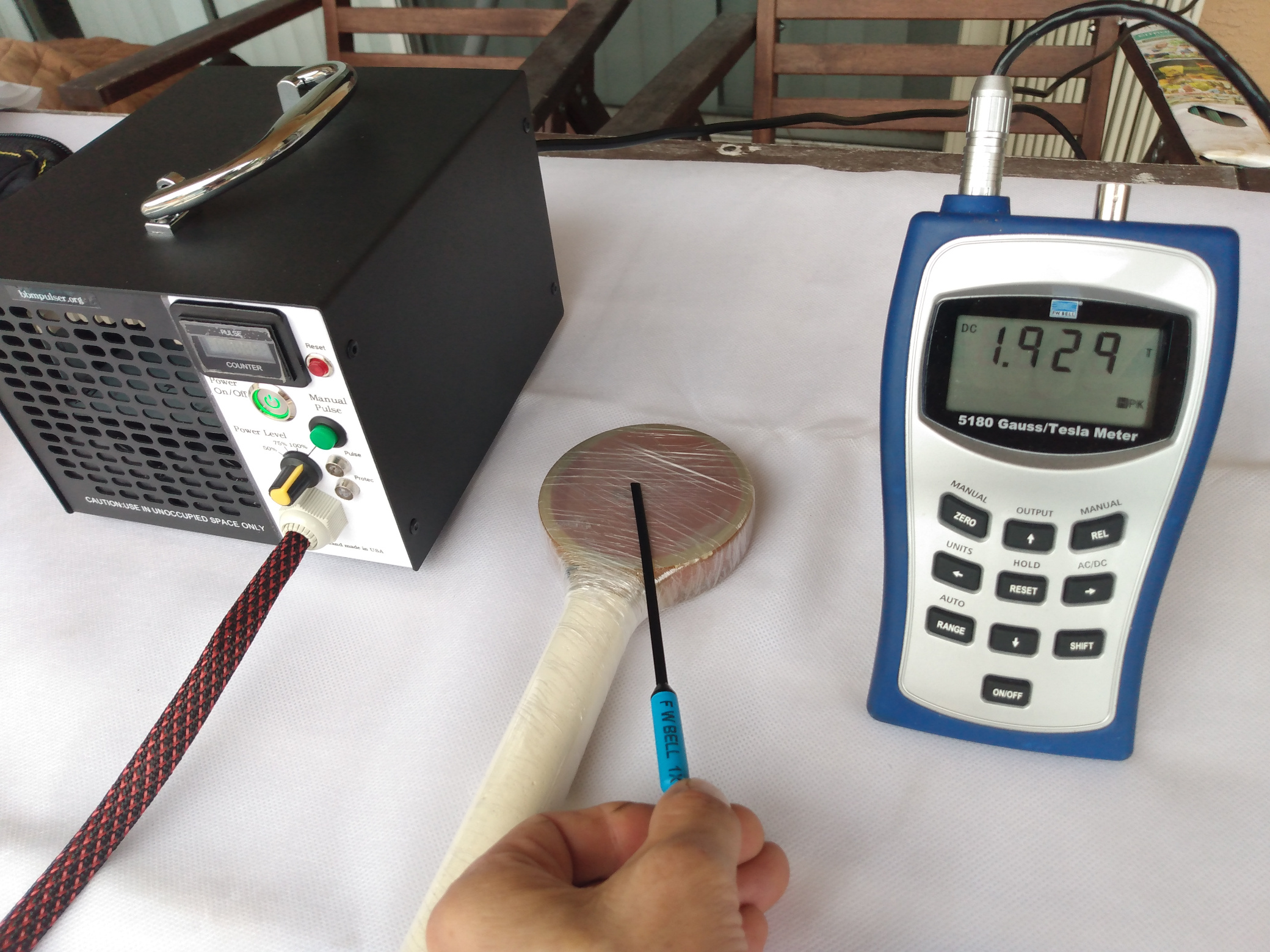

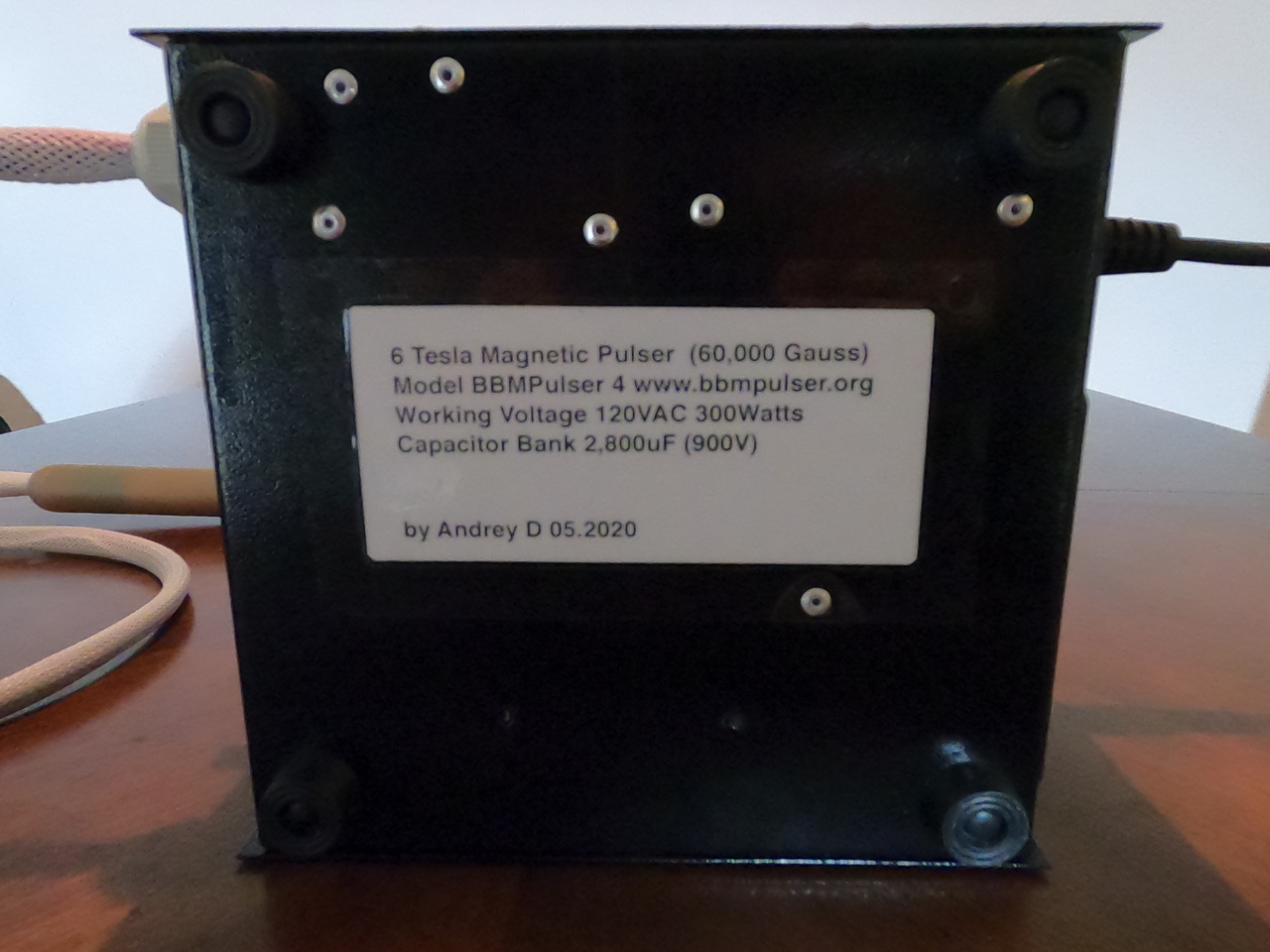

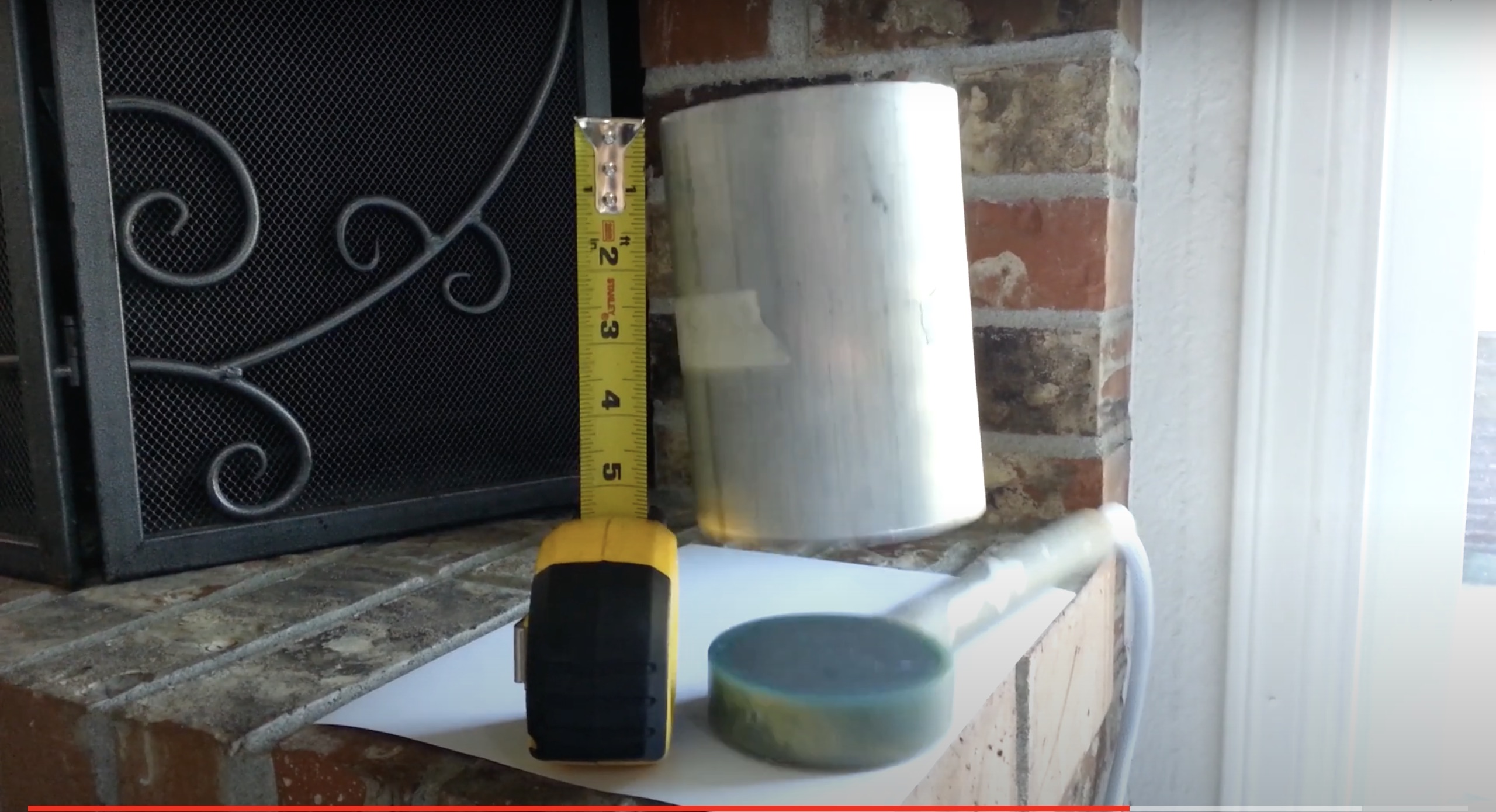

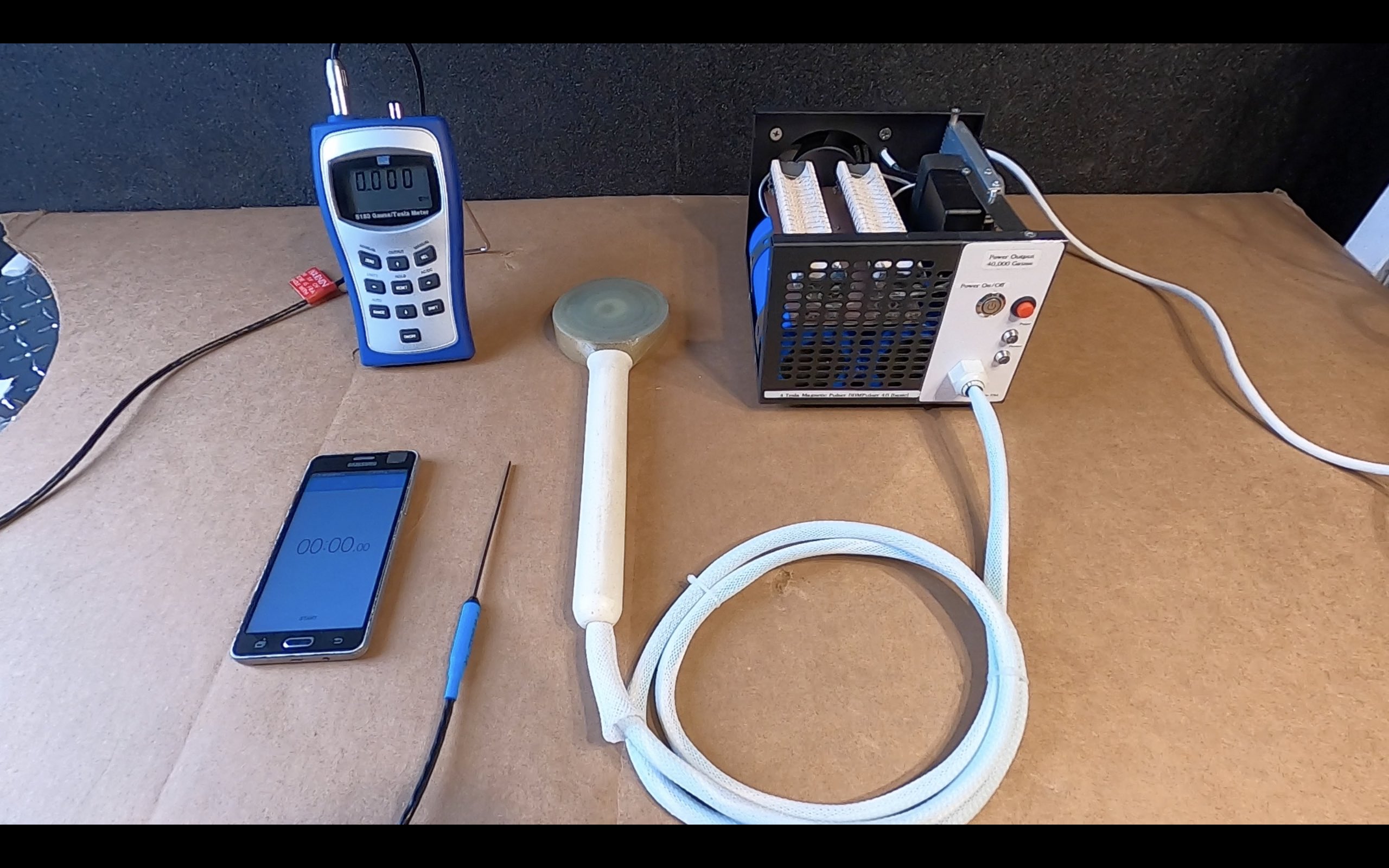

Please note: Around 2021 I bought a Tesla meter. Some of the units in gallery below will have estimated power output. When I built thouse units, I didn’t have Meter to measure their power output, so I estimated it and it came out to be way over rated

Unit Spects:

03/2020-01/2022

Working Voltage 120Vac, 300Watts
Capacitor Bank for model S 1,400uF-1,650uF
Power Output 1.8-2 Tesla (18,000-20,000 Gauss)

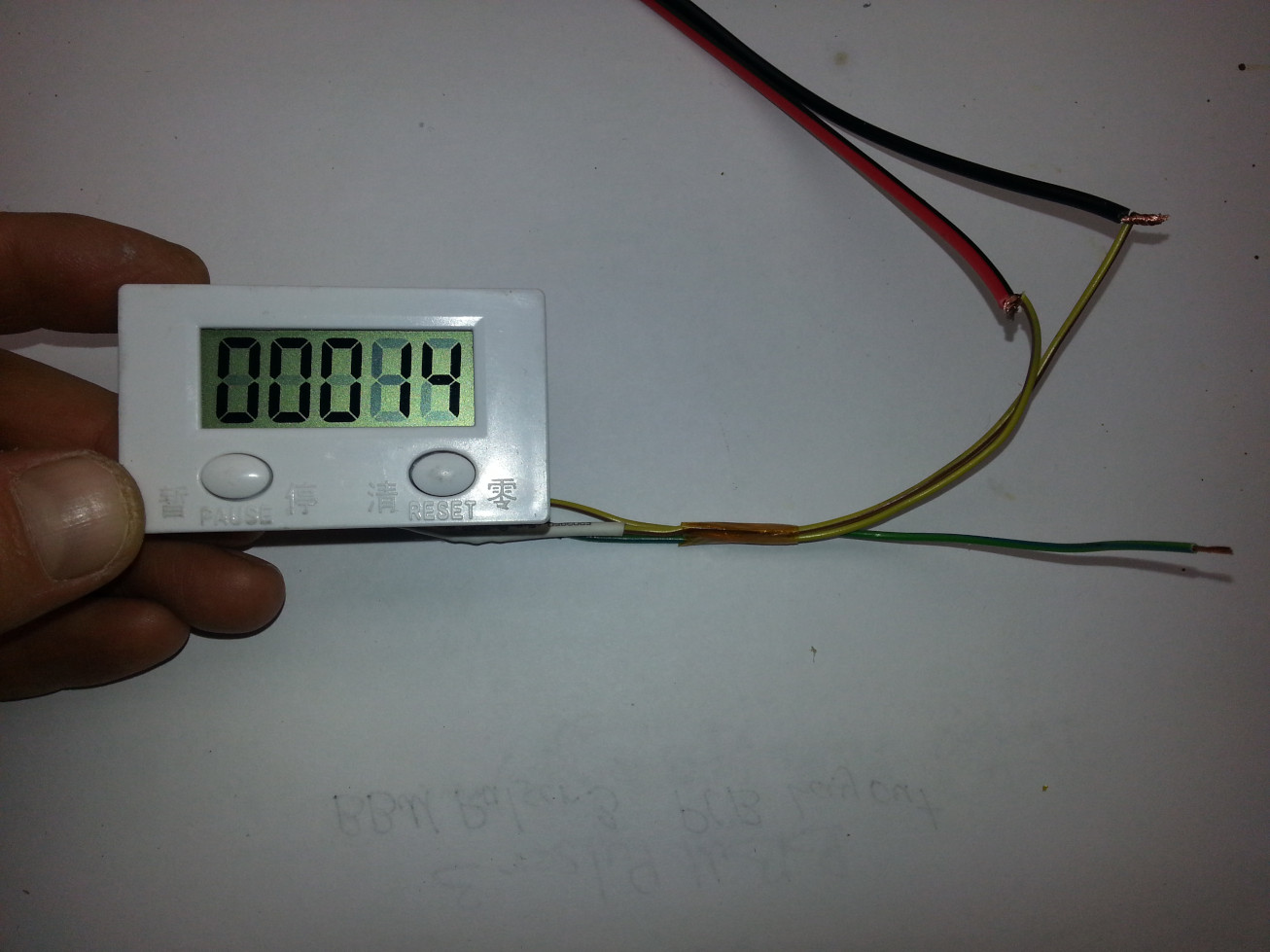

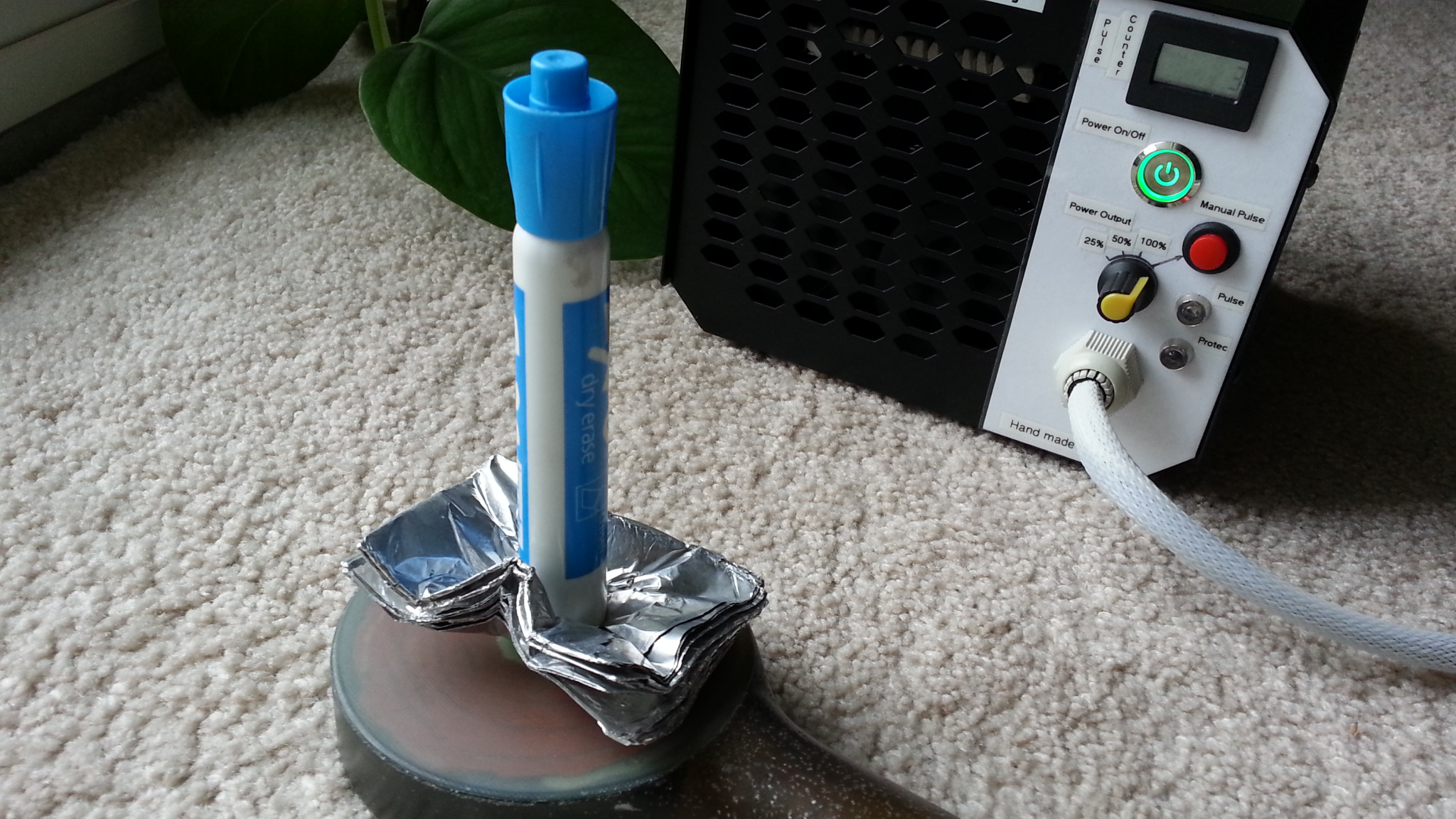

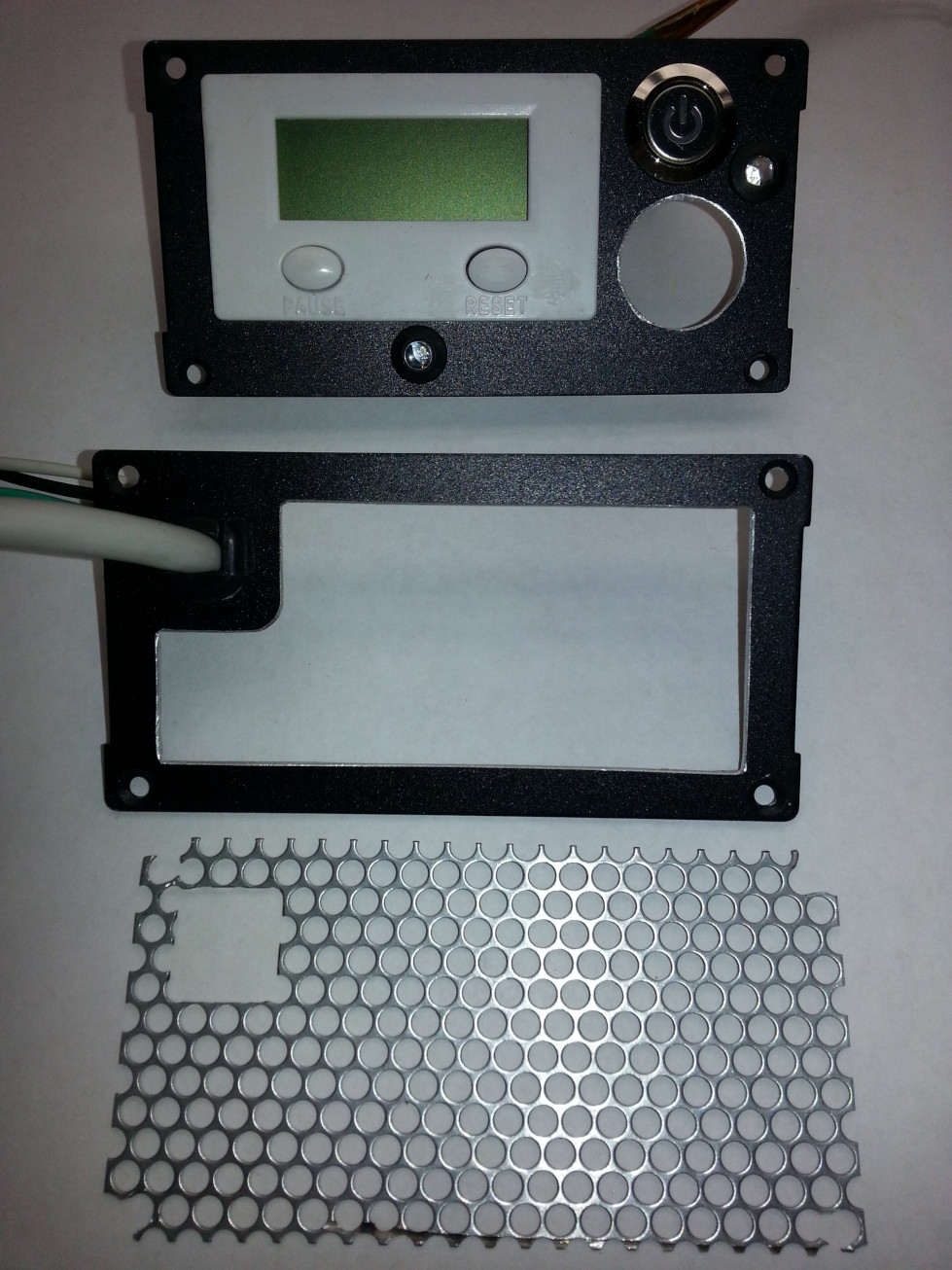

Build in digital Pulse counter
Build in 2 thermal safety re-settable power cut-off switches. One in the Coil and second inside the unit.

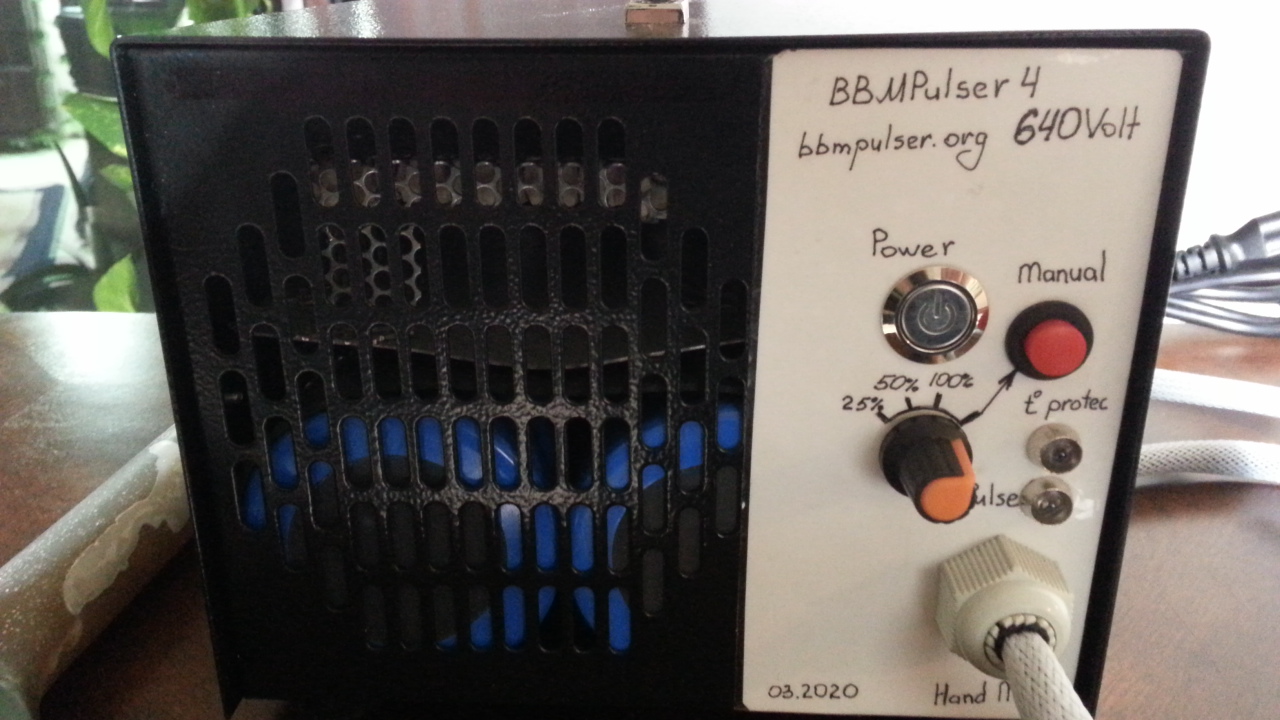

Adjustable power output. First 3 positions, unit operates in Automatic mode, last 4th position is Manual mode

Power Output:
@25% – 0.6 Tesla
@50% – 1 Tesla
@100@ – 1.7 Tesla
@Manual 1.9 Tesla
Manual. Unit will wait for you to push the button on the unit or FOB remote for each pulse. The power output at  this setting is the highest ~ 1.9 Tesla. Please give 10 seconds for the capacitor bank to fully charge.

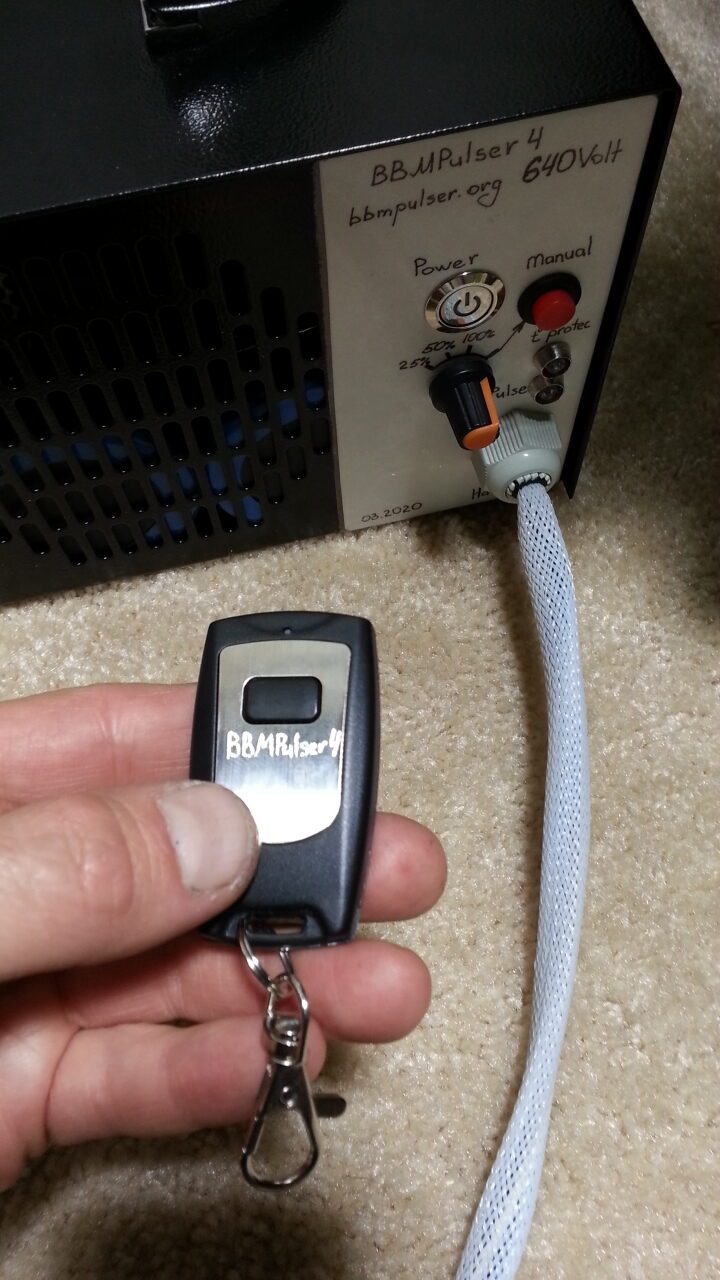

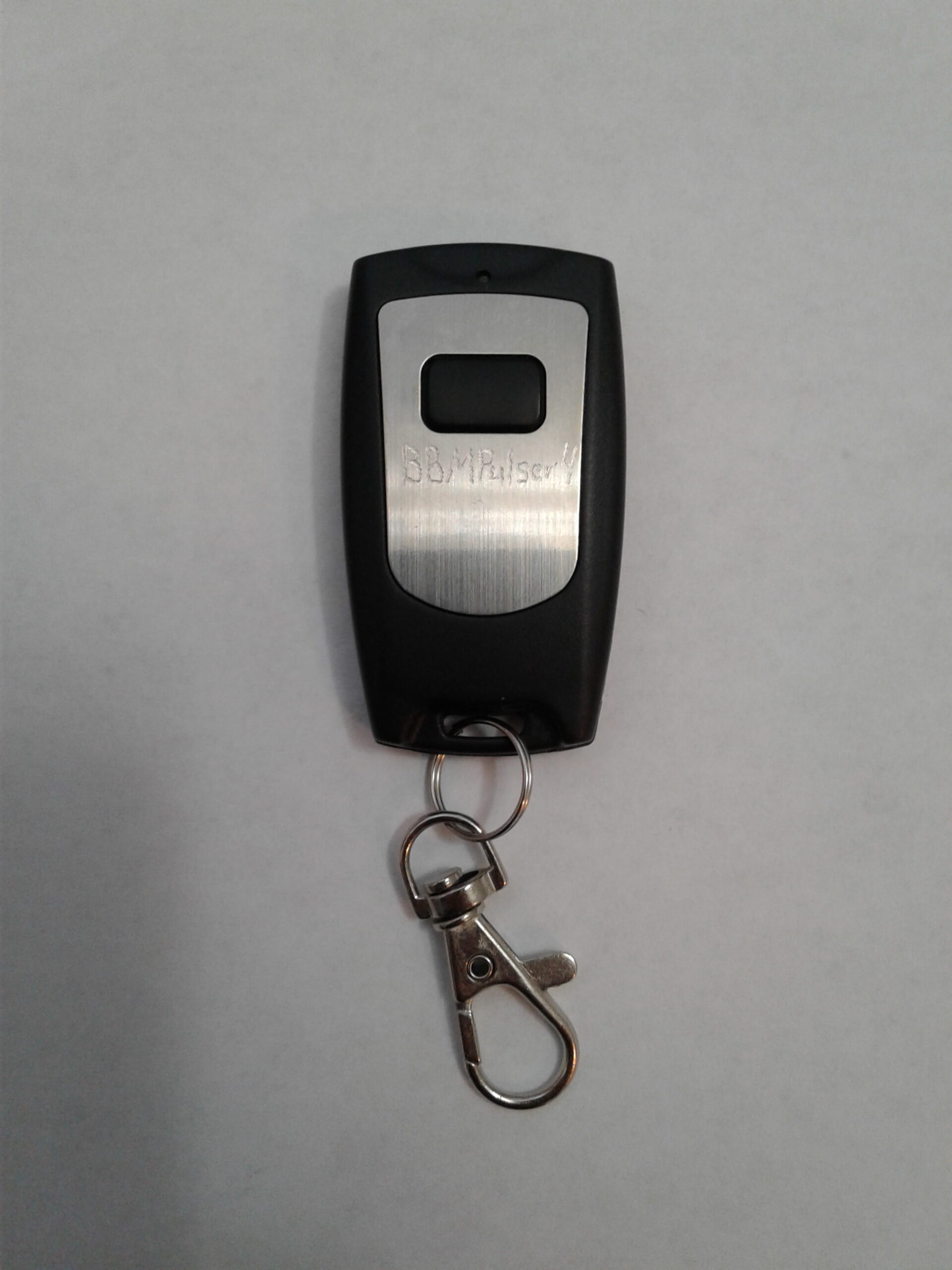

Build in wireless receiver , Included 2 FOB remotes

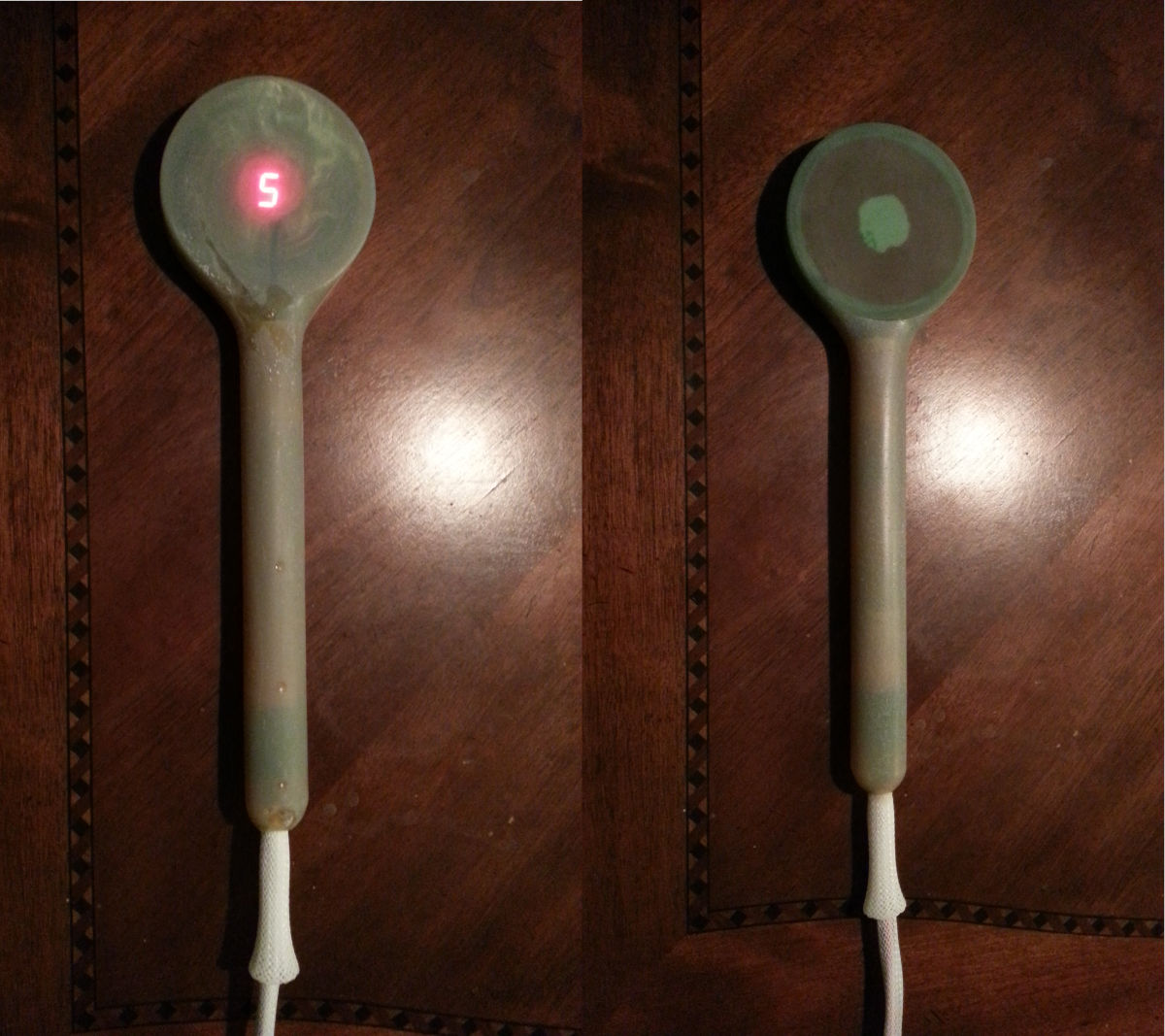

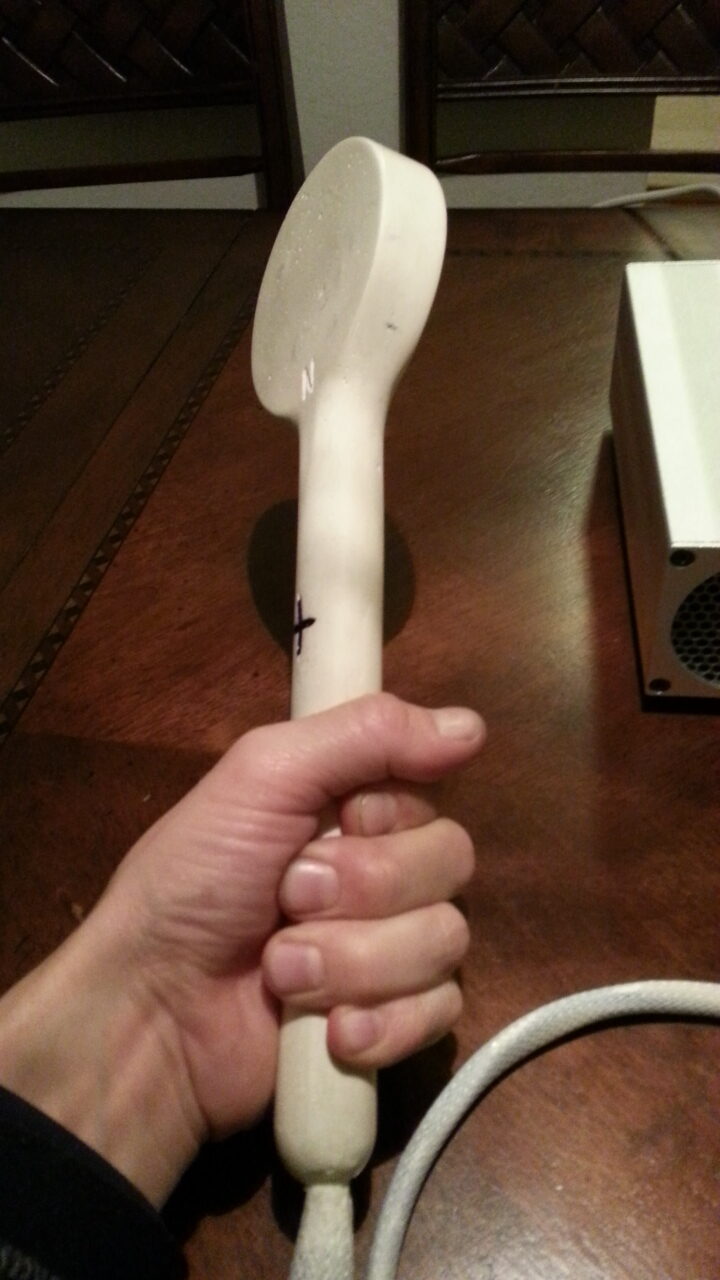

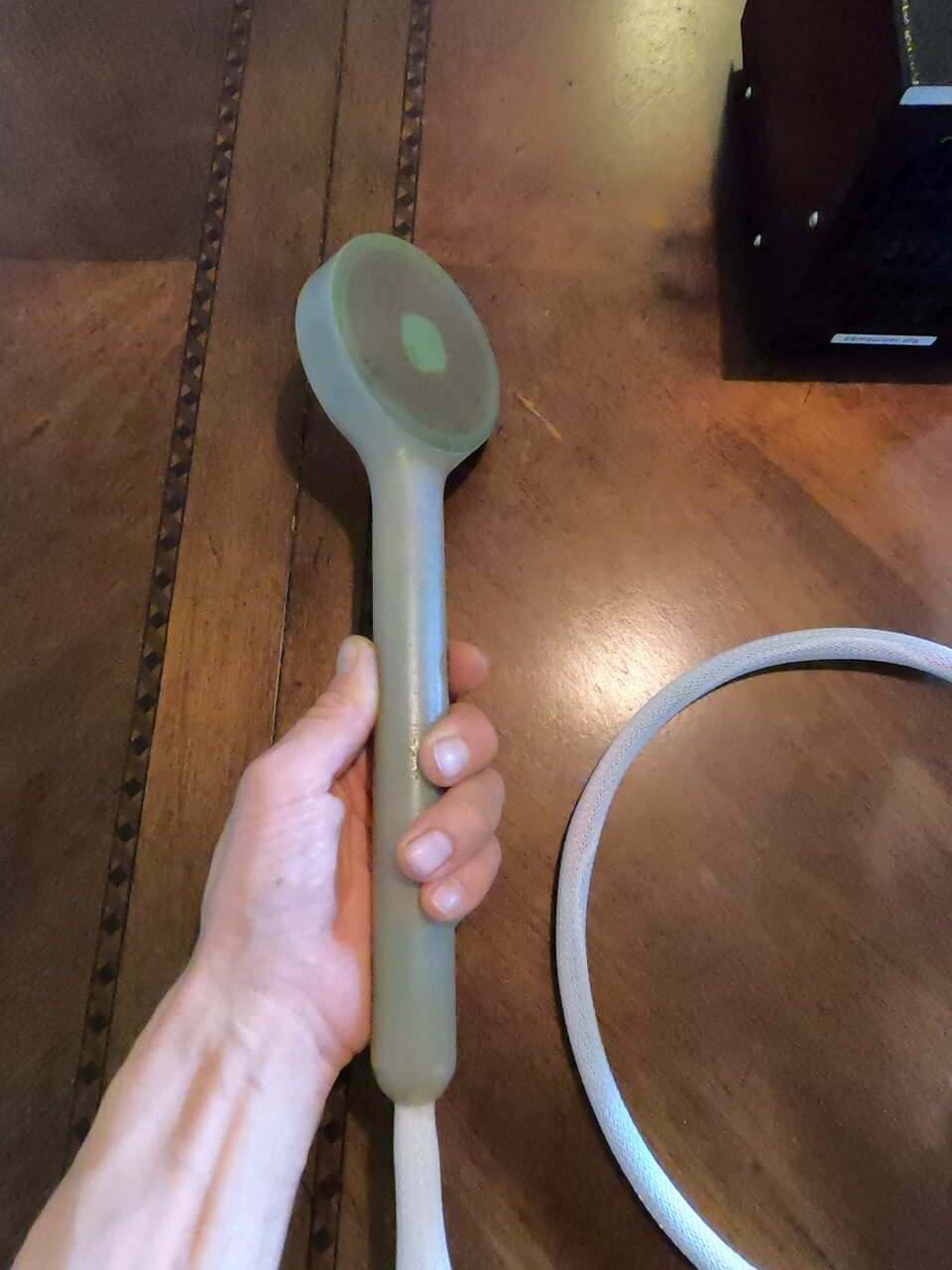

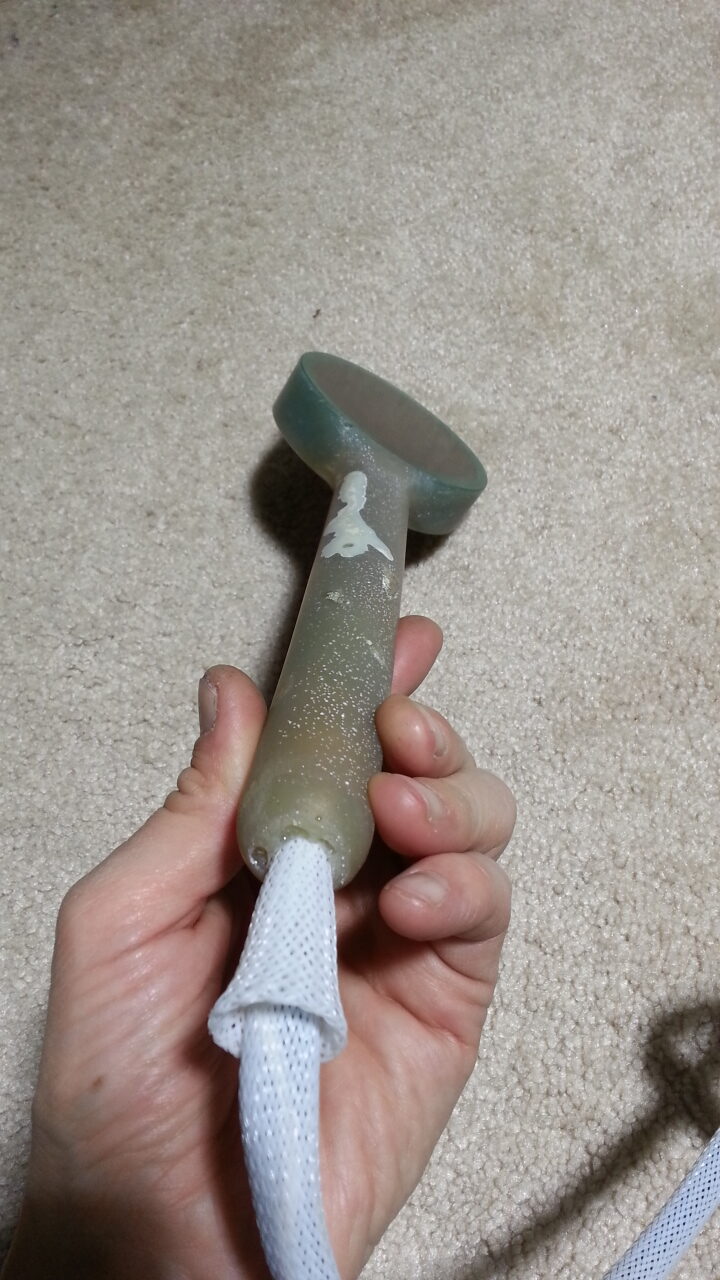

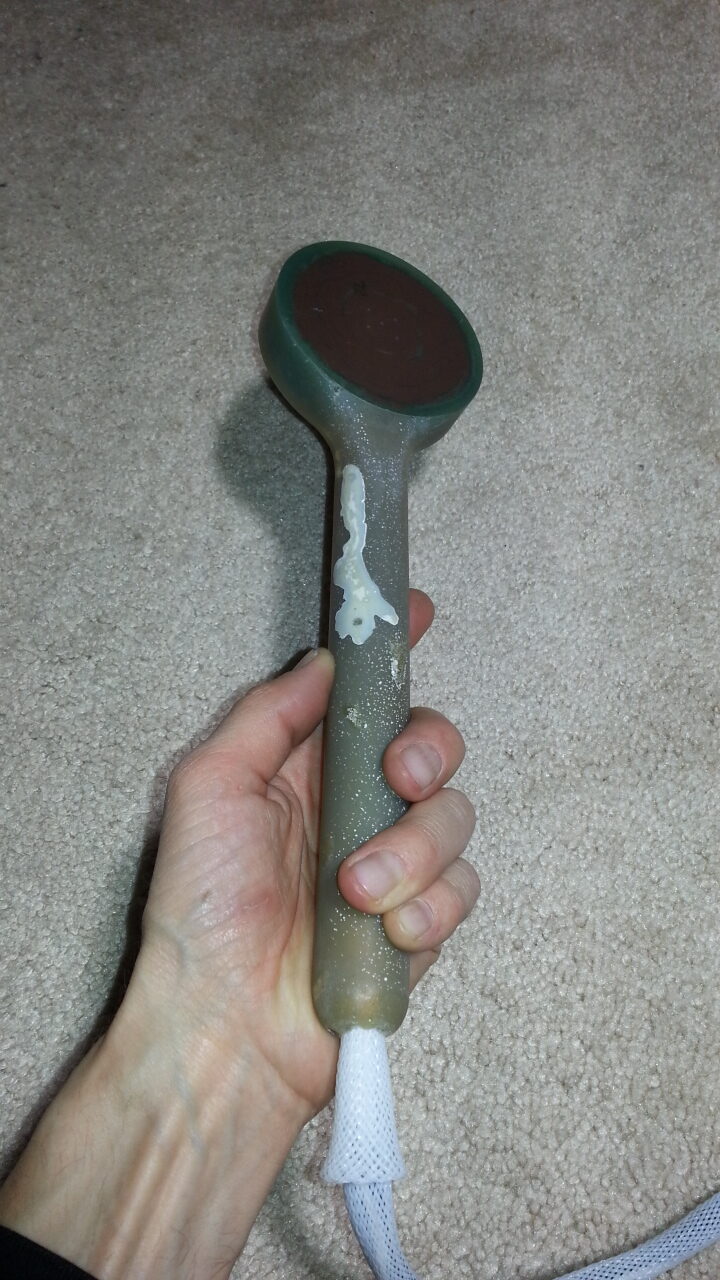

Coil paddle made of 2 different plastics. The head is made of slightly rubbery resin and the handle is made of hard plastic resin.

Coil made using Copper 14AWG (1.7mm) magnet wire, total weight of the raw coil ~1lb

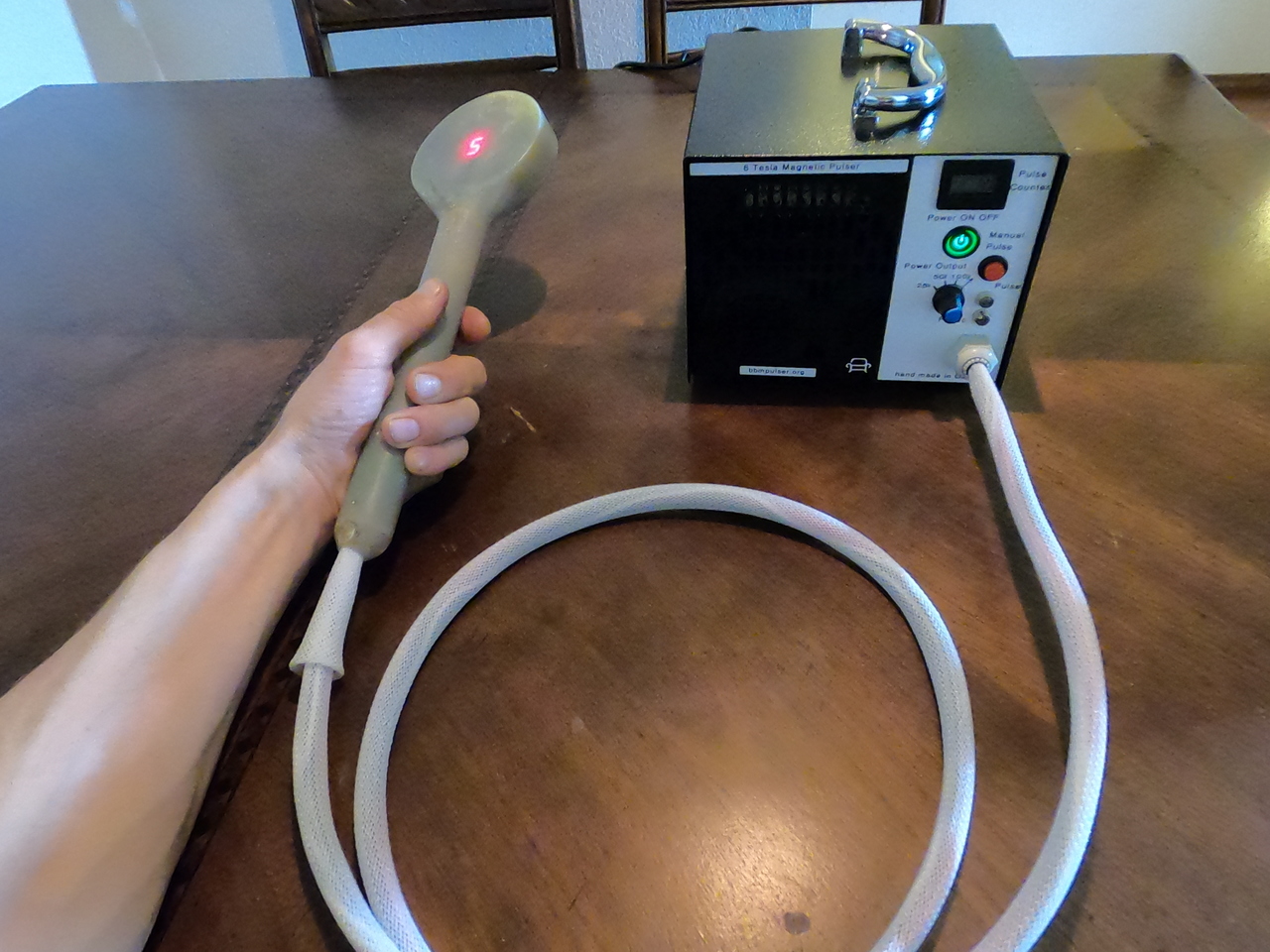

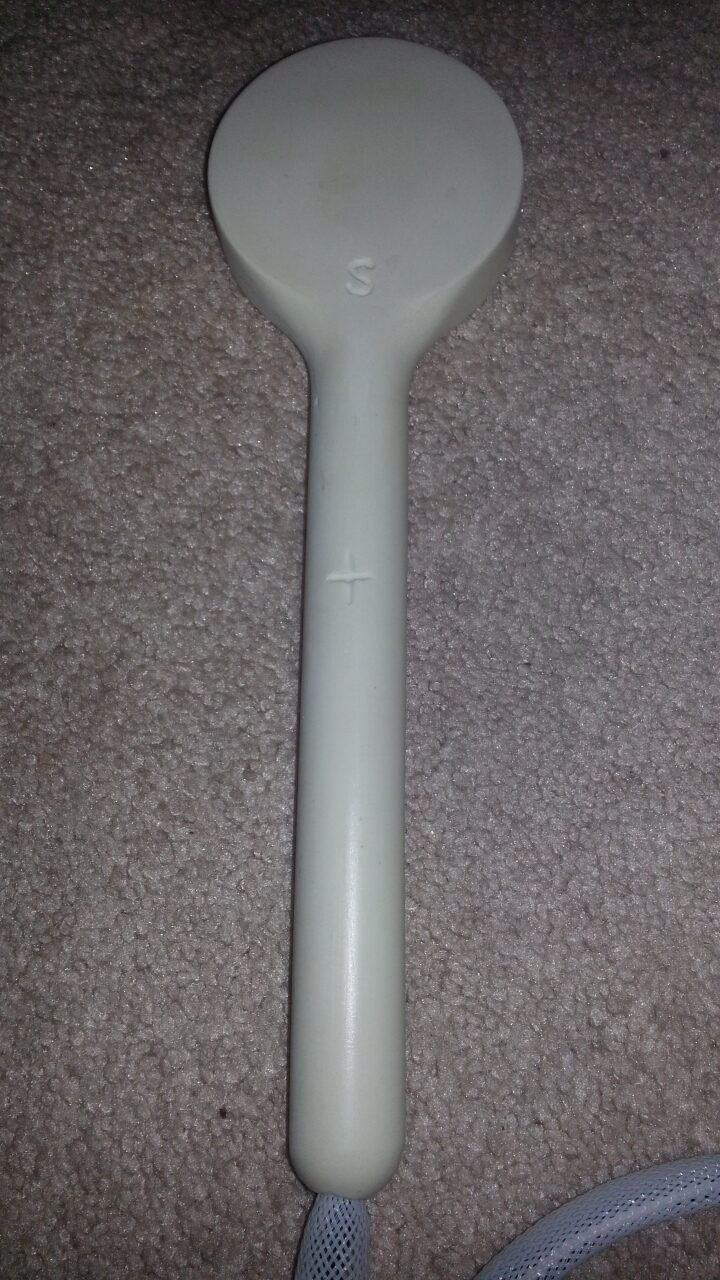

Build in South pole LED indicator into the Coil head

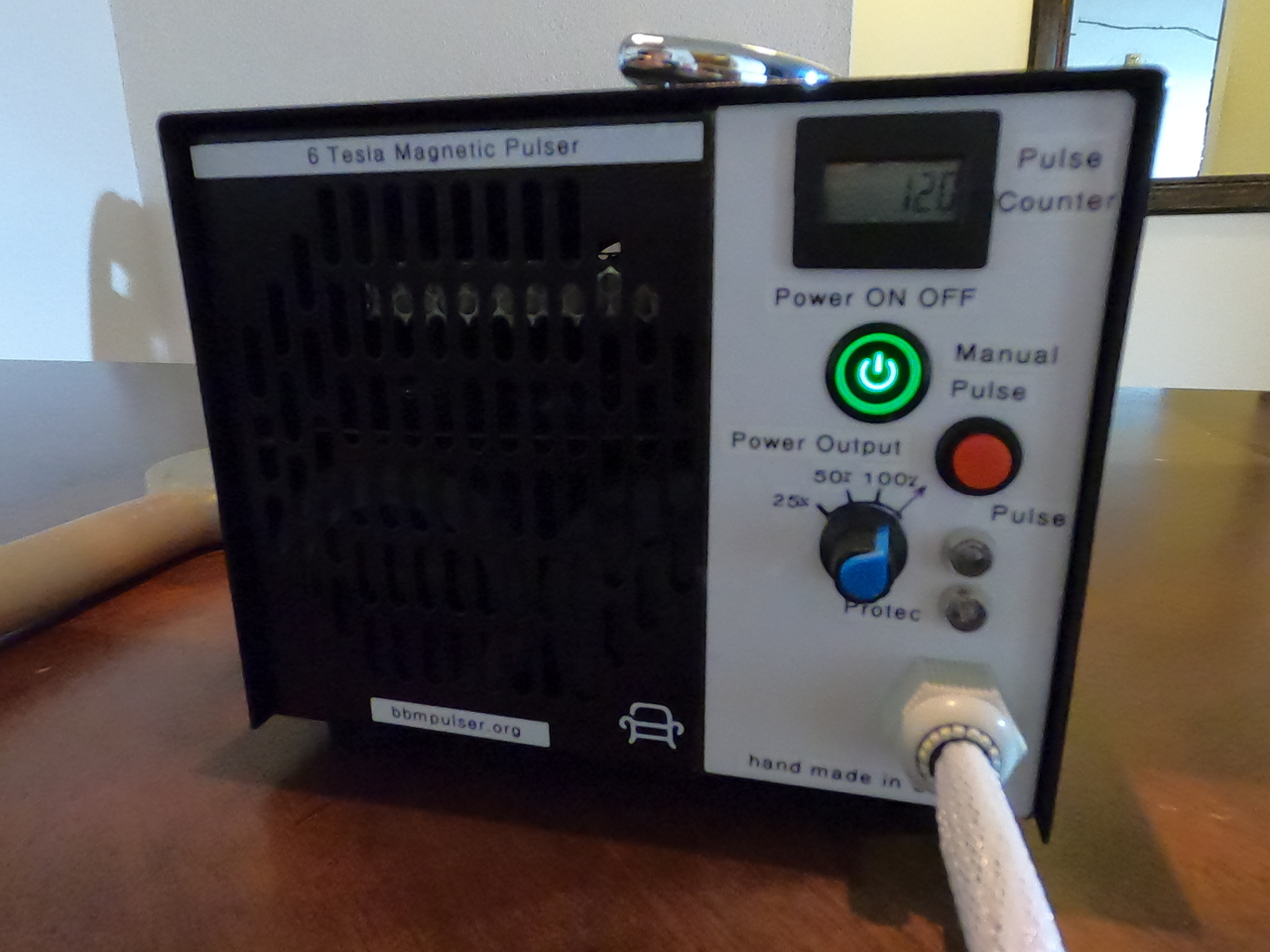

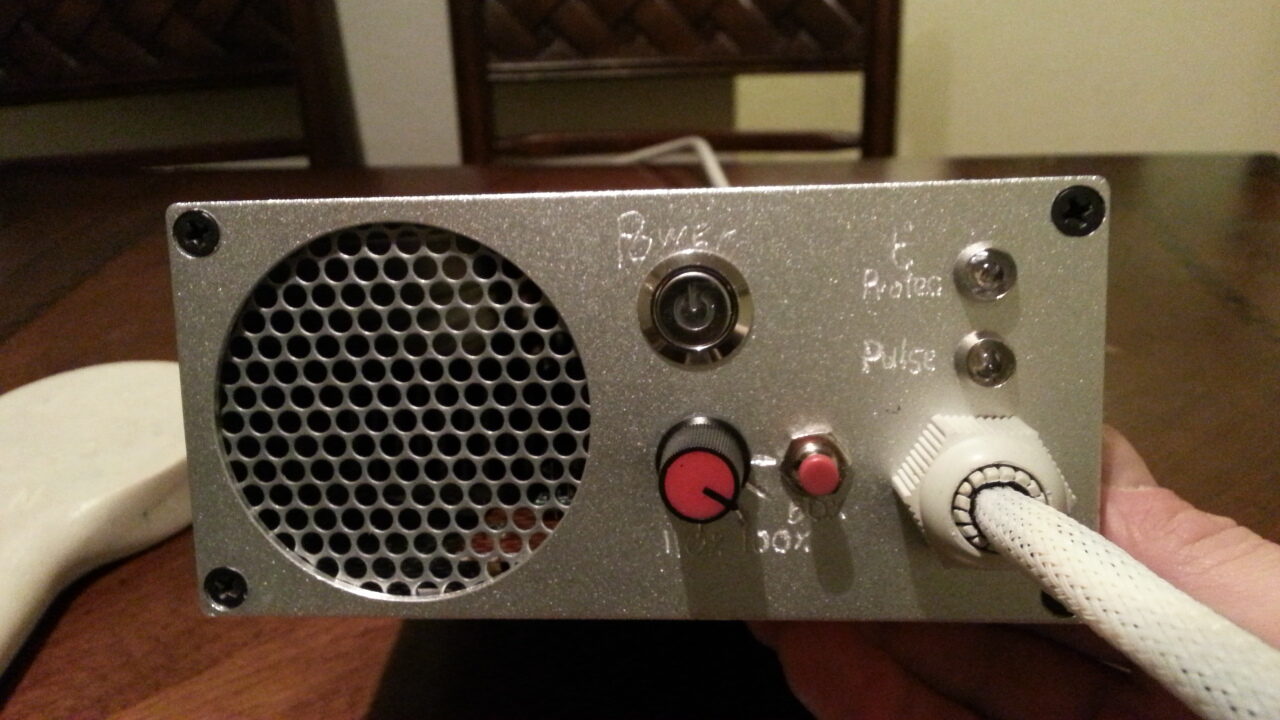

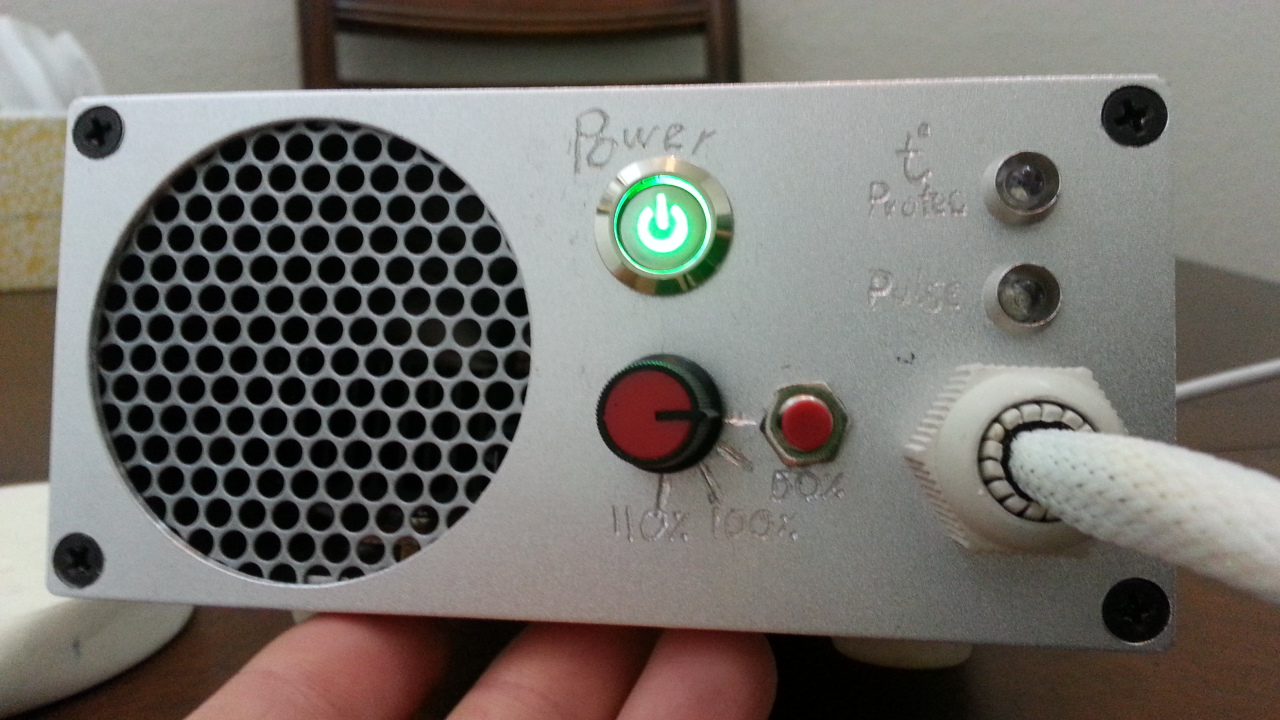

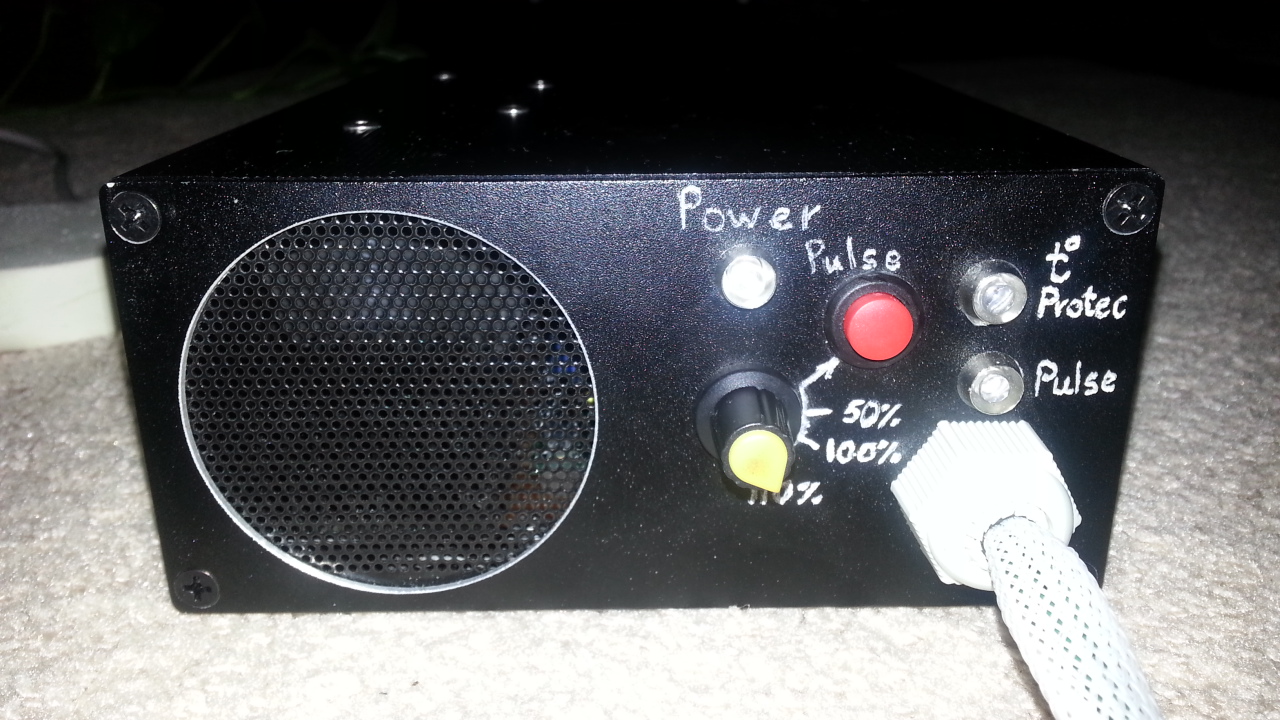

2 indicator LEDs upfont.
1st blue ”Pulse” LED (will light up with each pulse released)
2nd is “Protec” this is Thermalal Protection visual alarm LED. It will start blinking red when Coil thermal switch senses high heat or when air gets restricted and unit get hot.

BBMPulser 5B 2.4 Tesla, 120VAC (Discontinued)

Please see the video here  for the new 2024 model

BBMPulser 5B Plus 2.6 Tesla Magnetic Pulser PEMF (Discontinued)
BBMPulser 5B 2.4 Tesla Magnetic Pulser pre-built kit  (Discontinued)

Item discontinued

 220VAC 2.4 Tesla BBMPulser 5B full PCB only



Item discontinued

 120VAC 2.4 Tesla BBMPulser 5B full PCB only



Circuit BBMPulser 5B  here

Parts List here

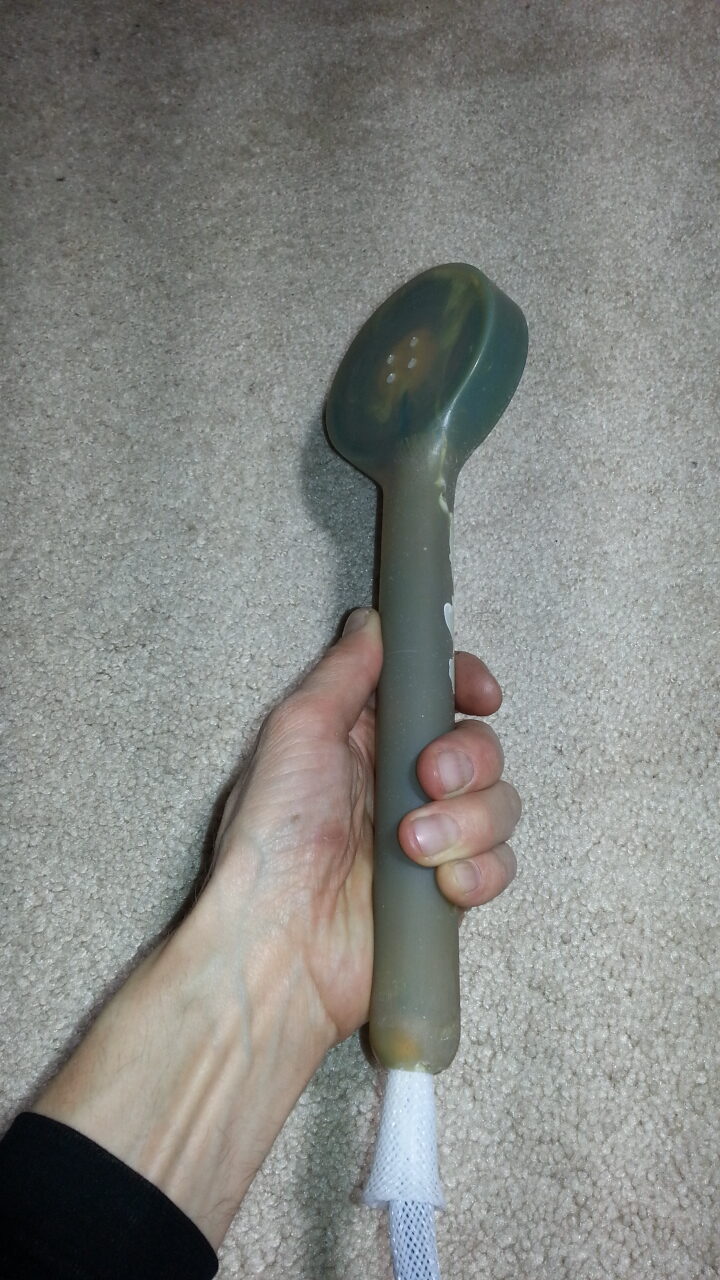

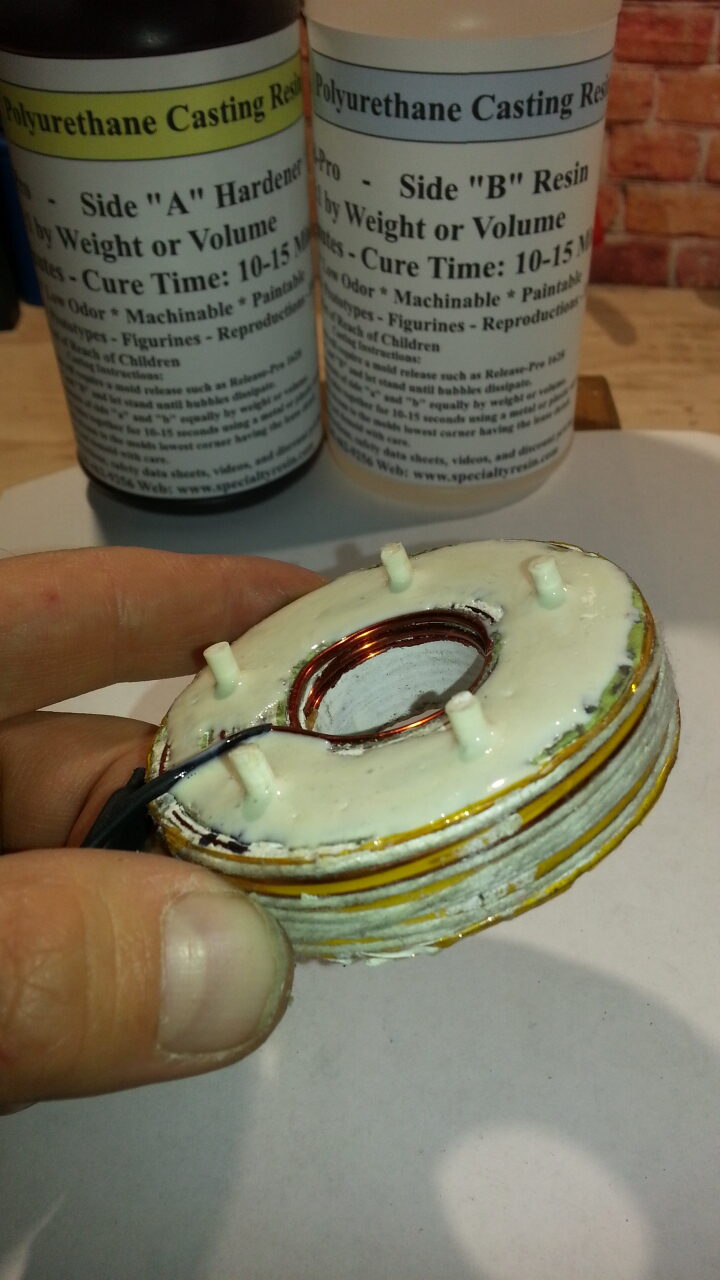

Classic BBMPulser 3″ Coil

Used in 4th and 5th gen Pulsers with power up to 3 Tesla

Please look at the pictures for more info

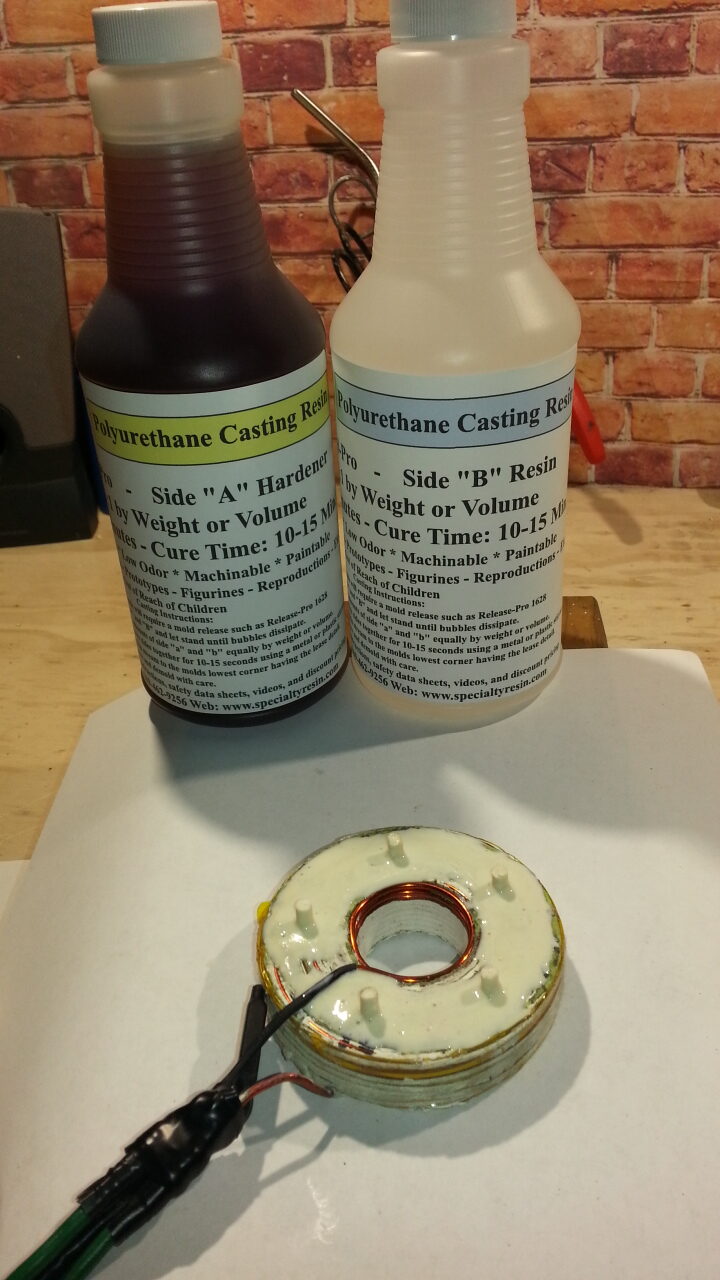

Made of 2 different polyurethane resents, Flex it 90 is used over the coil itself and hard resin used for the handle

Handle may come in 2 colors black or white
