Blood Electrification / Ionic Colloidal Silver

Support me

All of circuits listed below are Open Source. You can view, copy, download, reproduce, modify, etc. some of the circuits contain Gerber production files. I use https://jlcpcb.com to order PCBs made. There are many other companies, if you know better ones please suggest one for us, send me email ideas@bbmpulser.org If you have your design you would like to share with the world, please submit it to the email listed above

Simple “Silver Aid” (Blood Electrification and Ionic Colloidal Silver kit)

BBSA 1.0 (Bob Beck Silver Aid). Protocol link

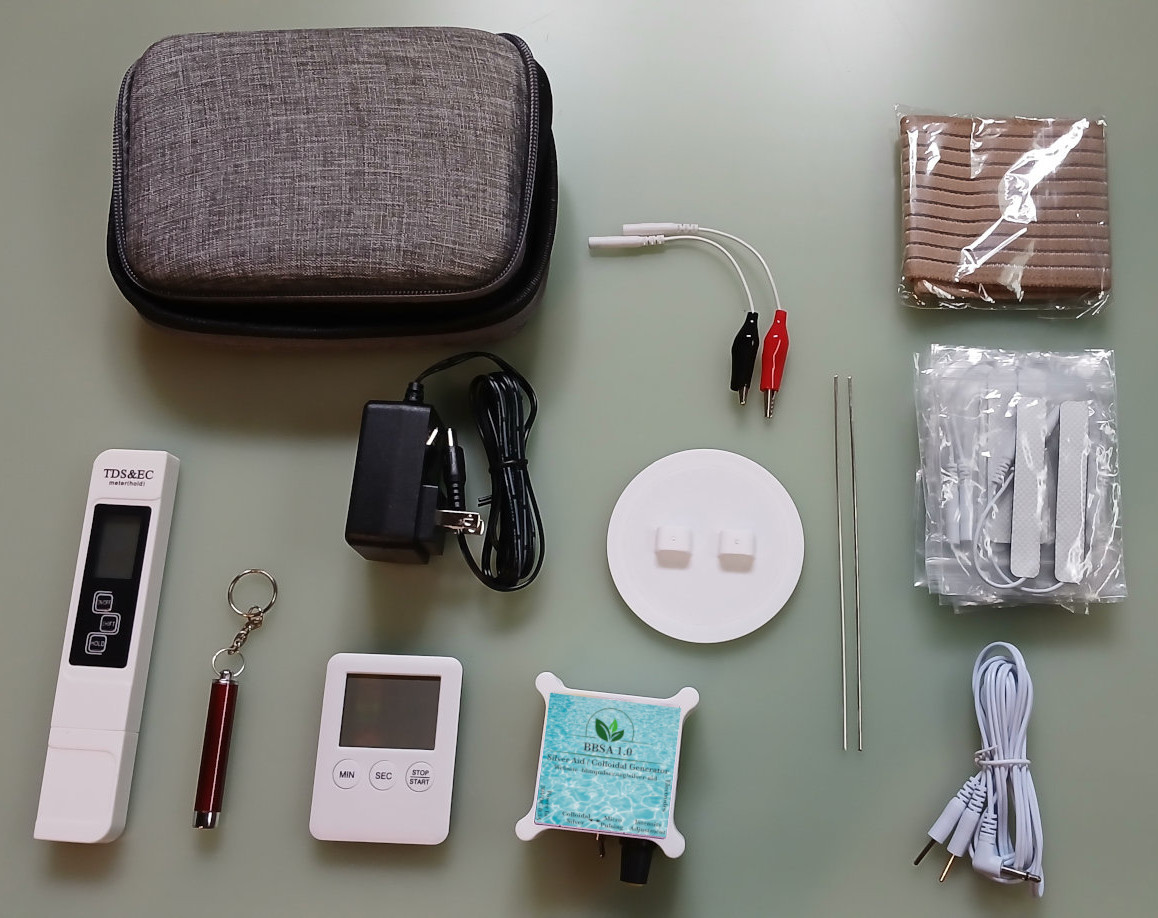

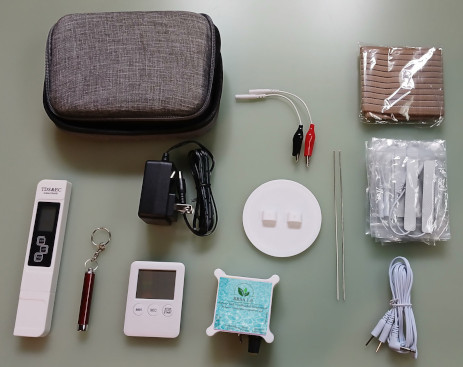

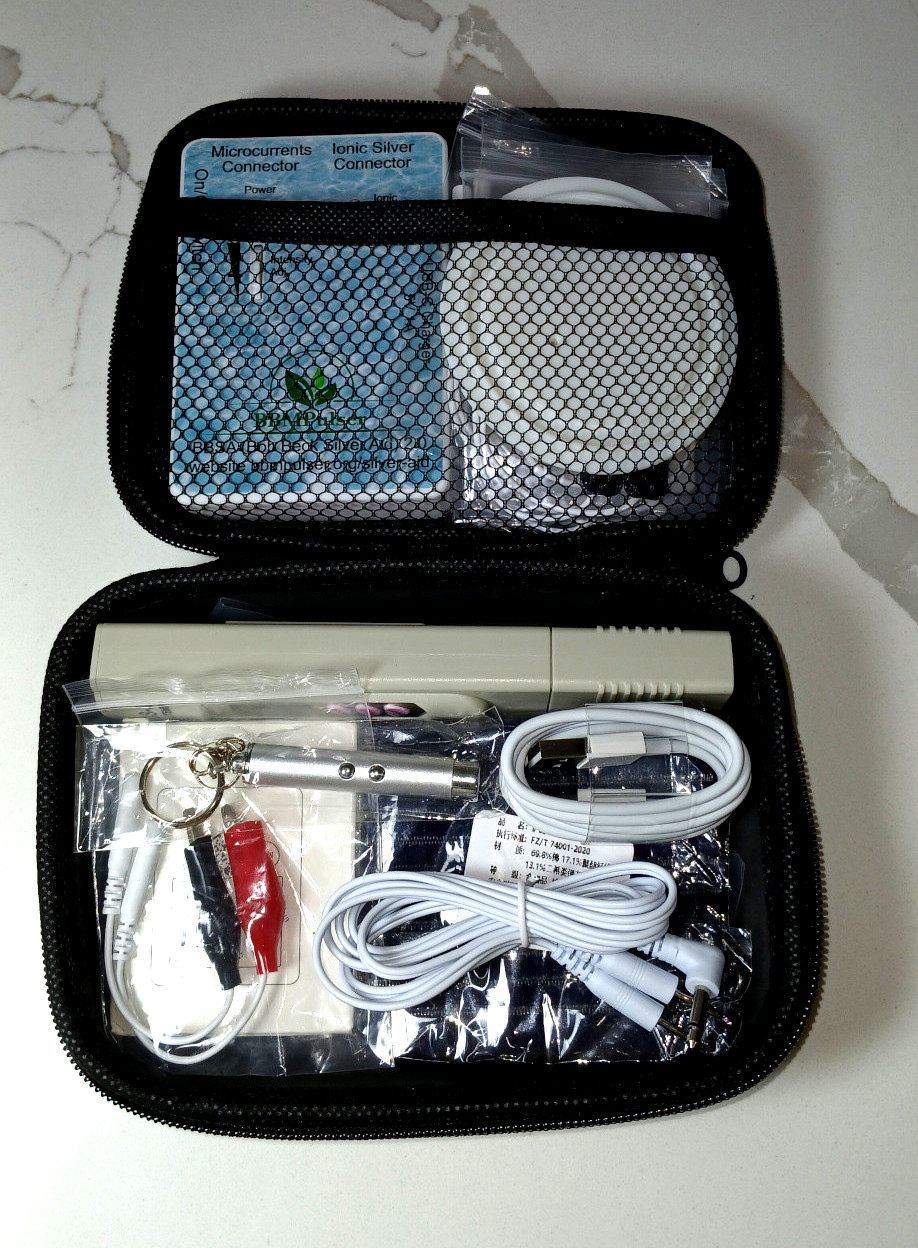

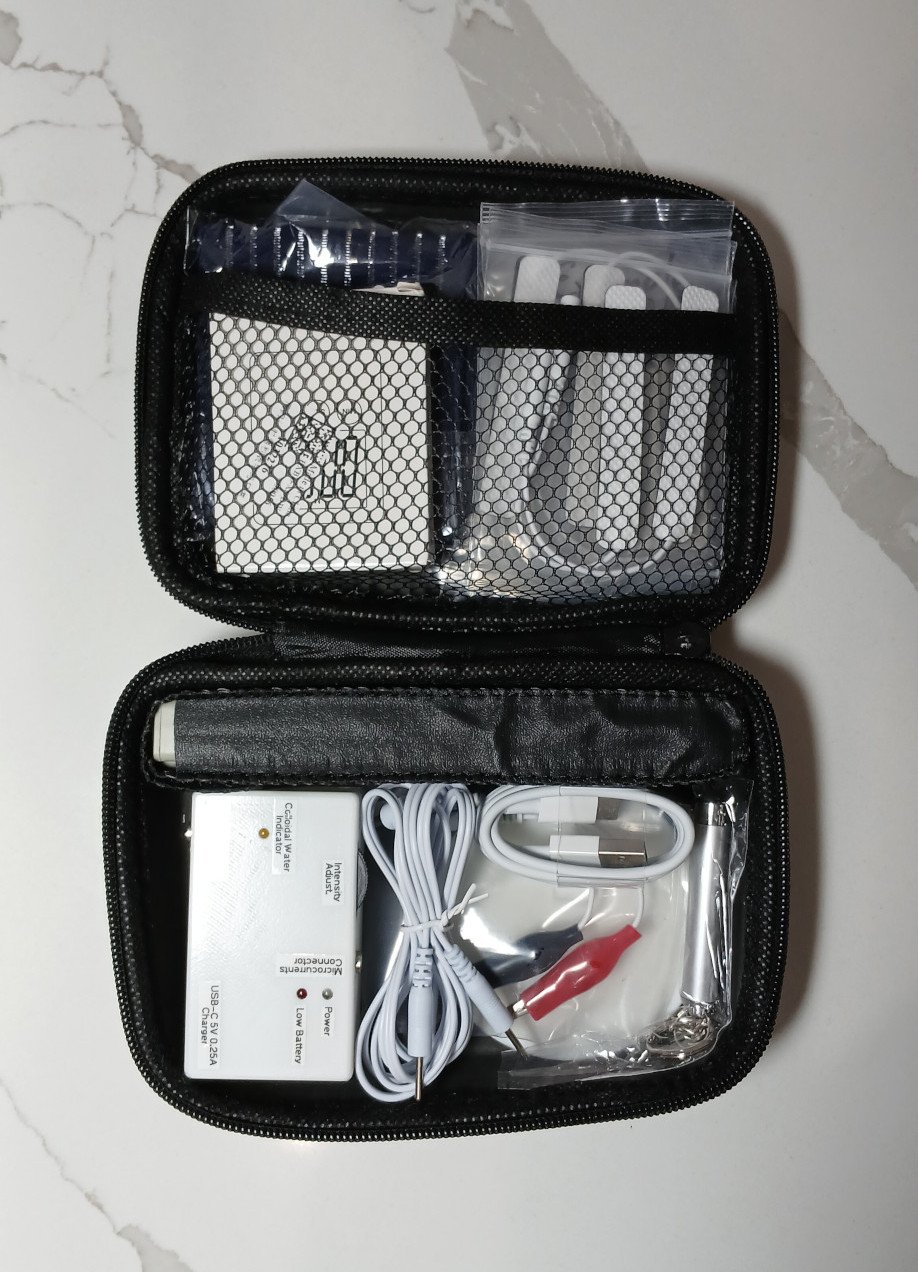

Whats Included:

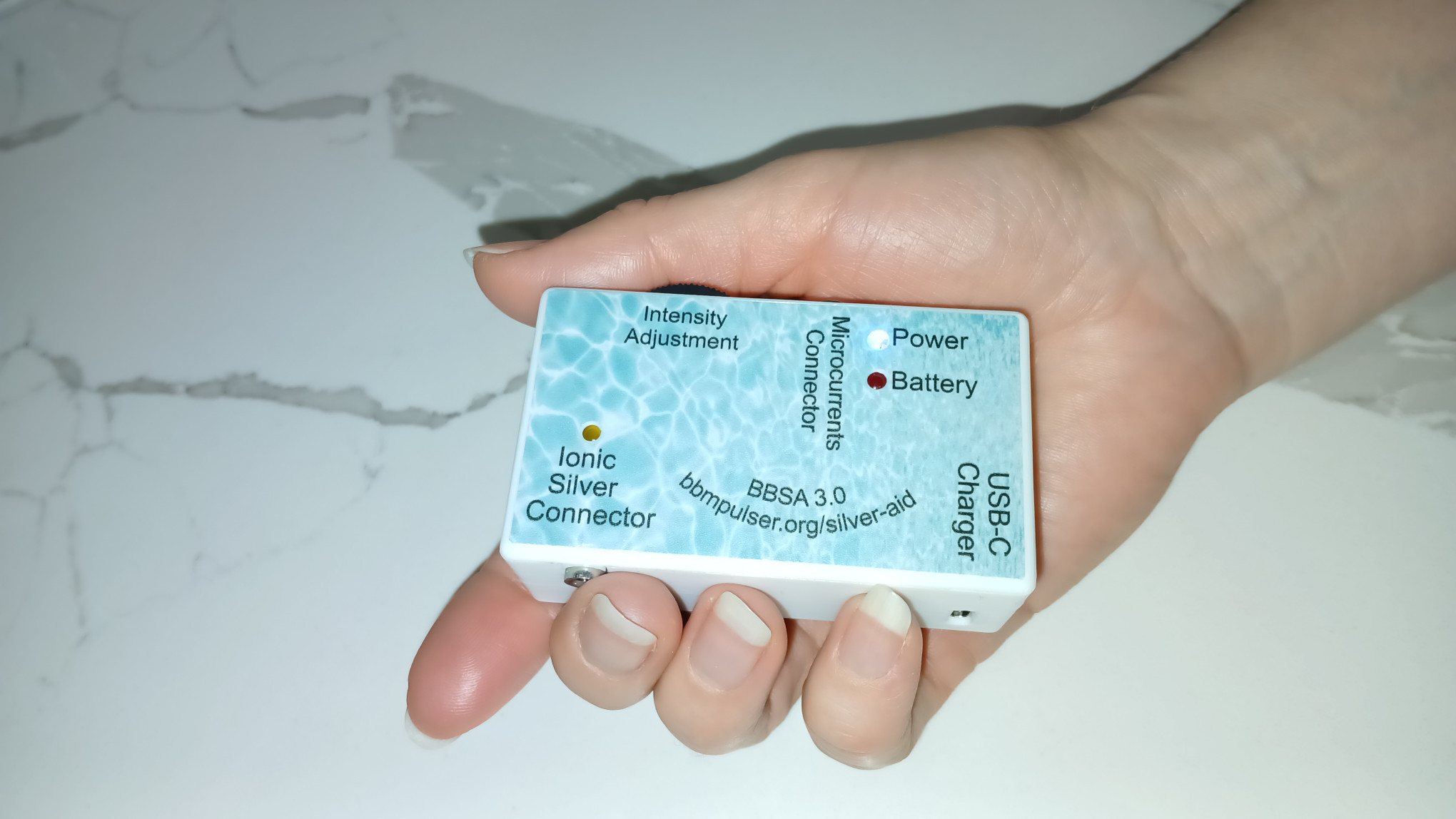

BBSA 1.0 (Bob Beck Silver Aid 1.0) Unit

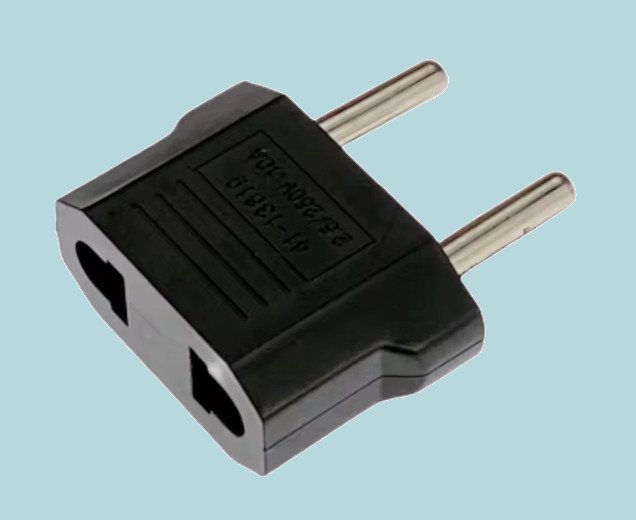

AC/DC Adapter 30VDC 400mA (120VAC or 220VAC compatible). You will need 120VAC to 220VAC plug converter (adapter) if you want to use it with 220VAC (not included) link to buy

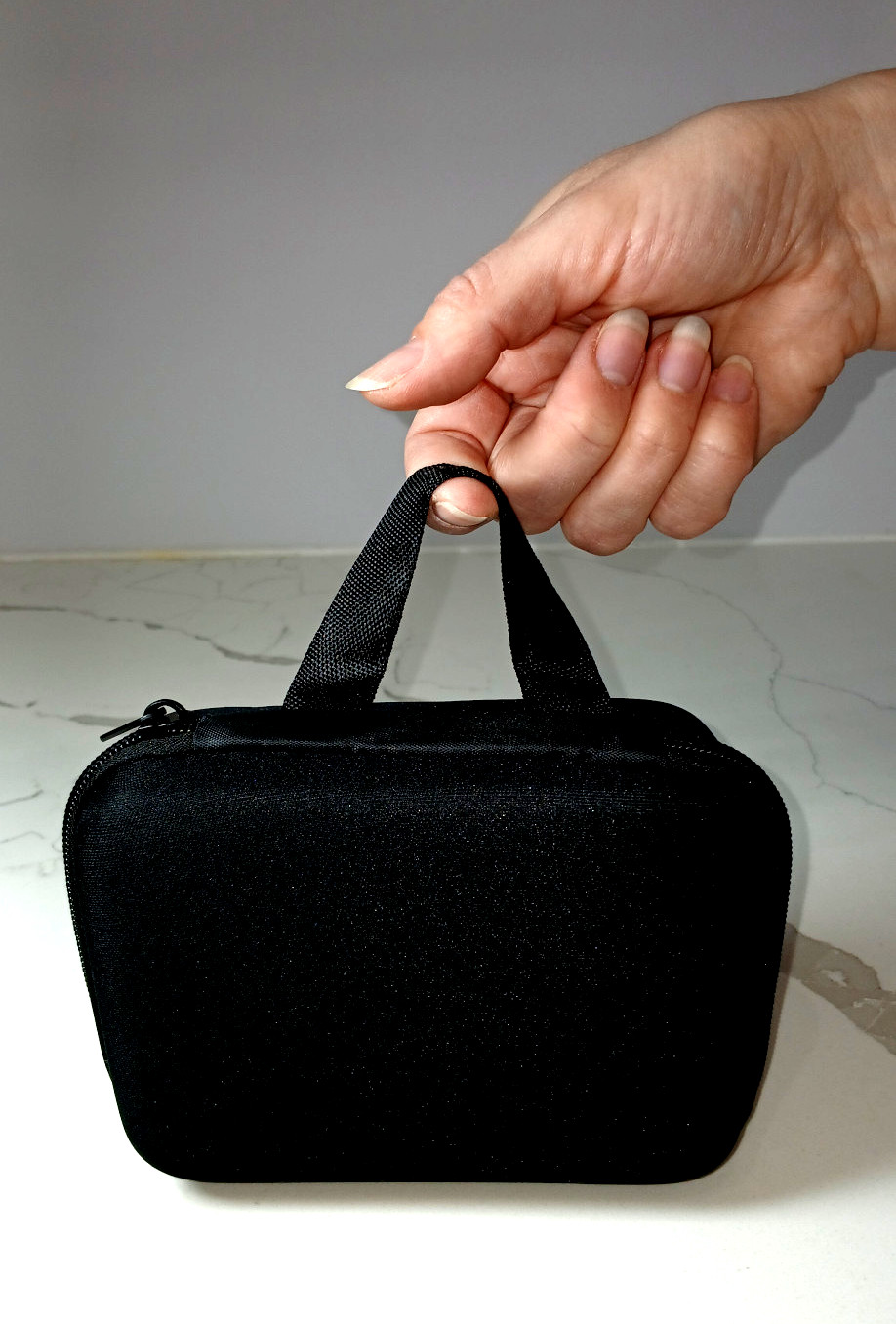

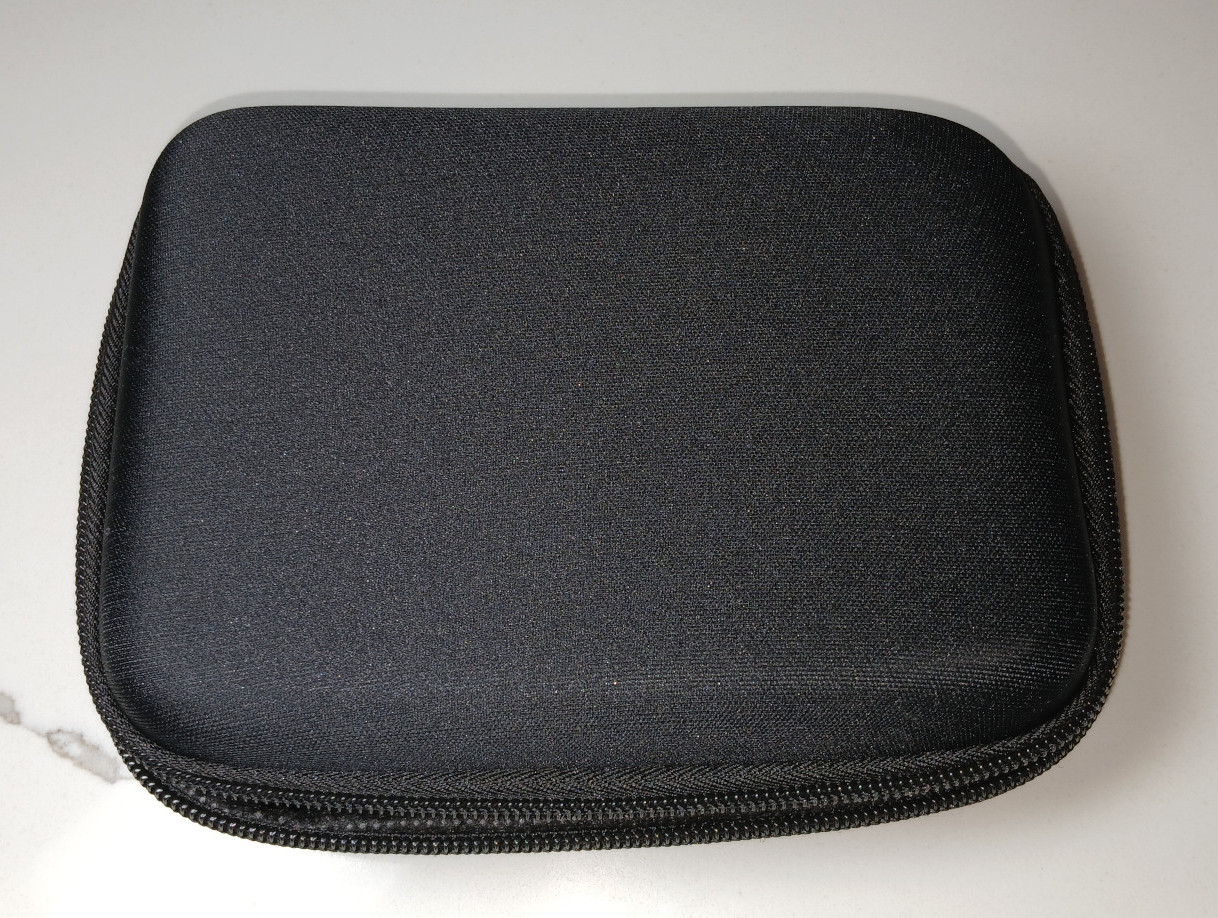

Carry Case

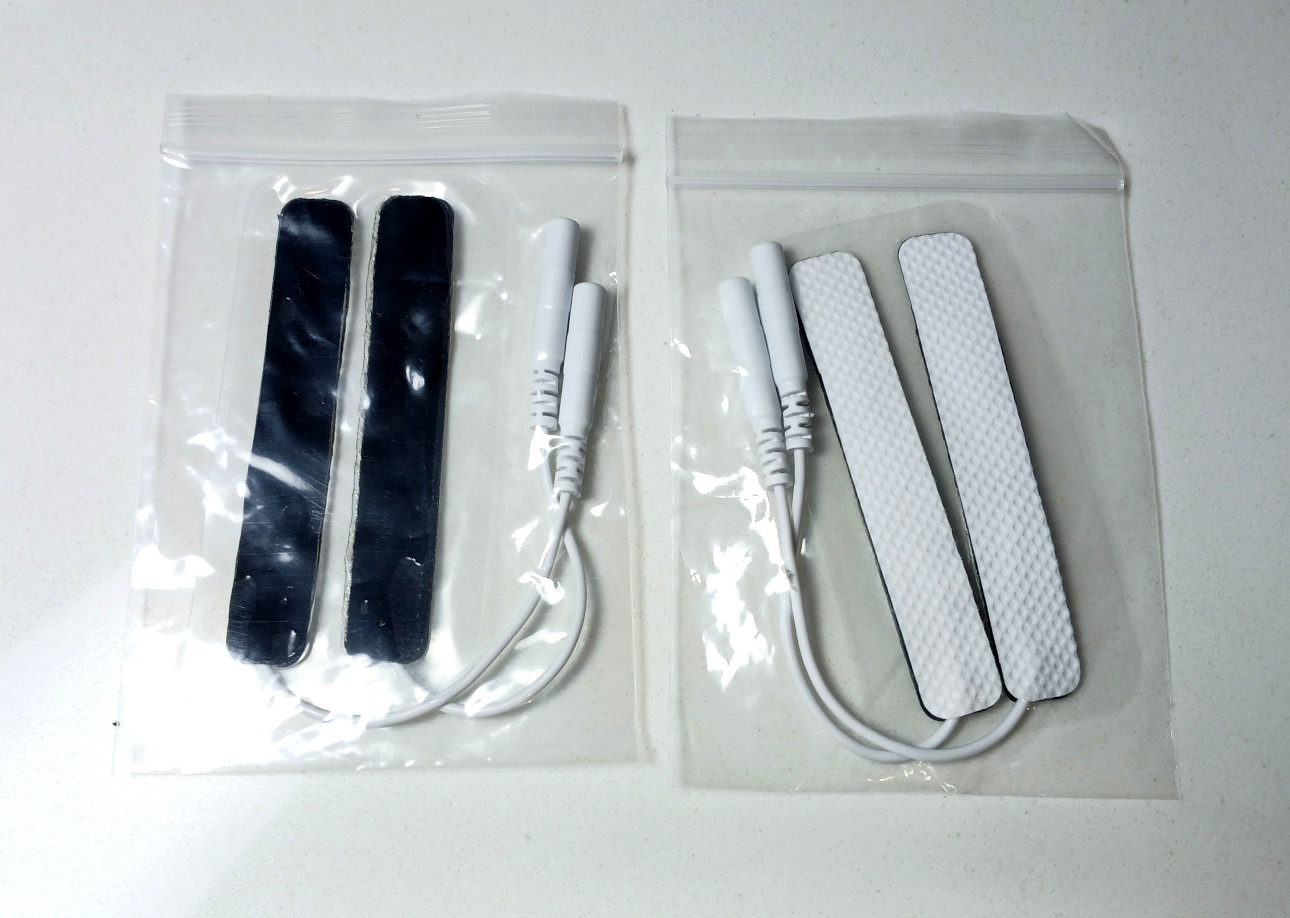

10 pairs of Pads

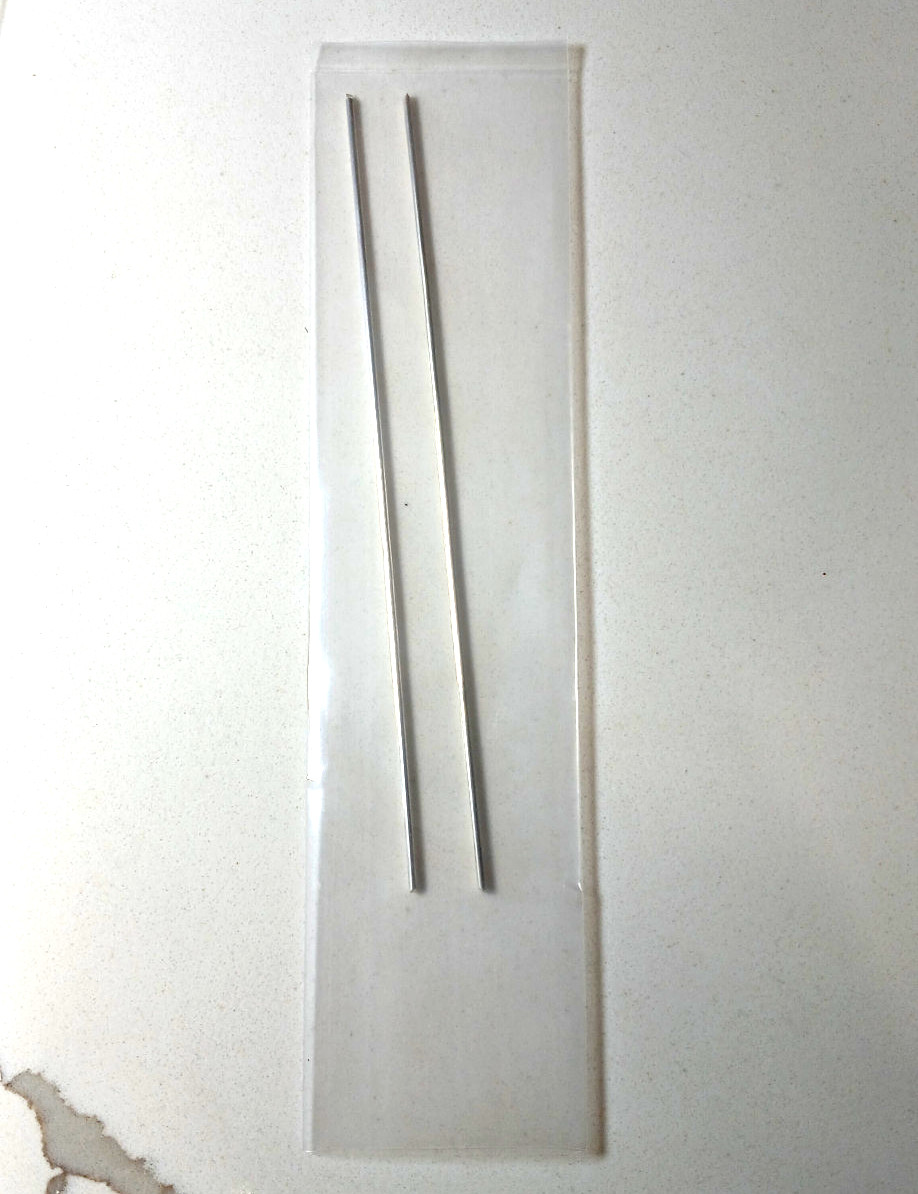

Two 6” 14AWG 99.99% Silver Rods

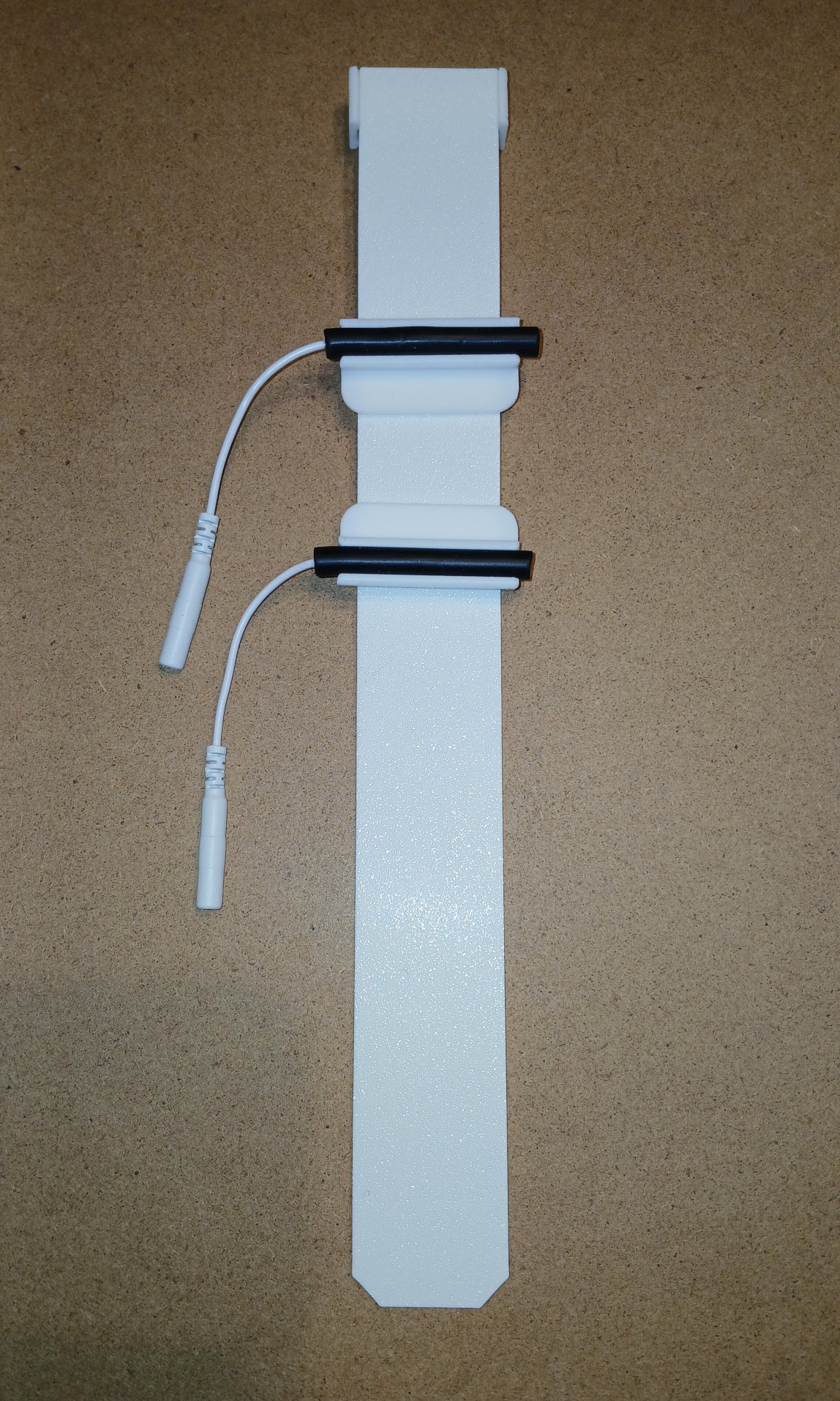

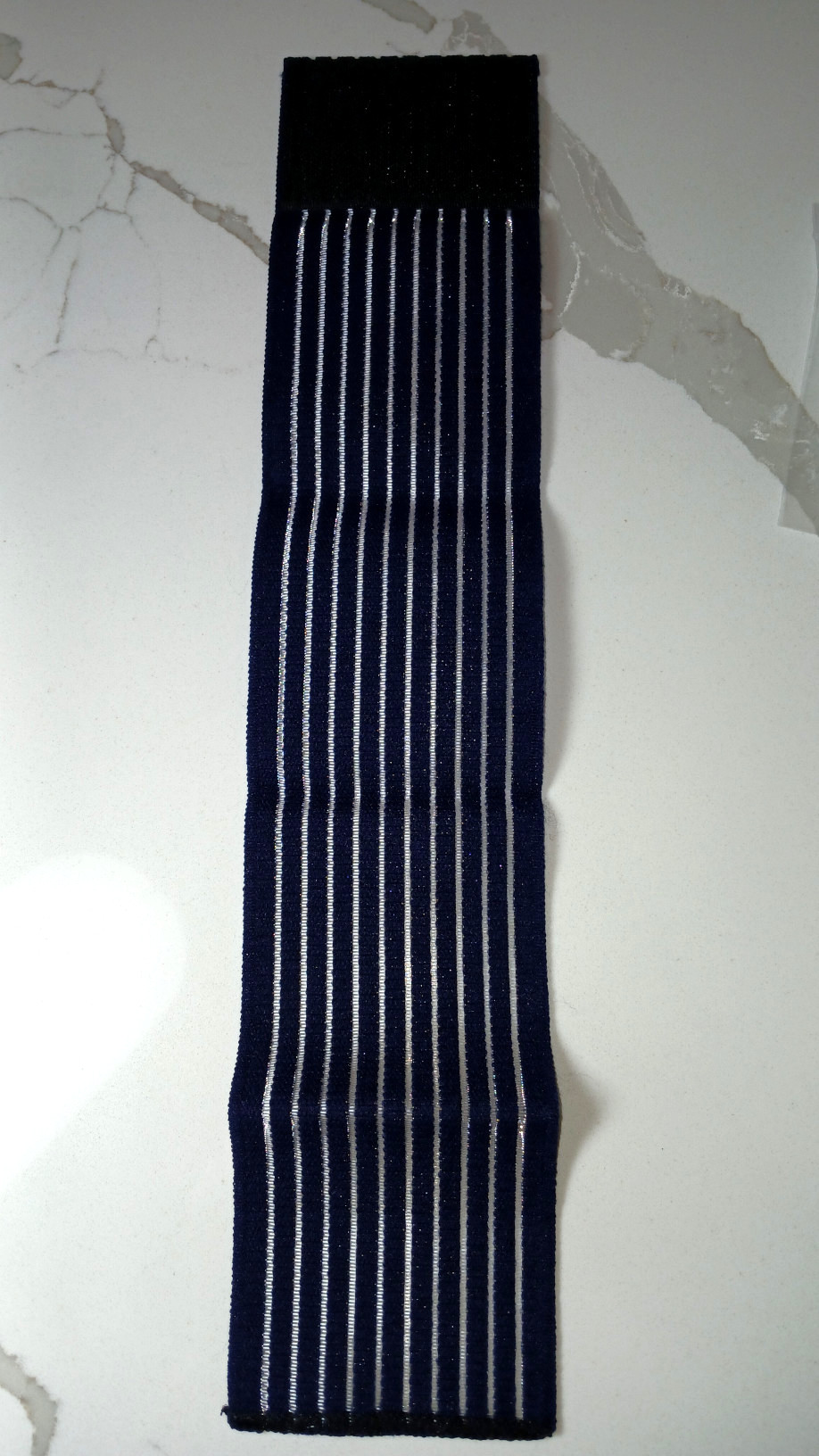

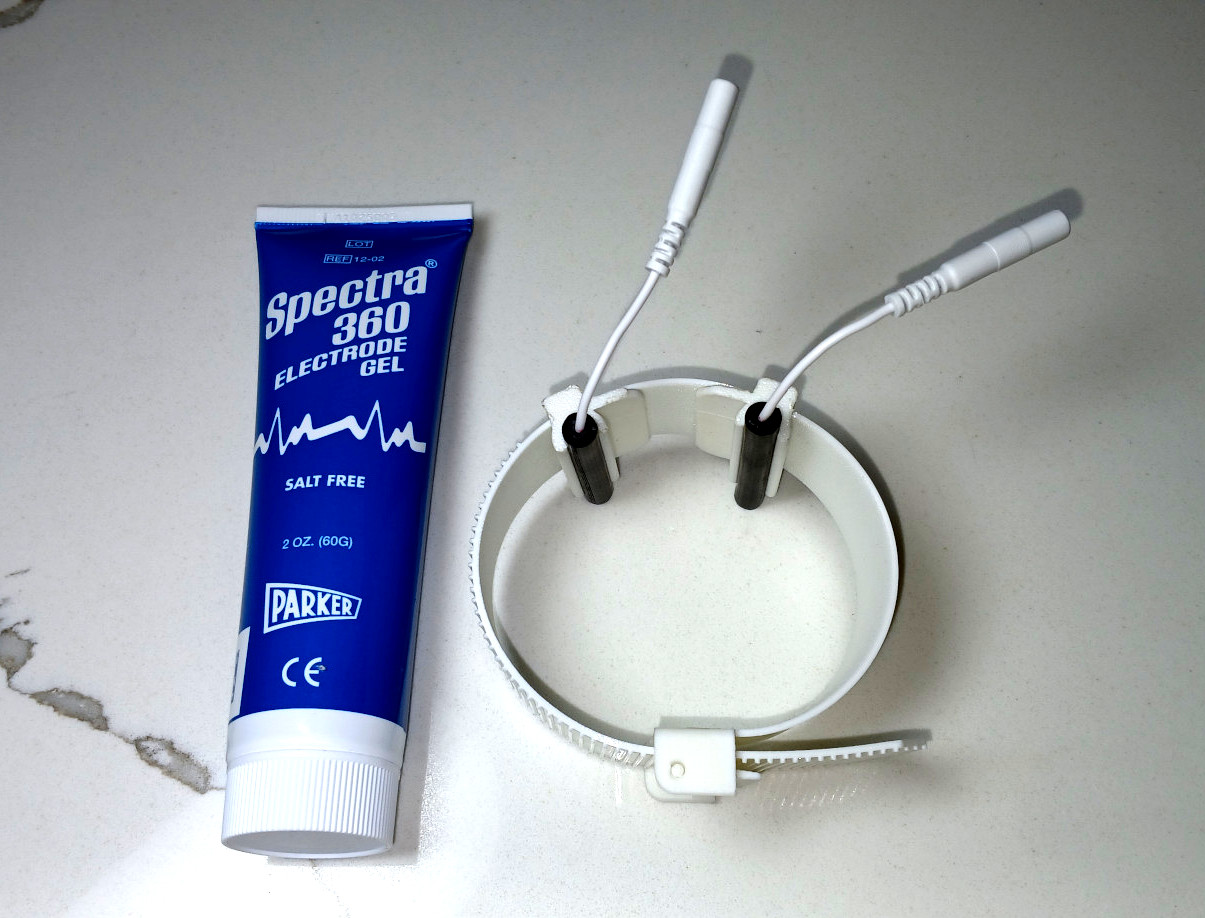

Soft Hand Wrist

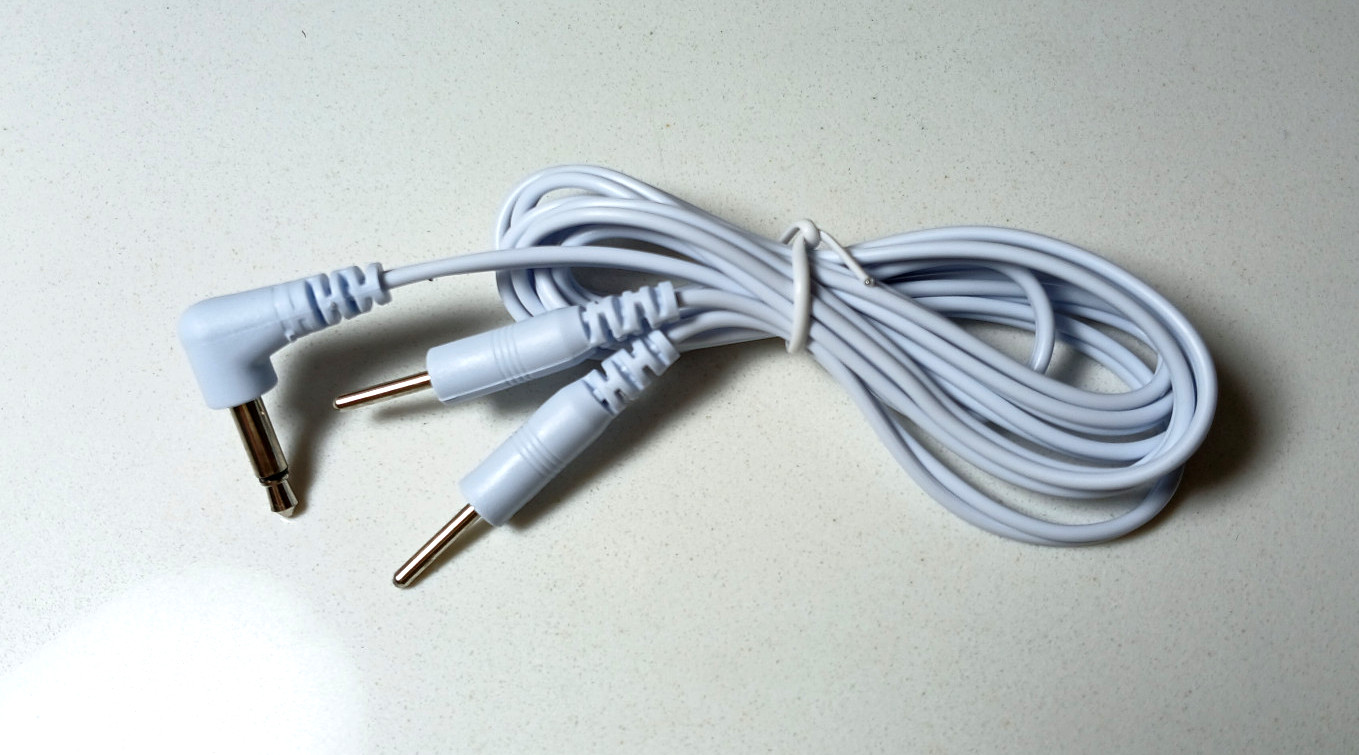

Electrode Wire (Cable)

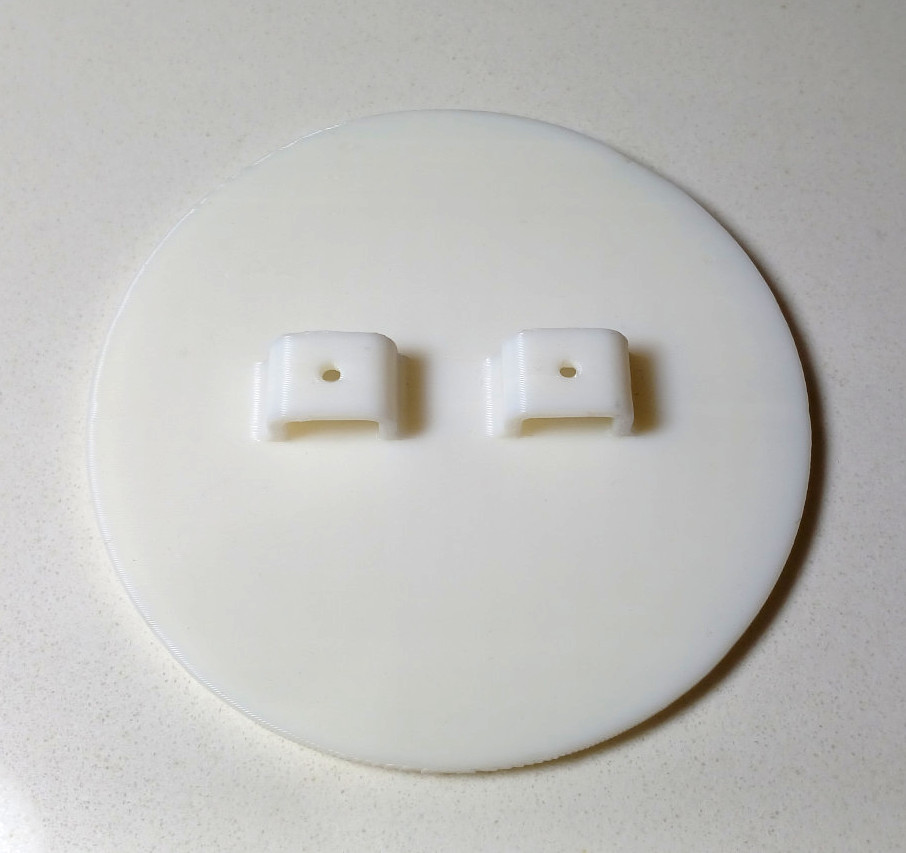

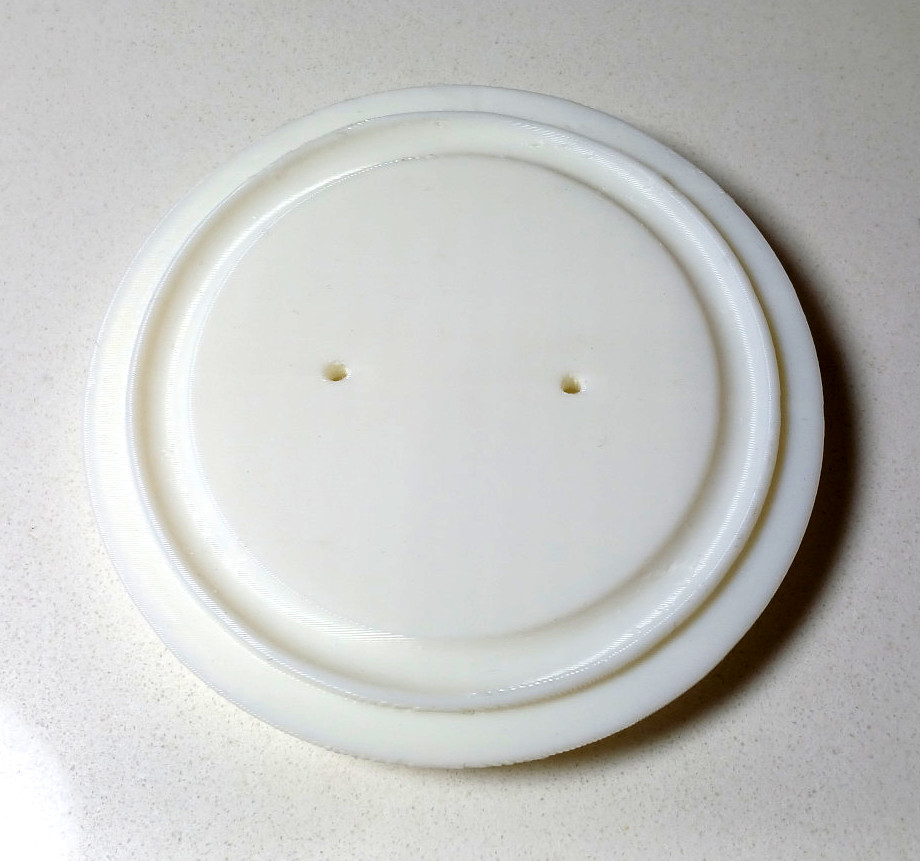

3D Printed Plate “Silver Rods holder”

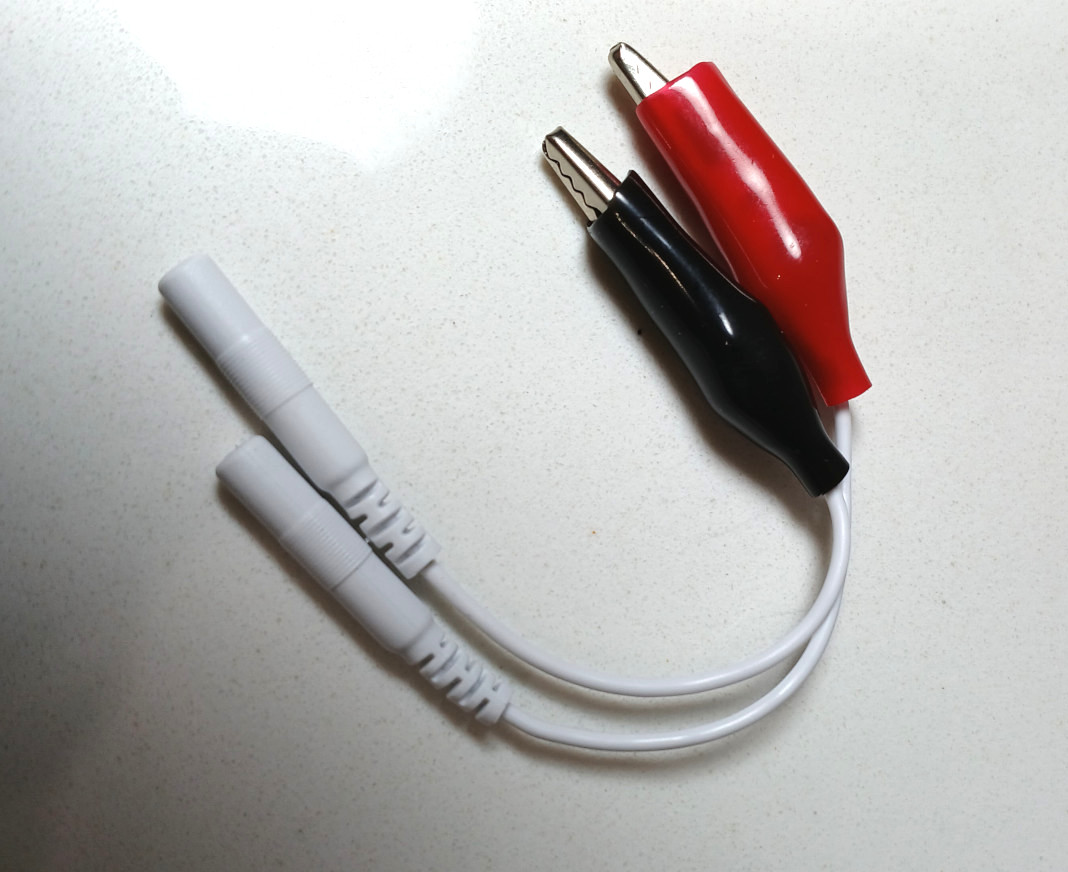

2x Alligator Clips (to hold Silver Rods inside the plate while making Ionic Silver Water)

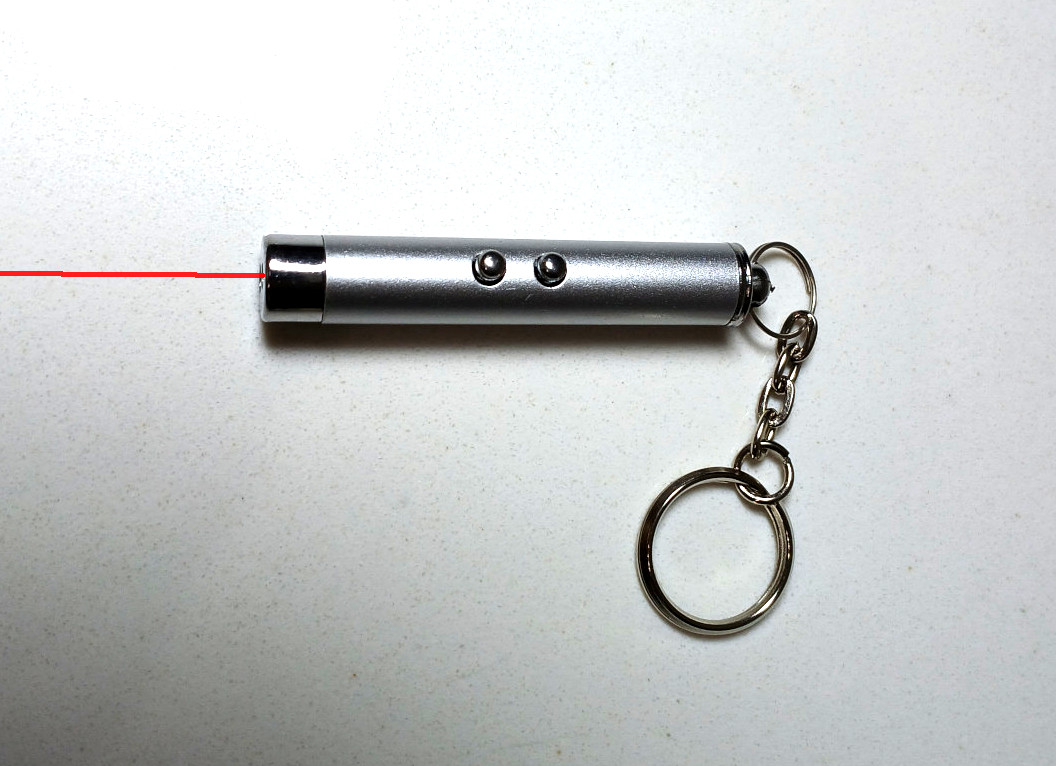

Laser Pointer (to visually confirm Silver Ions in distilled water)

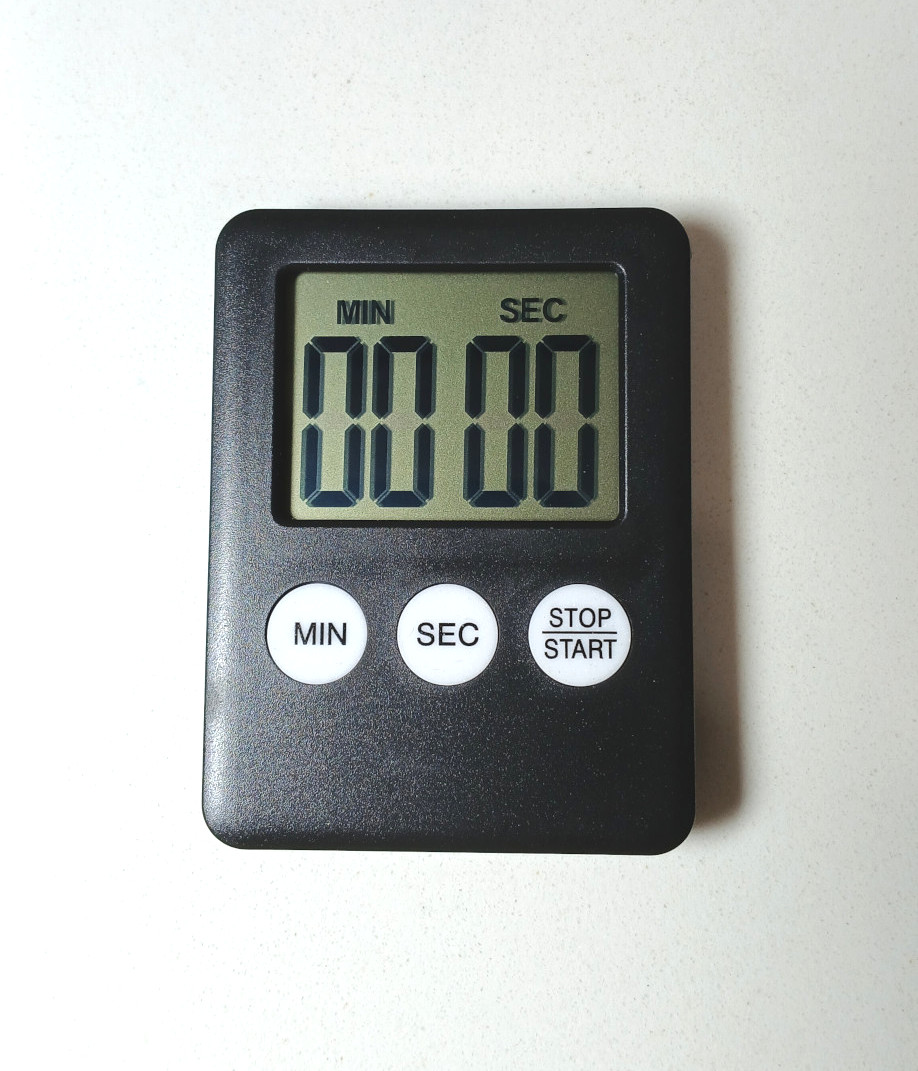

Digital Timer with Alarm (to time Silver Water process)

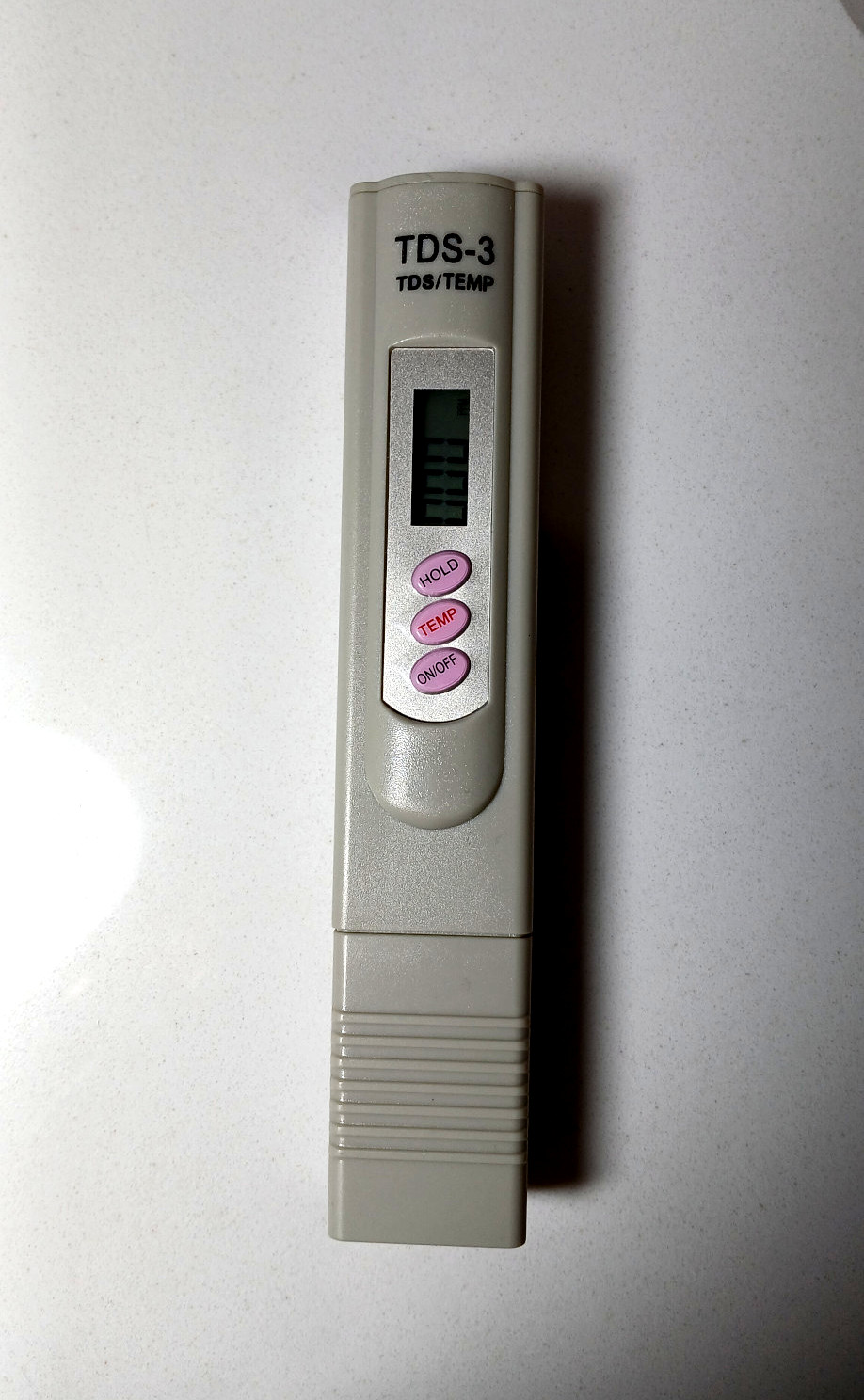

TDS EC Meter (to measure Silver Ions concentration in distilled water)
User Manual

Silver Aid / Colloidal Generator BBSA 1.0 Price $140.00 Free Shipping in USA

This Device is the part of dr. Bob Beck Protocol titled “Beck Protocol First Aid Kit of the Future. A Radical, Safe, Proven and Inexpensive Approach to Health using Micro-Currents of Electricity”

Kit Futures:

Operating Voltage 30VDC, DC Adapter 30VDC 400mA
2 modes of operation, Coloidal Silver and Micro-pulsing. Build in selector switch

1. Colloidal Silver Generator – outputs 30VDC

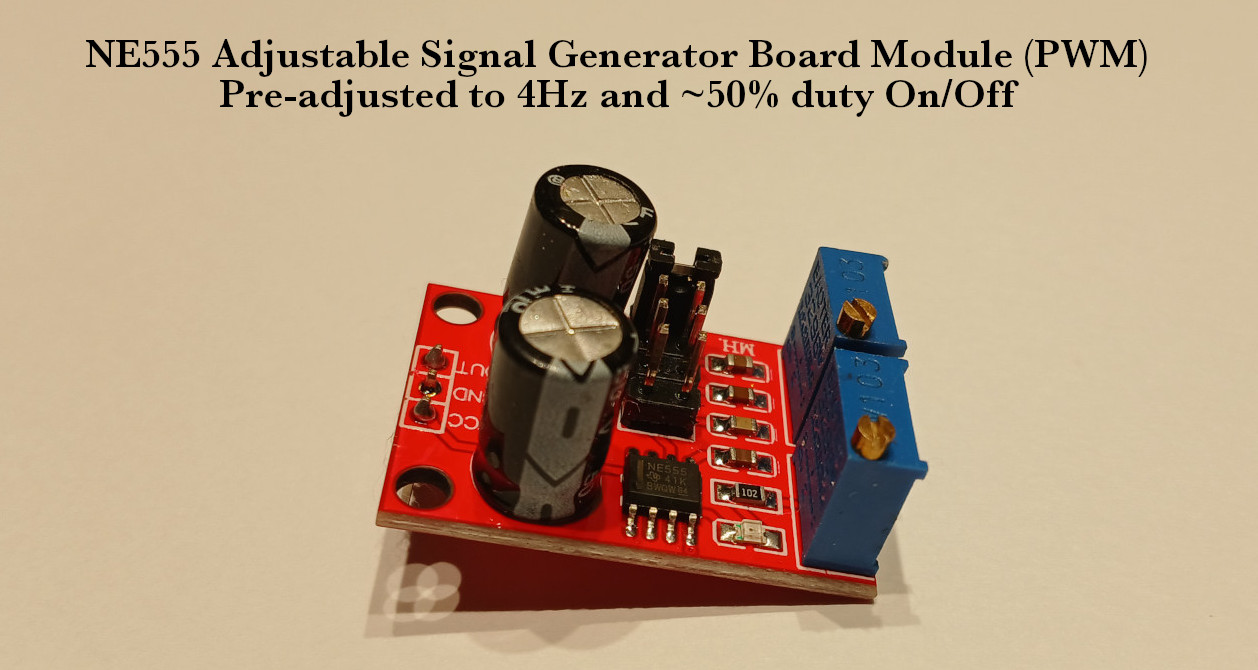

2. Micro Pulsing – outputs bipolar 30VDC at 4Hz ~50% duty

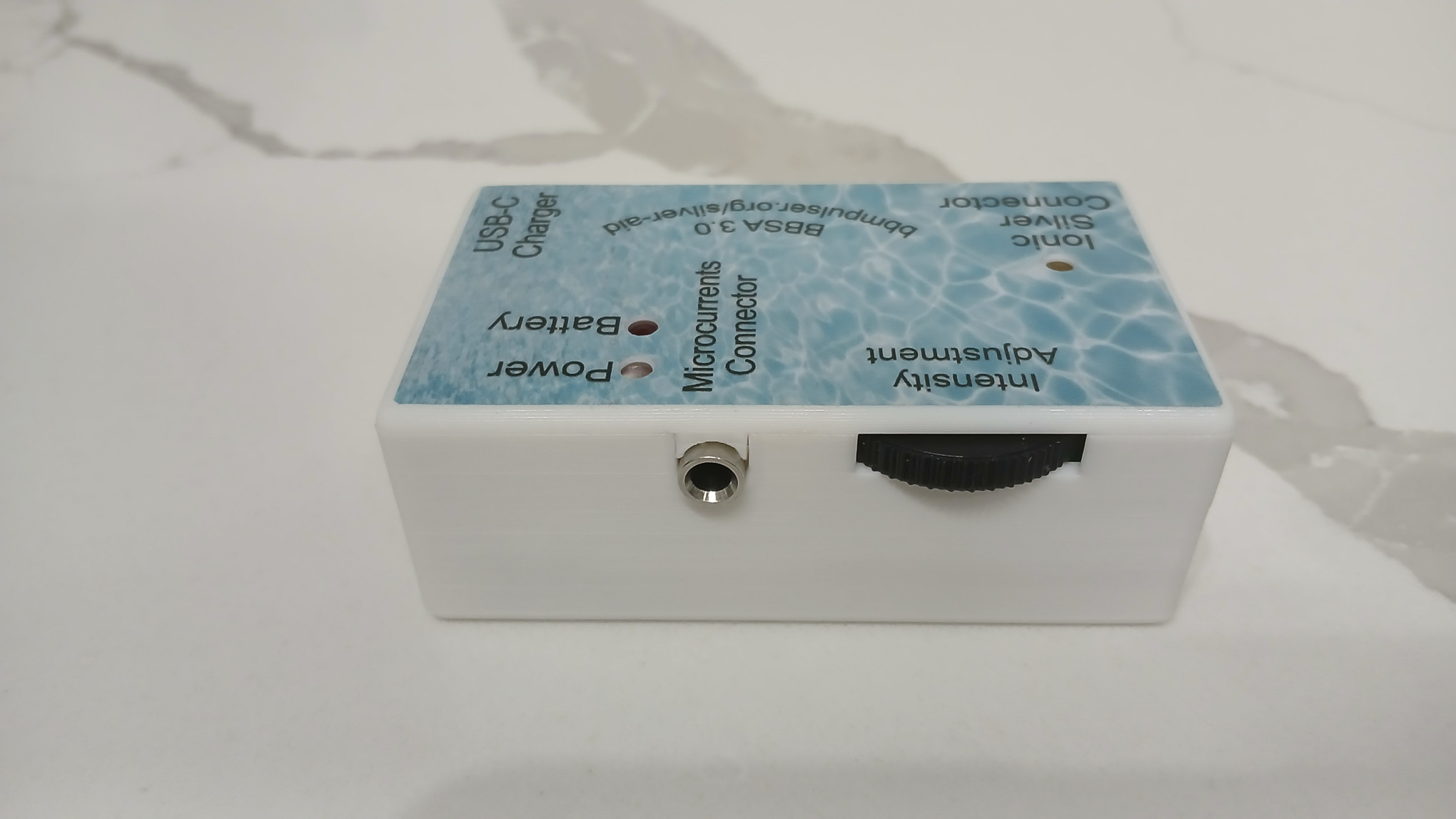

Build in adjustment for Micro-Pulsing, allows user to adjust power output to the comfortable levels
Build in Protection, in case user short electrodes

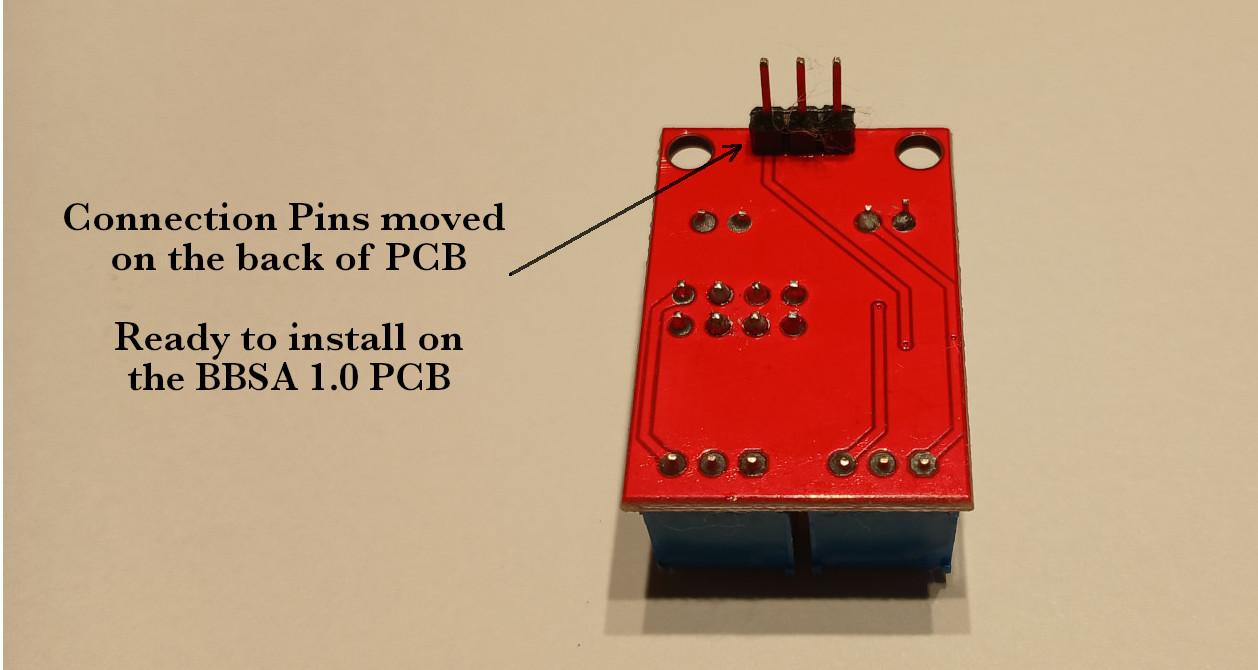

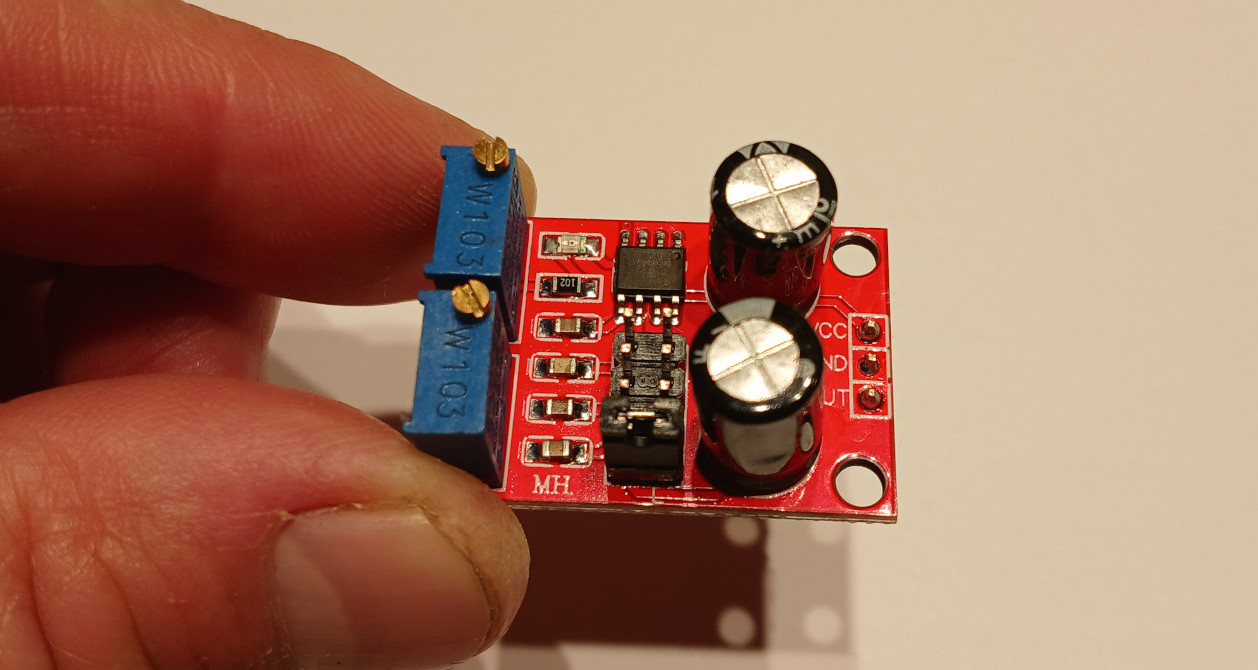

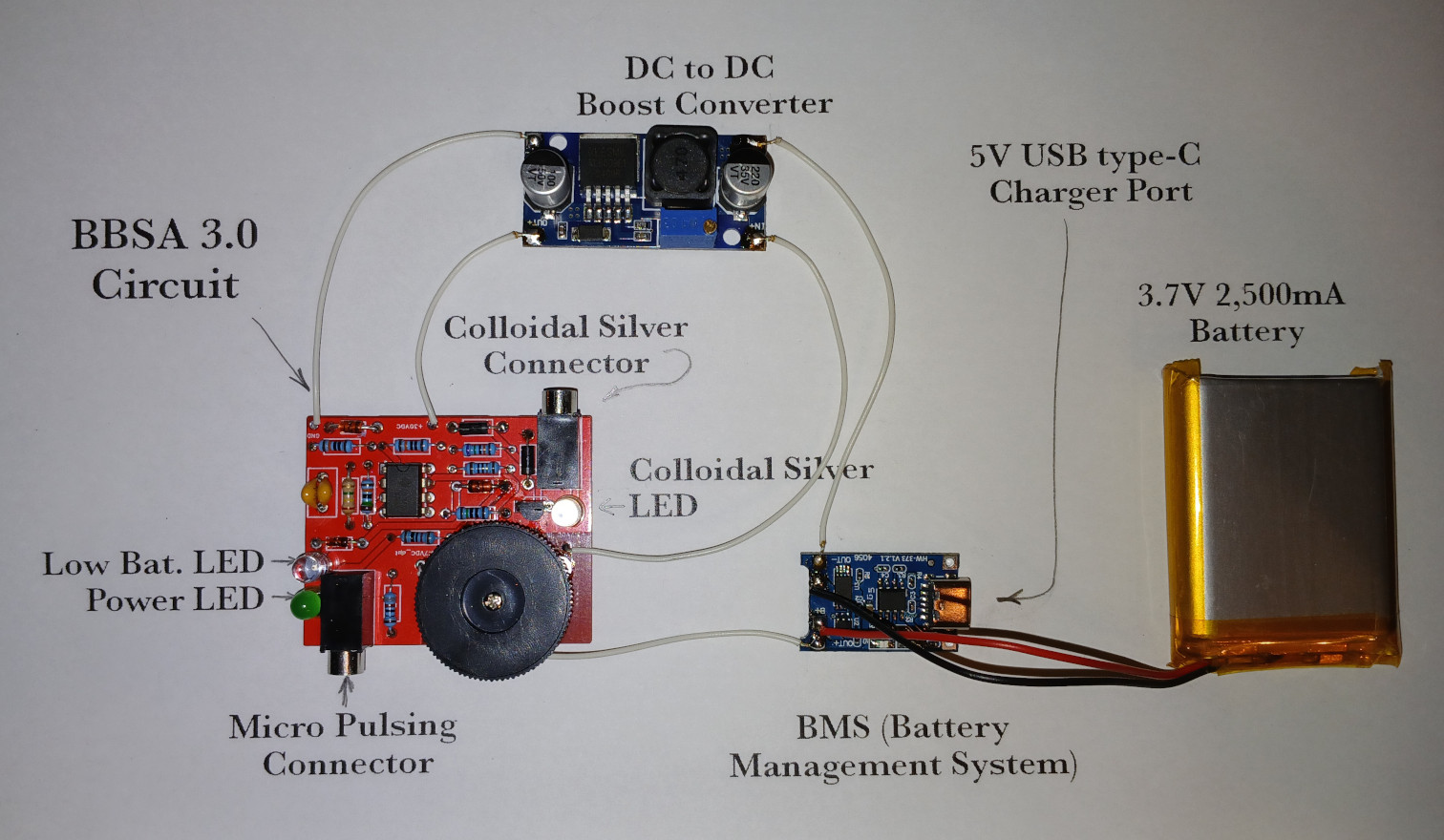

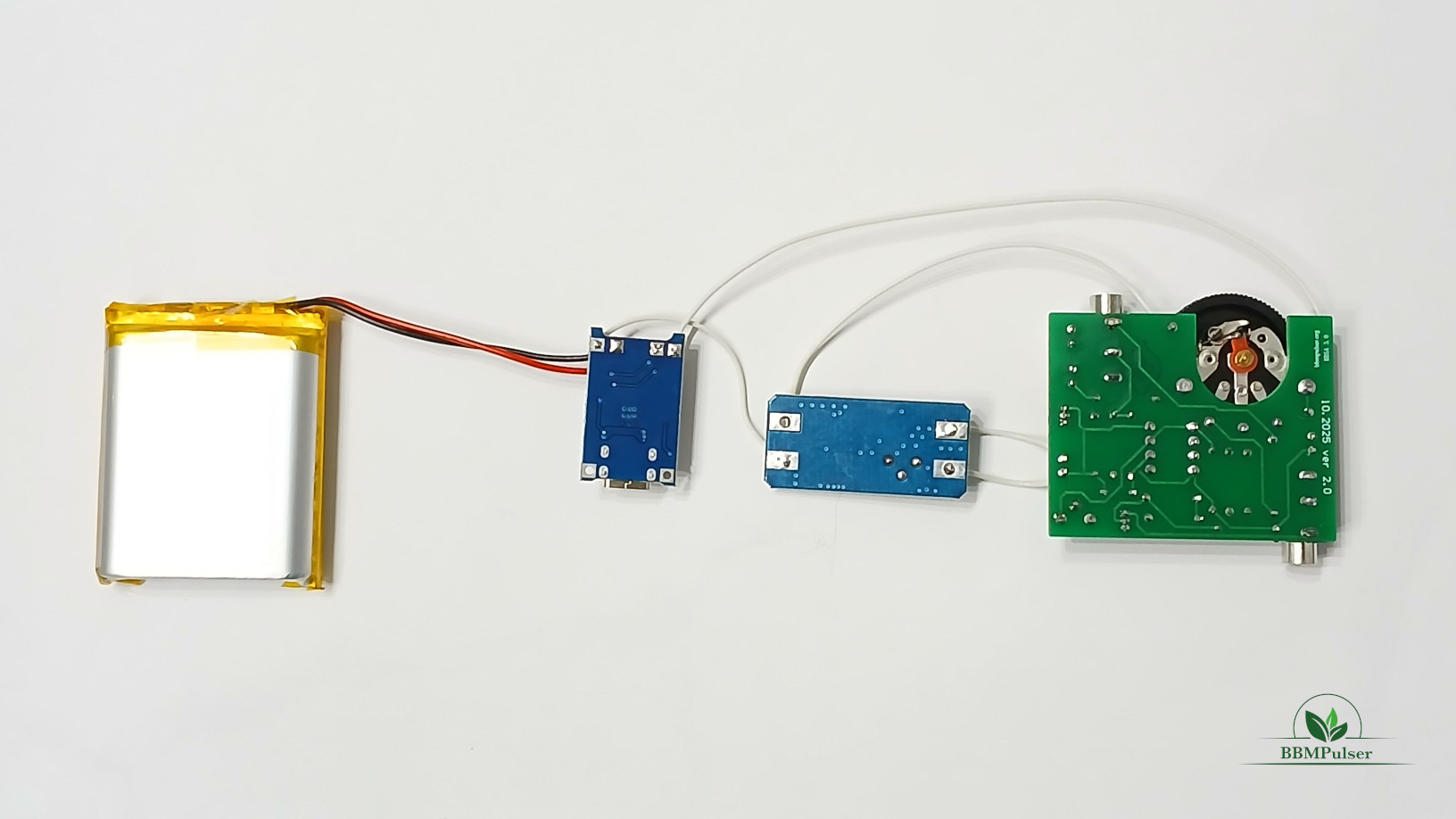

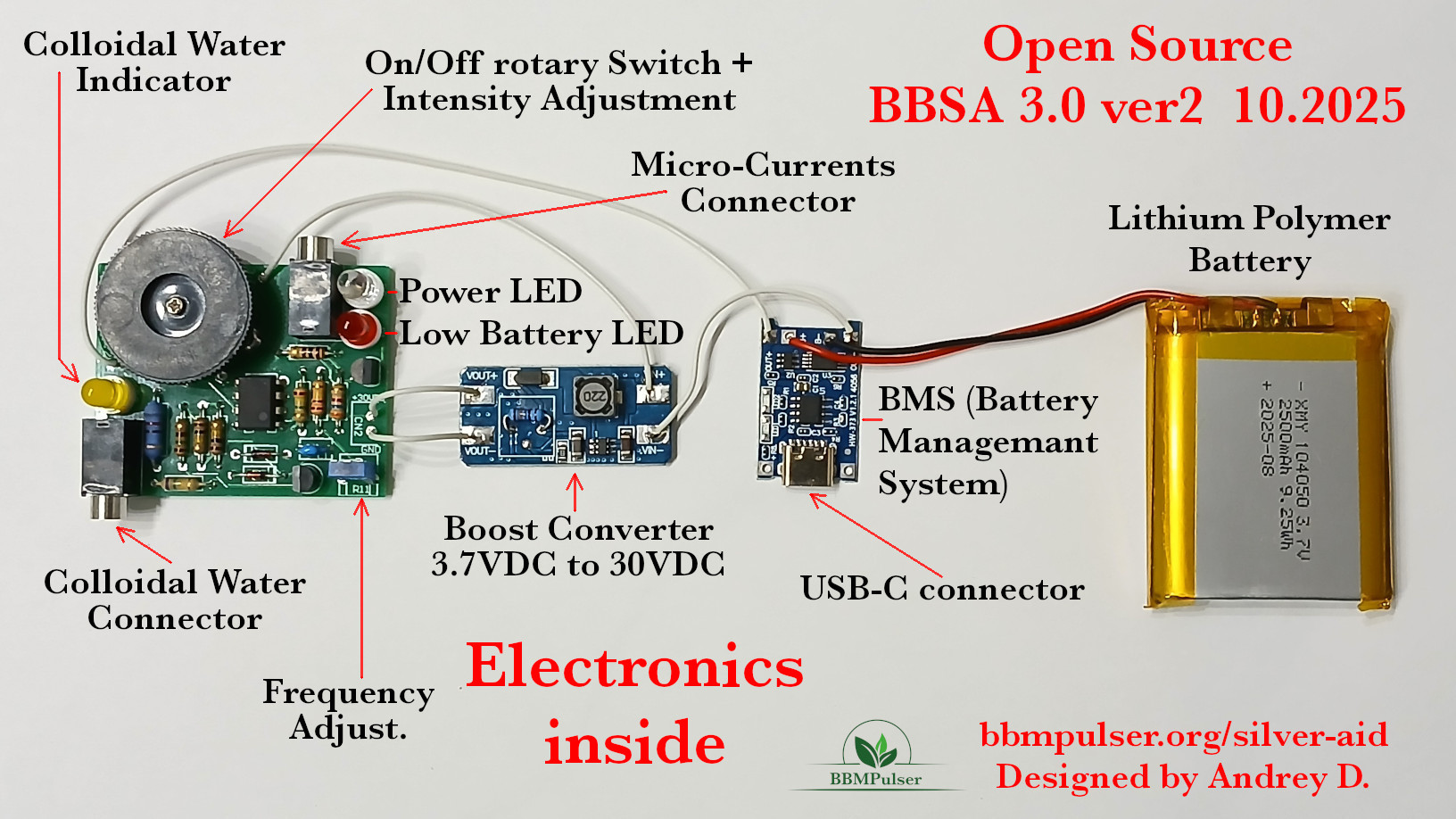

Simple design, built of 8 components & 2 modules (PWM & Power Supply modules)

To place your order please contact me support@bbmpulser.org

Mention what country you are from for shipping quote

3 Year Warranty

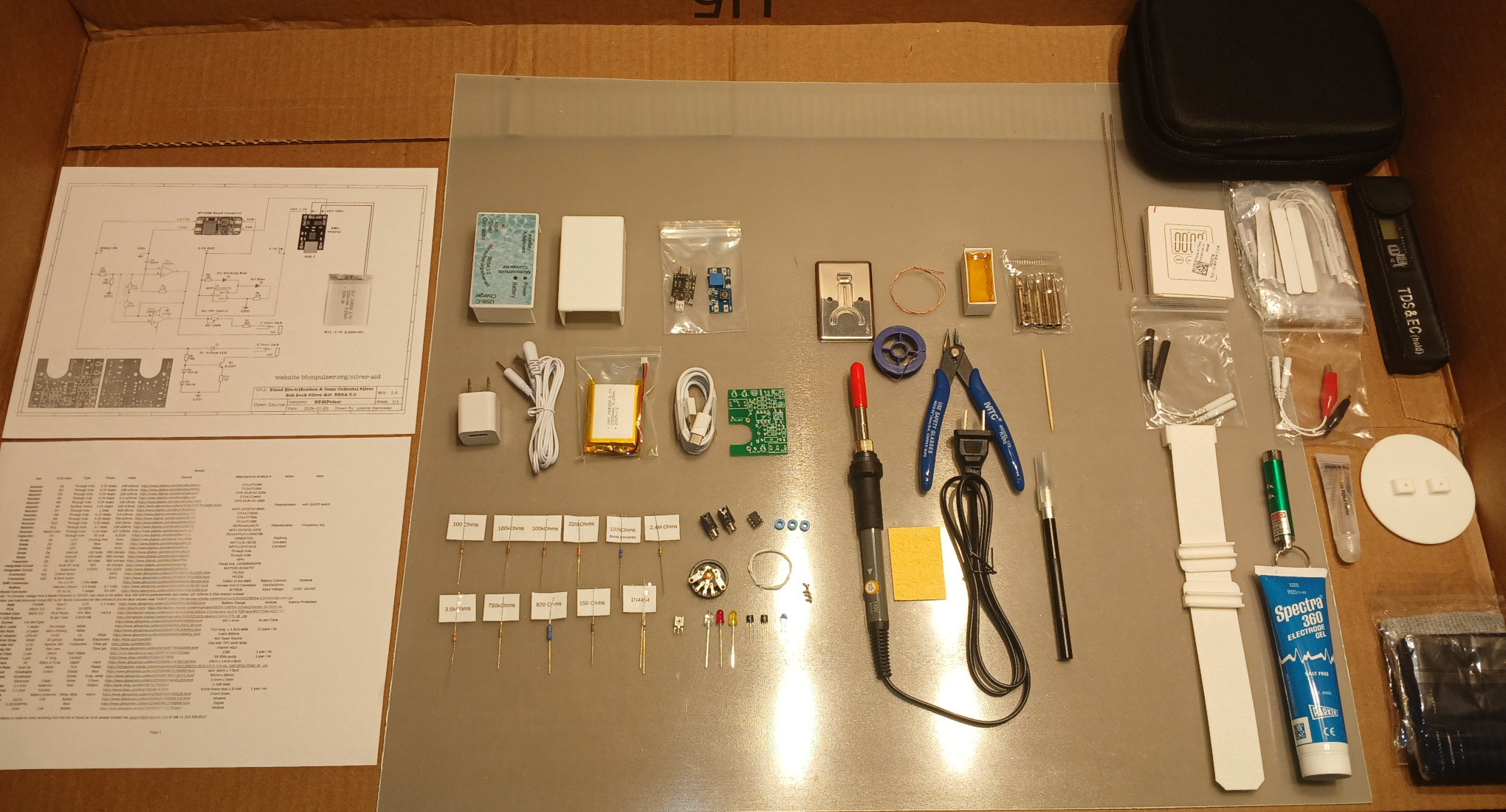

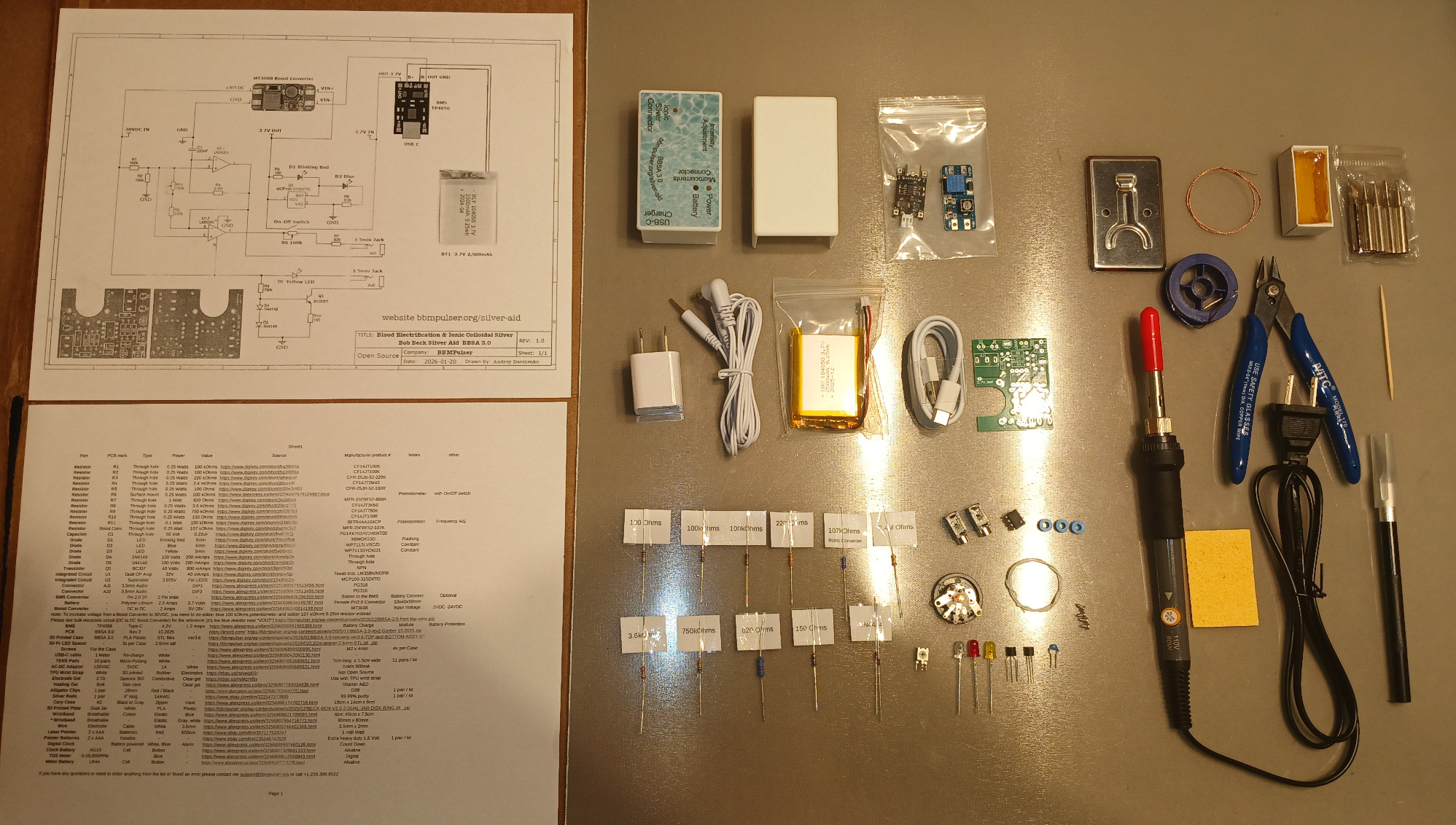

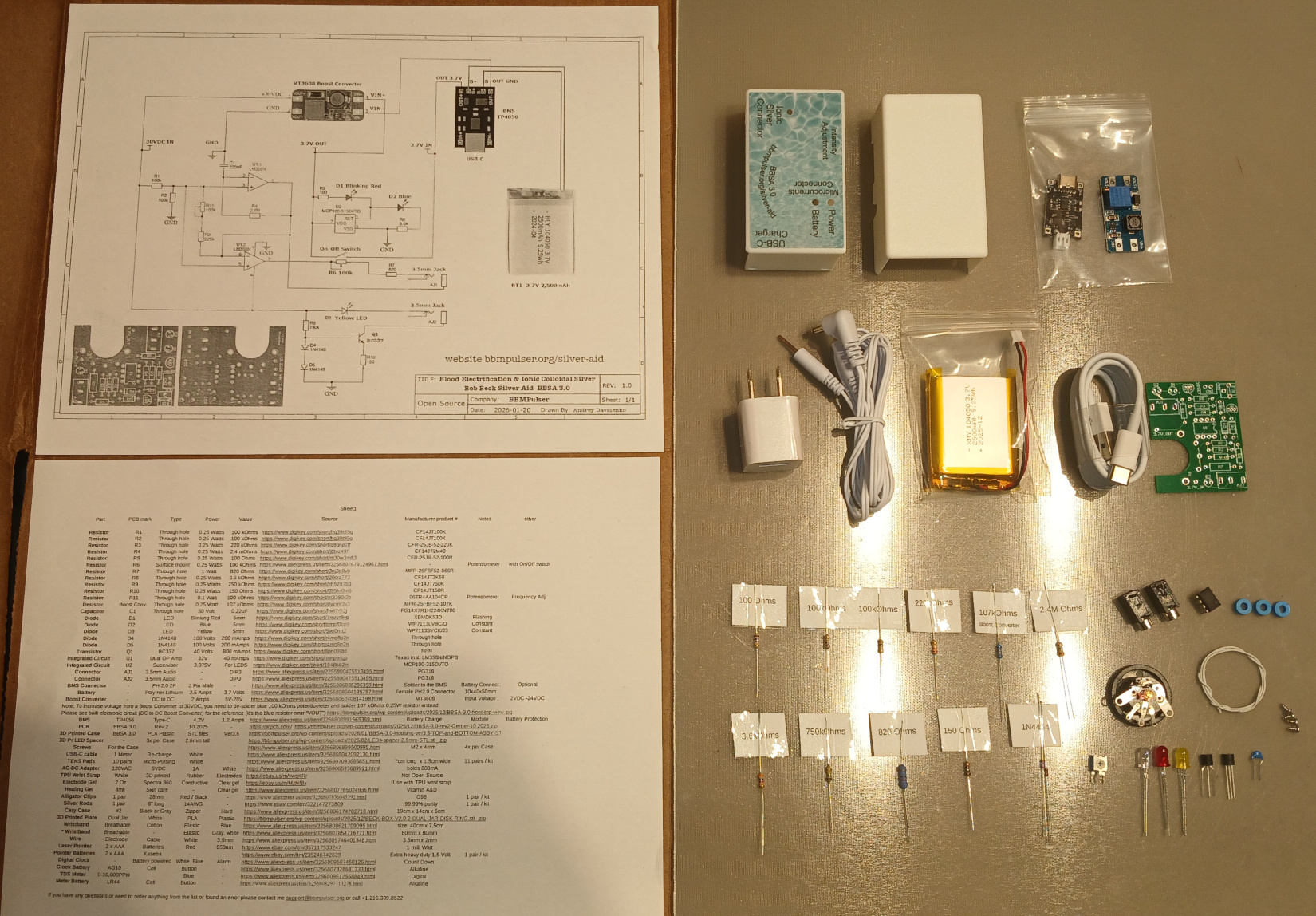

DIY (Do It Yourself) BBSA 1.0 (Bob Beck Silver Aid 1.0)

If you DIY, you should be able to build this kit for under $100 incl. 3D printed case. To save $$, you can get some parts from me directly, rest of the parts can be purchase from eBay, DigiKey and Aliexpress sites. Please see “Parts List”

Available parts:

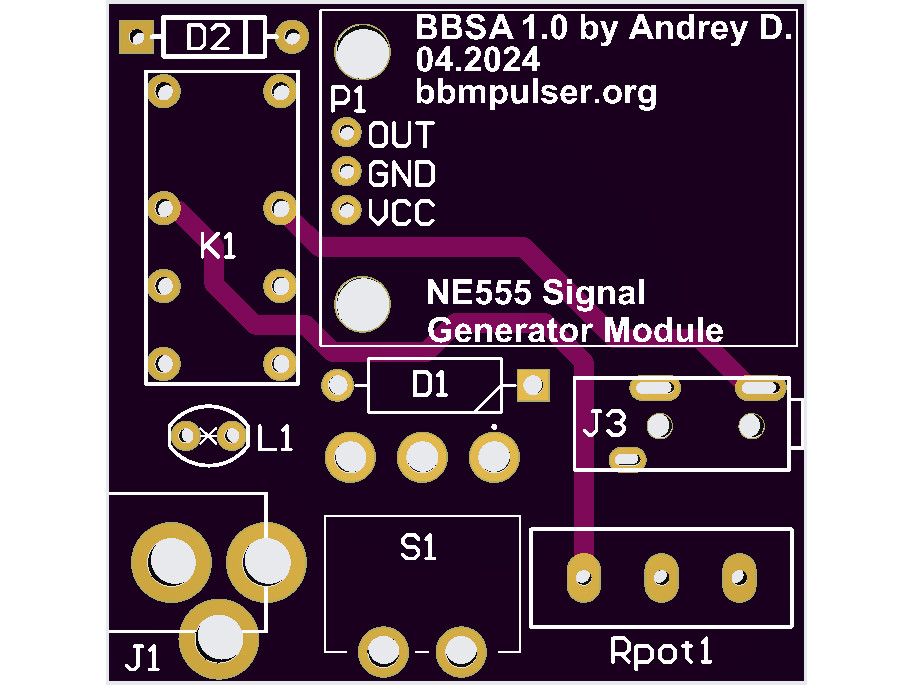

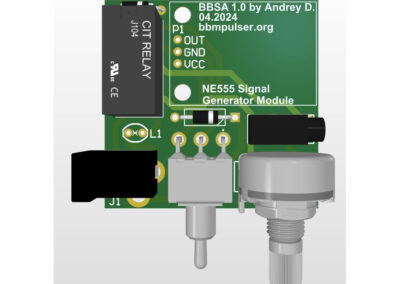

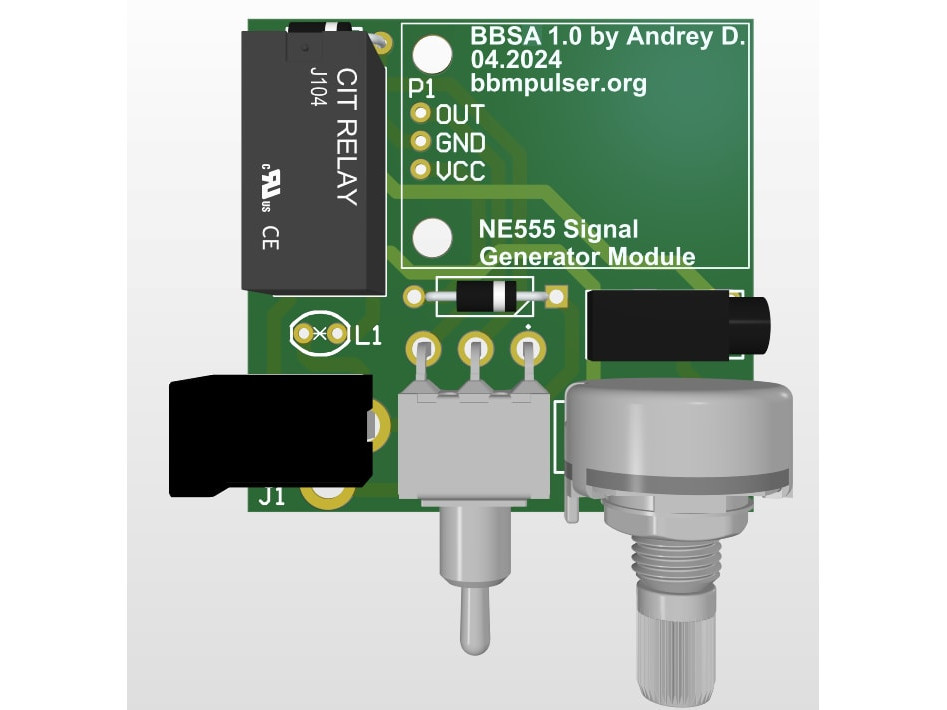

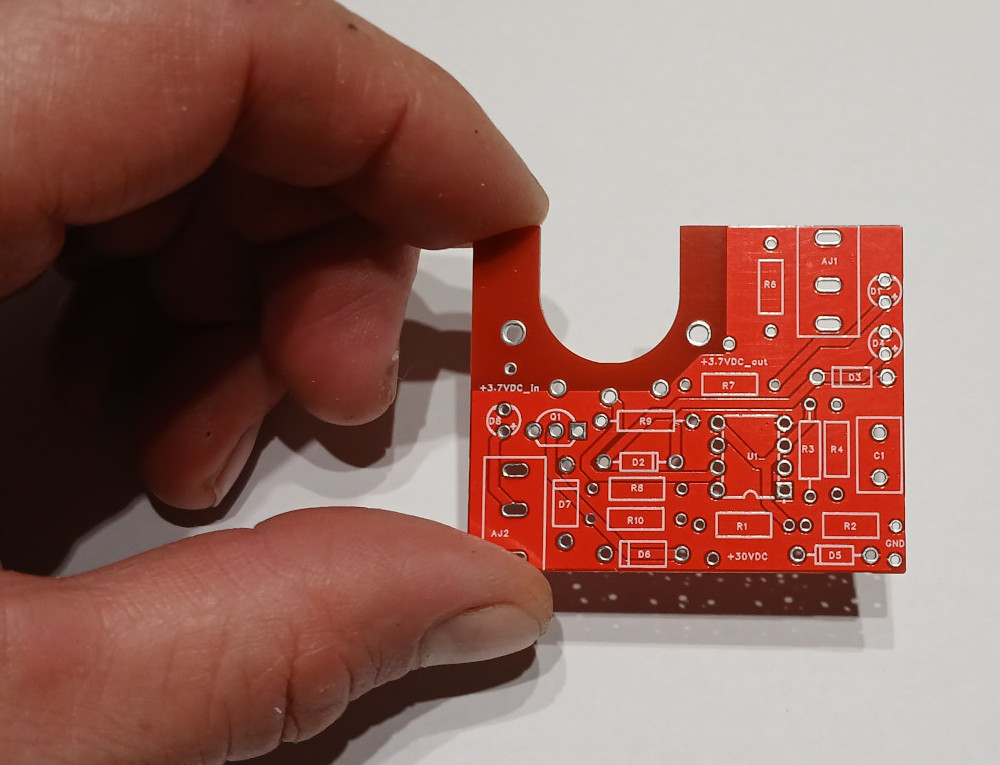

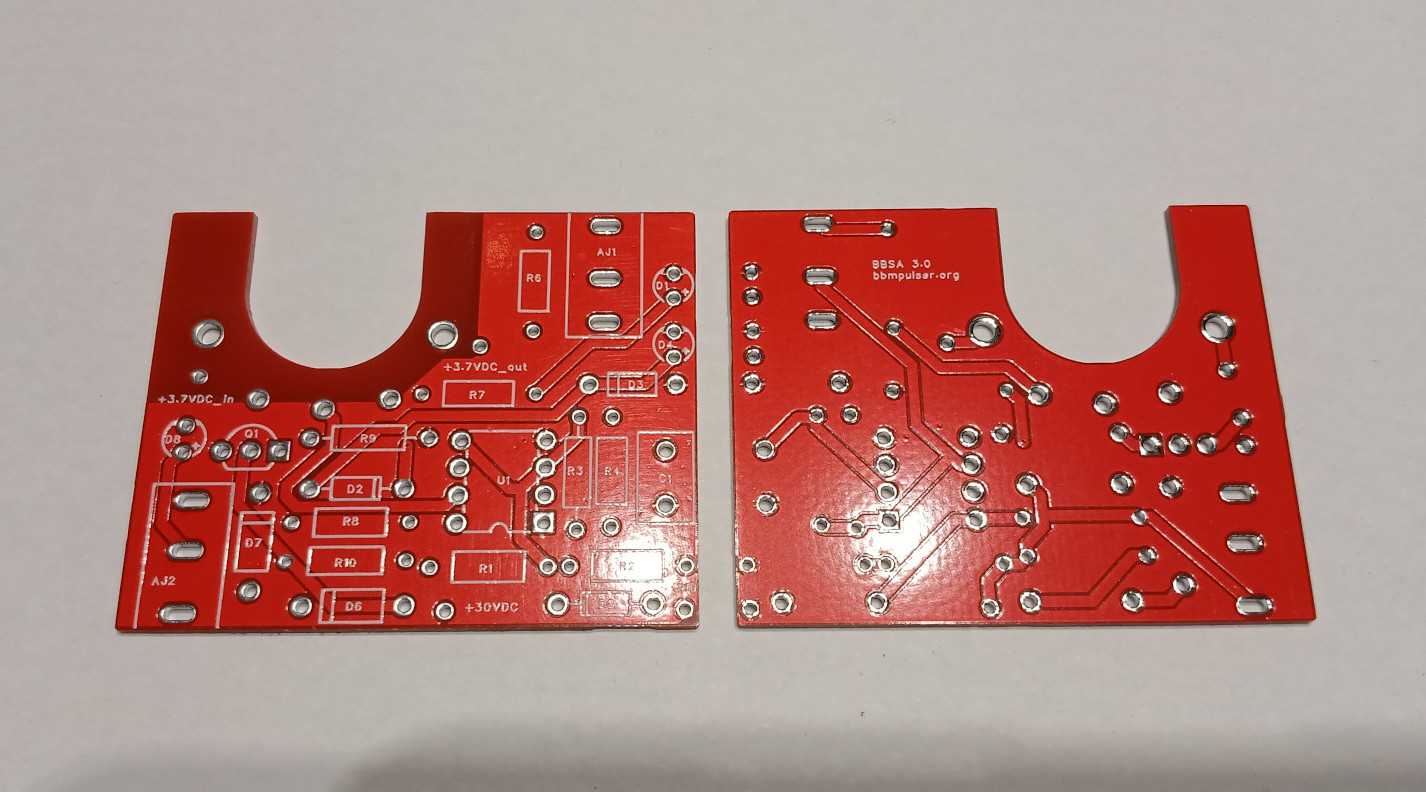

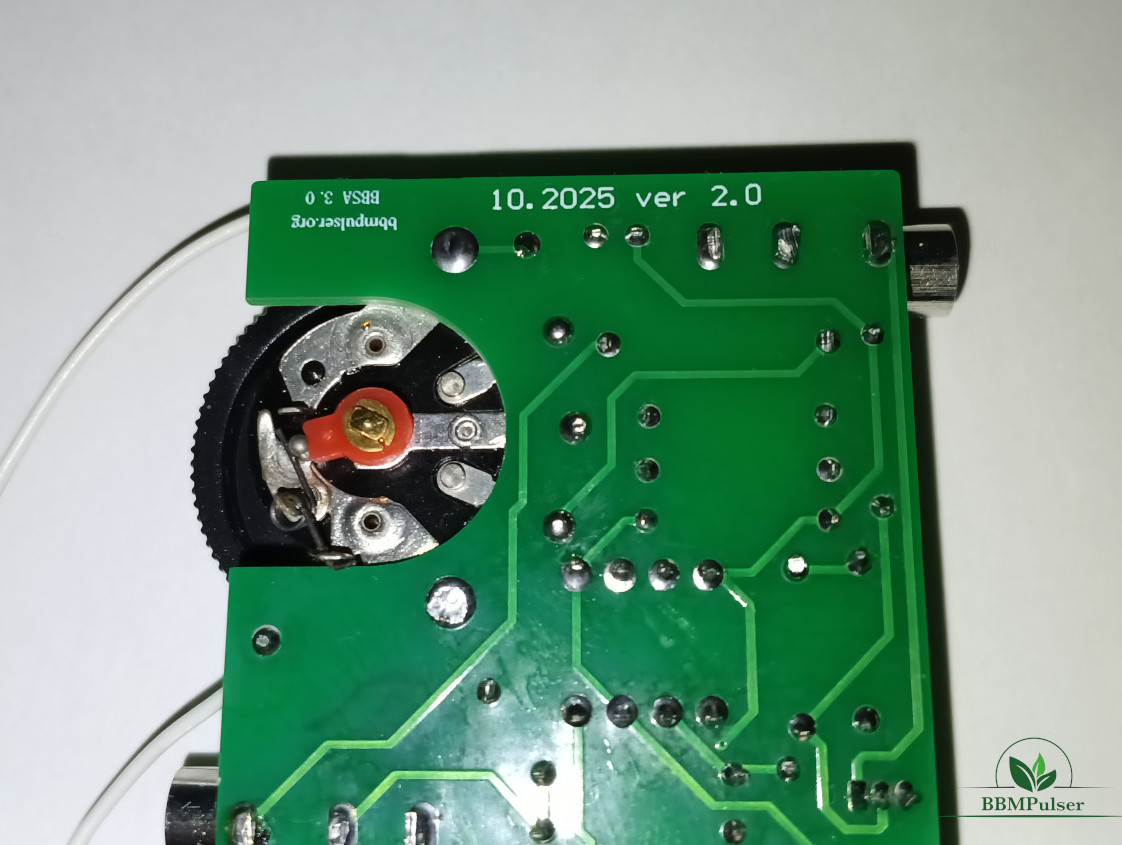

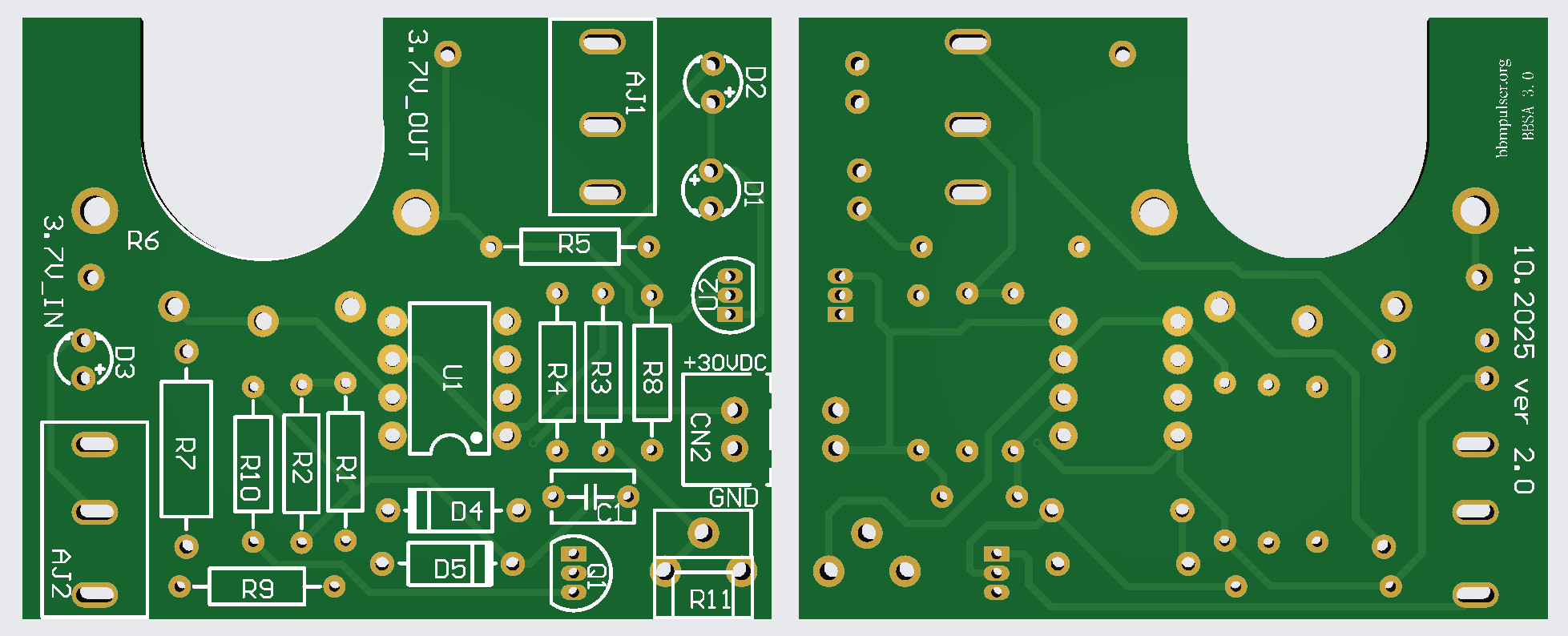

1. PCB (printed Circuit Board) BBSA 1.0 – $4.00 Pic

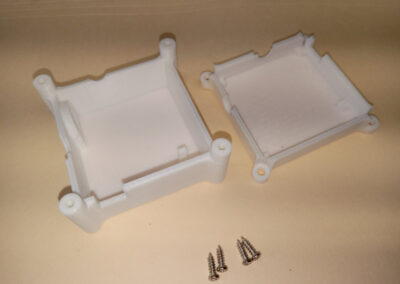

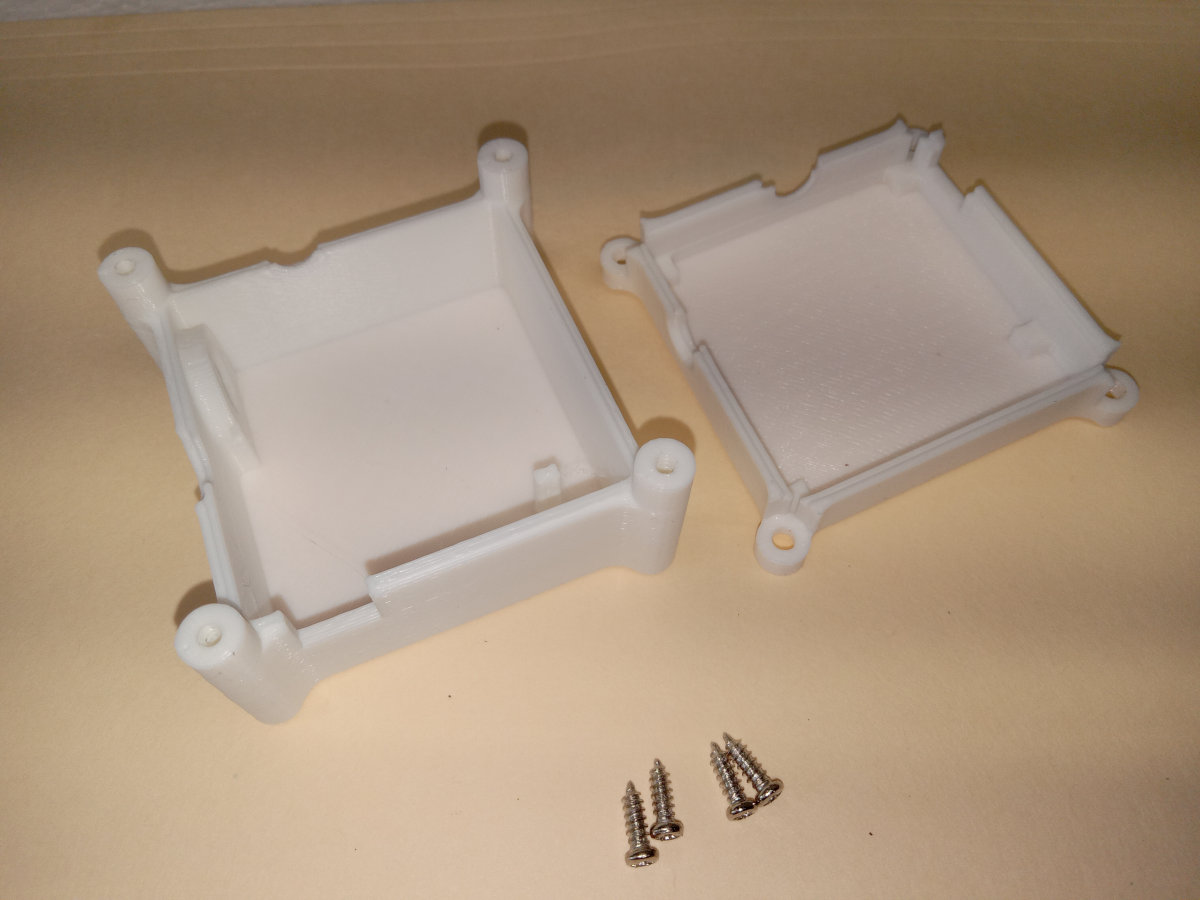

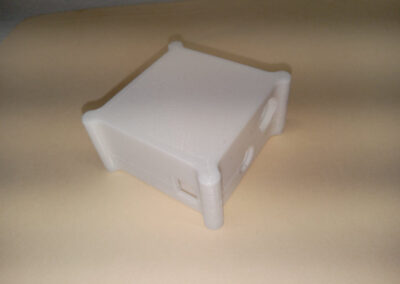

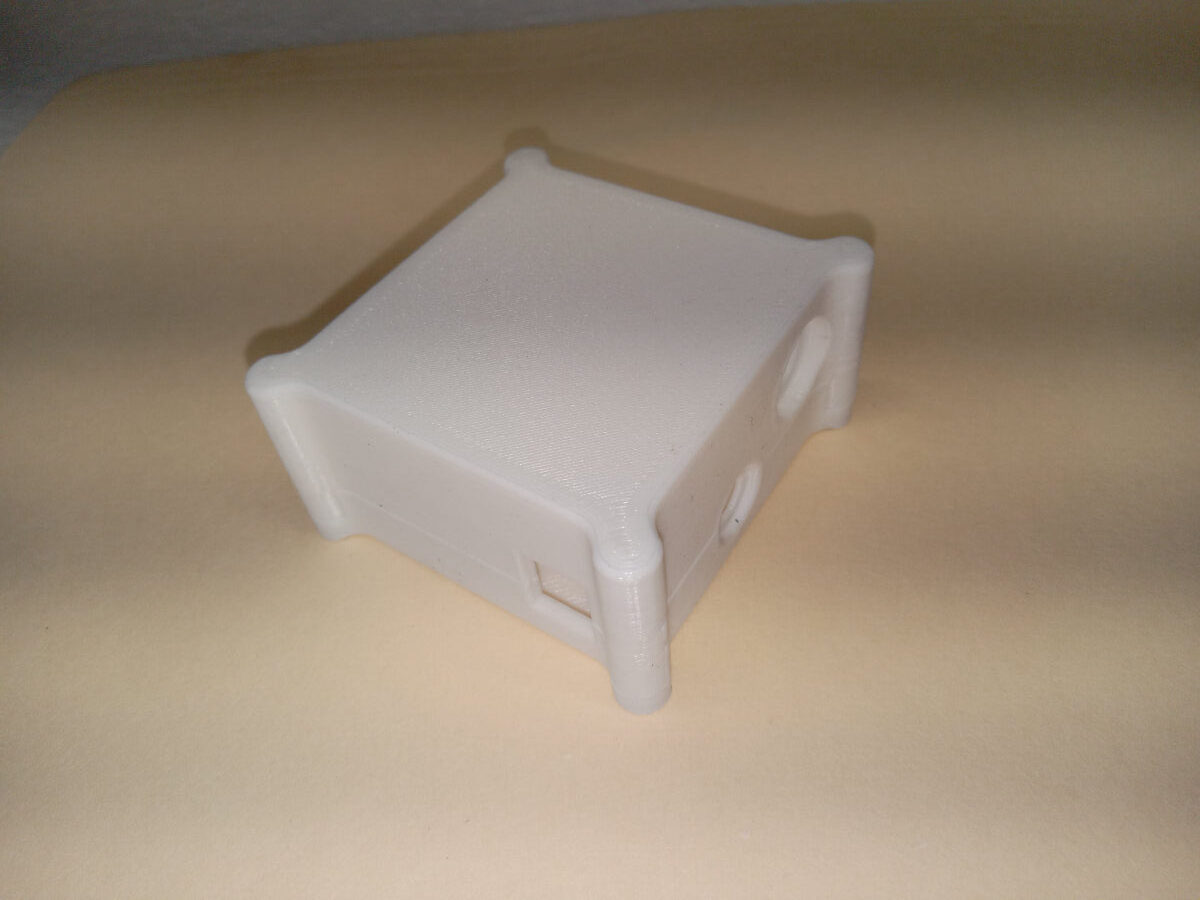

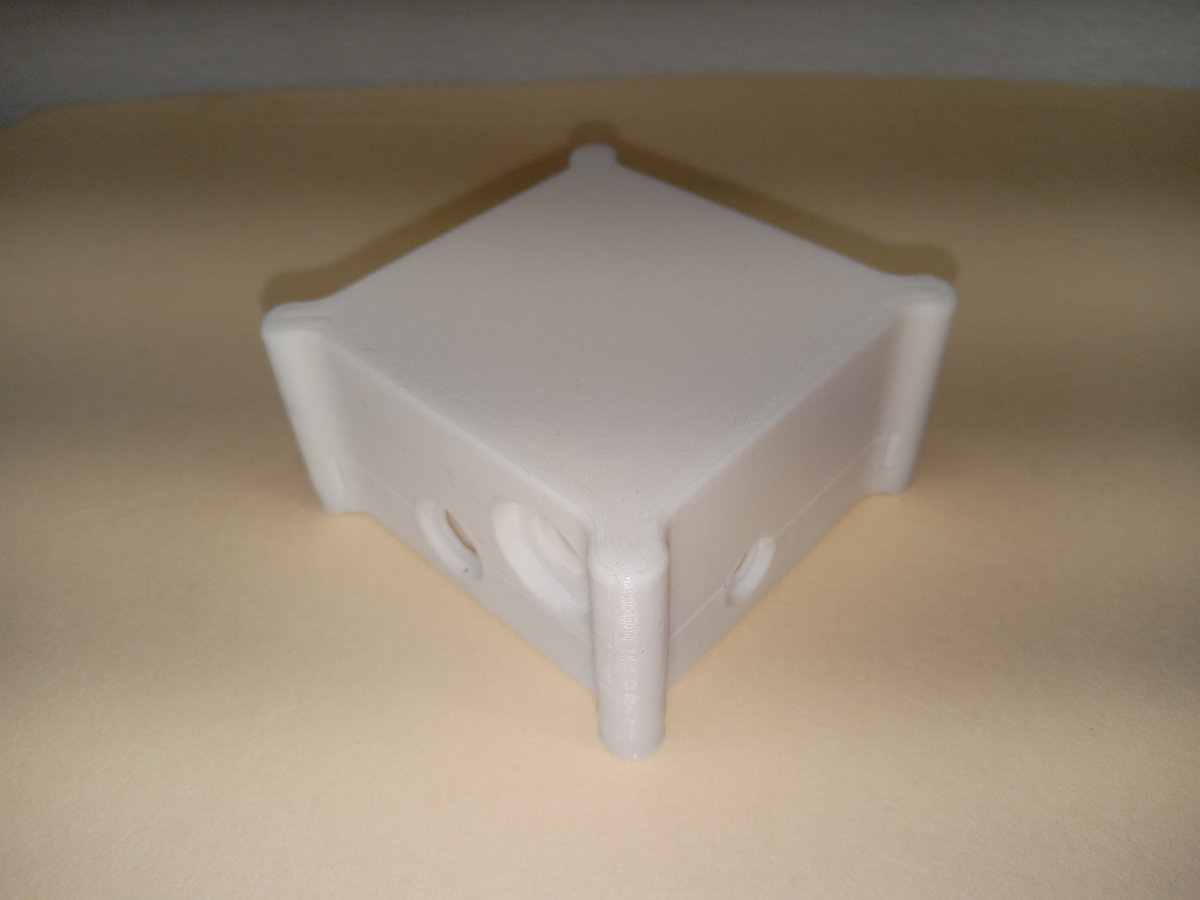

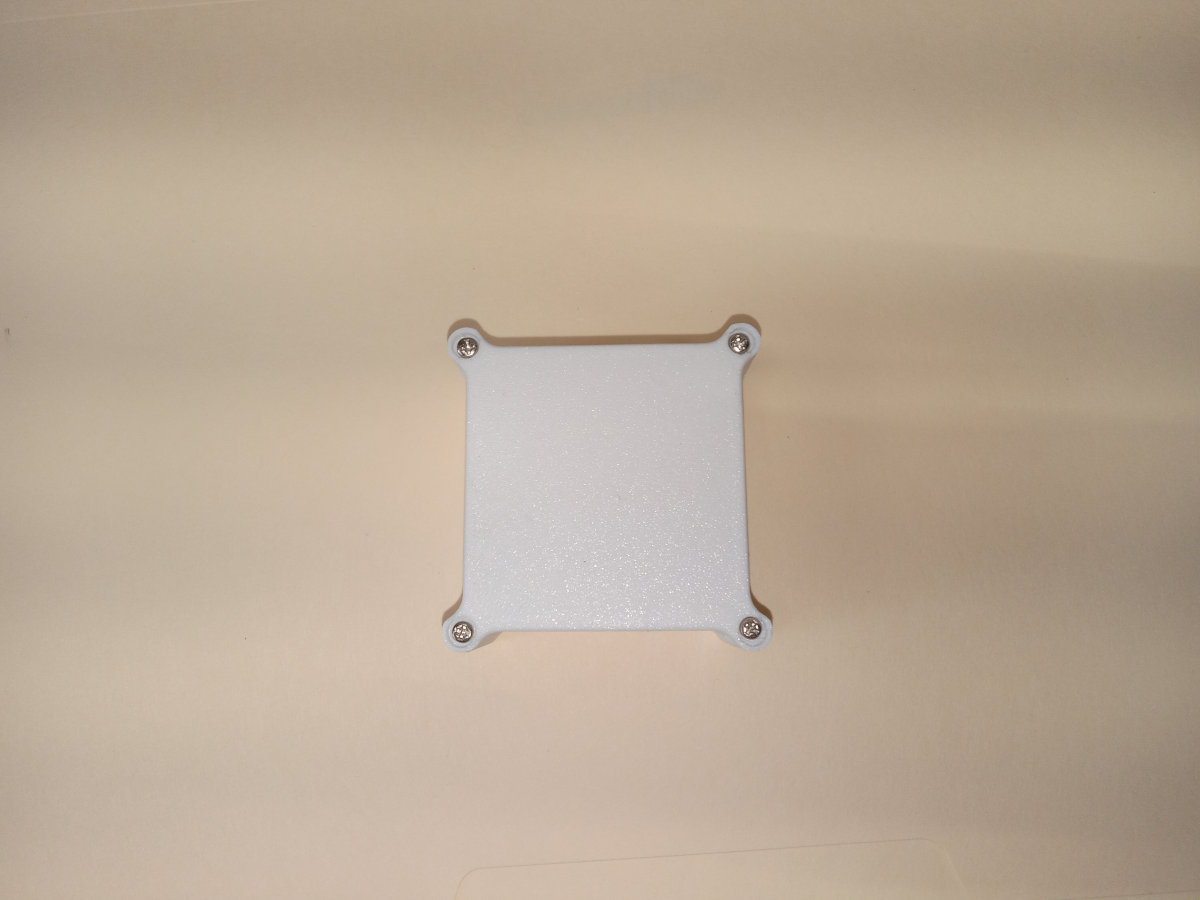

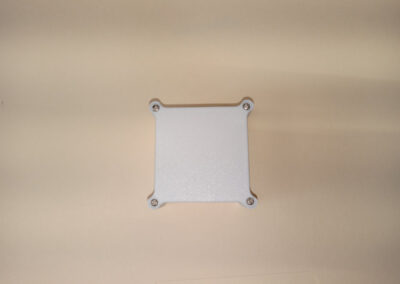

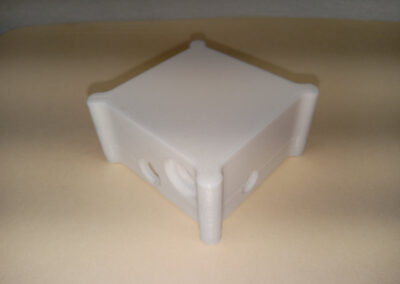

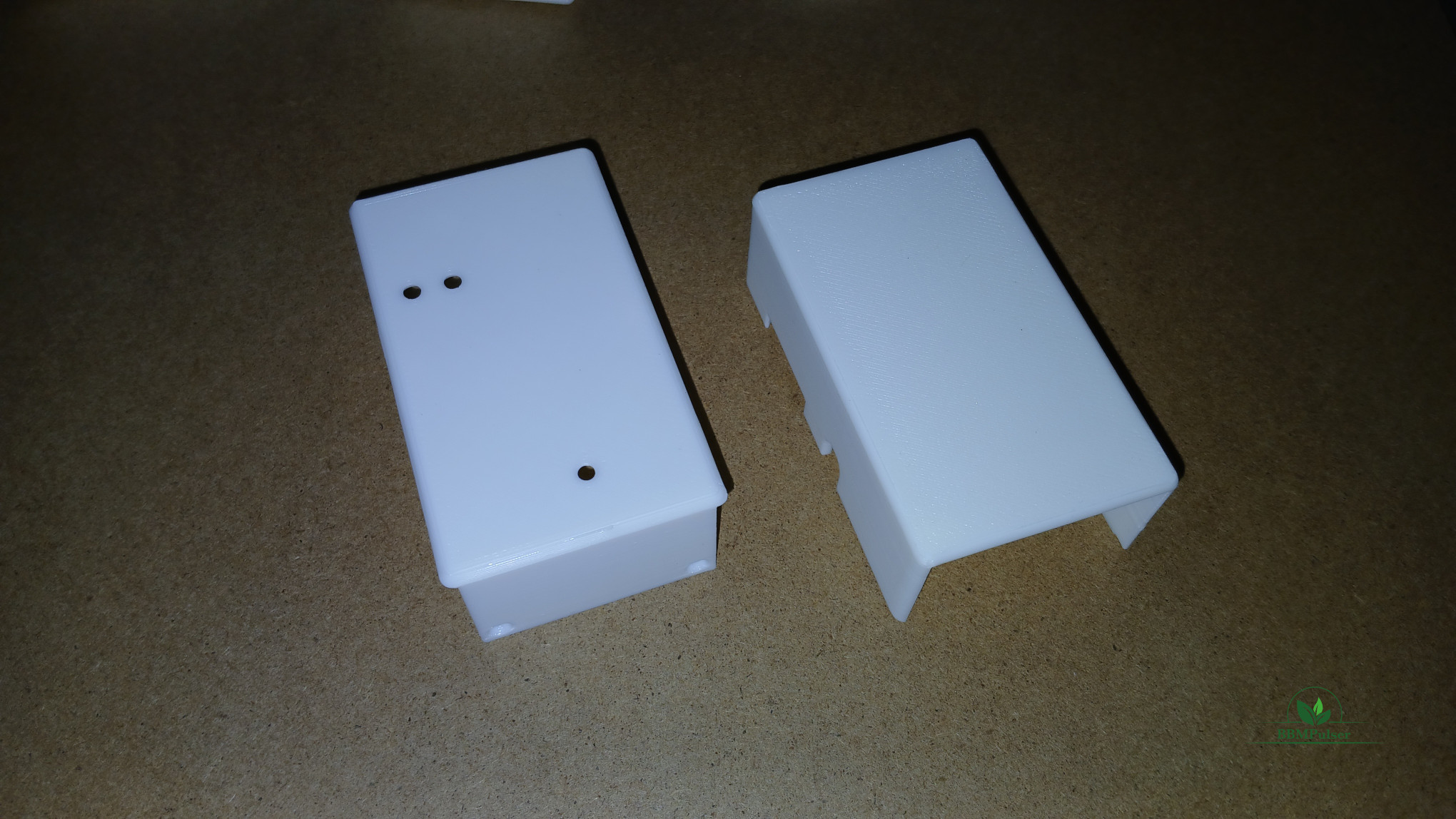

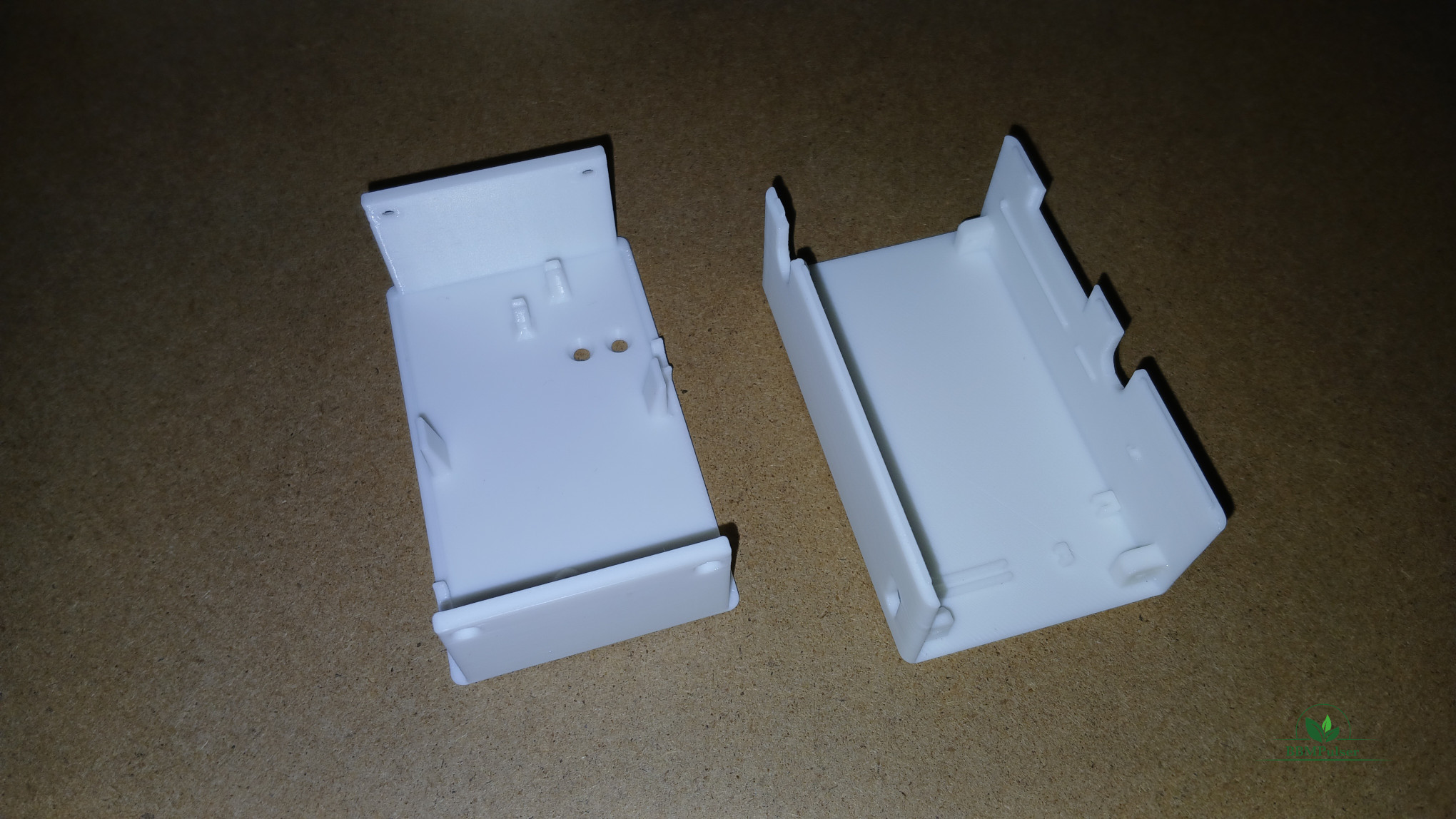

2. 3D Printed Case – $8.00 Pic Available ver 1.2 or ver 1.3, I prefer ver 1.2, its more compact. Available gray and white colors, please specify in your email when ordering

3. Label for 3D printed Case $2.50

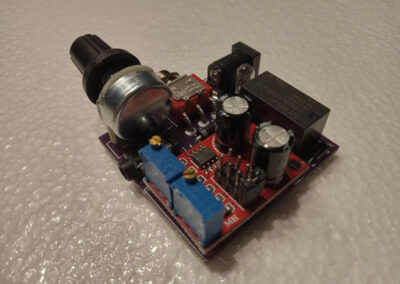

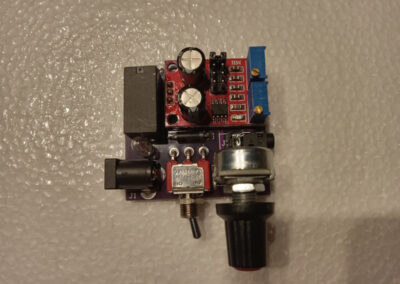

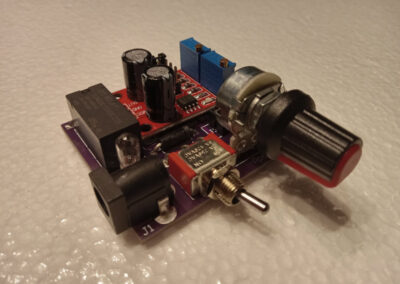

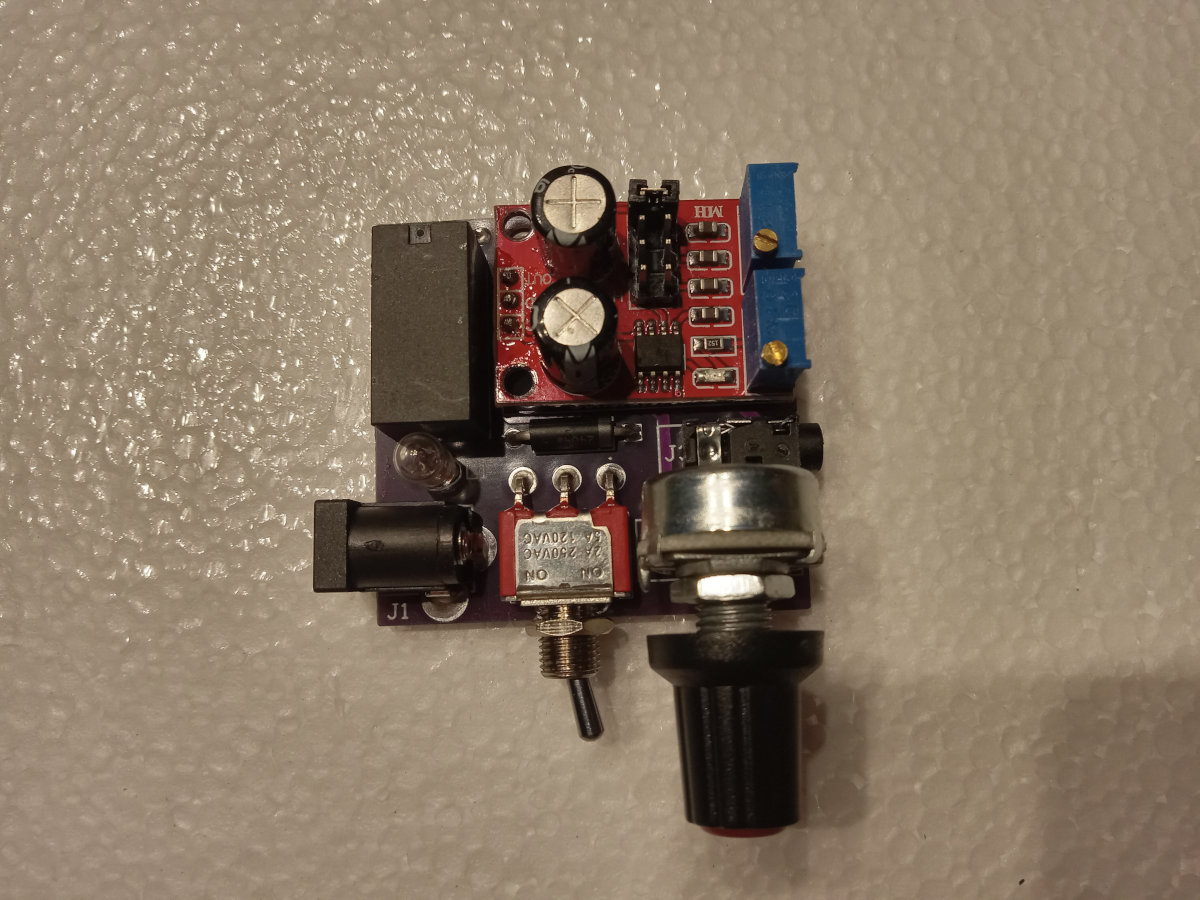

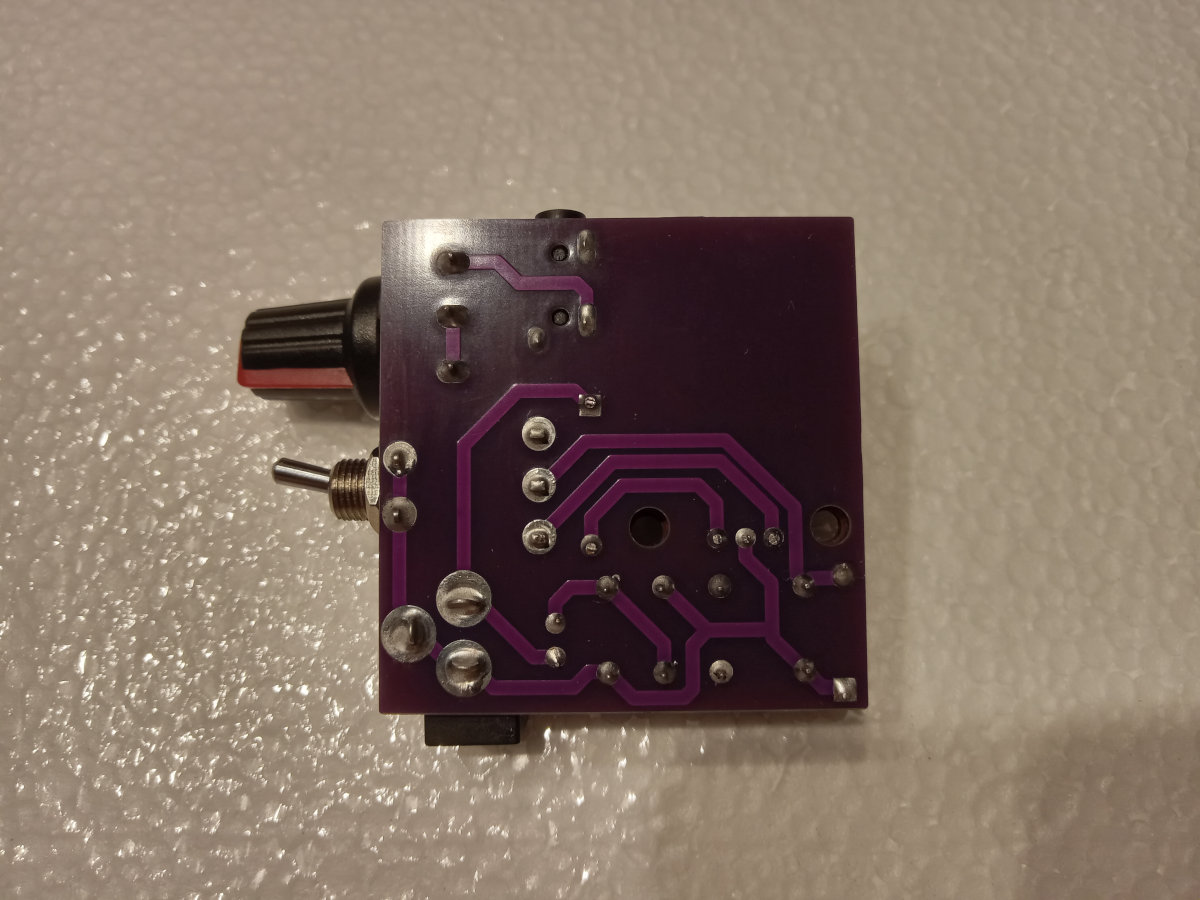

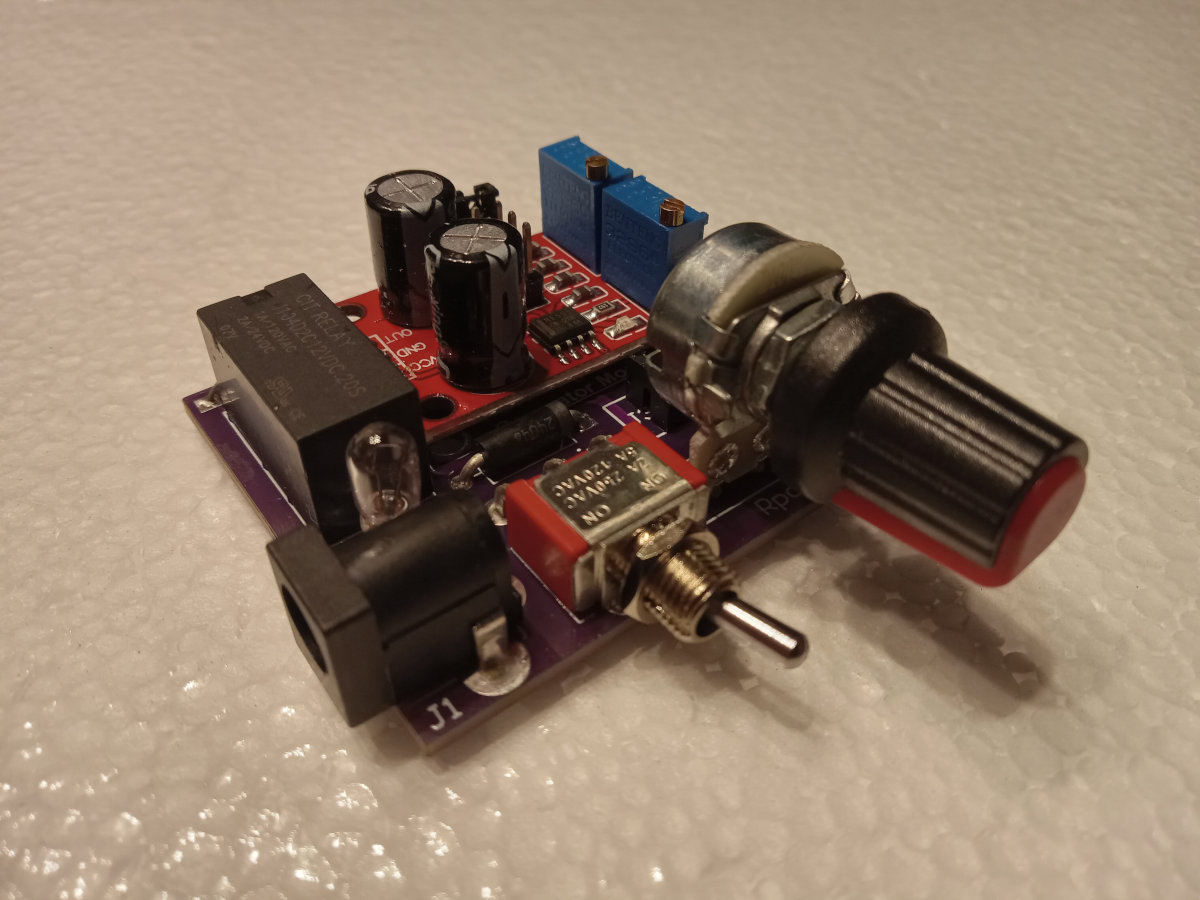

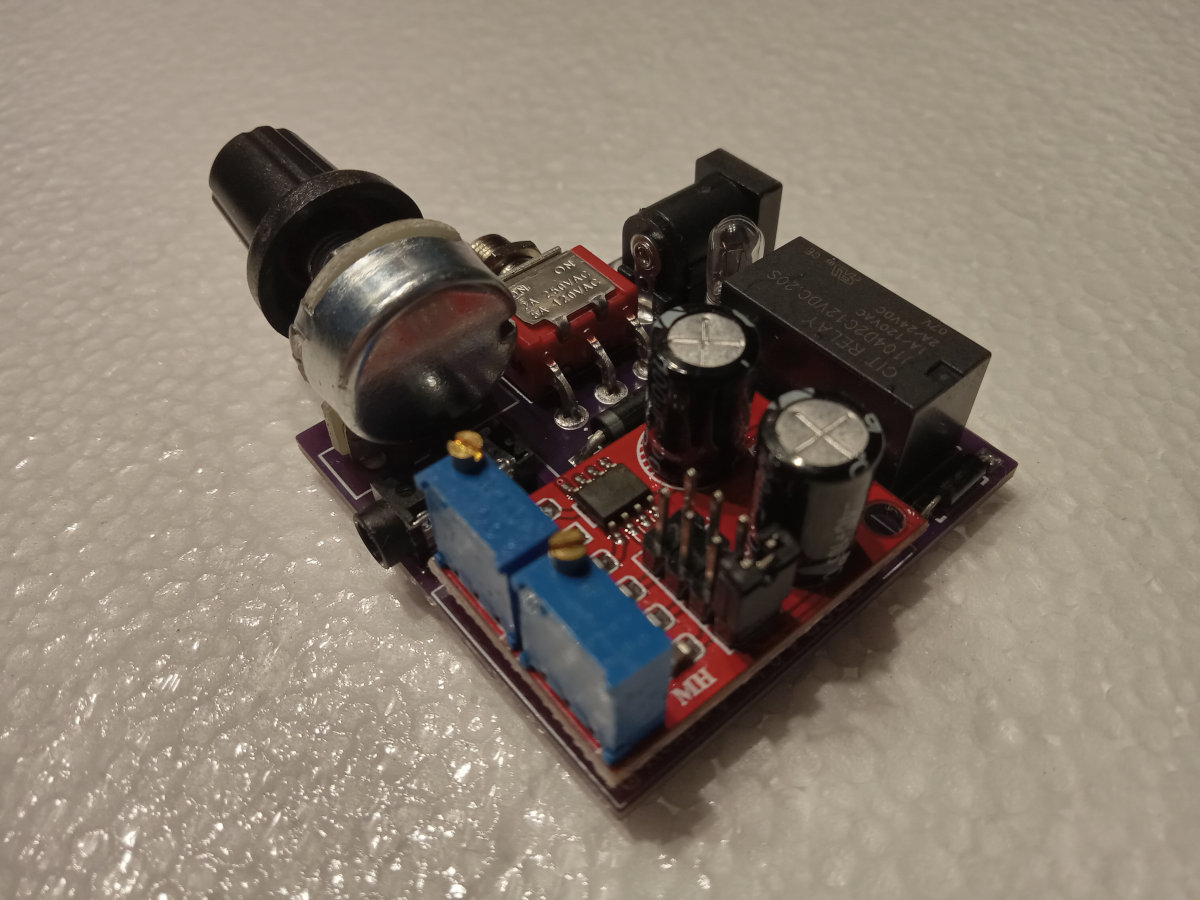

4. Pre-built (all the components) and configured PCB $25.00

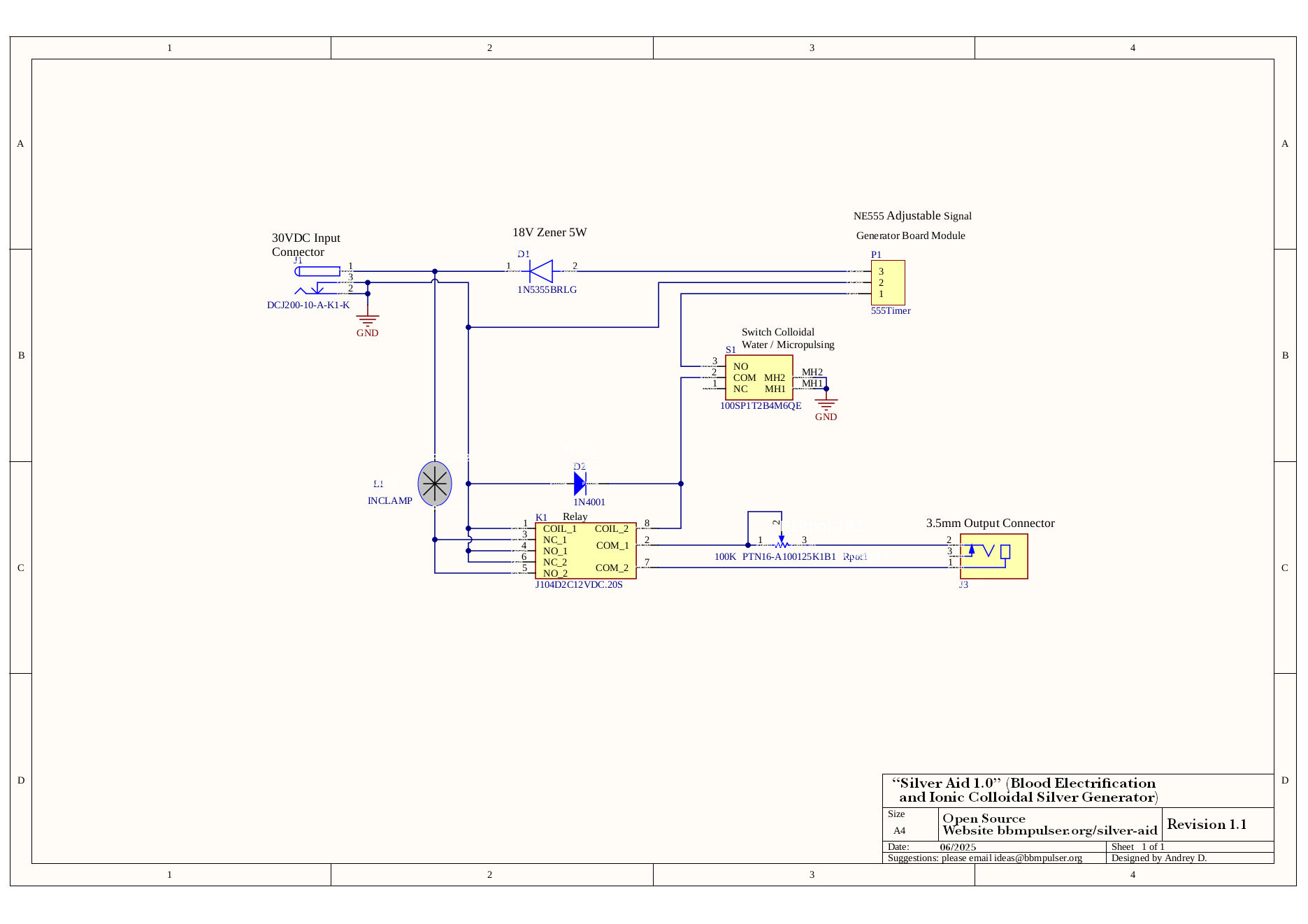

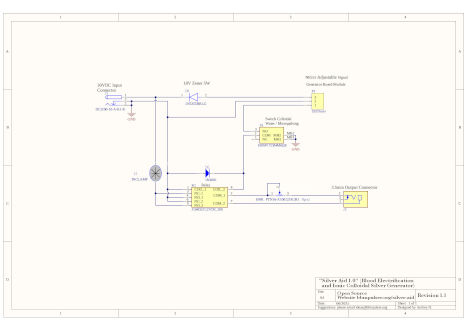

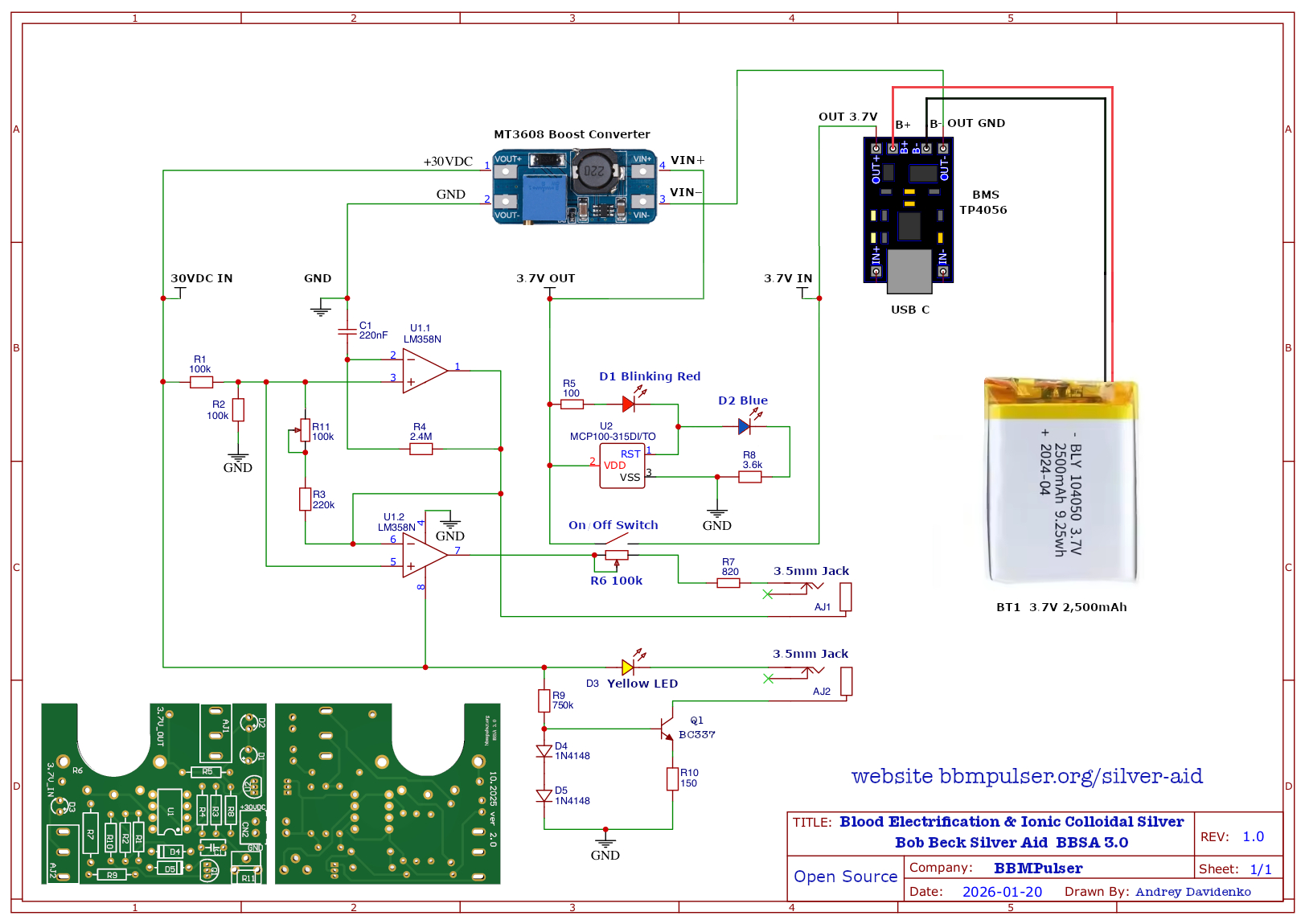

Download Circuit here (pdf)

Web Links for all components.txt

Parts information.zip

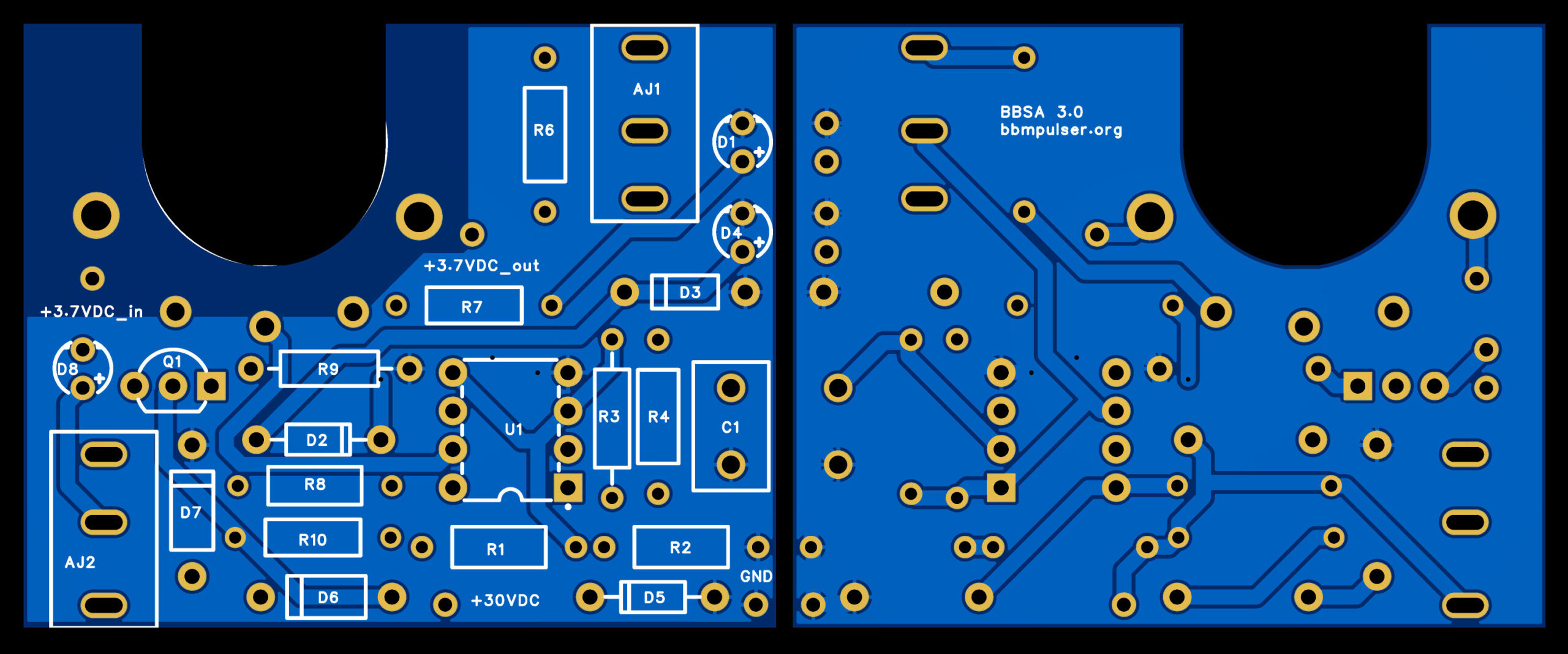

Gerber files for PCB Production.zip

BBSA 1.0 Case Front Label.jpg

3D Printed Case Top and Bottom STL files ver 1.2.zip

3D Printer and Production Web Links Info ver 1.2.txt

—————————————————————-

3D Printer Case Top and Bottom files ver 1.3.zip

3D Printer and Production Web Links Info ver 1.3.txt

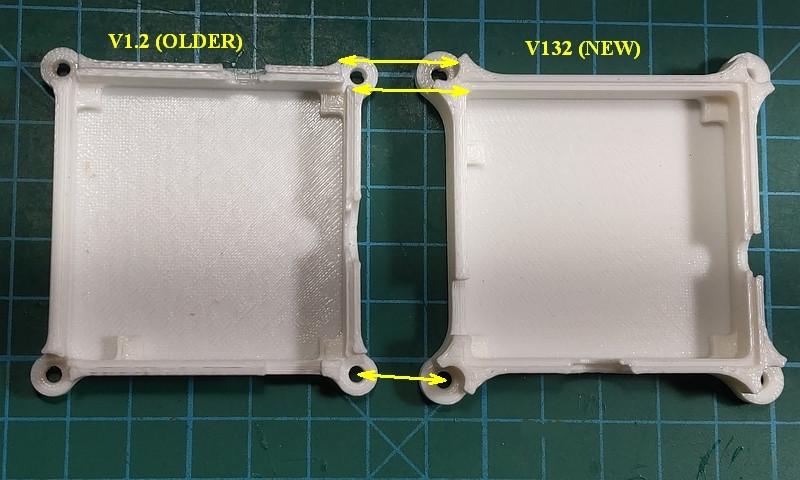

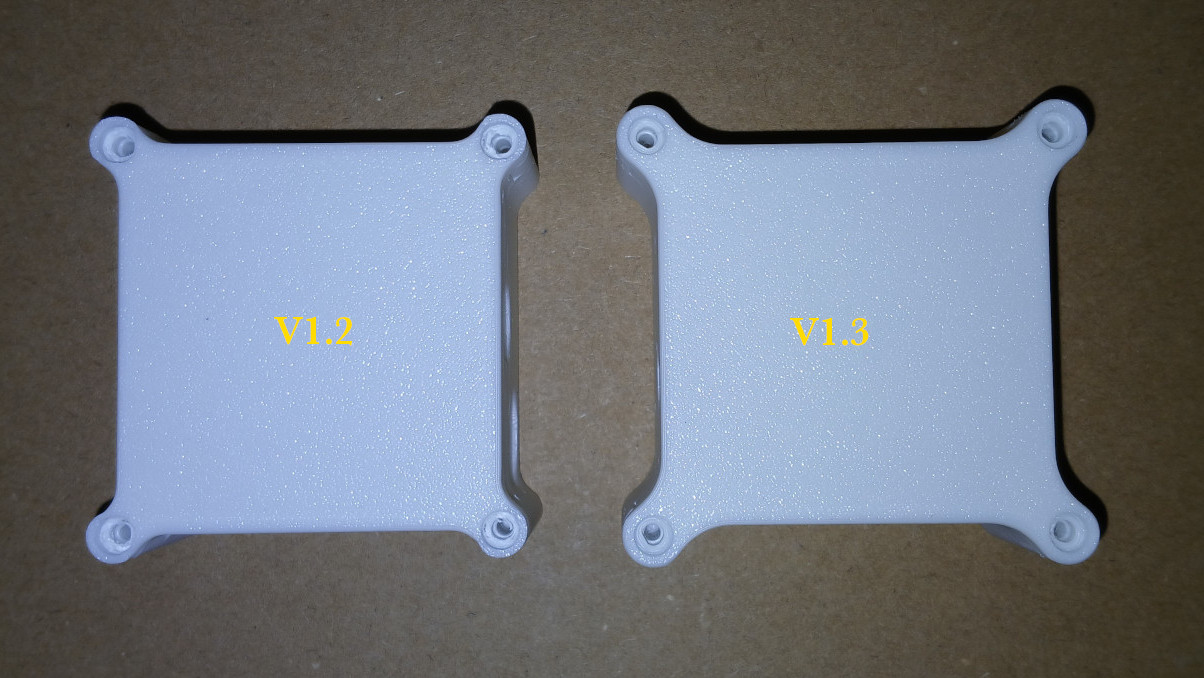

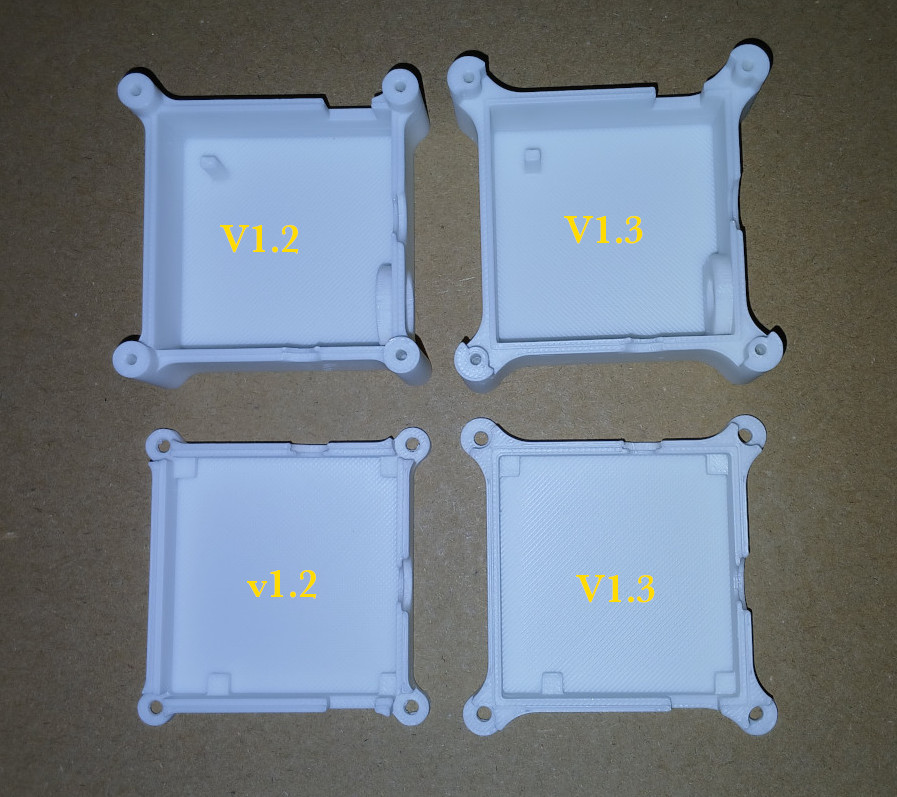

3D Printed Case difference between ver 1.2 and ver 1.3

You can reach me support@bbmpulser.org

Colloidal Silver Generator by Costas F.

Notes from Kostas F.

Here is a circuit of a Bob Beck very simple Colloidal Silver Generator with PCB
I’ve made 10 years ago and I use it up to now.
The reason for switching polarity on the output is for electrode to wear out evenly.

Original pdf file is here
